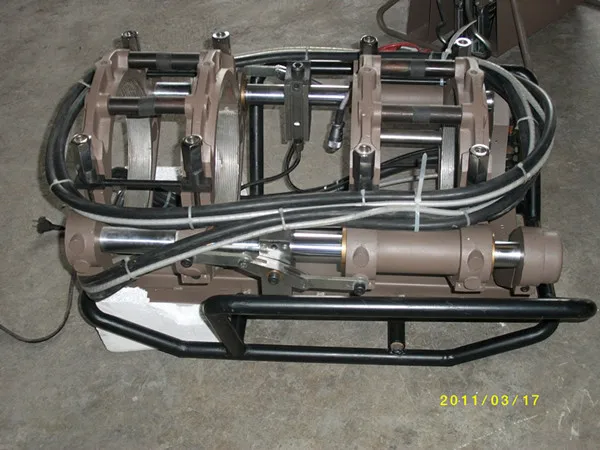

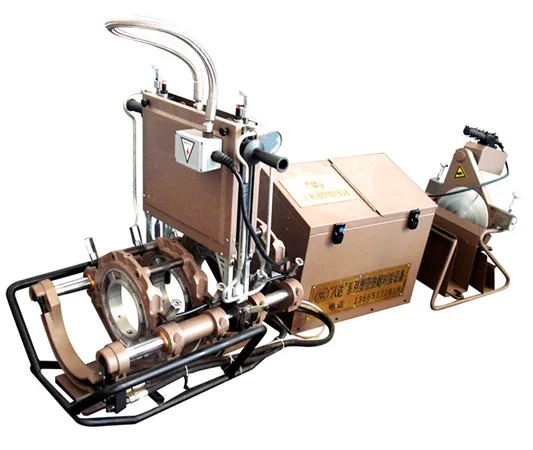

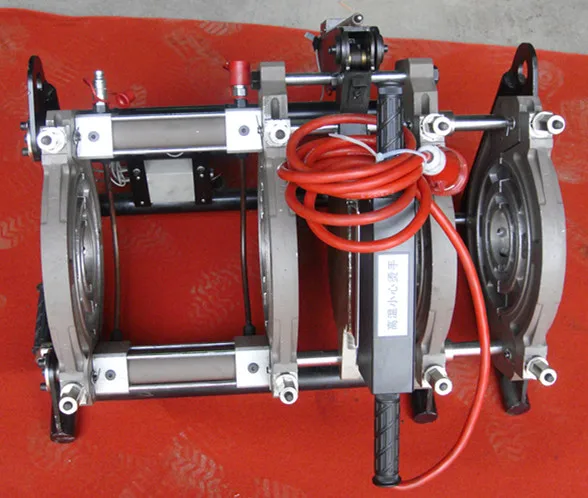

1.These ABBD(B) series is a new generation of fully automatic butt fusion welding equipment.
2.This equipment can finish the whole welding process according to the national standard,so to ensure the reliability of the welding,and eliminate human disturbance as much as possible.
3.The machine can record all parameters in welding process automatically. In order to facilitate trace ability,the data can be exported from the machine for storage.
4.The machine has automatic pop-up enclosed heating plate structure,it can protect the safety of the operator,and minimize the switch time.
5.We use sensors for testing,to make the joint edge evenly.The machine has the automatic pressure compensation function in cooling phase.This protecting function can improve the quality of the welded junction,eliminates the impact of human factors completely.
6.The machine can increase or decrease welding parameters automatically in real time according to the ambient temperature so to adapt all kinds of climates characteristics in different places.

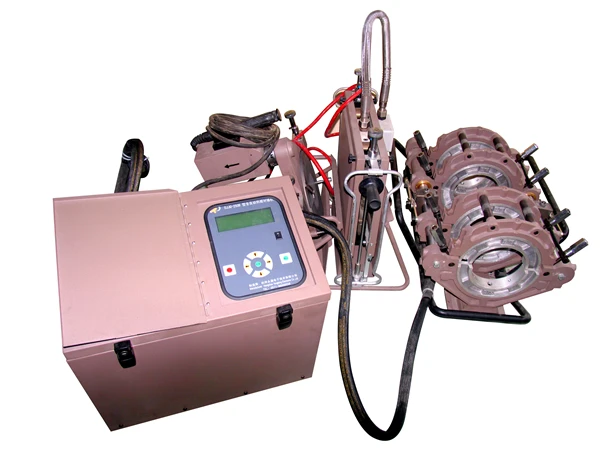

7.Large LCD screen make the machine easy to operate.
Technical Parameters
Model
ABBD160A/V/W
ABBD250A/V/W
ABBD315A/V/W
ABBD450A/V
ABBD630A/V
Welding range(mm)
63-160
90-250
110-315
280-450
400-630
Supply voltage
185V-245V 50Hz
AC
185V-245V 50Hz
AC
185V-245V 50Hz
AC
380V±20V 50Hz
AC
380V±20V 50Hz
AC
Control box power
750W
900W
900W
1800W
1800W
Cutter motor power
850W
1360W
1360W
1500W
1500W
Heating plate power
1000W
2100W
3100W
5200W
9200W
Total power
2600W
4360W
5360W
8500W
12500W
Ambient temperature
-10°C~+40°C
-10°C~+40°C
-10°C~+40°C
-10°C~+40°C
-10°C~+40°C
Operating pressure range
≥8Mpa
≥8Mpa
≥8Mpa
≥8Mpa
≥8Mpa
Pressure resolution
0.01Mpa
0.01Mpa
0.01Mpa
0.01Mpa
0.01Mpa
Pressure accuracy
0.1Mpa
0.1Mpa
0.1Mpa
0.1Mpa
0.1Mpa
Time resolution
0.1S
0.1S
0.1S
0.1S
0.1S
Time accuracy
1S
1S
1S
1S
1S
Heating plate temperature control accuracy
±3°C
±3°C
±3°C
±3°C
±3°C
Cross-sectional area of the cylinder
6.26cm²
11cm²
20cm²
22.36cm²
23.06cm²
Extraction method of heating plate
The heating plate of A series is manual,V and W series are automatic one
Manual
Manual
Specifications subject to change without notice
Packaging & Shipping
1.The shipping: 3 days after received payment
2.The packaging: standard export plywood cases
3:Our machine will be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.
Our Services
1.One year warranty,life-long maintenance.
2.In warranty time,if non-artificial reason damaged can take old change new for free.Out of warranty time,we can offer maintenance service(charge for material cost).
3.Engineers available to service machinery overseas.
