 Rockwell PowerFlex 523, 525, 527 Allen Bradley  inverter

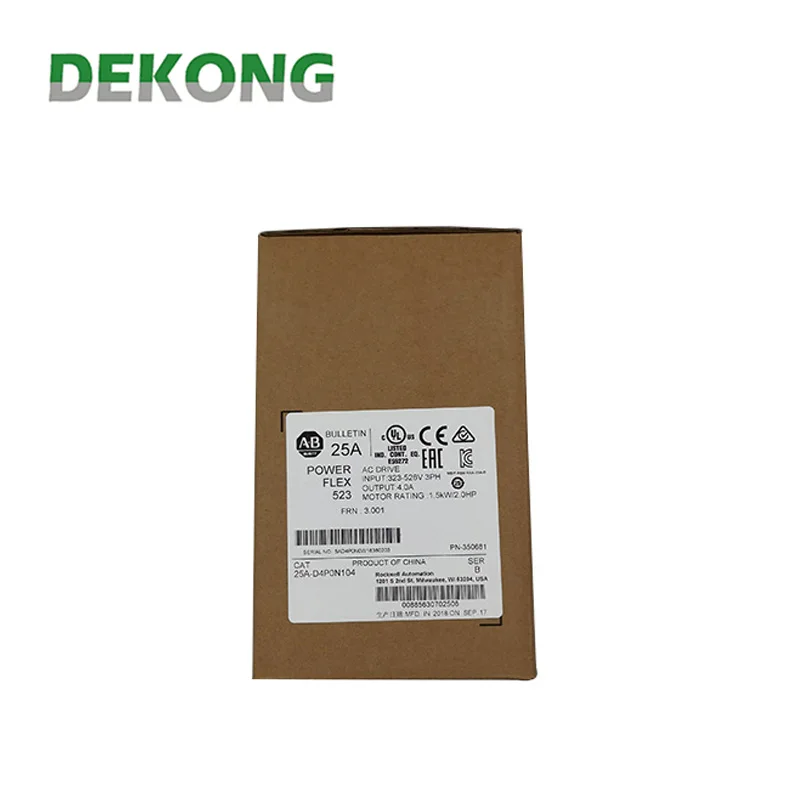

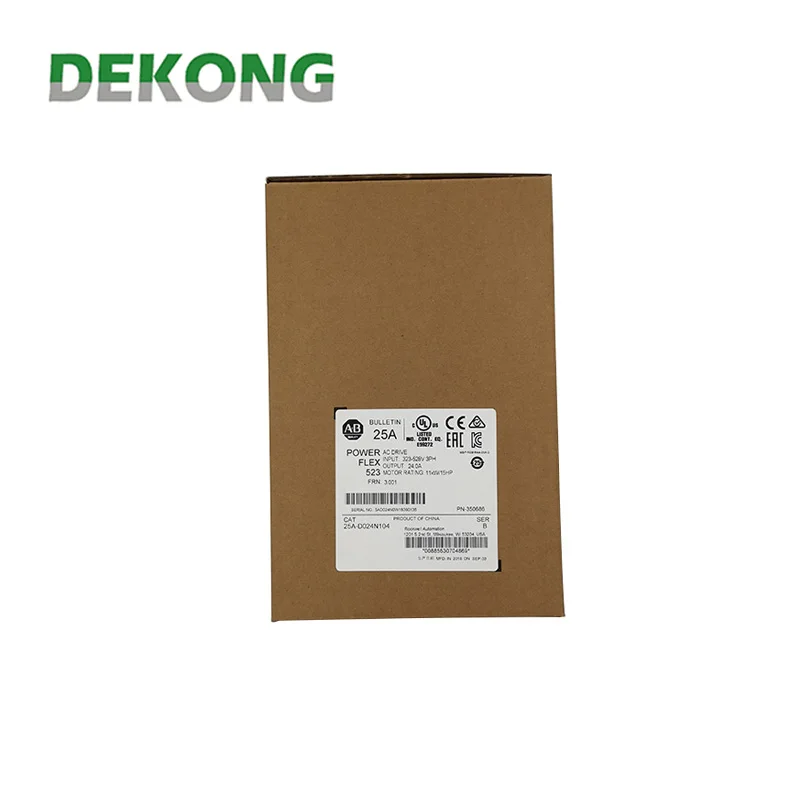

PowerFlex 523 AC Drives

PowerFlex® 523 AC Drives are cost-effective and ideal for standalone machines. These drives provide an innovative, modular design that supports fast and easy installation and configuration. In addition, they offer USB programming, application-specific configuration, and flexible mounting options. PowerFlex 523 AC drives offer a power rating of 0.2...22 kW (0.25...30 Hp) with global voltage classes of 100...600V. They support a wide range of motor control, offer a compact footprint, and operate at temperatures as high as 70 °C (158 °F).



PowerFlex 523  AC Drive  Single-Phase ; 240 VAC  No Brake No Filter
25A-A1P6N104	PowerFlex 523 ; 0.2kW ; 240 VAC ; 1P
25A-A2P5N104	PowerFlex 523 ; 0.4kW ; 240 VAC ; 1P
25A-A4P8N104	PowerFlex 523 ; 0.75kW ; 240 VAC ; 1P
25A-A8P0N104	PowerFlex 523 ; 1.5kW ; 240 VAC ; 1P
25A-A011N104	PowerFlex 523 ; 2.2kW ; 240 VAC ; 1P
PowerFlex 523  AC Drive  Single-Phase ; 240 VAC  No Brake  EMC Filter
25A-A1P6N114	PowerFlex 523 ; 0.2kW ; 240 VAC ; 1P
25A-A2P5N114	PowerFlex 523 ; 0.4kW ; 240 VAC ; 1P
25A-A4P8N114	PowerFlex 523 ; 0.75kW ; 240 VAC ; 1P
25A-A8P0N114	PowerFlex 523 ; 1.5kW ; 240 VAC ; 1P
25A-A011N114	PowerFlex 523 ; 2.2kW ; 240 VAC ; 1P
PowerFlex 523  AC Drive  Three-Phase ; 380-480 VAC  No Filter
25A-D1P4N104	PowerFlex 523 ; 0.4kW ; 480 VAC ; 3P
25A-D2P3N104	PowerFlex 523 ; 0.75kW ; 480 VAC ; 3P
25A-D4P0N104	PowerFlex 523 ; 1.5kW ; 480 VAC ; 3P
25A-D6P0N104	PowerFlex 523 ; 2.2kW ; 480 VAC ; 3P
25A-D010N104	PowerFlex 523 ; 4 kW ; 480 VAC ; 3P
25A-D013N104	PowerFlex 523 ; 5.5 kW ; 480 VAC ; 3P
25A-D017N104	PowerFlex 523 ; 7.5 kW ; 480 VAC ; 3P
25A-D024N104	PowerFlex 523 ; 11 kW ; 480 VAC ; 3P
25A-D030N104	PowerFlex 523 ; 15 kW ; 480 VAC ; 3P
PowerFlex 523  AC Drive  Three-Phase ; 380-480 VAC  With EMC Filter
25A-D1P4N114	PowerFlex 523 ; 0.4kW ; 480 VAC ; 3P
25A-D2P3N114	PowerFlex 523 ; 0.75kW ; 480 VAC ; 3P
25A-D4P0N114	PowerFlex 523 ; 1.5kW ; 480 VAC ; 3P
25A-D6P0N114	PowerFlex 523 ; 2.2kW ; 480 VAC ; 3P
25A-D010N114	PowerFlex 523 ; 4 kW ; 480 VAC ; 3P
25A-D013N114	PowerFlex 523 ; 5.5 kW ; 480 VAC ; 3P
25A-D017N114	PowerFlex 523 ; 7.5 kW ; 480 VAC ; 3P
25A-D024N114	PowerFlex 523 ; 11 kW ; 480 VAC ; 3P
25A-D030N114	PowerFlex 523 ; 15 kW ; 480 VAC ; 3P
25A-D037N114	PowerFlex 523 ; 18.5 kW ; 480 VAC ; 3P
25A-D043N114	PowerFlex 523 ; 22 kW ; 480 VAC ; 3P

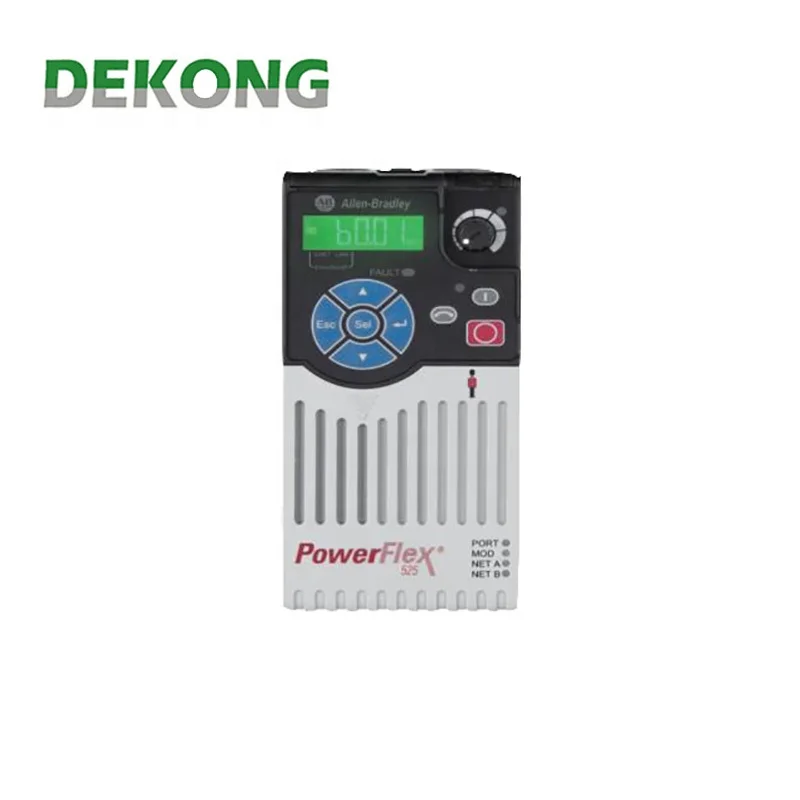

PowerFlex 525 AC Drives

PowerFlex® 525 AC Drives feature an innovative, modular design to support fast and easy installation and configuration. This next generation of compact drives offers embedded EtherNet/IP™ communications, USB programming, and standard safety features. PowerFlex 525 drives, which offer a power rating of 0.4...22 kW (0.5...30 Hp) with global voltage classes of 100...600V, provide a variety of motor control and flexible mounting options. PowerFlex 525 AC drives operate at temperatures as high as 70 °C (158 °F), and they are ideal for applications such as conveyors, fans, pumps, and mixers.



PowerFlex 525  AC Drive  Single-Phase ; 240 VAC  No Brake No Filter
25B-A2P5N104	PowerFlex 525 ; 0.4kW ; 240 VAC ; 1P
25B-A4P8N104	PowerFlex 525 ; 0.75kW ; 240 VAC ; 1P
25B-A8P0N104	PowerFlex 525 ; 1.5kW ; 240 VAC ; 1P
25B-A011N104	PowerFlex 525 ; 2.2kW ; 240 VAC ; 1P
PowerFlex 525  AC Drive  Single-Phase ; 240 VAC  No Brake No Filter EMC Filter
25B-A2P5N114	PowerFlex 525 ; 0.4kW ; 240 VAC ; 1P
25B-A4P8N114	PowerFlex 525 ; 0.75kW ; 240 VAC ; 1P
25B-A8P0N114	PowerFlex 525 ; 1.5kW ; 240 VAC ; 1P
25B-A011N114	PowerFlex 525 ; 2.2kW ; 240 VAC ; 1P
PowerFlex 525  AC Drive  Three-Phase ; 380-480 VAC  No Filter
25B-D1P4N104	PowerFlex 525 ; 0.4kW ; 480 VAC ; 3P
25B-D2P3N104	PowerFlex 525 ; 0.75kW ; 480 VAC ; 3P
25B-D4P0N104	PowerFlex 525 ; 1.5kW ; 480 VAC ; 3P
25B-D6P0N104	PowerFlex 525 ; 2.2kW ; 480 VAC ; 3P
25B-D010N104	PowerFlex 525 ; 4 kW ; 480 VAC ; 3P
25B-D013N104	PowerFlex 525 ; 5.5 kW ; 480 VAC ; 3P
25B-D017N104	PowerFlex 525 ; 7.5 kW ; 480 VAC ; 3P
25B-D024N104	PowerFlex 525 ; 11 kW ; 480 VAC ; 3P
25B-D030N104	PowerFlex 525 ; 15 kW ; 480 VAC ; 3P
PowerFlex 525  AC Drive  Three-Phase ; 380-480 VAC  With EMC Filter
25B-D1P4N114	PowerFlex 525 ; 0.4kW ; 480 VAC ; 3P
25B-D2P3N114	PowerFlex 525 ; 0.75kW ; 480 VAC ; 3P
25B-D4P0N114	PowerFlex 525 ; 1.5kW ; 480 VAC ; 3P
25B-D6P0N114	PowerFlex 525 ; 2.2kW ; 480 VAC ; 3P
25B-D010N114	PowerFlex 525 ; 4 kW ; 480 VAC ; 3P
25B-D013N114	PowerFlex 525 ; 5.5 kW ; 480 VAC ; 3P
25B-D017N114	PowerFlex 525 ; 7.5 kW ; 480 VAC ; 3P
25B-D024N114	PowerFlex 525 ; 11 kW ; 480 VAC ; 3P
25B-D030N114	PowerFlex 525 ; 15 kW ; 480 VAC ; 3P
25B-D037N114	PowerFlex 525 ; 18.5 kW ; 480 VAC ; 3P
25B-D043N114	PowerFlex 525 ; 22 kW ; 480 VAC ; 3P





PowerFlex 527 AC Drives

Our PowerFlex® 527 AC Drives are designed to work exclusively with our Logix Programmable Automation Controllers (PACs). This allows the drive to leverage the capabilities of the controller and use Studio 5000 Logix Designer™ to help simplify machine development and use. This streamlined approach uses motion instructions that are shared by PowerFlex 527 AC drives and Kinetix® servo drives, providing the same user experience for configuration, programming, and control of both types of drives.



PowerFlex 527  AC Drive  Single-Phase ; 240 VAC  No Brake  No Filter
25C-A2P5N104	PowerFlex 527 ; 0.4kW ; 240 VAC ; 1P
25C-A4P8N104	PowerFlex 527 ; 0.75kW ; 240 VAC ; 1P
25C-A8P0N104	PowerFlex 527 ; 1.5kW ; 240 VAC ; 1P
25C-A011N104	PowerFlex 527 ; 2.2kW ; 240 VAC ; 1P
PowerFlex 527  AC Drive  Single-Phase ; 240 VAC  No Brake  No Filter with EMC Filter
25C-A2P5N114	PowerFlex 527 ; 0.4kW ; 240 VAC ; 1P
25C-A4P8N114	PowerFlex 527 ; 0.75kW ; 240 VAC ; 1P
25C-A8P0N114	PowerFlex 527 ; 1.5kW ; 240 VAC ; 1P
25C-A011N114	PowerFlex 527 ; 2.2kW ; 240 VAC ; 1P
PowerFlex 527  AC Drive  Three-Phase ; 380-480 VAC  No Filter
25C-D1P4N104	PowerFlex 527 ; 0.4kW ; 480 VAC ; 3P
25C-D2P3N104	PowerFlex 527 ; 0.75kW ; 480 VAC ; 3P
25C-D4P0N104	PowerFlex 527 ; 1.5kW ; 480 VAC ; 3P
25C-D6P0N104	PowerFlex 527 ; 2.2kW ; 480 VAC ; 3P
25C-D010N104	PowerFlex 527 ; 4 kW ; 480 VAC ; 3P
25C-D013N104	PowerFlex 527 ; 5.5 kW ; 480 VAC ; 3P
25C-D017N104	PowerFlex 527 ; 7.5 kW ; 480 VAC ; 3P
25C-D024N104	PowerFlex 527 ; 11 kW ; 480 VAC ; 3P
25C-D030N104	PowerFlex 527 ; 15 kW ; 480 VAC ; 3P
PowerFlex 527  AC Drive  Three-Phase ; 380-480 VAC  With EMC Filter
25C-D1P4N114	PowerFlex 527 ; 0.4kW ; 480 VAC ; 3P
25C-D2P3N114	PowerFlex 527 ; 0.75kW ; 480 VAC ; 3P
25C-D4P0N114	PowerFlex 527 ; 1.5kW ; 480 VAC ; 3P
25C-D6P0N114	PowerFlex 527 ; 2.2kW ; 480 VAC ; 3P
25C-D010N114	PowerFlex 527 ; 4 kW ; 480 VAC ; 3P
25C-D013N114	PowerFlex 527 ; 5.5 kW ; 480 VAC ; 3P
25C-D017N114	PowerFlex 527 ; 7.5 kW ; 480 VAC ; 3P
25C-D024N114	PowerFlex 527 ; 11 kW ; 480 VAC ; 3P
25C-D030N114	PowerFlex 527 ; 15 kW ; 480 VAC ; 3P
25C-D037N114	PowerFlex 527 ; 18.5 kW ; 480 VAC ; 3P
25C-D043N114	PowerFlex 527 ; 22 kW ; 480 VAC ; 3P
