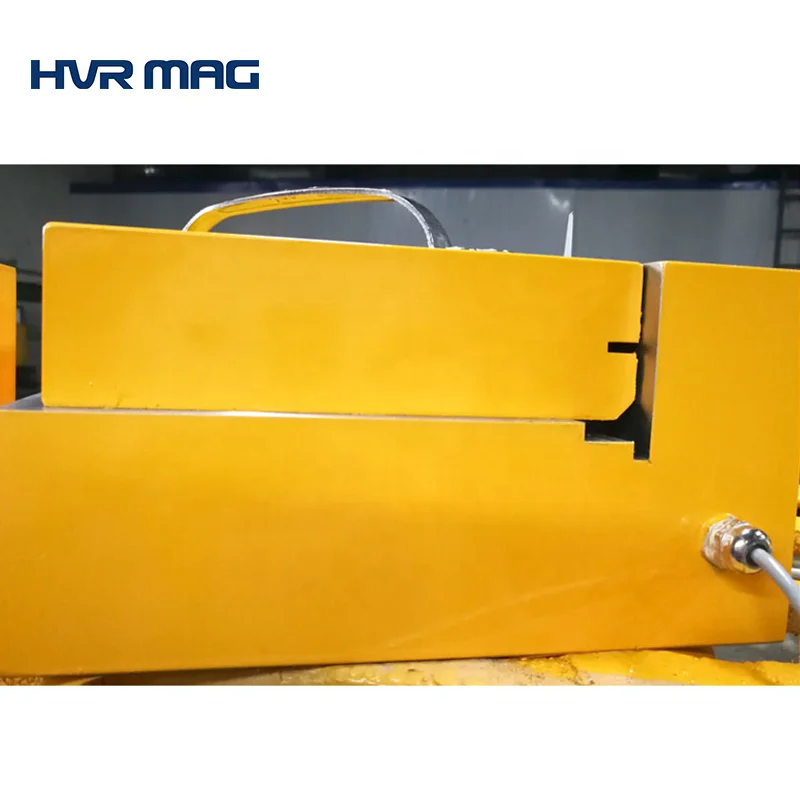

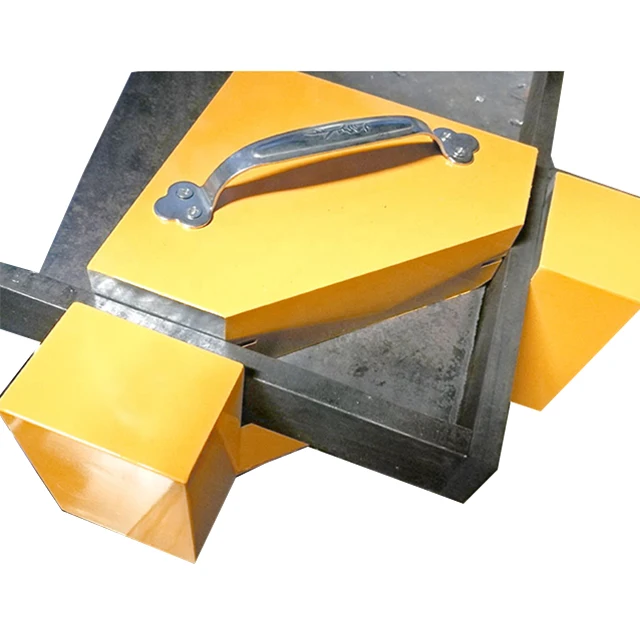

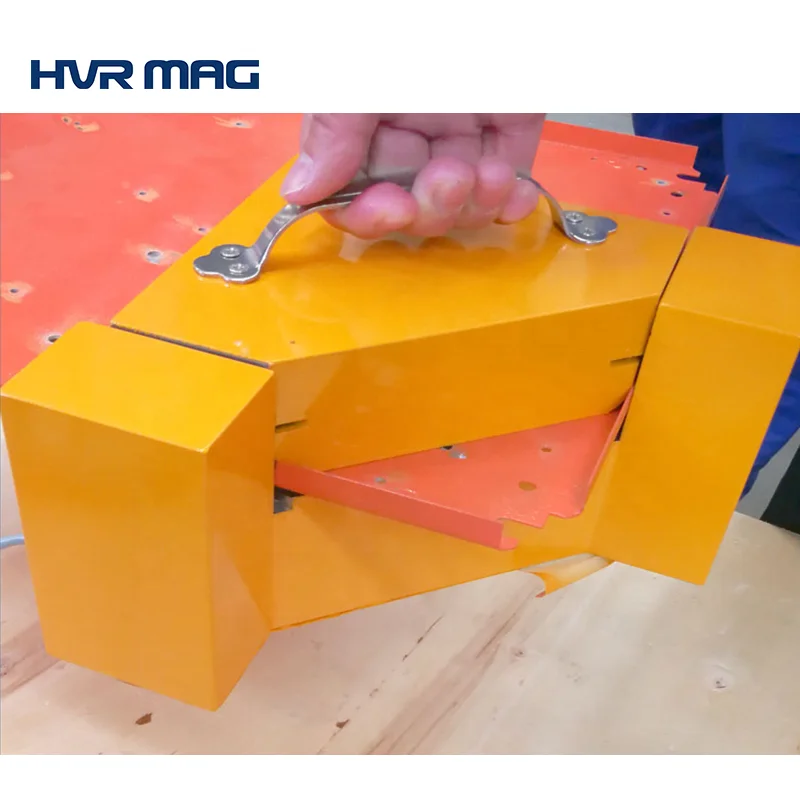

Magnetic angle welding holder for welding or assembly works

Characteristic of Magnetic angle welding holder

• Strong adhesive force for safe processing with unimagined production reserves:


• a 5-sided machining in one clamp


• minimum set-up times and increase of productivity


• increase of tool useful life and process safety





1.What is the Magnetic angle welding holder ?

Magnetic angle welding holder, also known as welding electro permanent magnetic fixtures, which can be used to ensure weldment size, improve assembly precision and efficiency, as well as prevent welding deformation



2. Why does Magnetic angle welding holder better than traditional fixture?



Electro permanent magnetic welding fixtures can reduce workpiece adjustment time by 30%-50%, and offers clamping and releasing in just 0.3 second, which improved productivity greatly.



Features of Magnetic angle welding holder

(1) HVR Mini Magnetic welding angle have put together advantages of both type by combining the self-centering function of self-centering chuck and strong magnetic frce of electro permanent magnetic fixtures .It can realize distortion-free clamping of thinner materials, and multi-sides work piece machining in a single clamping operation, which allows significantly improve efficiency and machining precision.

(2) Using Mini Magnetic welding angle can reduce workpiece adjustment time by 30%-50%, and offers clamping and releasing in just 0.3 second, which improved productivity greatly. Adjustable magnetic penetration depth makes thin steel plate welding capable, even workpiece thickness less than 3mm.

(3) Electric power only works in the moment of magnetization and demagnetization, after that, on energy is needed, By not needing constant electric power to maintain magnetic force ,they do not add any heat, so it can minimize maintenance cost. Once electro permanent magnetic welding fixtures are magnetized, it will disconnect from electric power, and makes it failsafe. Which means when a workpiece is clamped and lost the electric power , it can remain holding in the plate and ensure the safety of workman.

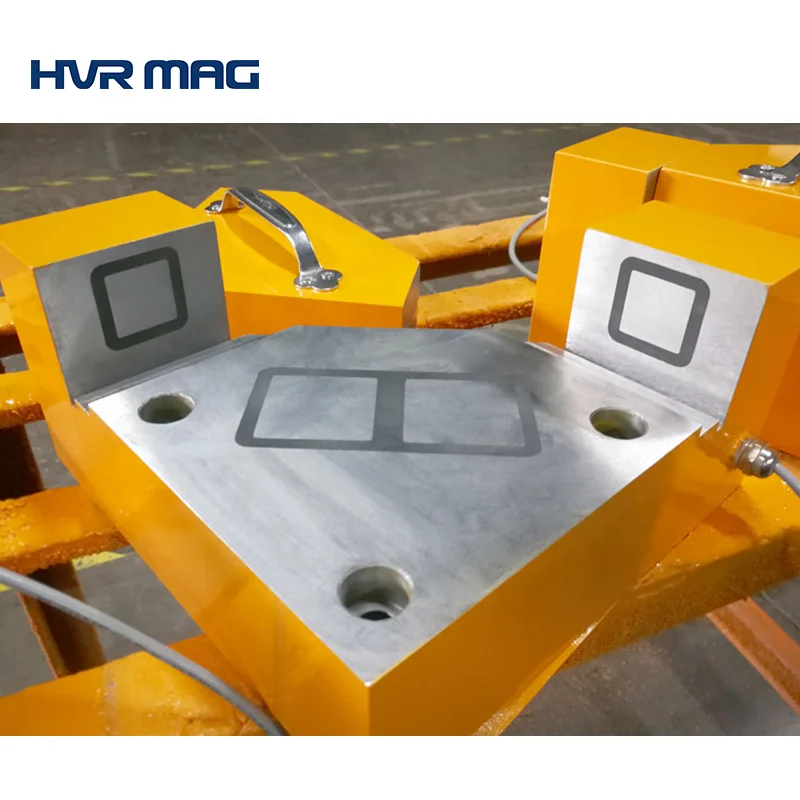

Details of Magnetic angle welding holder--- the sharp will be customized based on customer requirement





Product Main Technical Parameters

Model	Total magnetic force(kg)	Overall dimension(mm)							Magnetic pole number	weight(kg)
		A	B	C	D	E	M	Φ
HEPMF-1605R	150	156	54	180	35	206	8	9	2	2
HEPMF-1607R	320	156	72	180	52	206	8	9	4	3
HEPMF-0913R	315	86	128	112	88	136	8	9	4	3
HEPMF-1610R	470	156	100	180	70	206	8	9	6	4
HEPMF-1613R	620	156	128	180	90	206	10	12	8	4.8
HEPMF-2310R	700	226	100	250	70	276	10	12	9	5.6
HEPMF-1616R	780	156	156	180	100	206	10	12	10	6.2

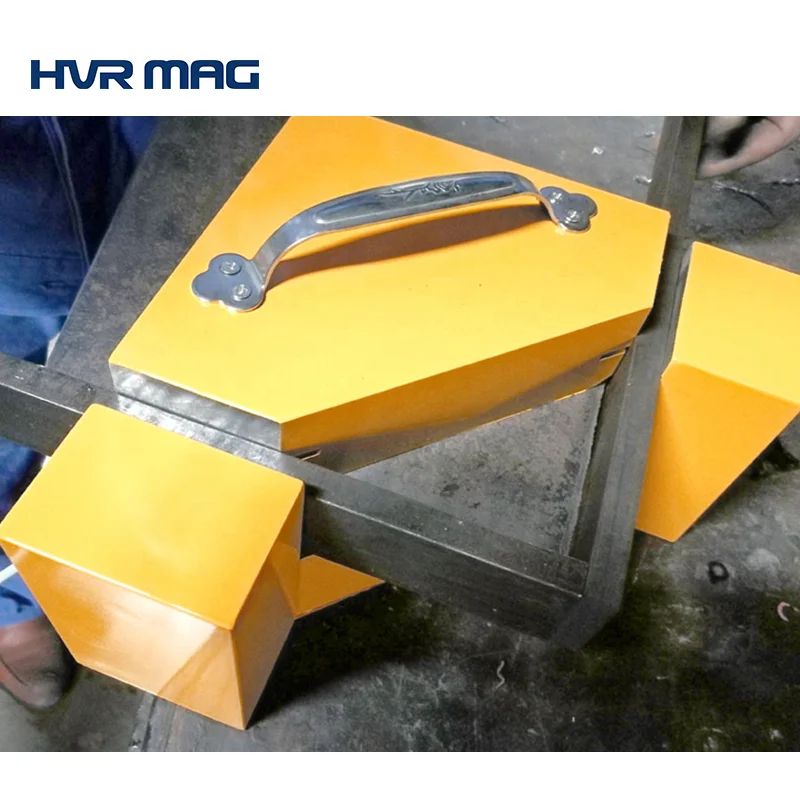

Application of Magnetic angle welding holder

As a welding help, welding jigs and fixtures are suitable for welding and hardy sheet materials in mine industry, motor industry, etc, and can be used unsfantly without special maintenance.
