Характеристики
Easy installation temperature adjustable self-regulated heat tracing cable with temperature controller
Product Description
Porduct Feature of heating tracing cable
Energy efficient , automatically varies its power output in response to pipe temperature changes.
Easy to install , can be cut to any length (up to max circuit length) required on site with no wasted cable.
Lower installed cost than steam tracing, less maintenance expense and less downtime.
No overheat or burnout even when wrapped over Itself (overlapped).
Suitable for use in non-hazardous, hazardous and corrosive environments.

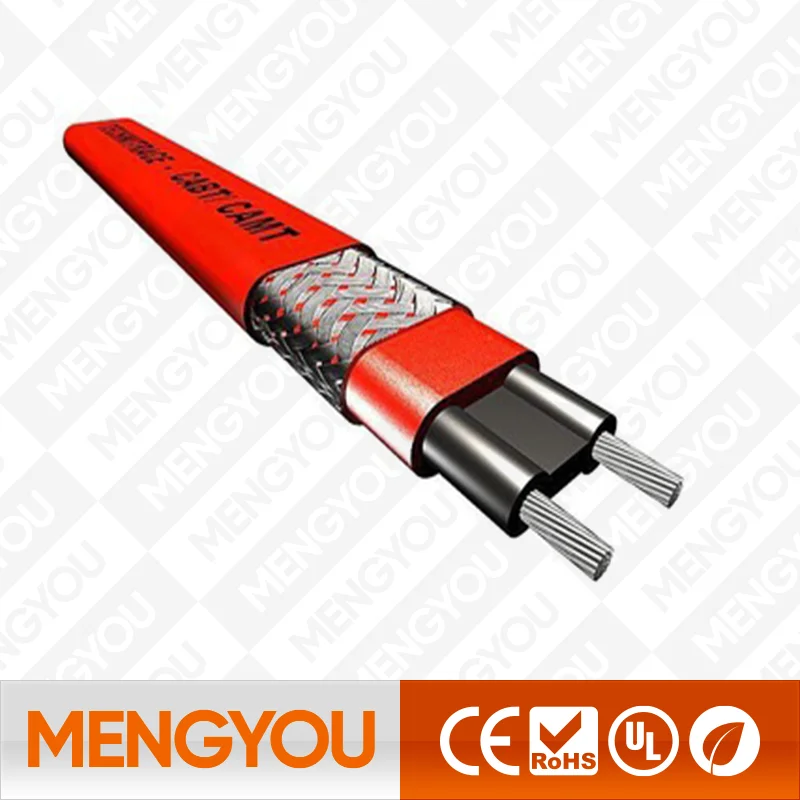

Cable construction Tinned copper buswires.
Self-regualting semi-conductive core.
Thermoplastic insulation.
Tinned copper braid.
CR-Thermoplastic over jacket.
CT-Fluoropolymer over jacket.
Service wattage 17,25,31,40W.
Service voltage 110v-120v,220-277V.
Maximum maintain or continuous exposure temperature (Power on) 65°C(149°F)
Maximum intermittent exposure temperature,1000 hours (Power on) 85°C(185°F)
Minimum installation temperature -40°C(40°F)
Protecive braid resistance <18.2 OHM/km
Bus wire gauge 16AWG
Certificates received:CE,UL,CUL
Model to choose:
| Model | Wattage (W/m@10°C) | Maintain highest temp (C) | Critical temp (C) | Operating voltage (C) | Maximum length (m) |
| MY-DBR-10 | 10 | 75±5 | 105 | 24,36,72,110,220,380 | 100 |
| MY-DBR-15 | 15 | 75±5 | 105 | 24,36,72,110,220,380 | 100 |
| MY-DBR-25 | 25 | 75±5 | 105 | 24,36,72,110,220,380 | 100 |
| MY-DBR-30 | 30 | 75±5 | 105 | 24,36,72,110,220,380 | 100 |
| MY-DBR-35 | 35 | 75±5 | 105 | 24,36,72,110,220,380 | 100 |
| MY-ZBR-30 | 30 | 105±5 | 135 | 24,36,72,110,220,380 | 100 |
| MY-ZBR-35 | 35 | 105±5 | 135 | 24,36,72,110,220,380 | 100 |
| MY-ZBR-40 | 40 | 105±5 | 135 | 24,36,72,110,220,380 | 100 |
| MY-ZBR-45 | 45 | 105±5 | 135 | 24,36,72,110,220,380 | 100 |
| MY-ZBR-50 | 50 | 105±5 | 135 | 24,36,72,110,220,380 | 100 |
| MY-ZBR-60 | 60 | 105±5 | 135 | 24,36,72,110,220,380 | 100 |
| MY-GBR-35 | 35 | 135±5 | 155 | 24,36,72,110,220,380 | 100 |
| MY-GBR-45 | 45 | 135±5 | 155 | 24,36,72,110,220,380 | 100 |
| MY-GBR-55 | 55 | 135±5 | 155 | 24,36,72,110,220,380 | 100 |
| MY-GBR-65 | 65 | 135±5 | 155 | 24,36,72,110,220,380 | 100 |
| MY-GBR75 | 75 | 135±5 | 155 | 24,36,72,110,220,380 | 100 |
Products:
Product Description
Application:
Packaging & Shipping
Our Services
1. All Products one year warranty and all goods on appro for 3 months .
2. Fast delivery and competitive price.
3. We offer FREE assistance in heater design to achieve an ideal thermal heating solution for your application.
4. Custom made size,shape and voltage&wattage.
