Роторный культиватор для
- Категория: Cultivators >>>
- Поставщик: Henan,Sankay,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.5 $* | 0.98 $* |
| Aug-19-2025 | 0.57 $* | 0.83 $* |
| Jul-19-2025 | 0.62 $* | 0.53 $* |
| Jun-19-2025 | 0.67 $* | 0.85 $* |
| May-19-2025 | 0.23 $* | 0.13 $* |
| Apr-19-2025 | 0.45 $* | 0.91 $* |
| Mar-19-2025 | 0.37 $* | 0.67 $* |
| Feb-19-2025 | 0.83 $* | 0.34 $* |
| Jan-19-2025 | 0.29 $* | 0.0 $* |
Характеристики

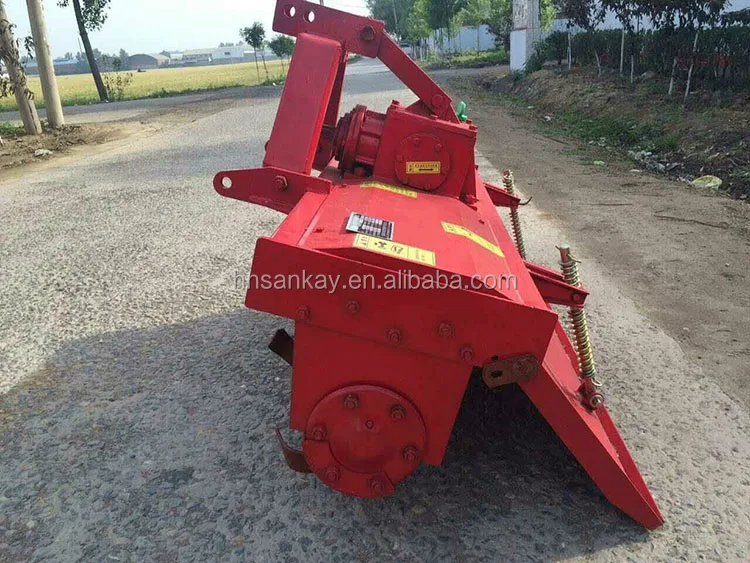

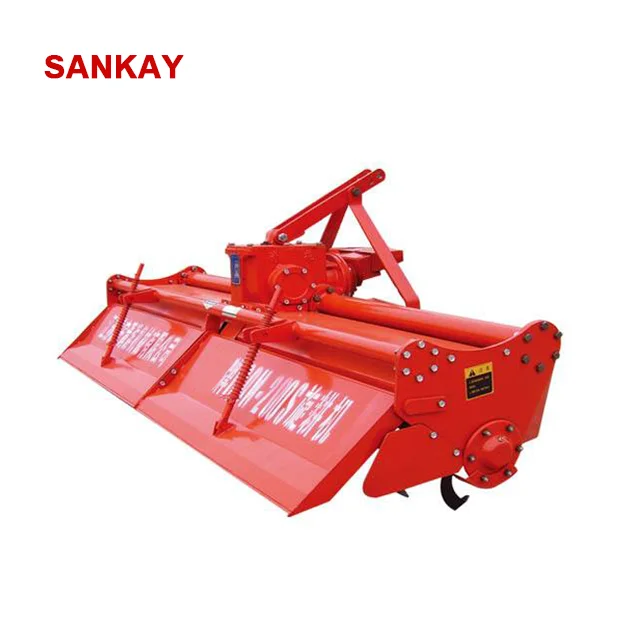

Rotary tiller for sale

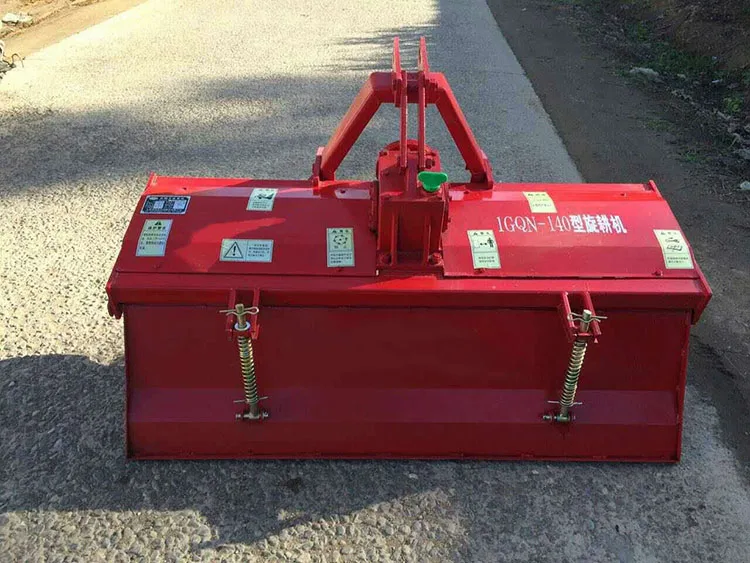

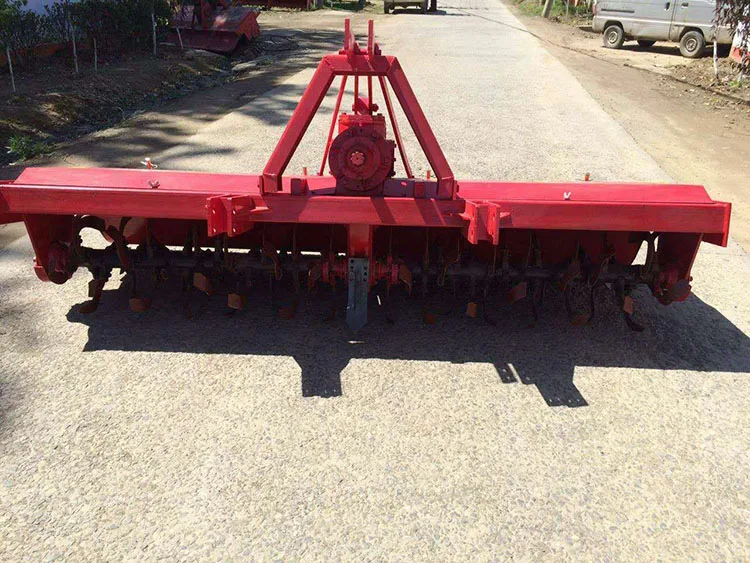

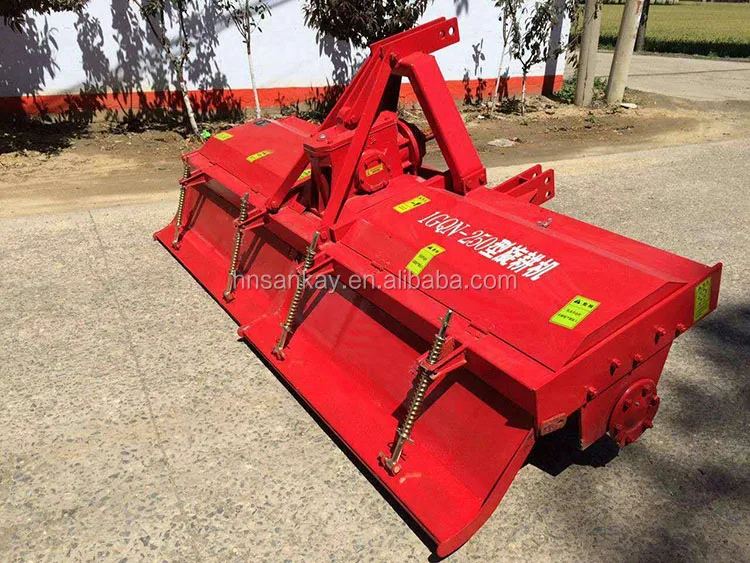

| Pictures of Different Model |
| Main Parts |
| Operation Instruction for New Machine |
1. Before being put in use, please check if the parts and fasteners lost or loose during transportation.
2. The tractor and rotor tiller should connect with two cardan joints separately. Back off the tractor when the support points of tractor are at the same height with the points of tiller. Install the
transmission shaft during back off, then connect the three points and lock the pins.
3. Inject the gear oil till 25cm from screw hole. Lift the tiller and start the tractor for running-in.
4. After running two hours, stop and let out the gear oil. Inject some diesel to clean the gearbox. Then inject certain gear oil according to the user manual.
| Specification |
1GQN-125 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-230 | 1GQN-250 | ||
Matched Power (hp) | 18-20 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | |
Working Width (cm) | 125 | 150 | 160 | 180 | 200 | 230 | 250 | |
Depth | Dry Land | 12-16 | 12-18 | |||||
Wet Land | 14-16 | 14-20 | ||||||
Blade Quantity | 26 | 34 | 38 | 50 | 54 | 58 | 62 | |
Blade Model | IT225 | IT245 | ||||||
Weight(kg) | 220 | 240 | 260 | 415 | 430 | 445 | 460 | |
Length (mm) | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | |
Width (mm) | 1350 | 1600 | 1700 | 1900 | 2100 | 2400 | 2600 | |
Height (mm) | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | |
Connect Way | Standard three-point mounted | |||||||
| Working Pictures |
| About Us |
Sankay is a professional agricultural machinery enterprise integrating research, development and production. Our products cover planters, harvesters & processing machinery for wheat, corn, rice, soybeans, potatoes and so on. Located in Zhengzhou, Henan province, our company has 300 staff, of which more than 70% are bachelors and masters. The factory takes an area of 80000 square meters, and the annual sales are more than thirty million dollars. At present, our products have been exported to Asia, Africa, America, Europe and are highly spoken by customers because of excellent products and perfect service.
| Trade Terms |
Trade Terms: FOB, CIF, CFR, EXW
Payment terms : T/T, L/C or by negotiation
Payment Condition: 30%T/T deposit in advance, 70% balance before delivery
Delivery Time: 10-15 working days after deposit
Packing: as required
Shipping: By sea
