Flexible 35mm2 50mm2 70mm2 95mm2 Car Battery Cable Rubber

Flexible 35mm2 50mm2 70mm2 95mm2 Car Battery Cable Rubber

Категория: >>>
Поставщик: Henan,Guowang,Cable,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.99 $*	0.70 $*
Aug-16-2025	0.9 $*	0.37 $*
Jul-16-2025	0.66 $*	0.12 $*
Jun-16-2025	0.85 $*	0.37 $*
May-16-2025	0.28 $*	0.25 $*
Apr-16-2025	0.32 $*	0.59 $*
Mar-16-2025	0.88 $*	0.74 $*
Feb-16-2025	0.25 $*	0.38 $*
Jan-16-2025	0.10 $*	0.76 $*

Характеристики

Flexible 35mm2 50mm2 70mm2 95mm2 Car Battery Cable Rubber Welding Cable

Product Description

WELDING CABLE

HTB10.c5PFXXXXckXpXXq6xXFXXXG

Construction

Conductor:Plain annealed copper wire class 5

Separator: Polyester film isolating layer

Jacket: Ethylene propylene diene Monomer Rubber(EPDM)

Chlorinated polyethylene rubber(CPE)

Standard: IEC 60245

Technical properties:

Rate voltage:200V

Working temperaure:-35°C-+85°C

Cross Sectional area: from 10sqmm to 185sqmm

Sheath color: Black, or according to customer's requirements

Feature:

Resistant to cuts, tears and abrasion in addition to moisture.

Welding Wire offers good color retention along with great flexibility.

Application:

This product is suitable for the voltage to earth AC more than 200V pulsating dc peak 400V welding machine twice side joint and connecting electrode holder.

Welding cable can be used as entertainment or stage lighting cables for movie theatres, lighting and sound systems, and communication vans. Other possible uses for welding cable include battery cables for cars, inverter cables, and as a cheaper alternative to pendant/reeling cable on hoists and cranes.

For example, many solar power installations use welding cable extensively to connect solar panels, battery banks, and converters.

super flexible rubber welding cable IEC60245

Flexible 35mm2 50mm2 70mm2 95mm2 Car Battery Cable Rubber Welding Cable

Conductor Nominal Section(mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter(mm2)		200C Conductor Resistance≤(Ω/km)	Reference Weight (kg/km)
Conductor Nominal Section(mm2)	Number/Diameter of Core(mm)	Thickness of Section Sheath (mm)	Min	Max	200C Conductor Resistance≤(Ω/km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.129	1678.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74

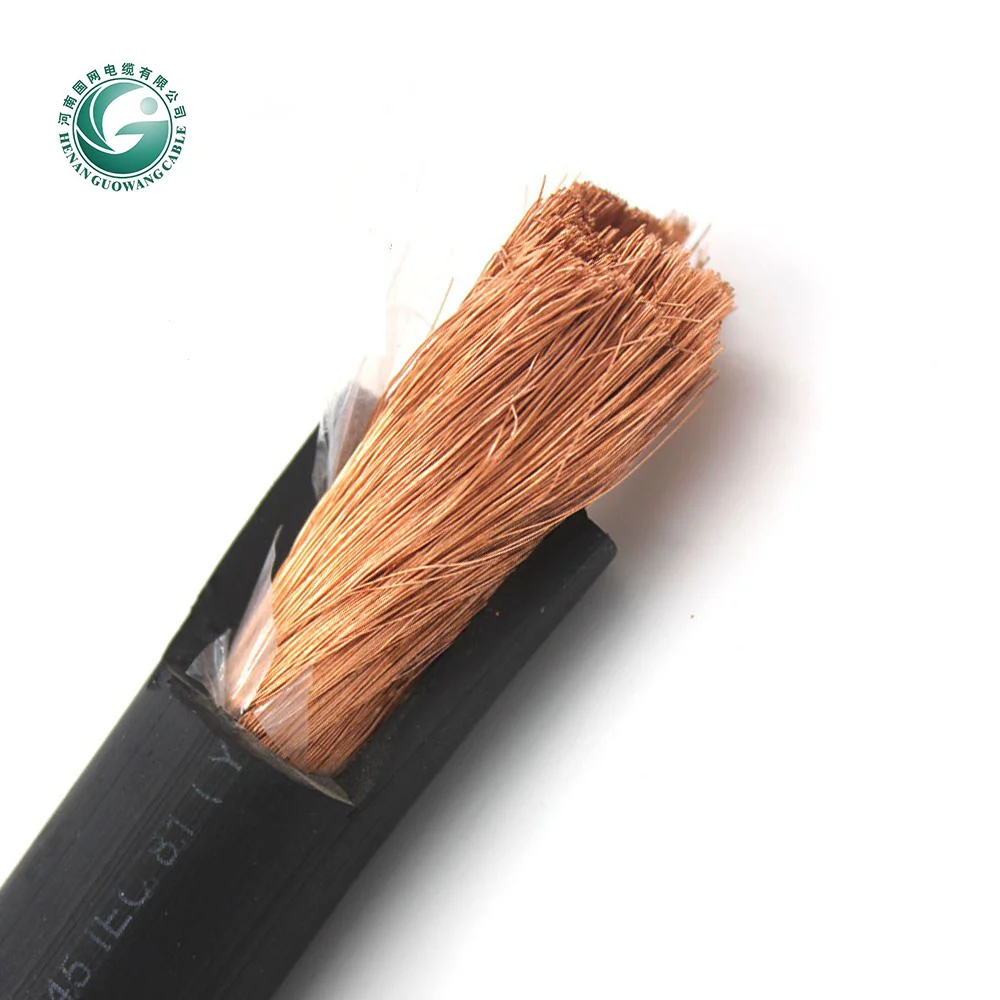

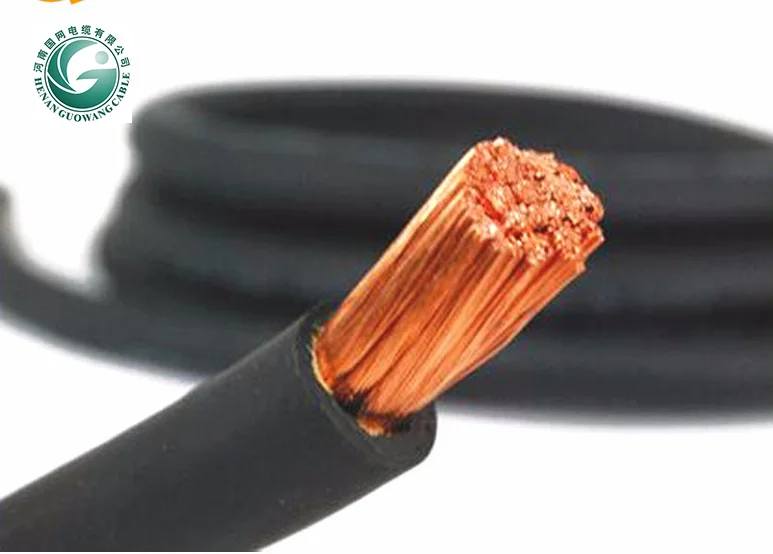

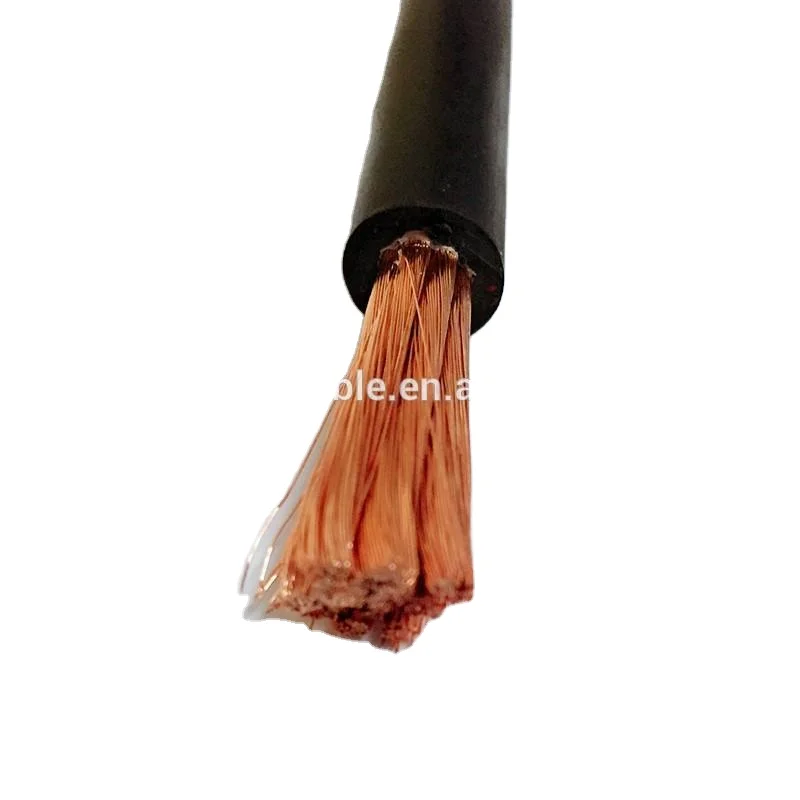

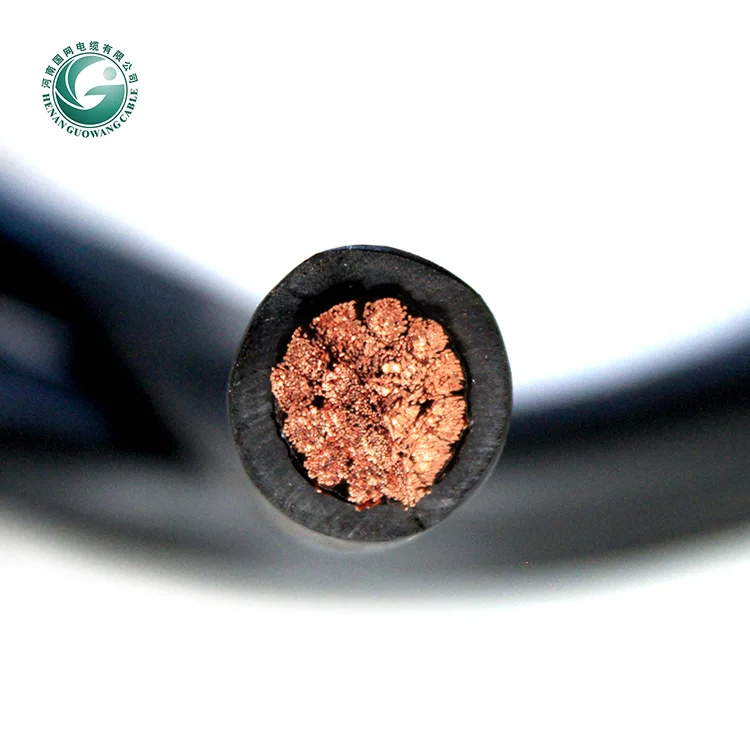

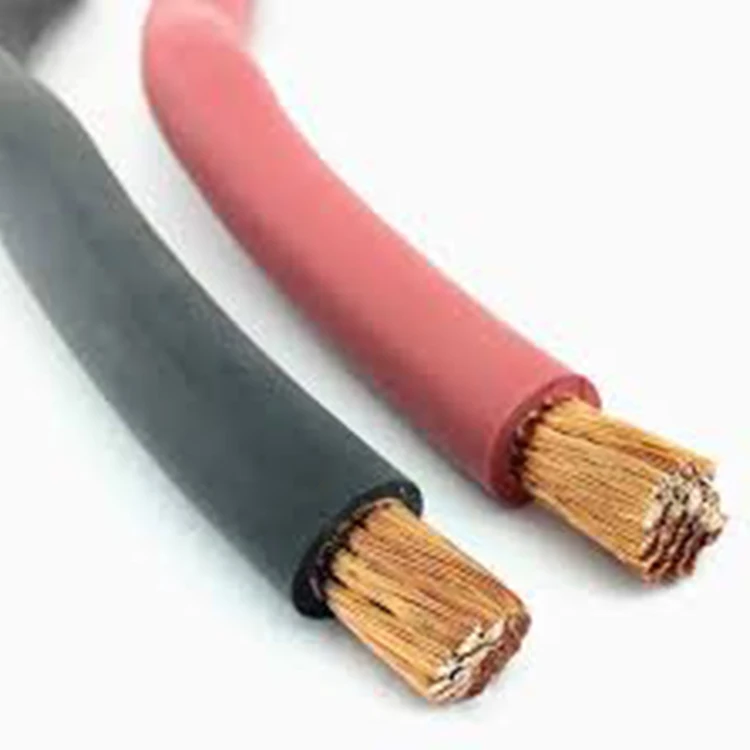

Detailed Pictures

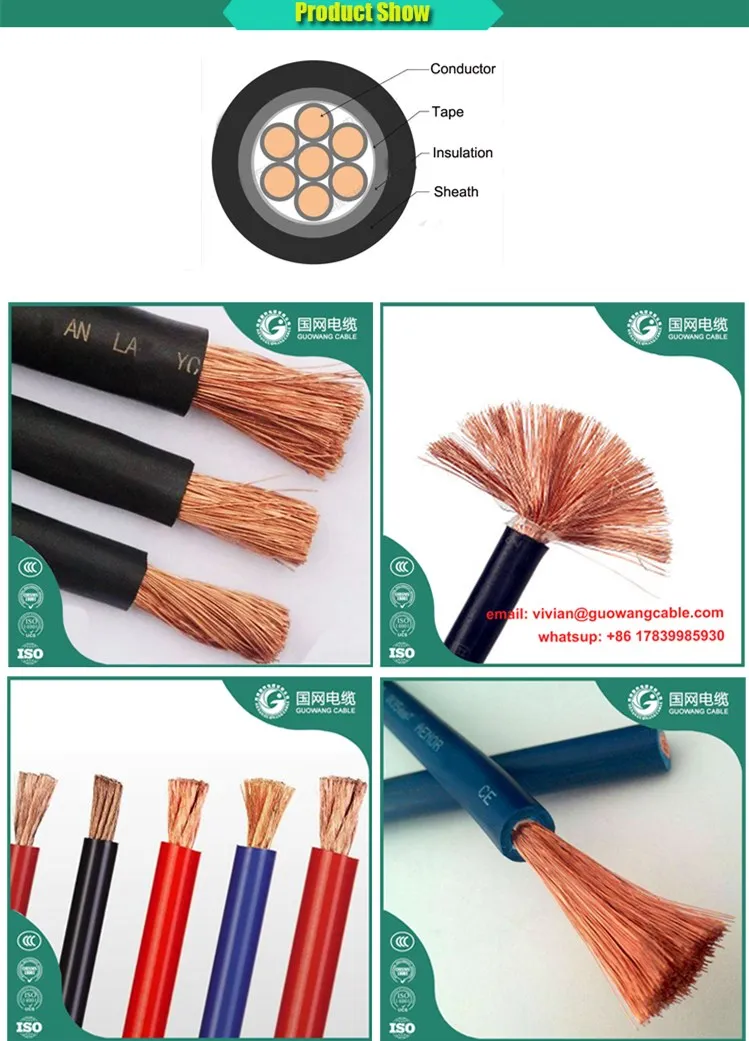

FleFlexible 35mm2 50mm2 70mm2 95mm2 Car Battery Cable Rubber Welding Cable Product Show-Welding Our other main products Long Lifetime 1 Core 3 Core XLPE Insulated High Voltage Wire with Competitive Price

Packaging & Shipping

Flexible 35mm2 50mm2 70mm2 95mm2 Car Battery Cable Rubber Welding Cable
