4 floors 160 capacity chicken layer battery cages

1. Materia: Q235 National standard Low carbon steel wire mesh



2.Surface treatment: Electro galvanize or hot galvanize or plastic coating



3.Specialty: Easy to assemble. Feeding and easy management, save the space, effectively prevent infectious diseases, and increase the survival rate.



4.If there are special cage specifications, also can be customized



5.Full automatic equipments: automatic drinking system, automatic feeding system, automatic manure removal system, automatic egg collection system etc.





EGG LAYING CAGE(A-type)

Parameter Data for 4 floors 160 capacity chicken layer battery cages

Item No.	Volume	Cell dimension	Bird /cell	Weight	Remarks	Overall size
ST3A90-5 doors	90 layers	390x390x390mm	3	42kgs	6 strips  (30 cells)	1950x2150x1620
ST3A96-4 doors	96 layers	487x400x400mm	4	45kgs	6 strips  (24 cells)	1950x2150x1650
ST3A120-5 doors	120 layers	390x500x400mm	4	50kgs	6 strips  (30 cells)	1950x2150x1650
ST4A120-5 doors	120 layers	390x390x390mm	3	56kgs	8 strips  (40 cells)	1950x2350x1720
ST4A128-4 doors	128 layers	487x400x400mm	4	60kgs	8 strips  (32 cells)	1950x2350x1750
ST4A160-5 doors	160 layers	390x500x400mm	4	65kgs	8 strips  (40 cells)	1950x2350x1750
ST5A150-5 doors	150 layers	390x390x390mm	3	70 kgs	10strips  (50 cells)	1950x2550x2120
ST5A160-4 doors	160 layers	487x400x400mm	4	75 kgs	10strips  (40 cells)	1950x2550x2250
ST5A200-5 doors	200 layers	390x500x400mm	4	80 kgs	10strips  (50 cells)	1950x2550x2250



Note:

Using 5-tier cage, it will demand for automatic egg collecting system, as well as automatic feeding system, so the cost will be a little big, so people usually choose 4-tier, or 3-tier cage.







Diameter for bird cage mesh

1. 2.3mm Q235 steel wire (Egg Tray); if diameter thicker, the egg breaking rate rise by 1-2%.

2. 2.5mm Q235 steel wire (Cage Door)

3. 3.2mm Q235 steel wire (Cage Top)



automatic poultry feeding shed Galvanization Time

Our electro-galvanizing time period: 30 minutes; Other factories 8-15 minutes;



Cage Frame:

Hot-dipped steel plate punched & formed one-time;

Neither 3x3 GB nor 4x4 GB angle-iron steel bar welded & painted frame



Surface treatment of wire mesh:

1. Electro-galvanization;

2. Galvanization & Plastic Coating;

3. Hot-dipped process



Optional System in the chicken house:

1. Manure Removal System;

2. Air Ventilation System

3. Automatic Feeding System

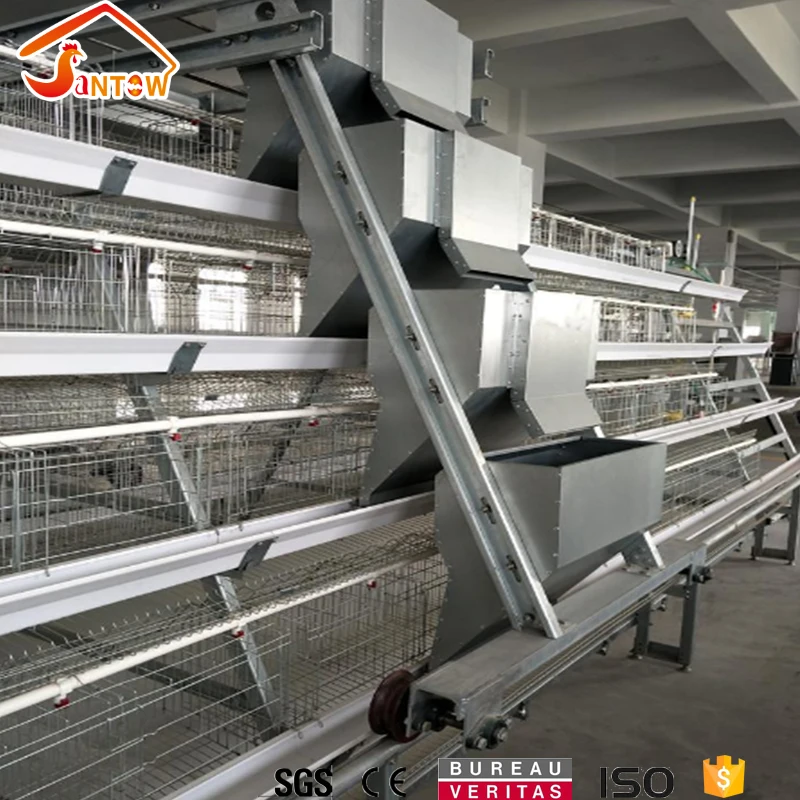

4. Egg Collection System

5. Heating System in house























Pre-sale service:
help you design the equipments layout. 2. take you see our factory. 3. answer all your question.
In-sale service: ensure the quality and delivery time.
After-sale service:
We supply videos and installation instruction to teach how to install the equipments.





We have been in the wire mesh business for over 15 years, so we have many years of experience to draw on.



We are continuing to grow through a very satisfied customer base, as well as new customers from the

Internet and referrals, our high quality of product and work is what sets us apart from the competition; Our goal is also to offer materials and workmanship that will last for years.



We would like to give a special thanks to our family, friends and customers, as we would not be in business without them.



How to choose a suitable chicken cage/poultry cage/chicken layer cage/battery brolier cage?



Choose a good chicken cage product not only with long years,but also the growth of chicken and egg production to promotion.

1, We need to understand the metal mesh used in the steel cage, such as our ladder chicken cages, using Q235 steel chicken cages after drawing process to make welding difficult to open, and toughness, will not make the bottom of the cage by chicken on concave down, reduce the rate of broken eggs.

2, Galvanizing process requirements, our chicken cages's surface treatment is cold galvanizing or hot dip galvanizing. Cold galvanized wire mesh chicken cage can be used 10--15 years, galvanized wire mesh chicken cage can be used 25--30 years.

3, Delivery and installation, we have our own professional installation team and sales team, the first time to resolve customer requirements, but also free house planning, technical support, according to the customer, etc

  4 floors 160 capacity chicken layer battery cages
