Ø Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate

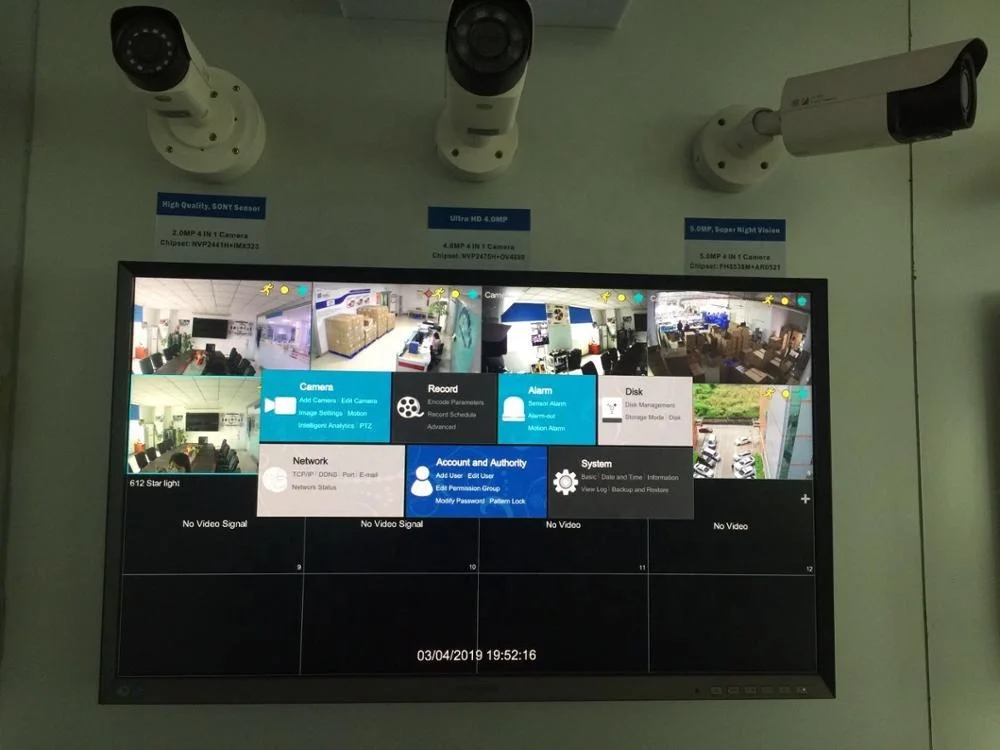

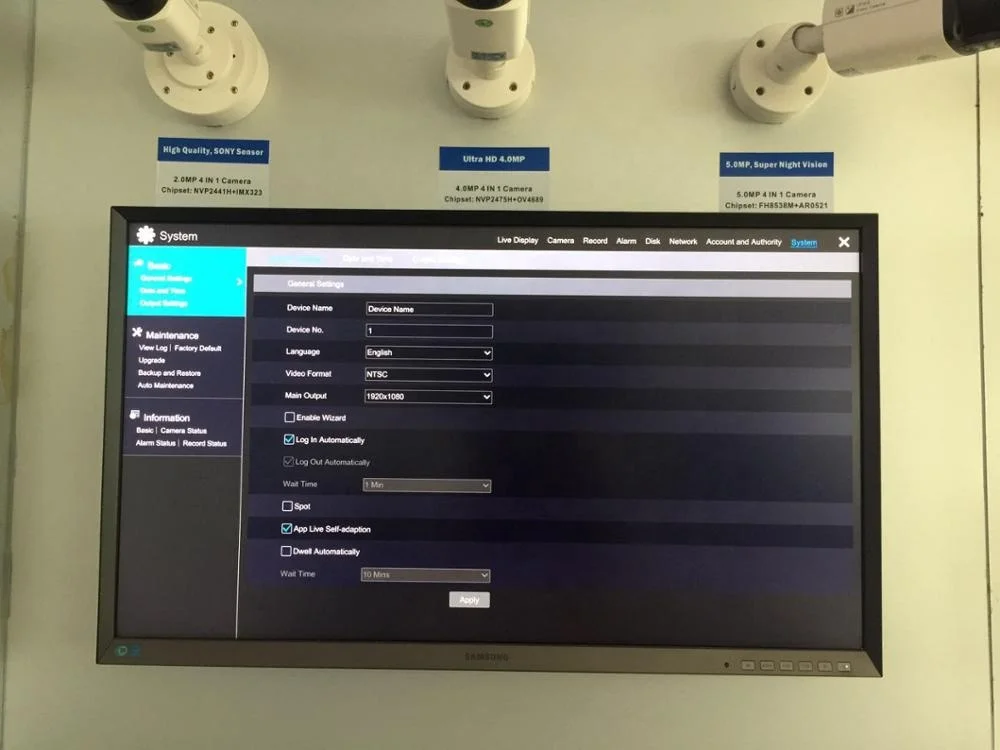

Ø Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Ø Multi-mode recording: manual / timer / motion
Ø Playback : 4 / 8 CH simultaneously playback
Ø Search: time slice, time, event ( manual, motion ), tag search Express and flexible backup via USB, network and so on Pentaplex: preview, record, playback, backup and remote access
Ø Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Ø Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device Multi-user online simultaneously
Ø Authorization management, log review and device status review HDMI 4K output, true high resolution display

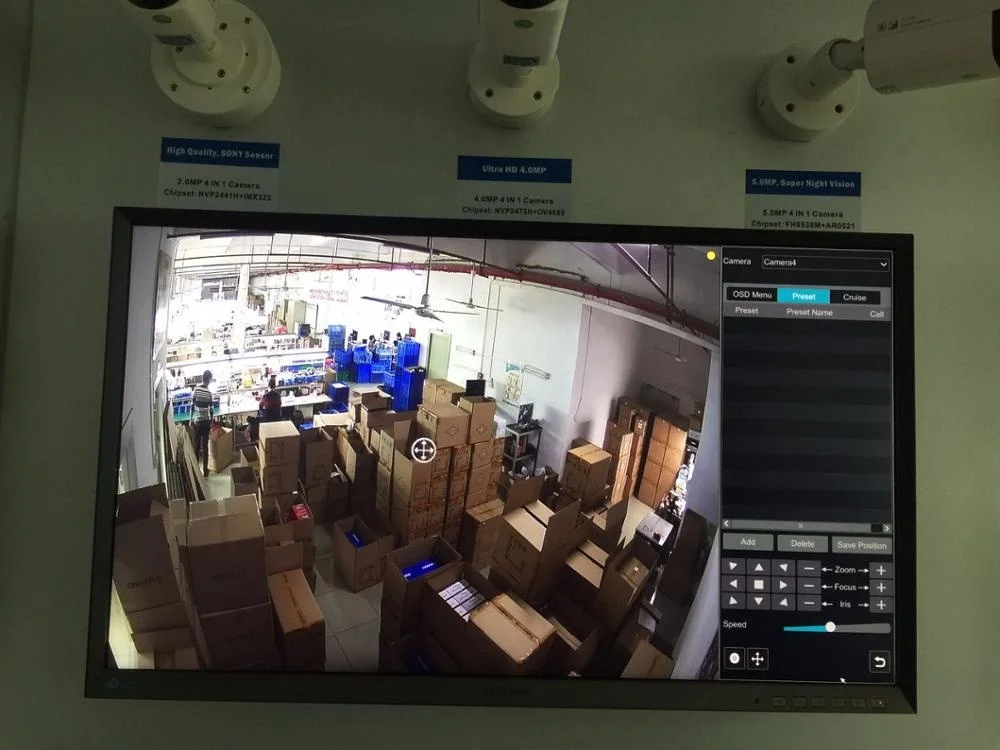

Ø Support PTZ preset and auto cruise, up to 255 presets and 8 cruises Support NAT function and QRCode scanning by mobile phone and PAD Powerful smart phone & Pad surveillance with iOS and Andriod OS
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function
Play, pause, FF, FB, digital zoom, etc.
Alarm
Mode
Manual, motion, exception
Input
No
Output
No
Triggering
Record, snap, preset, e-mail, etc.
Network
Interface
RJ 45 100Mbps × 1
Protocol
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Bandwidth(Mbps)
40/40 (access/transfer)
80/80 (access/transfer)
Mobile Device
OS
iOS, Andriod
Storage
HDD
SATA× 1, up to 6TB per HDD
Backup
Local Backup
U disk, USB removable HDD
Network Backup
Yes

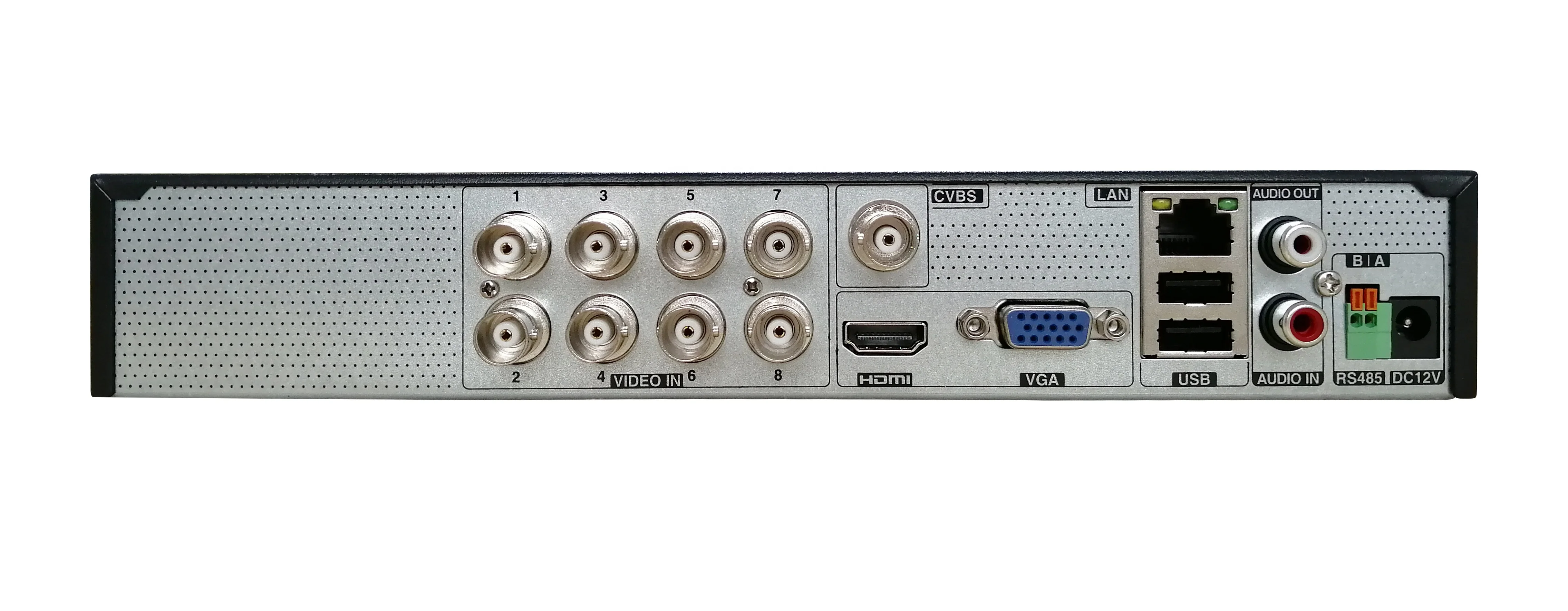

Port
RS 485
RS 485 × 1, connect to PTZ or keyboard
USB
USB 2.0 × 2
Remote Controller
Optional
Others
Power Supply
DC12V / 1.5A
DC12V / 2A
Consumption
≤ 10W ( without HDD )
≤ 15W ( without HDD )
Dimensions(mm)
255 × 233 × 42 ( W × D × H )
Work Environment
-10~50°C, 10%~90% (humidity)
