Китайский завод двигатель шпинделя ER25 с воздушным охлаждением кВт для
- Категория: Шпиндель для станка >>>
- Поставщик: Changzhou Dewo Motor Co., Ltd. [Jiangsu,China]Changzhou Dewo Motor Co., Ltd. [Jiangsu,China]Changzhou Dewo Motor Co., Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 13447.32 $* | 14119.4 $* |
| Aug-18-2025 | 13334.69 $* | 14001.39 $* |
| Jul-18-2025 | 11187.11 $* | 11746.48 $* |
| Jun-18-2025 | 13108.43 $* | 13763.73 $* |
| May-18-2025 | 11413.55 $* | 11984.3 $* |
| Apr-18-2025 | 12882.48 $* | 13526.26 $* |
| Mar-18-2025 | 12769.30 $* | 13407.77 $* |
| Feb-18-2025 | 12656.64 $* | 13289.77 $* |
| Jan-18-2025 | 12543.24 $* | 13170.0 $* |
Характеристики

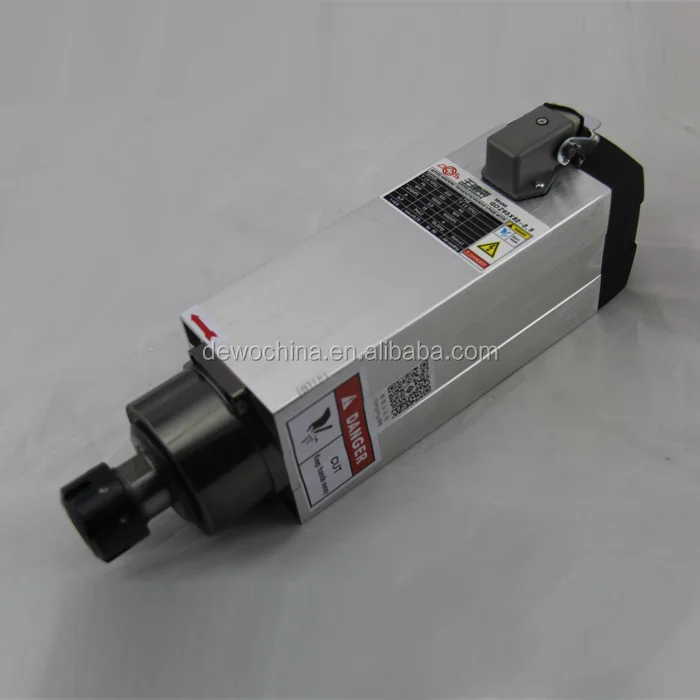

3.5KW square air cooling spindle motor ( GDZ93*82-3.5)
| Model:GDZ93*82-3.5 | Dimension:45,30,37 | Collet: ER25 |
| Power: 3.5kW | Voltage:220V or 380V | Current:13A/7.5A |
| Frequency:300HZ | Speed: 18000rpm | Cool: Air Cooling |
| Lub:Grease | Torque:1.21Nm | Weight: 9.0kg |
| Warranty period: Bearings=half a year, other parts a year | ||
The datasheet of our air cooling spindle motor
| TYPE | speed (rpm) | power (kw) | voltage (V) | current (A) | frequency (HZ) | dimension | collect | product size(mm) | Weight (kg) | |||||
| L4 | L5 | L6 | L1 | L2 | L3 | |||||||||
| round | GDZ65F-800 | 24000 | 0.8 | 220 | 4 | 400 | Φ65 | ER11 | 182.5 | 15 | 28.5 | 3 | ||
| GDZ80F-1.5 | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER11 | 193.5 | 9 | 26 | 4.4 | |||
| GDZ80F-2.2 | 24000 | 2.2 | 220 | 8 | 400 | Φ80 | ER16 | 193.5 | 19.5 | 31.5 | 4.5 | |||
| GDZ80F-2.2 | 24000 | 2.2 | 220 | 8 | 400 | Φ80 | ER20 | 193.5 | 19.5 | 31.5 | 4.5 | |||
| square | GDZ93*82-1.5 | 18000 | 1.5 | 220 | 6.6 | 300 | 45 | 30 | 20 | ER20 | 137 | 44.5 | 37 | 6 |
| 380 | 3.8 | |||||||||||||
| GDZ93*82-2.2 | 18000 | 2.2 | 220 | 8 | 300 | 45 | 30 | 37 | ER25 | 173 | 48.5 | 37 | 8 | |
| 380 | 4.6 | |||||||||||||
| GDZ93*82-3.5 | 18000 | 3.5 | 220 | 13 | 300 | 45 | 30 | 37 | ER25 | 214 | 48.5 | 37 | 9 | |
| 380 | 7.5 | |||||||||||||
| GDZ93*82-3.5D | 18000 | 3.5 | 380 | 7.5 | 300 | 45 | 30 | 37 | ER25,ER25 | 201.5 | 48.5 | 30.5 | 9.5 | |
| GDZ120x103-4.5 | 18000 | 4.5 | 220 | 17.3 | 300 | 60 | 36 | 25 | ER32 | 190 | 56.5 | 46.5 | 13 | |
| 380 | 10 | |||||||||||||
| GDZ120*103-6 | 18000 | 6 | 220 | 20.8 | 300 | 60 | 36 | 40 | ER32 | 233 | 56.5 | 46.5 | 15 | |
| 380 | 12 | |||||||||||||
| GDZ120*103-7.5 | 18000 | 7.5 | 380 | 14.5 | 300 | 60 | 36 | 13 | ER32 | 272 | 56.5 | 46.5 | 18 | |
| GDZ170*150-12 | 18000 | 12 | 380 | 22 | 300 | 60 | 50 | 30 | ER32orER40 | 279 | 67.5 | 41 | 28 | |
Suitable VFD (220VAC or 380VAC)
Suitable Collet (ER series)
Water Pump
Bracket holder
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
