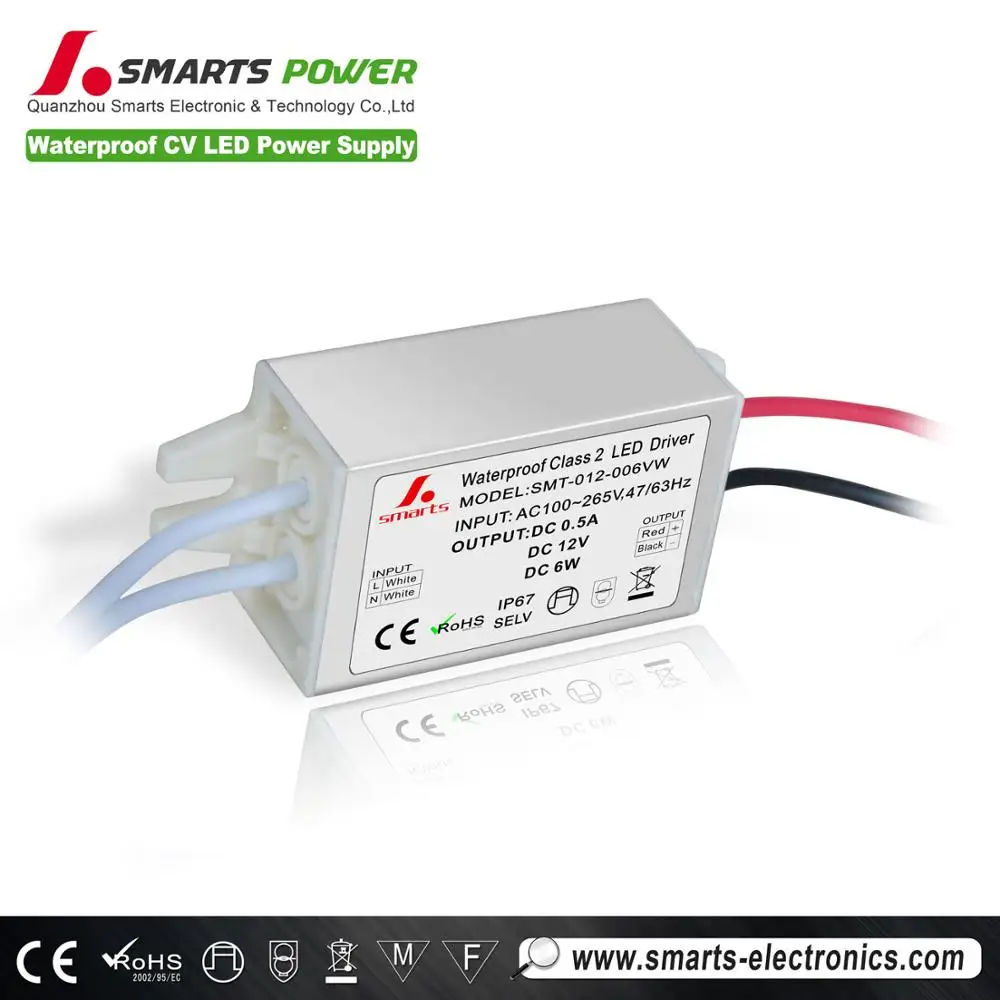

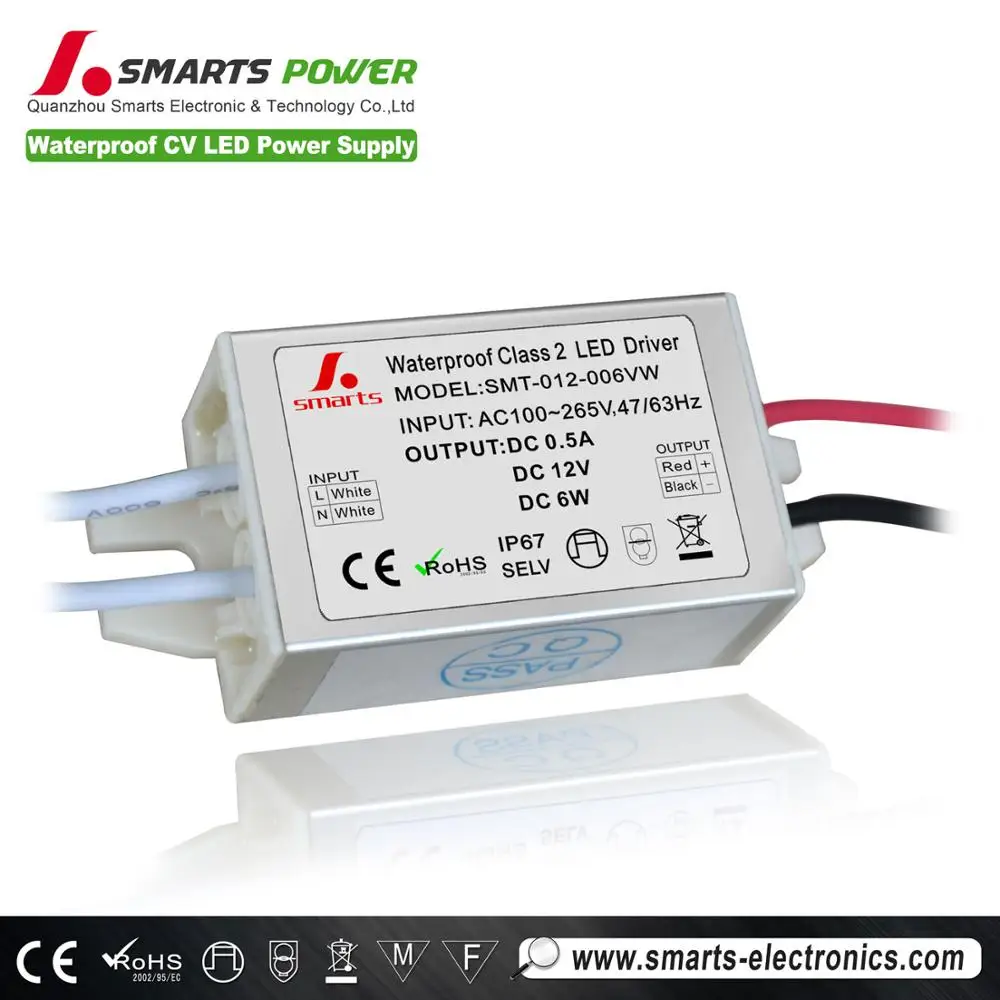

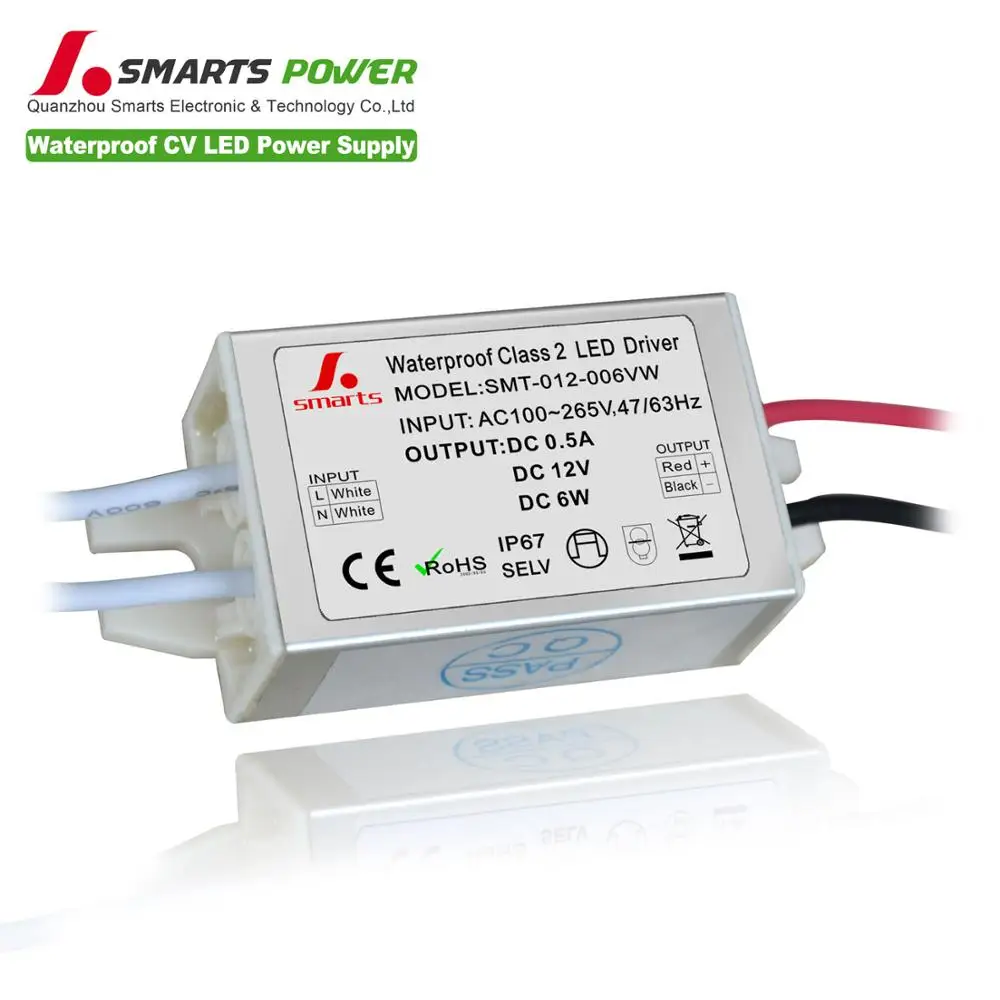

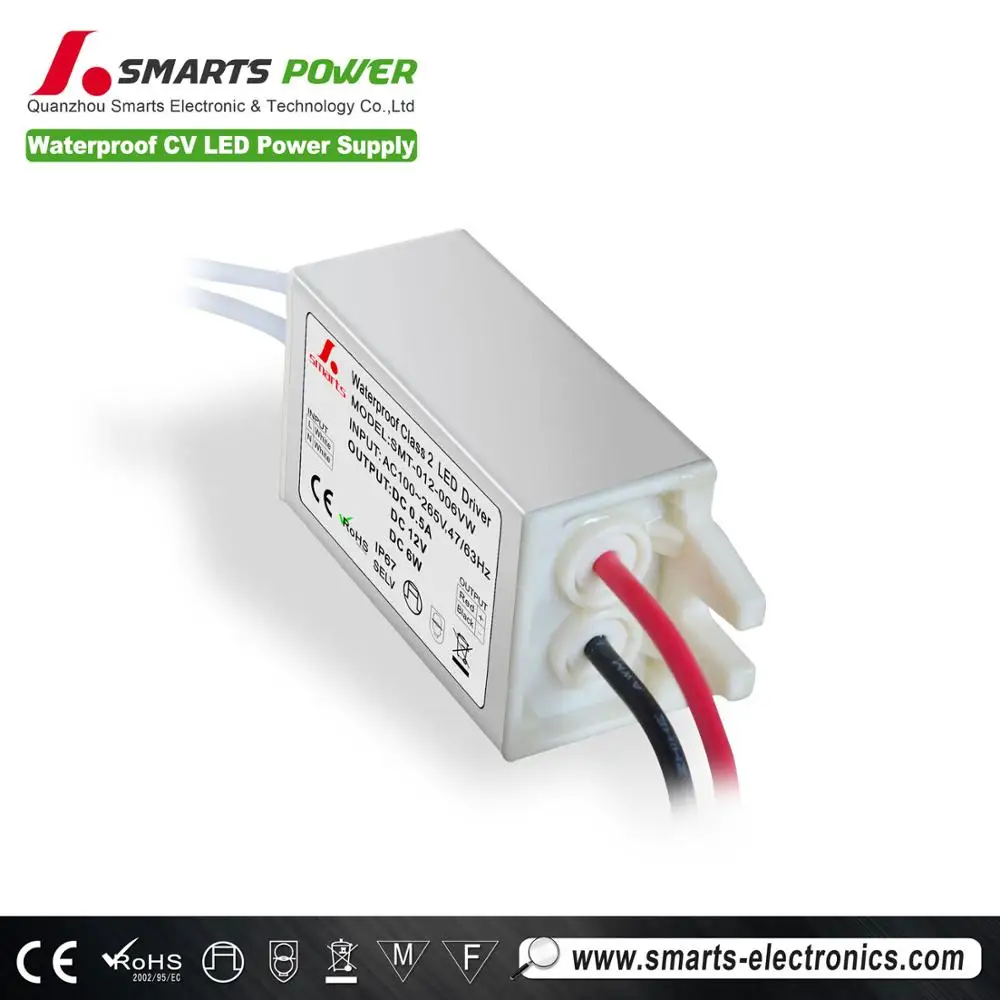

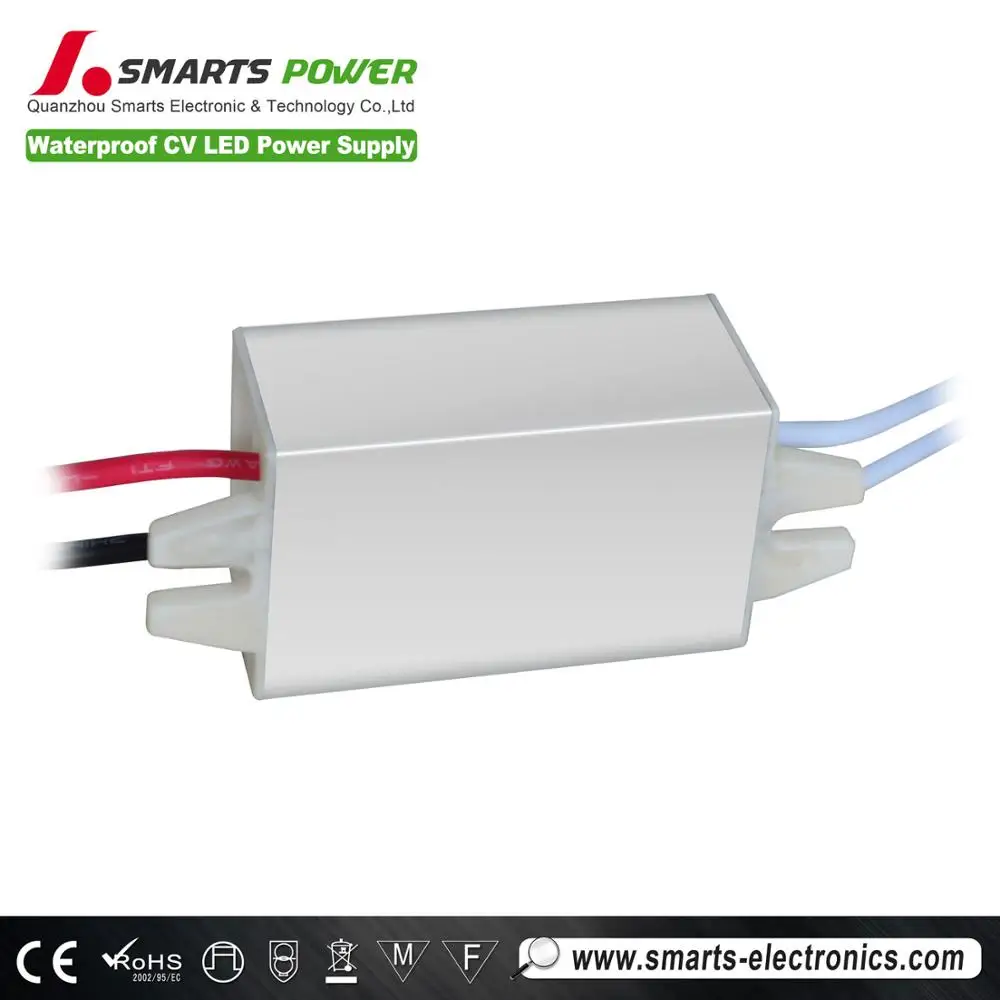

IP67 алюминиевый корпус mini 6w 12v Светодиодный драйвер источник питания

Цена:74,33 ₽ - 222,99 ₽*

Количество:

IP67 aluminum cover mini 6w 12v led driver mini power supply led

Product Description

Description	Label
IP67 design for indoor or outdoor installations Protections:Short circuit/Overload/Over temperature Cooling by free air convection 100% full load burn-in test Suitable for LED lighting Products through CE, ETL, RoHS Certification 24 Months warranty

SPECIFICAION

MODEL		SMT-012-006VW	SMT-024-006VW
OUTPUT	DC VOLTAGE	12V	24V
	RATED CURRENT	1A	0.5A
	CURRENT RANGE	0~0.5A	0~0.25A
	RATED POWER	6W	6W
	RIPPLE&NOISE(max)	<700mV	<400mV
	VOLTAGE TOLERANCE	±0.5V	±0.5V
INPUT	VOLTAGE RANGE	100~265VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR(Typ.)
	EFFICIENCY(Typ.)	>80%	>81%
	AC CURRENT(Typ.)	0.090A/100~265VAC
PROTECTION	Short circuit	Protection type:recovers automatically after condition is removed
	Overload	overload protected@145-160% above peak rating
	Over temperature	Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT	WORKING TEMP.	-30~+50℃ (Refer to output load derating curve)
	INGRESS PROTECTION	IP67 design for indoor or outdoor installations
	STORAGE TEMP	-40~+80℃
SAFETY&EMC	SAFETY STANDARDS	EN61347-1;EN61347-2-13;SELV;IP67 CE, ROHS approved
	WITHSTAND VOLTAGE	I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	EMC Test Standards	EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
	EMC Test Standards	EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE	1.All parameters NOT specially mentioned are measured at 110V ~ 220VAC input, rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation.

Mechanical Specification

click for more information

What kind of LED Driver/Power Supply Smarts Electronics do?

We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
