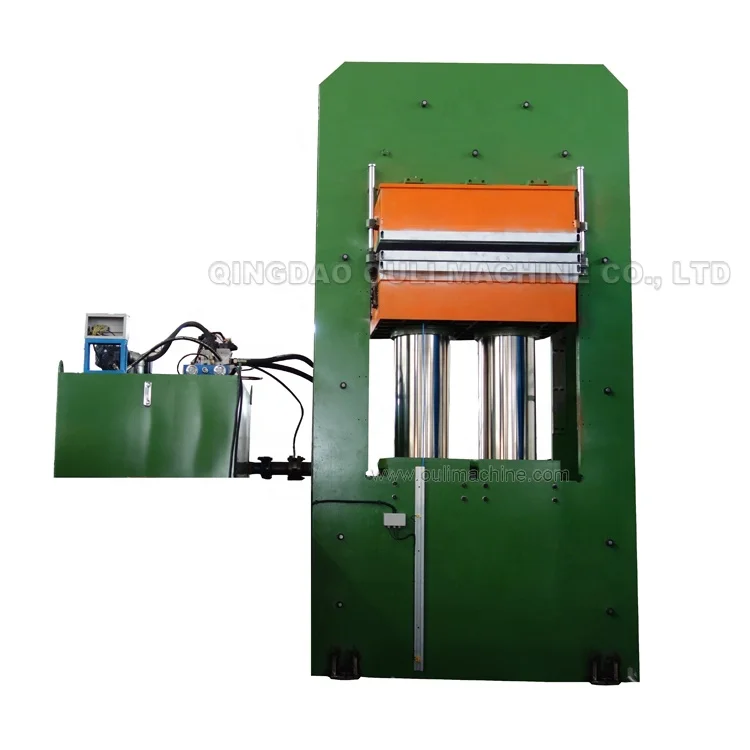

Hot Sale Rubber Track Vulcanizing Press/ Big Frame Rubber Gasket Curing Press Machine







NAME : Hot Sale Rubber Track Vulcanizing Press/ Big Frame Rubber Gasket Curing Press Machine

MODEL : XLB-D 1000x1500 Hot Sale Rubber Track Vulcanizing Press/ Big Frame Rubber Gasket Curing Press Machine









parameter of Hot Sale Rubber Track Vulcanizing Press/ Big Frame Rubber Gasket Curing Press Machine



Parameter/model	XLB-DQ400X400X2	XLB-DQ600X600X2	XLB-DQ750X850X2(4)
Total Pressure(MN)	0.50	1.00	1.60
Plate Size(mm)	400X400	600X600	750X850
Daylight(mm)	125	125	125
Daylight No	2	2	2(4)
Piston Stroke(mm)	250	250	250(500)
Unit Area Pressure(kg/cm2)	31	28	25
Main Motor Power(Kw)	2.2	2.2	3
Overall Dimension(mm)	2400X550X1500	1401X680X1750	1900X950X2028
Weight(Kg)	1300	3500	6500(7500)



Parameter/model	XLB-Q1200×2500×1	XLB-Q1500×2000×1	XLB-Q2000×3000×1
Total Pressure(MN)	7.5	10	18
Plate Size(mm)	1200×2500	1500×2500	2000×3000
Daylight(mm)	400	400	400
Daylight No	1	1	1
Piston Stroke(mm)	400	400	400
Unit Area Pressure(kg/cm2)	25	33.5	30
Main Motor Power(Kw)	9.5	11	26
Overall Dimension(mm)	2560×1700×2780	2810×1550×3325	2900×3200×2860
Weight(Kg)	20000	24000	66000







Configuration for Hot Sale Rubber Track Vulcanizing Press/ Big Frame Rubber Gasket Curing Press Machine



A:Frame: The material is Q345 steel welded, and using Co2 protection welding process. high strength, no air hole, not easy broken, then using the tempering process, to release the internal stress. can not out of shape, at last using the CNC machining center treatment.

B:Heating pipes: Stainless steel ,long using life, material is SUS304

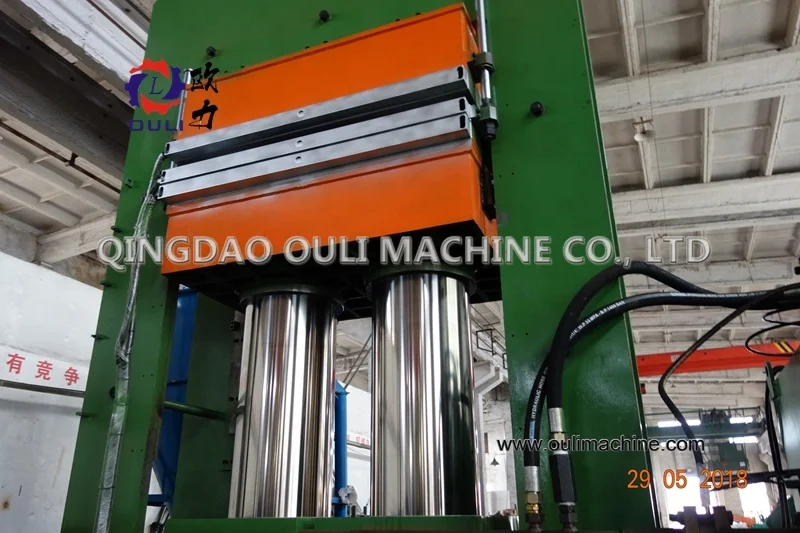

C:Plunger: Vanadium and titanium Alloy Chilled Cast Iron, High hardness (68~72HS )and good abrasion , resistance, can not easy broke the seals

D:Hydraulic cylinder: Nodular cast iron, the material is QT-500, hardness 68~72 HS, using the annealing treatment, and flaw detection process choose the best one.

E:The heating plate :35# steel

F: Thermal baffle: Silicon 3 Calcium plate, not easy broke seals

G: Valve: Cartridge valve, not easy broken and no need maintain brand from Huade (China-Germany joint venture )

H:Hydraulic pump: Brand from YUCI YUKEN HYDRAULICS Co., LTD Japan brand

I: Low-voltage apparatus: The brand from Schneider or Mitsubishi









Features of Hot Sale Rubber Track Vulcanizing Press/ Big Frame Rubber Gasket Curing Press Machine



  PLC control of temperature, pressure and process time

- The cylinder and plunger are made up of high –quality materials.Simple and convenient structure , flexible operation, commodious space.

- Memory accessible for process time,pressure and temperature.

- Rubust designed safety door(Automatic sensing interlock, automatic pressure interlock)The control method can be changed as client's requirements.

- Our hot plate is made of Q-235 steel , can resist high temperature heating Without oil spilling or off pressure.Well done insulation.

- Using best Advanced PLC control panel , vulcanization time be setted in advanced.Mold speed can be adjusted according to customers need

- We can also design non standard rubber products vulcanizer for your need





 Related products of Hot Sale Rubber Track Vulcanizing Press/ Big Frame Rubber Gasket Curing Press Machine



Packing and FAQ



1. Ship date: 30----120 working days

2. Payment terms: T/T or L/C

3. Full range of devices to be provided on schedule, as per client demands.

4. Responsible for training works and maintenance of the machine

5. Responsible for installing and debugging all devices.

6. Formula available and long term technical supports.

7. Guarantee: 2 years guaranteed repair and lifelong tracking service,with parts provided.

8. Package: standard export wooden case
