Z4113 сверлильный станок Мини

Цена:3 390,21 ₽*

Количество:

Product Description

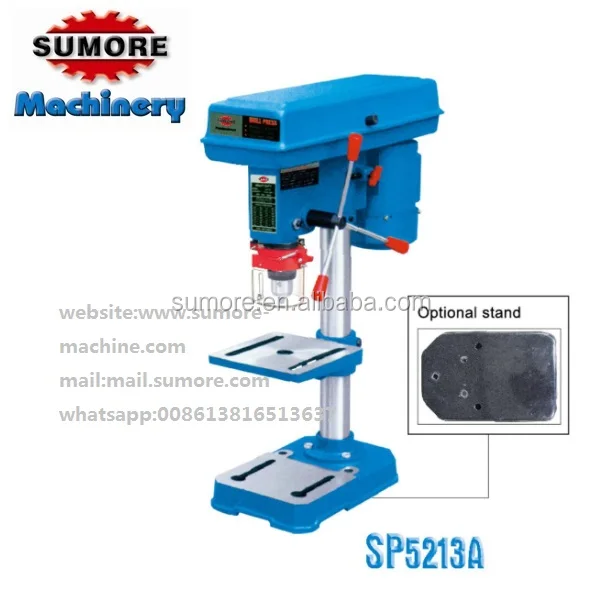

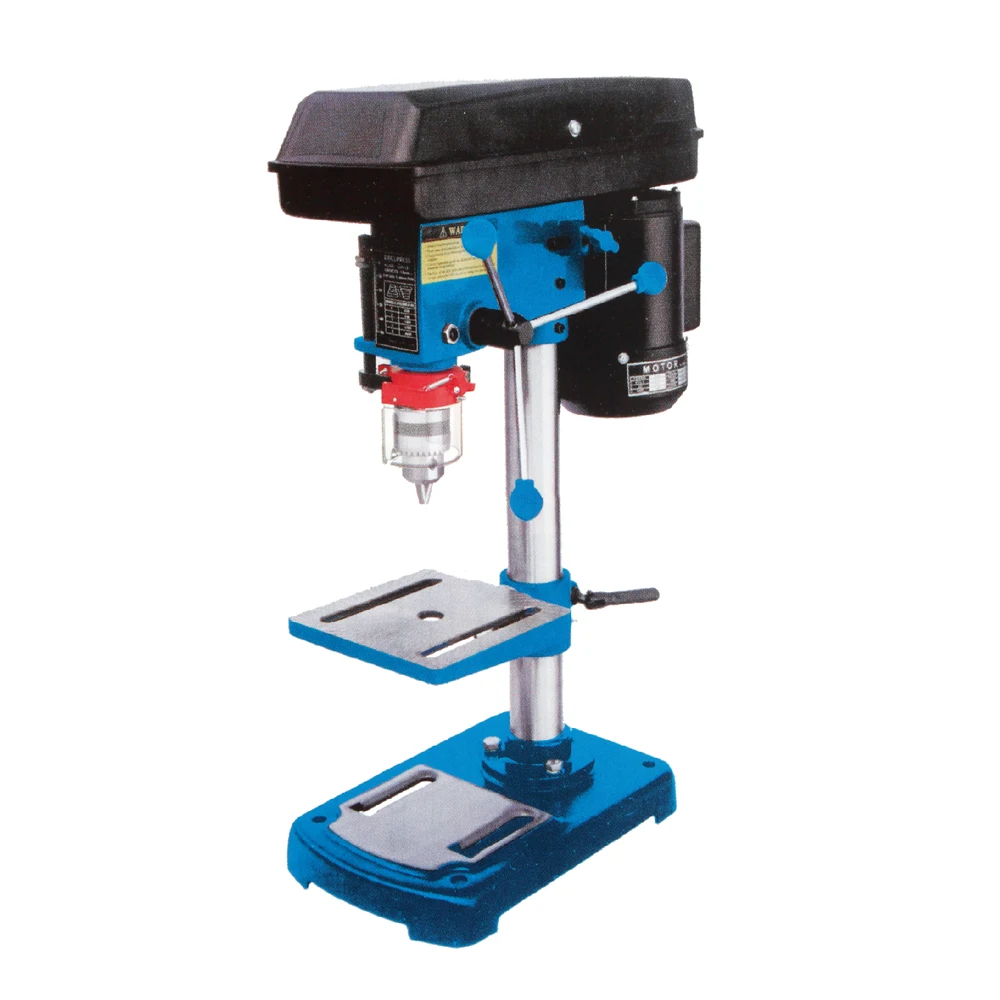

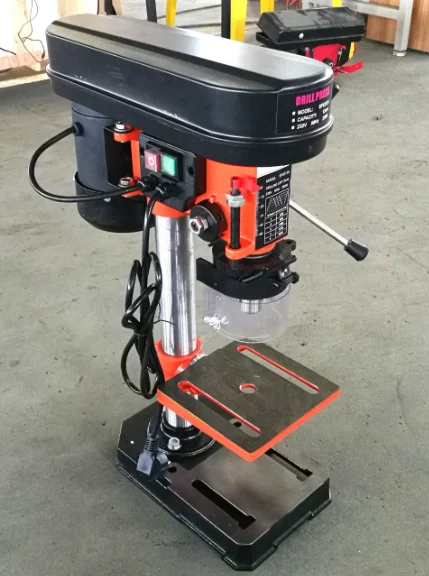

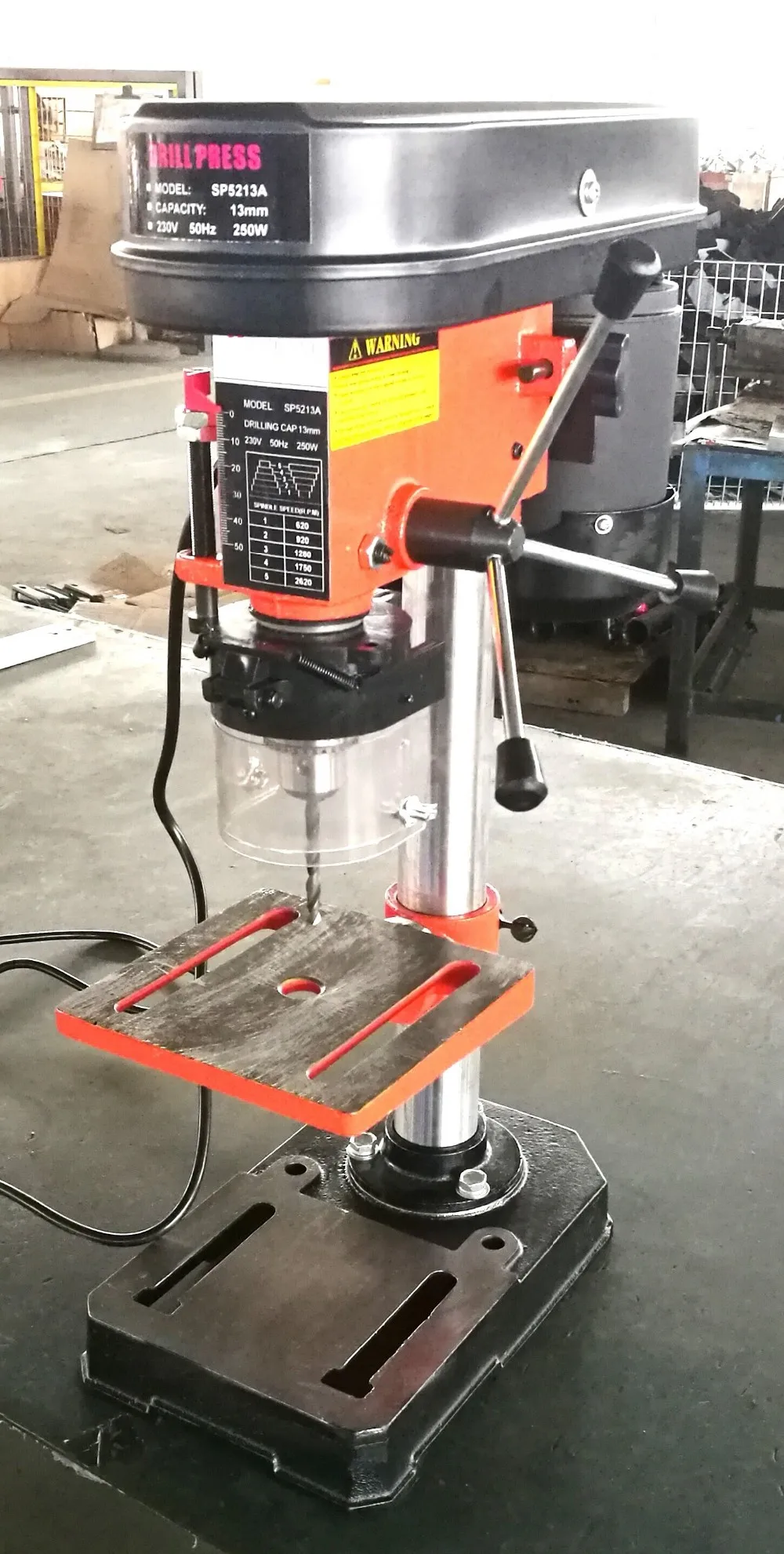

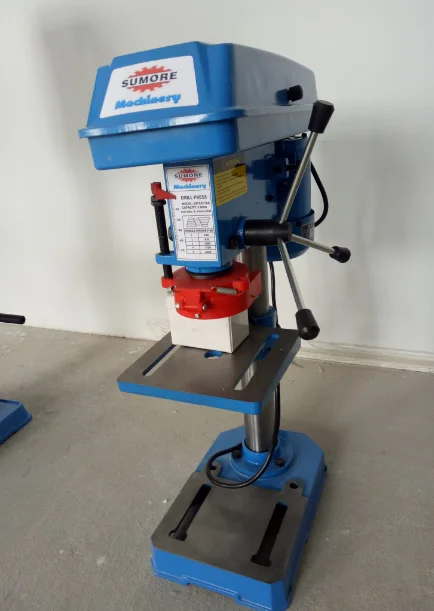

250W or 350W 13mm (1/2") drill press machine with cheap price SP5213A description as below:

1. High Rigid Construction

2. Easy Operation and Extended Durability

3. Different Sizes and Replaceable Worktables

4. Considerable Safety Design

5. 1/2" (13mm) max chuck capacity

6. 210mm swing

7. - 45 degree ~ 0 degree ~ + 45 degree table tilt L&R

8. 5 spindle speeds

9. chuck guard is standard accessories

10. Optional micro-switch for CE requirement

SP5213A 2 SP5213A 3

Technical Data

Model	SP5213A
Drilling Capacity	13 mm (1/2 '')
Swing	210 mm
Spindle Taper	B16
Spindle Travel	50 mm
Spindle Speeds Steps	5 Steps
Spindle Speed	620 - 2,620 / 740 - 3,140 rpm
Maximumn Distance from Spindle Axis to Surface of Column	105 mm
Maximumn Distance fron Spindle End to Surface of Worktable	220 mm
Maximumn Distance from Spindle End to Surface of Base	300 mm
Column Diameter	46 mm
Height	580 mm
Worktable Size	160 x 160 mm
Worktable Rotate Angle (Left / Right)	+/- 45°
Base Size	290 x 290 mm
Motor Power	250 / 350 w
Net / Gross Wieght	16 / 17 kg
Packing Size	435 x 340 x 230 mm

Packaging & Shipping

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 set
Full Container Loading Quantity (FCL)	840 sets/20’GP (unitary; customerized packing available)
Delivery Time	20 calendar days after receiving of advance / full payment

Certificates

Certification
