PE PP PA гибкая и легкая несдвоенная
- Категория: Plastic Tubes >>>
- Поставщик: Dongguan,Ke,Yu,New,Material,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.17 $* | 0.15 $* |
| Aug-19-2025 | 0.42 $* | 0.40 $* |
| Jul-19-2025 | 0.57 $* | 0.87 $* |
| Jun-19-2025 | 0.60 $* | 0.47 $* |
| May-19-2025 | 0.38 $* | 0.60 $* |
| Apr-19-2025 | 0.72 $* | 0.10 $* |
| Mar-19-2025 | 0.92 $* | 0.33 $* |
| Feb-19-2025 | 0.65 $* | 0.21 $* |
| Jan-19-2025 | 0.79 $* | 0.76 $* |
Характеристики

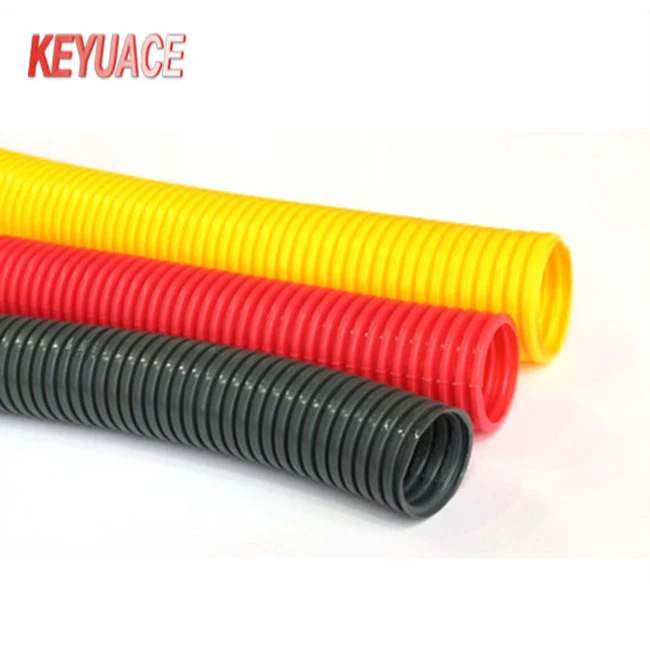

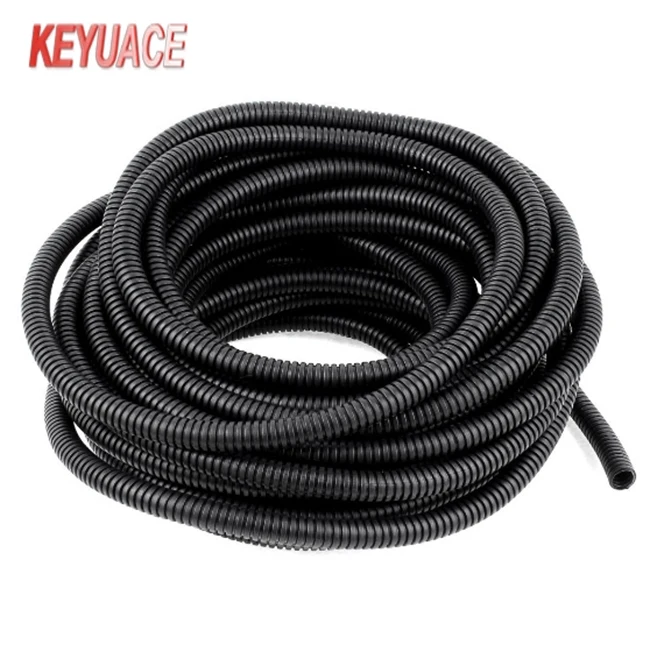

WAG - Flexible Convoluted Hose / Corrugated Tube / Bellows
Product Description
PE, PP, PA Flexible Convoluted Hose / Corrugated Tube. can made of PE, PA, PP extrusion molding, three kinds of material used to protect cable, wire cut, split, mechanical damage, good product flexibility, bending resistance and friction, acid resistance and other properties, good protective for wire, cable, wire,Can be customized flame retardant, open type wave tube.
Application
Product application:
Corrugated pipe is suitable for the machinery and equipment, automation equipment, automation control, bus, train, electrical switchgear, etc.
Product size chart:
Features
Technical parameters:
Material quality: PE, PA, PP
Working temperature:
PE: - 40 ℃, + 90 ℃
PA: - 40 ℃, + 125 ℃, - 40 ℃, + 150 ℃
PP: - 30 ℃ - + 120 ℃
Standard color: black, other color can be customized
Certification: ROHS
Cutting tools, scissors
Other features: high wear resistance, acid resistance, resistance to solvents and gasoline
Product Dimension
Product specifications:
| PE material | PA Material | PP material | ID*ED | FLODING RADIUS | PACKING(L) |
| WAG-PE-7 | WAG-PA-7 | WAG-PP-7 | 4.5*7.0 | 5 | 200M/ROLL |
| WAG-PE-8.5 | WAG-PA-8.5 | WAG-PP-8.5 | 5.5*8.5 | 8 | 100M/ROLL |
| WAG-PE-10 | WAG-PA-10 | WAG-PP-10 | 7.0*10.0 | 10 | 100M/ROLL |
| WAG-PE-12 | WAG-PA-12 | WAG-PP-12 | 8.5*11.5 | 15 | 100M/ROLL |
| WAG-PE-13 | WAG-PA-13 | WAG-PP-13 | 10.0*13.0 | 20 | 100M/ROLL |
| WAG-PE-15.8 | WAG-PA-15.8 | WAG-PP-15.8 | 12.0*15.8 | 30 | 100M/ROLL |
| WAG-PE-18.5 | WAG-PA-18.5 | WAG-PP-18.5 | 14.3*18.5 | 40 | 100M/ROLL |
| WAG-PE-21.2 | WAG-PA-21.2 | WAG-PP-21.2 | 17.0*21.2 | 45 | 100M/ROLL |
| WAG-PE-25 | WAG-PA-25 | WAG-PP-25 | 21.0*25.0 | 50 | 100M/ROLL |
| WAG-PE-28.5 | WAG-PA-28.5 | WAG-PP-28.5 | 23.0*28.5 | 55 | 50M/ROLL |
| WAG-PE-34.5 | WAG-PA-34.5 | WAG-PP-34.5 | 29.0*34.5 | 60 | 50M/ROLL |
| WAG-PE-42.5 | WAG-PA-42.5 | WAG-PP-42.5 | 36.0*42.5 | 70 | 25M/ROLL |
| WAG-PE-54.5 | WAG-PA-54.5 | WAG-PP-54.5 | 48.0*54.5 | 80 | 25M/ROLL |
