New High Lumen Linear High Bay 60w Led High Bay for Industrial Lighting ,5 Years Warranty

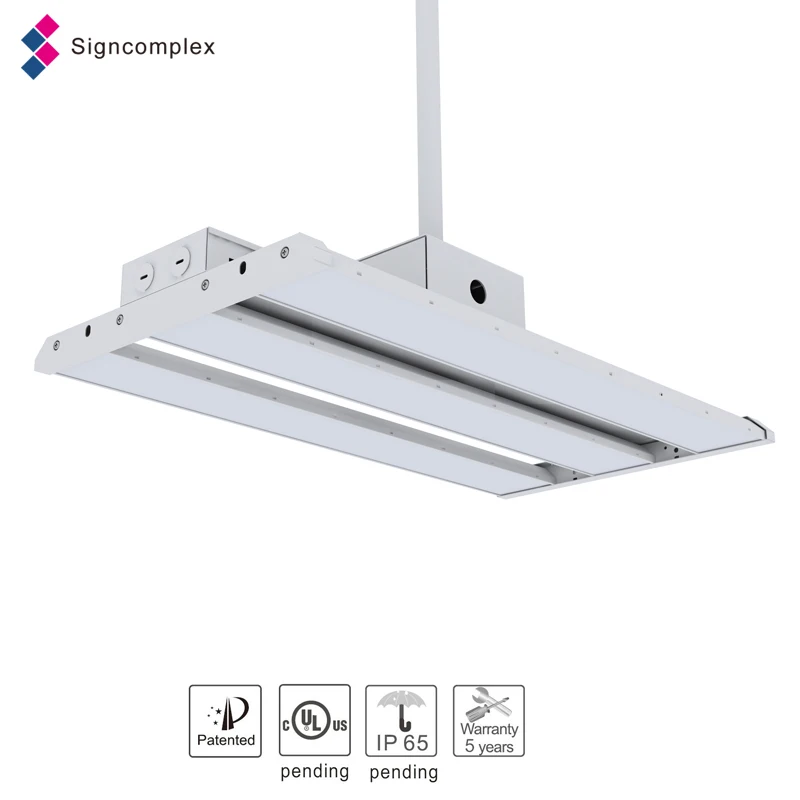

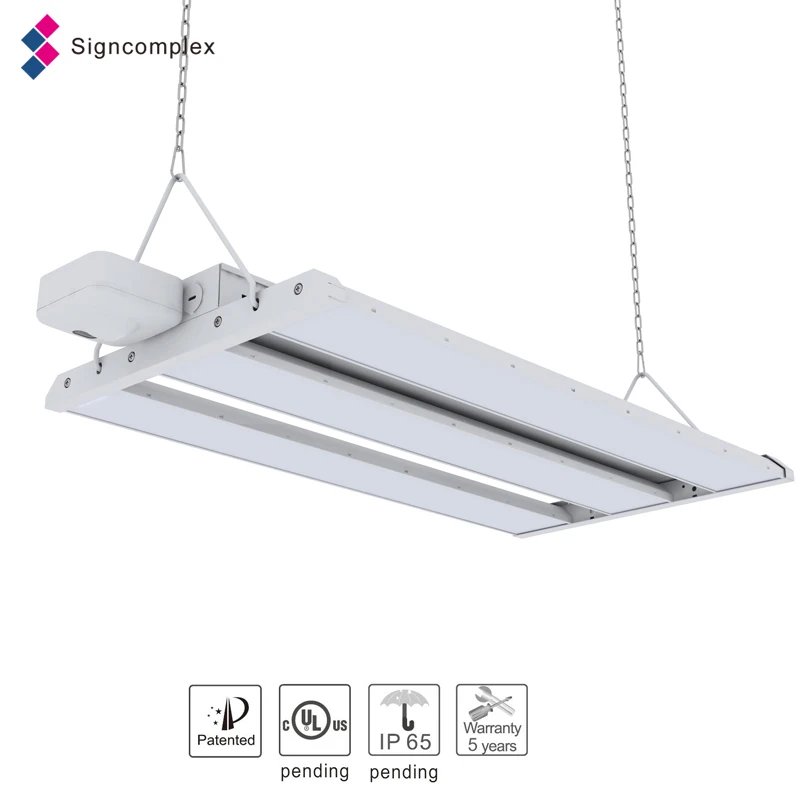

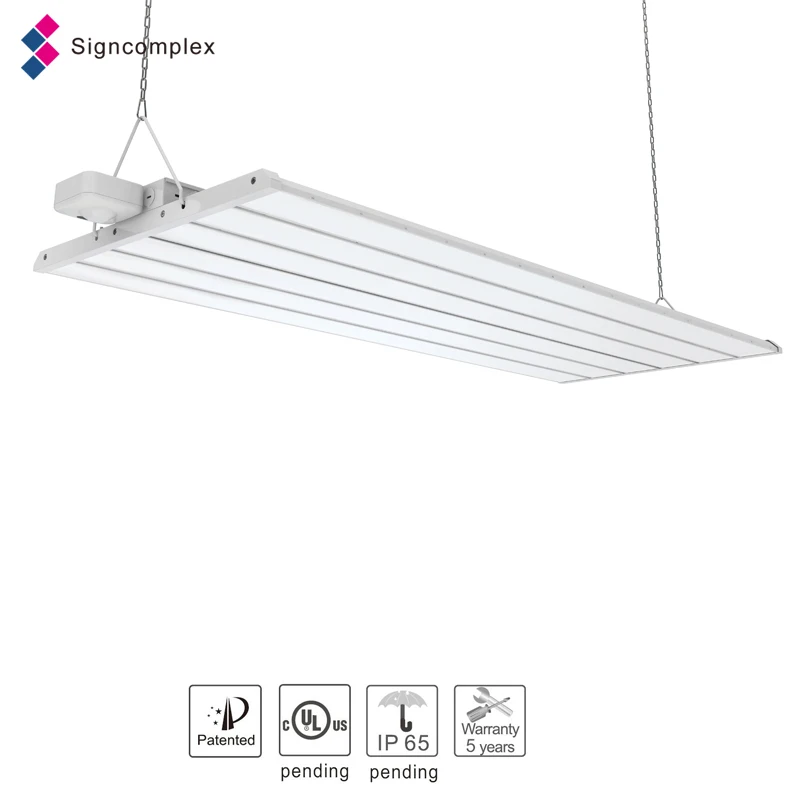

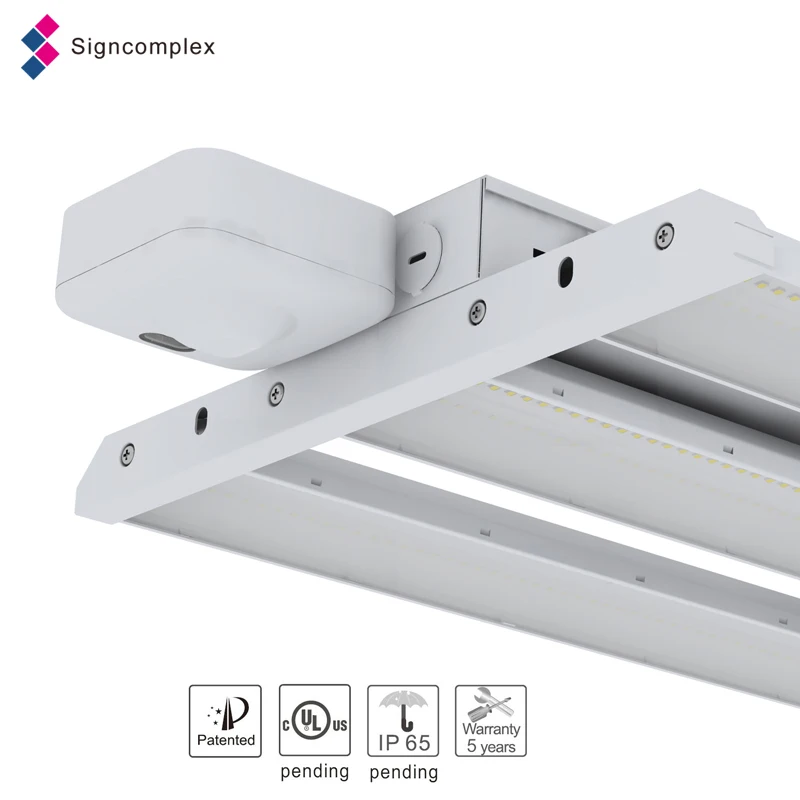

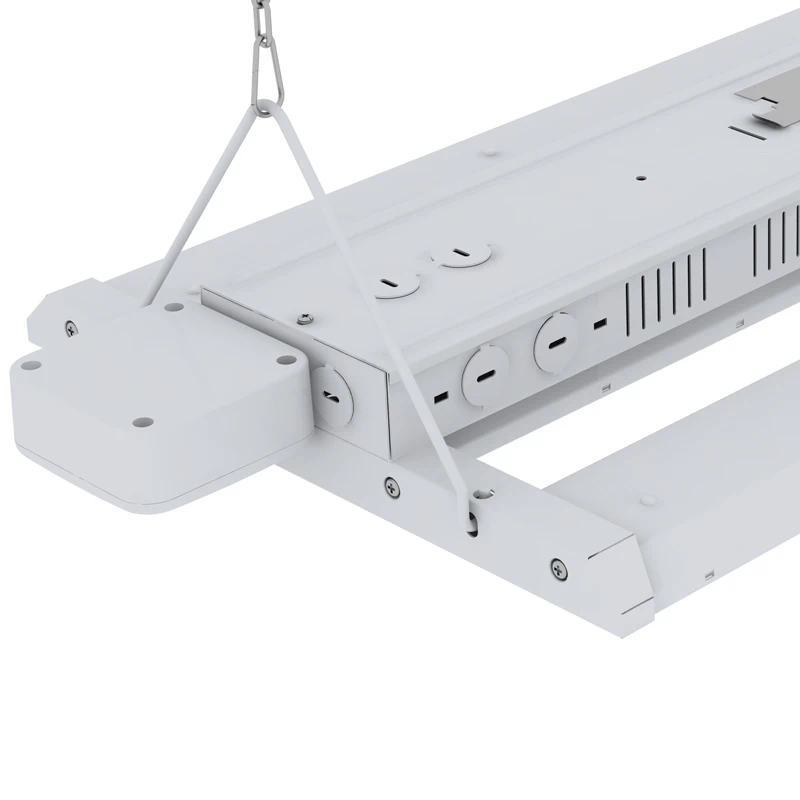

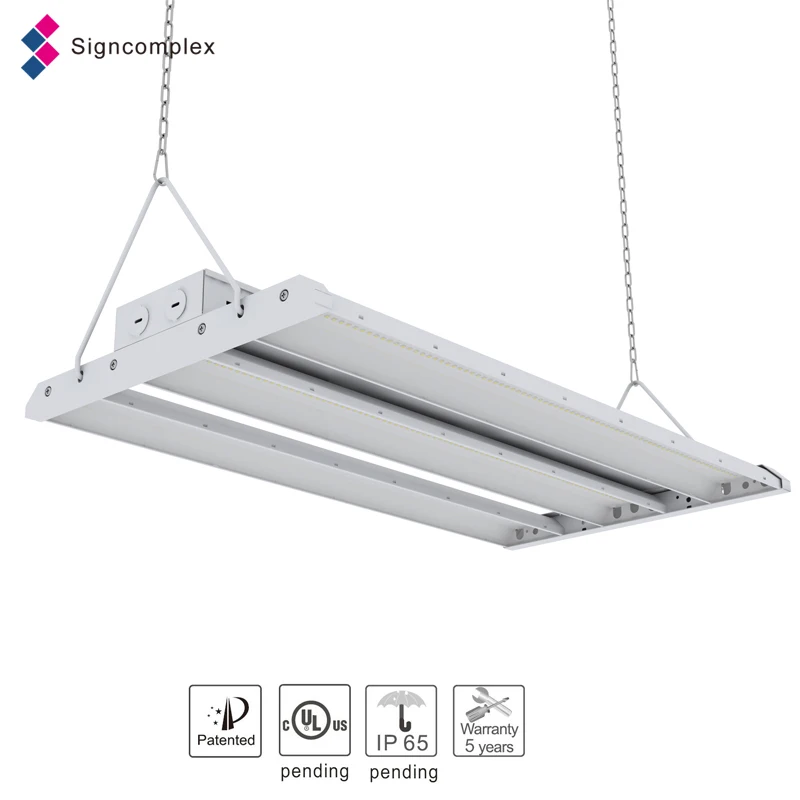

Linear High Bay
LH2F-060/100/120/150/180-AW-XXK-YY
LH4F-100/150/200/250/300-AW-XXK-YY
Description:
The linear high bay light adopt modular design, so it can be combined flexibly to provide different power to choose, 2FEET: two modules 60W, three modules 100W, four modules 120W, five modules 150W, six modules 180W; 4FEET: two modules 100W, three modules 150W, four modules 200W, five modules 250W, six modules 300W; modular design, coolling performance is improved by more than 30%. Photoelectric separation design, greatly reduced temperature of LEDs and driver and prolong the lifetime of light to 60,000 hours. 140LM/W lighting effect, can save energy over 70%. 0-10V dimming type, microwave sensor type, emergency type, 347V-480V high voltage type available for customer to choose.
Feature:
1.2-6 modules,flexible combination, suitable for various applications; 2.Low glare, <25; 3.Suspendent installation and pole mounting optional; 4.Milky and transparent cover optional; 5.5 years warranty; 6.Operating environment temperature:-20 ℃- 45℃; 7.Corrosion-proof grade:no protection.
Specification:
Model
CCT
Lumen(lm) (±10%)
Beam
angle (°)
LED Type
Power(w)
Max curren(A)
Voltage, Frequency
LH2F-060-AW-50K-D01
5000K
8400
120°
SMD2835
60w
0.7
AC 100-277V 50/60Hz
LH2F-060-AW-40K-D01
4000K
8160
LH2F-060-AW-35K-D01
3500K
8040
LH2F-060-AW-30K-D01
3000K
8040
LH2F-060-AW-50K-D02
5000K
8050
120°
SMD2835
60w
0.7
AC 100-277V 50/60Hz
LH2F-060-AW-40K-D02
4000K
7800
LH2F-060-AW-35K-D02
3500K
7680
LH2F-060-AW-30K-D02
3000K
7680
LH2F-100-AW-50K-D01
5000K
14400
120°
SMD2835
100w
1.2
AC 100-277V 50/60Hz
LH2F-100-AW-40K-D01
4000K
14400
LH2F-100-AW-35K-D01
3500K
13600
LH2F-100-AW-30K-D01
3000K
13600
LH2F-100-AW-50K-D02
5000k
13750
120°
SMD2835
100w
1.2
AC 100-277V 50/60Hz
LH2F-100-AW-40K-D02
4000k
13400
LH2F-100-AW-35K-D02
3500k
13000
LH2F-100-AW-30K-D02
3000k
13000
LH2F-120-AW-50K-D01
5000k
16800
120°
SMD2835
120w
1.4
AC 100-277V 50/60Hz
LH2F-120-AW-40K-D01
4000k
16320
LH2F-120-AW-35K-D01
3500k
16080
LH2F-120-AW-30K-D01
3000k
16080
LH2F-120-AW-50K-D02
5000k
16100
120°
SMD2835
120w
1.4
AC 100-277V 50/60Hz
LH2F-120-AW-40K-D02
4000k
15600
LH2F-100-AW-35K-D02
3500k
15360
LH2F-100-AW-30K-D02
3000k
15360
Application:
Suitable for supermarket,warehouse,distribution/logiistic center,chain store,gymnasium,factory.
