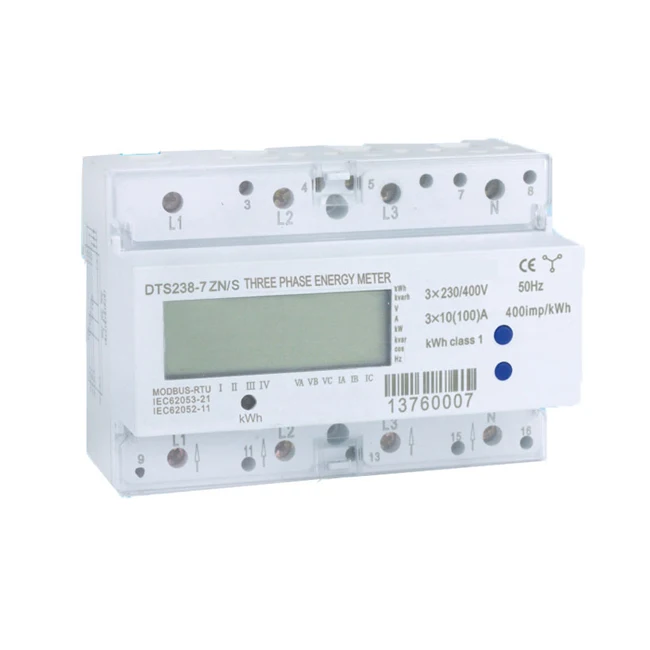

DTS238-7 ZNS three phase rs485 multifunction meter, din rail mini kwh meter



General:

The DTS238-7 ZNS is used in three phase four wire /three phase three wire /two phase three wire power grid. The meter is designed to measure AC active energy. All of its functions comply with the relative technical requirement for class 1 three phase watt hour meter in IEC61036. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .

Basic Function

• LCD display with backlight


• Bi-directional total active/reactive energy and TOU active/reactive energy measurement ,reverse active/reactive energy measure in the total active/reactive energy


• The meter also display three phase real voltage , real current , real power , real power factor , real frequency , real time and date


• Pulse LED indicates working of meter,Pulse output with optical coupling isolation


• loss phase indication in LCD


• RS485 communication port


• 35mm din rail installation

Optional Function

• the meter can measure and display the total forward/reverse active/reactive energy


• Reset energy function(the reset energy kwh display is dependent with the total energy display, this reset will not affect the total energy)


• remote control on/off function(DTS238-7 ZNS/R)



Type	EEDTS238-7 ZN/S
Rated voltage	Three phase four wire: 3*57.7/100V, 3*127/220V, 3*120/208V, 3*220/380V, 3*230/400V, 3*240/415V
	Three phase three wire(two phase three wire): 3x120/208V, 2x127/220V, 3x220V, 3x380V, 3x400V, 3x415V, 3x100V
Working voltage range	0.8-1.2Un
Rated current	1.5(6)A,5(30)A,5(60A),10(40)A, 20(80)A, 20(100)A, 30(100)A. Or other as required
Frequency	50Hz/60Hz
Connection mode	Direct type or with CT
Display	LCD
Accuracy class	Active class 1.0
Power consumption	<2W/10VA
Start current	0.004lb
Constant	200-6400 iimp/kWh
Pulse output	Passive pulse, pulse width is 80±5ms
Communication port	RS485 port, baud rate 1200-9600bps, default is 4800bps
Exeutive standard	IEC62053-21/22, DL/T645-2007 or MODUBUS-RTU
Working temperature	-30℃-70℃
Outline dimension	125*88*73mm(LxWxH)
Weight	Approx 0.62kg



Pls note that the price is only for voltage around 220-240V, if it's around 110V/120V, pls kindly contact me for fresh price and lead time.
