7 сек сращивания/Sumitomo Type-81C устройство для термического сращивания/машина сращивания волокна


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.95 $* 0.49 $*
Aug-18-2025 0.73 $* 0.78 $*
Jul-18-2025 0.95 $* 0.4 $*
Jun-18-2025 0.39 $* 0.40 $*
May-18-2025 0.95 $* 0.65 $*
Apr-18-2025 0.43 $* 0.76 $*
Mar-18-2025 0.53 $* 0.2 $*
Feb-18-2025 0.30 $* 0.7 $*
Jan-18-2025 0.9 $* 0.94 $*

Характеристики

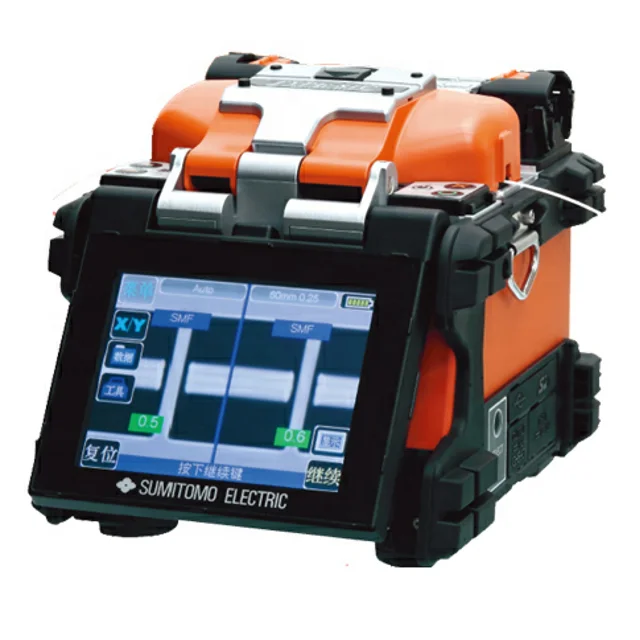

7 Sec Splicing / Sumitomo Type-81C Fusion Splicer / Fiber Splicing Machine price




              Type - 81C.jpg                 81cin tool kit.jpg








Features:


Automated and programmable wind protector


7 seconds Splicing Time;15 seconds automated tube heater


Fully ruggedized for shock, dust and moisture


Li-Ion battery with 200 splices/shrinks per charge


5 mm cleave length for splice on connector or small package needs


Sheath clamp or fiber holder operation


On-board training and support videos


Internet software upgrades


Multi-function transit case with integrated workstation





Specifications:
















































Applicable FibersSinglemode (G.652 & G.657), Multimode (G.651), DS (G.653), EDF (G.657)BIF(ITU-TG657)
Cladding Diameter80 μm to 150 μm
Coating Diameter100 μm to 1,000 μm
Fiber Cleave Length5 to 16 mm
Typical Average Splice Loss

0.02 dB with SM, 0.01 dB with MM, 0.04 dB with DS, 0.04 dB with


NZDS, measured by cut-back method relevant to ITU-T and IEC


standards


Splicing Time

SM FAST mode - 7 seconds; Stander mode -7.5 seconds:Auto mode-8 seconds


Arc Calibration Method

Automatic, realtime and by using results of previous splice when in AUTO mode,


manual arc calibration function available


Splicing Modes100 preset and user programmable modes
Splice Loss EstimateBased upon dual camera core alignment data
Storage of Splice ResultLast 2,000 results to be stored in the internal memory








































Fiber Display

X or Y, or both X and Y simultaneously. Front or rear monitor display


options with automated image orientation


MagnificationX or Y:320 X ;X and Y : 200X
Viewing MethodDual cameras with 4.73 inch TFT color LCD monitor
Operating Conditon0 to 5,000 m above sea level, 0 to 95%RH and -10 to 50°C /Max wind velocity of 15M/S
Return loss>60dB
Pull1.96N
Electrode life3000-5000/One pair for Standby applicationc
Weight2.1kg with battery
Warranty2 years warranty and lifespan technology support










Detailed Images

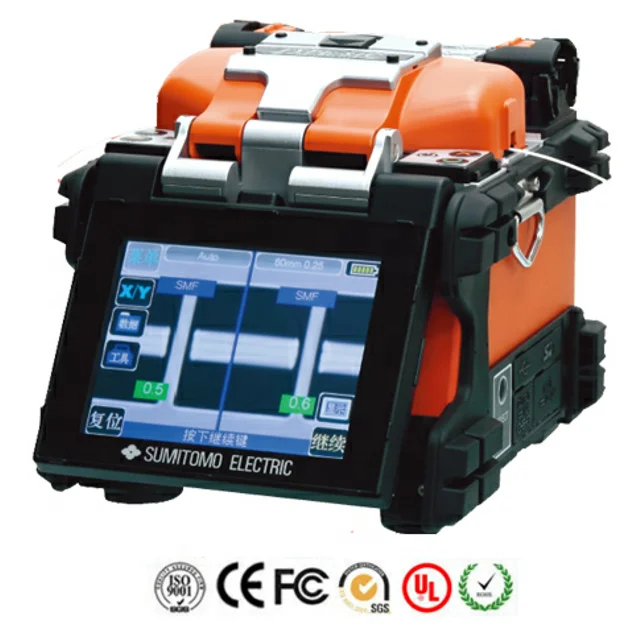

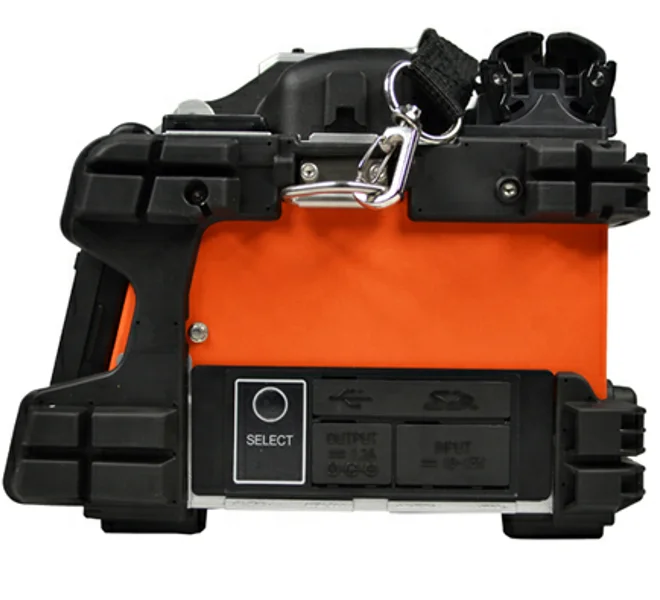

        Sumitomo Type-81C.jpg







 Packing & Delivery






 Express Delivery




 Please check the parcel before your signing if they are damaged, ask for demand compensation when you receive our products.








 Our Company





 JetFiber is a new brand designed by RADIANTECH,INC. Radiantech is specializing in the design and      manufacturing Fiber Optics Test & Measurement solutions and Optical Communications over 20 years. We  are proudly committed to excellence in product performance, reliability, and quality through the pursuit of  technological advancement and the application of proven manufacturing techniques. JetFiber is specializing  in Research & Development, Production & Sales of Fusion Splicer, OTDR, Power Meter Fiber Optics , Fiber  accessories. And we are also the agency of Sumitomo, EXFO, JDSU, Anritsu...


 Certificates






Contact Information


Company: Shenzhen JetFiber Telecommunication Co.,Ltd.


Website: www.jetfiber.en.alibaba.com
Address: #3A08, Block A, Zhihui Innovation Center, QianJin No.2 Road, BaoAn District, ShenZhen, China.518000
