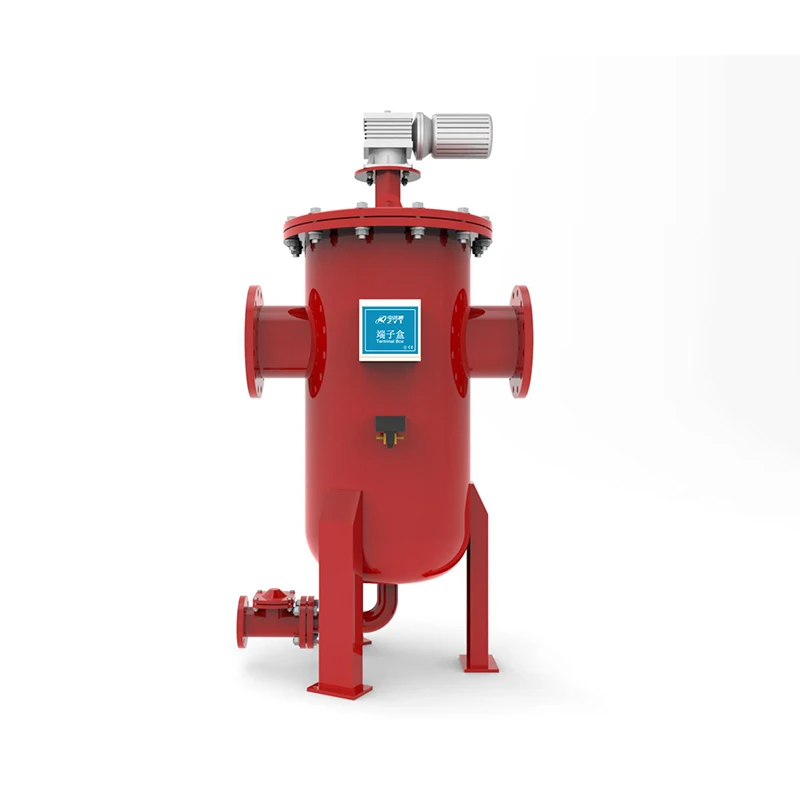

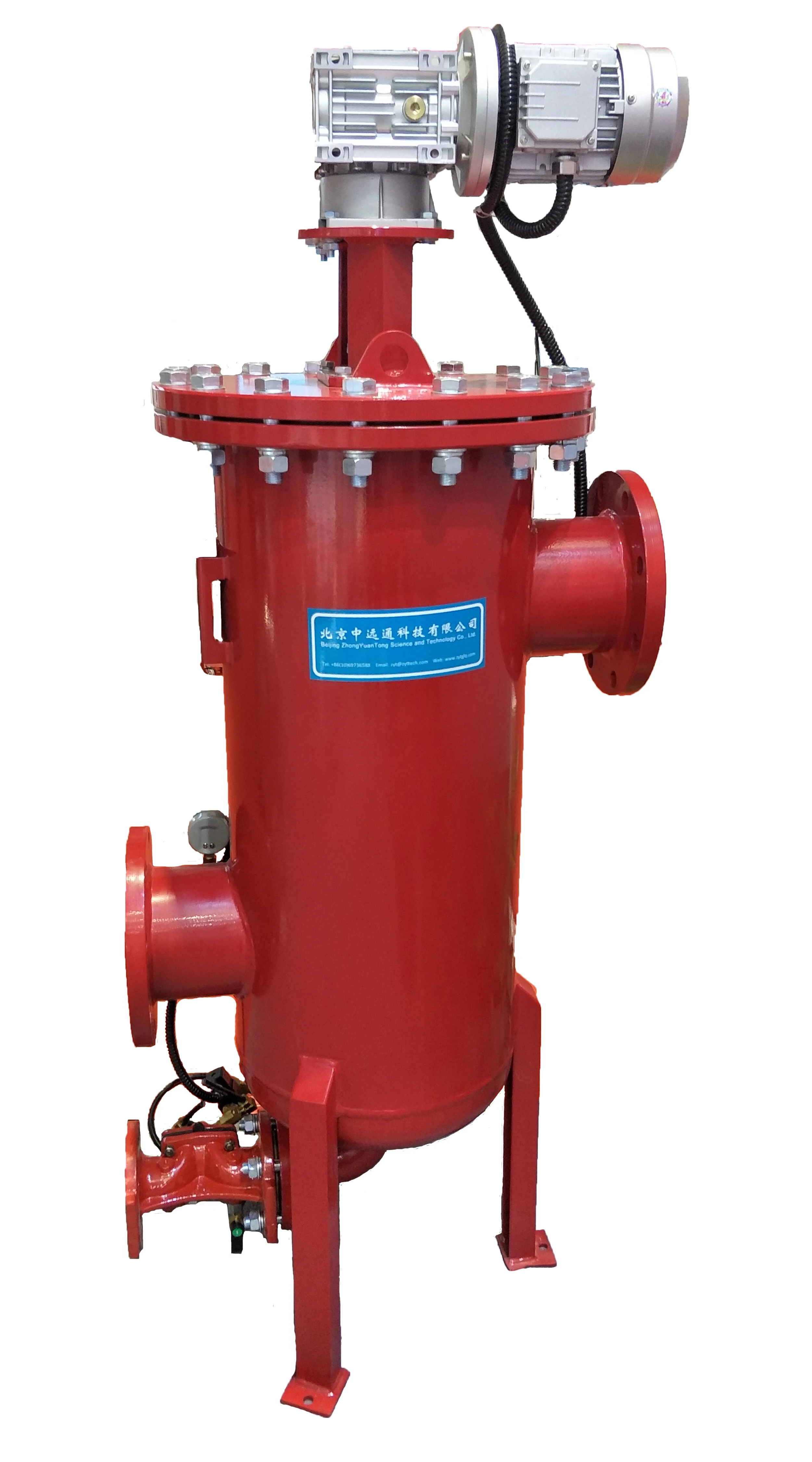

DP/Timer/manual control model self cleaning irrigation suction water filter

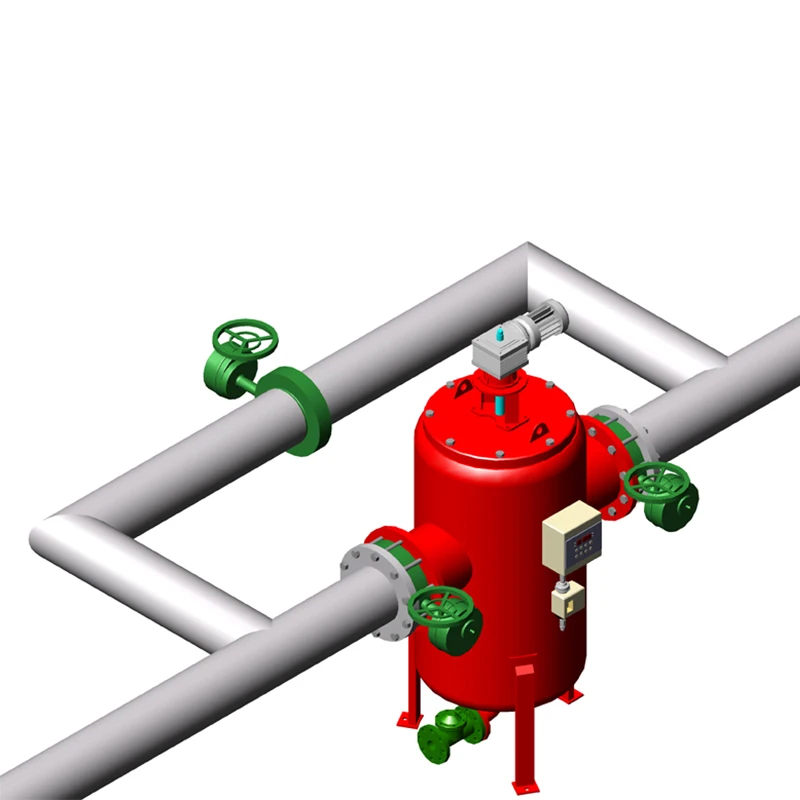

The position of inlet and outlet are designed on the side, the installation is very convenient.
The maximum flow rate of up to 4200m³/h, suitable for high water flow.
Operation
Filtering Process
Raw water enters the inside of the screen-cylinder from the filter’s Inlet and flows through the screen to the filter’s Outlet. The dirt particles are trapped on the inner screen surface and formulate a “filtration cake” that causes a differential pressure across the screen.
A pressure differential switch senses the pressure differential and when DP/Timer/manual control model self cleaning irrigation suction water filter reaches the pre-set value, the cleaning process begins.
Self Cleaning Process
During the self cleaning process, filtered process water continues to flow. The Drain Valve opens and the Motor rotates the stainless steel brush which sweeps the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve.
The whole process takes 20-30 seconds.
During the whole process water supply is uninterrupted.
Control System
Two types of control boards are available for the AZ filters: PLC/Timer.
The self cleaning cycle begins under any one of the following conditions
1. Receiving a signal from the Pressure Differential Switch
2. Time interval parameter set at the control board
3. Manual Start
Technical Parameter
Filter flow | 80-4200 m³/h |
Max. recommended working pressure | 10 bar/16 bar/25 bar |
Min. operating working pressure during backwash | 2.5 bar |
Water temperature range | 0 ~ 65 °C |
Available filtration | From 50~3000micron |
Pressure loss | < 0.1 bar |
Connections | Flange |
Backwash time | 30 seconds |
Water consumption during backwash | 1%-3% of filtered water |
Control model | DP/Timer/Manual |
Cleaning way | Brush |
Drive way | Motor drive |
Filter element | Stainless steel 304 mesh |
Filter housing material of construction | Carbon steel ST37-2/SS304/SS316 |
Sewage way | Fully automatic |
Installation | Vertical |
Rated operating voltage | 3ph/380V/50Hz or Customized |
Product Parameter
Our company can manufacture the filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.

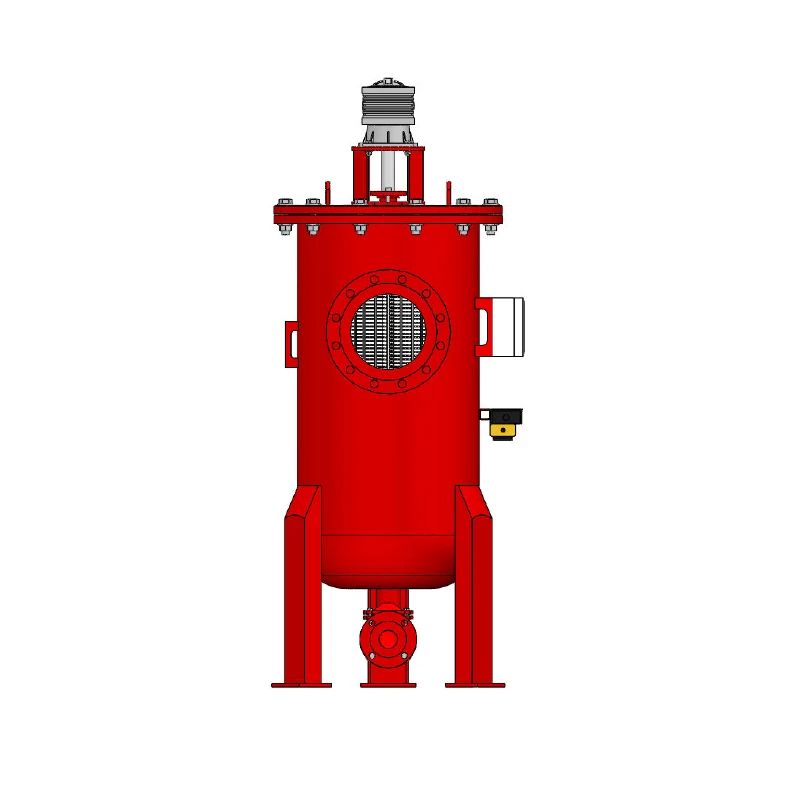

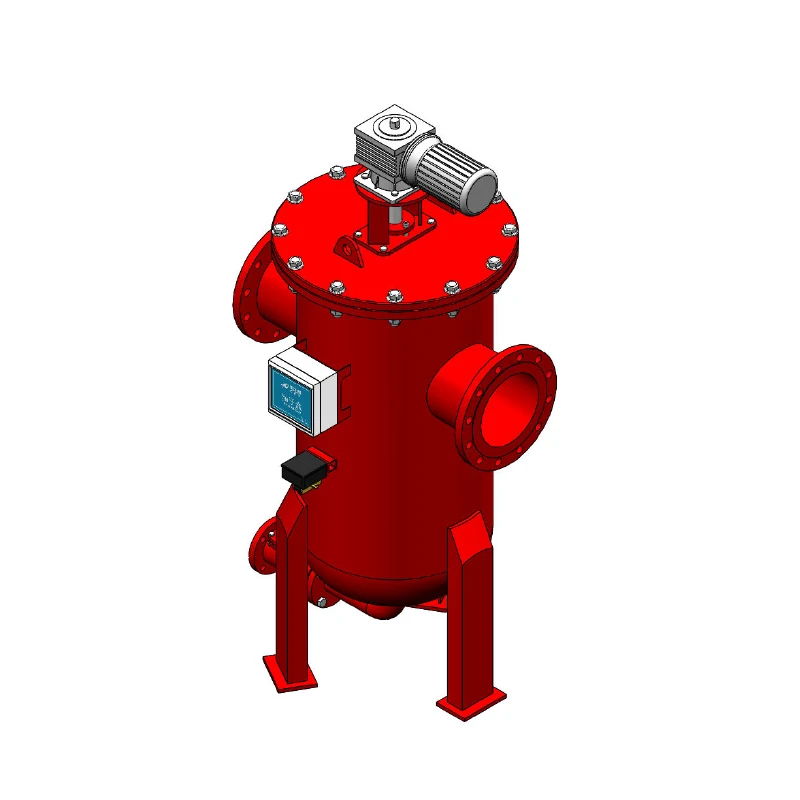

Product Details
Application Area
DP/Timer/manual control model self cleaning irrigation suction water filter is widely used in agricultural irrigation, municipal project, power industry, paper making, coal, metallurgy and other industries.
Packaging & Shipping
Packing :
The equipment is wrapped in plastic film and then loaded into the wooden box.
