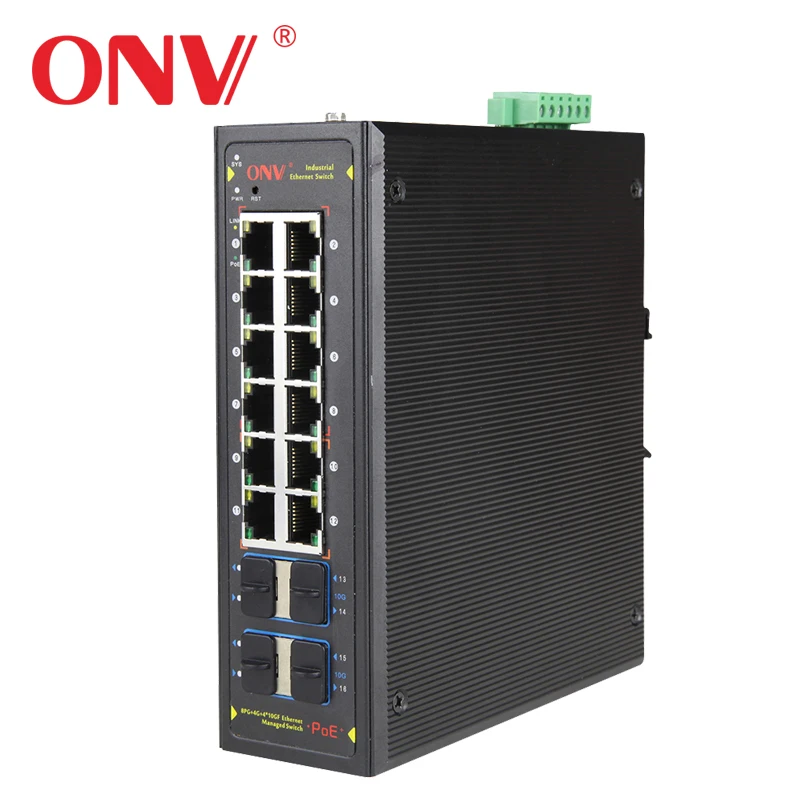

16CH  industrial poe switch 16 CH supermarket security system







The ONV-IPS36168PFM, the next generation L2+ managed POE+ switch from ONV, features with powerful web management function. Fan-less & low consumption design. Supporting Looped Network Redundancy. (Self-healing time <20ms, with complete security and QoS policy, support VLAN division, port mirroring, port speed limit. Support broadcast storm suppression & flow control. Managed through a variety of interfaces and ways including the WEB, CLI and SNMP etc.





With the wide working temperature and anti-surge protection in all ports, it is widely used in rail traffic, electricity, water conservancy, petrochemical, industrial control, electric alarm bayonet and other harsh environment, stability required strictly industry or place.







Feature

 L2+ features provide better manageability, security, QoS, and performance.

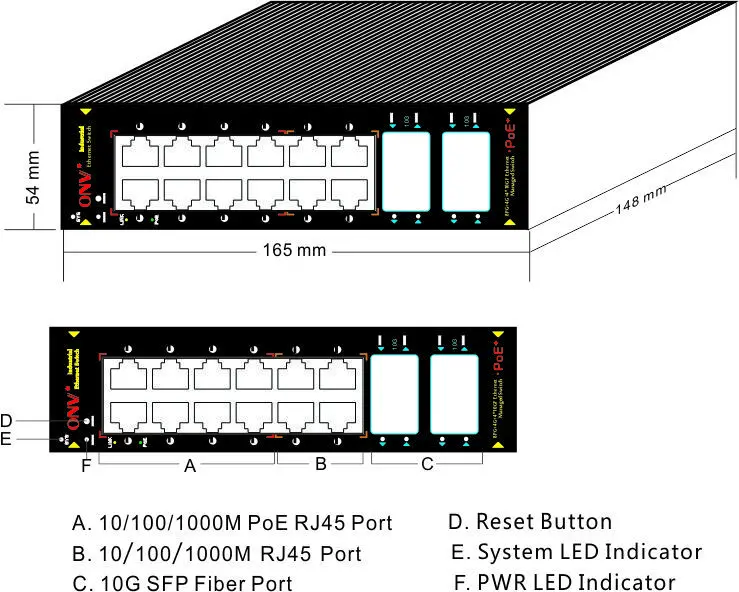

 12*10/100/1000M Base-TX RJ45 Ports + 4*10G SFP+ Ports. All ports support line-speed forwarding mode



 Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.



 Support spanning tree STP(802.1D) and RSTP(802.1W).



 Jumbo frames support up to 9.6K kilobtyes.



 Support enhanced management through WEB, CLI,TELNET, SSH, SNMP.



 IEEE 802.3af and 802.3at. Supports per port PoE configuration function



 G.8032, support <50ms industrial quick ring protection



Target Industries



HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Network telephone transmission , intelligent house and home system
Intelligent transportation supervisory system(ITS)
High-speed Way supervisory/Tele-Communication System
 Security protection system, TV medical treatment
 Long-distance Muti-media Schooling, Campus monitoring
 Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-Com projects
