Характеристики


Double Nozzle LPG Skid Mounted Station 30cbm 35cbm 40cbm LPG Refilling Plant Call Ms.Pinky Whatsapp:0086 15897603919



LPG Skid Mounted Station:

Plug and operate LPG SKID Stations.

LPG Plug and operate Skid Stations are deisnged and built to work at any site without any connections or civil works. the LPG Stations UP and Down running with the turn of swtich.




LPG Skid Mounted Station, For refilling of cooking gas:

1. Suction pipeline for liquid phase of Gas No 50

2. Pump with electrical engine in Ex Protection and engien with 380V or 220V and delivery pump

3. Propelling pipeline for liquid phase of Gas No.30

4. discharging device, safety valve, shut off valve and other valve.

5. LPG Dispensers and Filling Scale

6. Complete mobile filling station for LPG is mounted on stable steel base with carrying handles.

Detailed Images

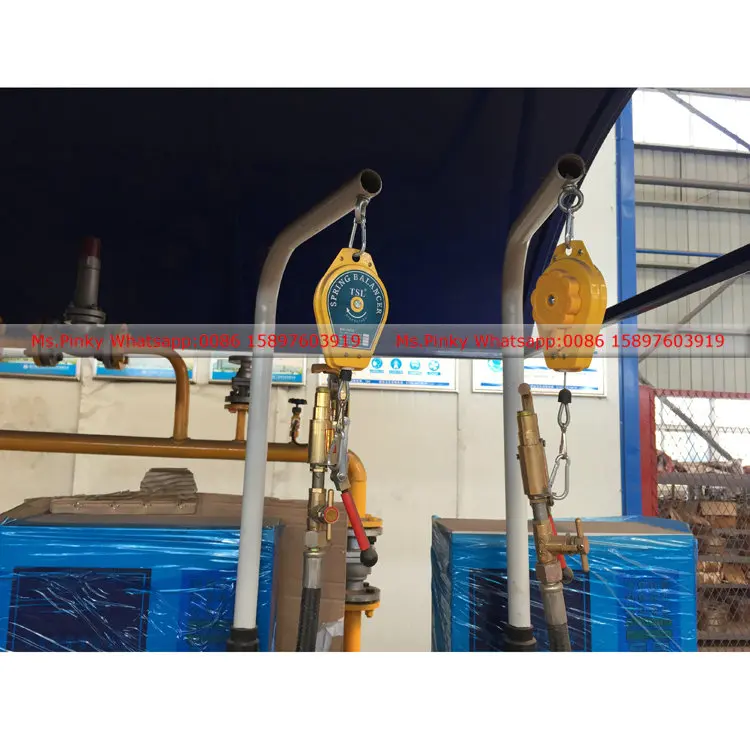

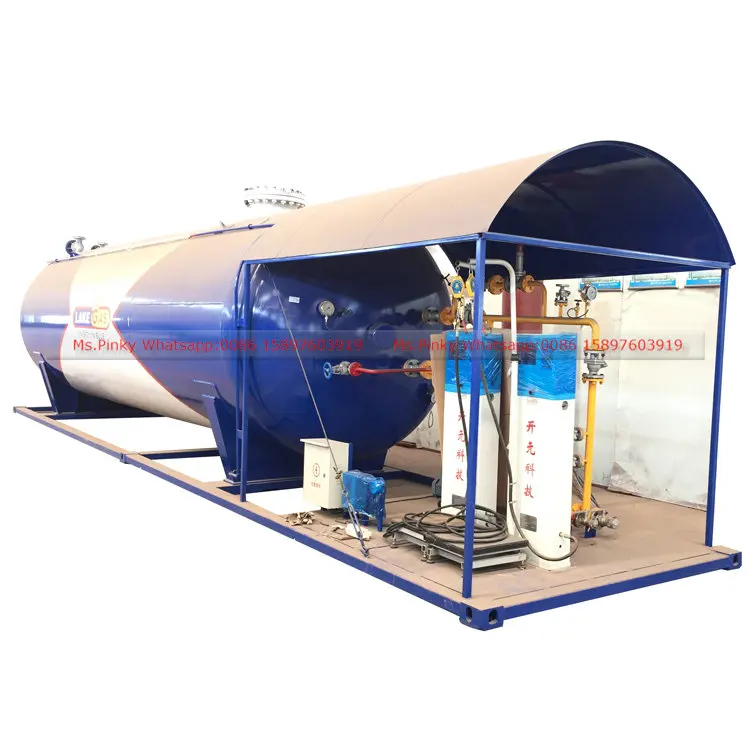

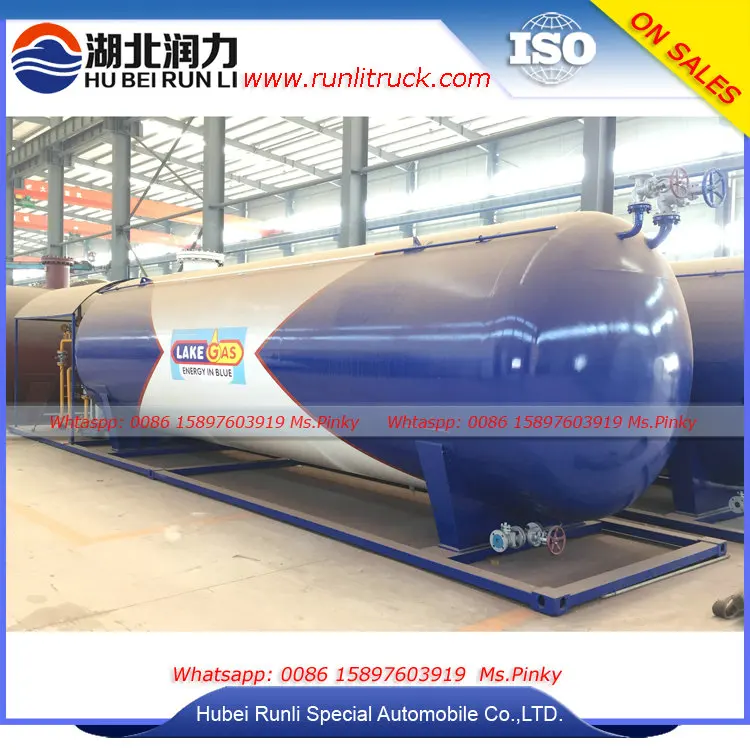

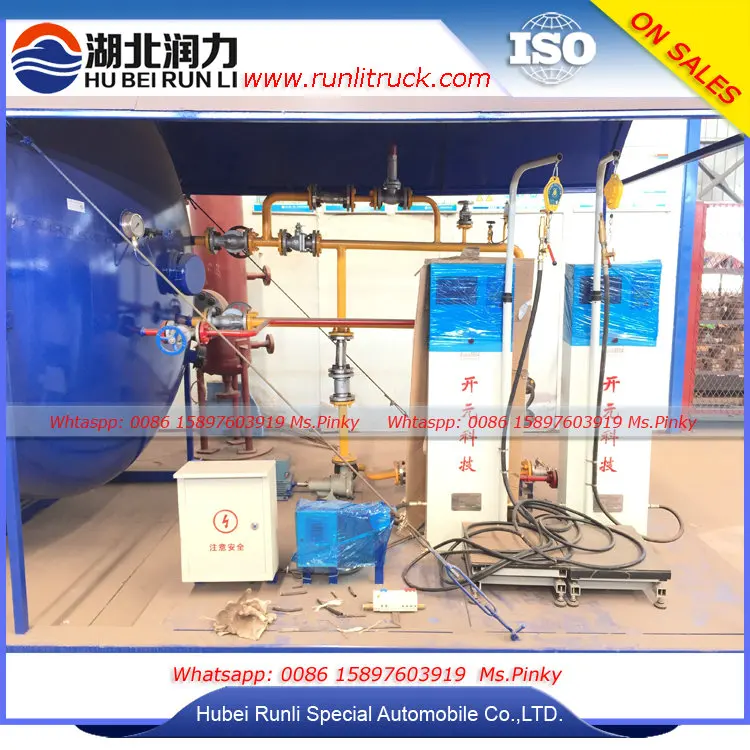

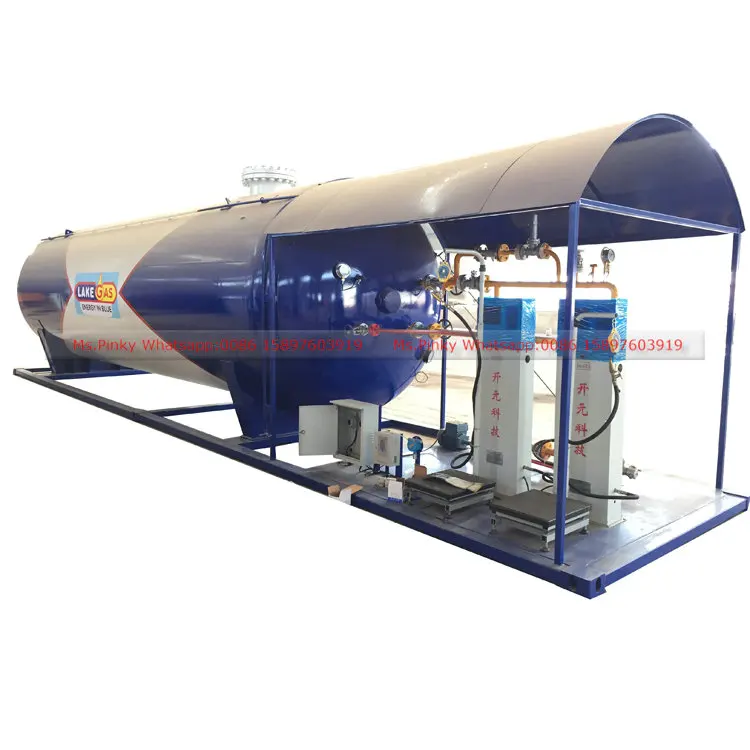

 The Pictures of Double Nozzle LPG Skid Mounted Station 30cbm 35cbm 40cbm LPG Refilling Plant :

IMG_2704.JPGIMG_2705.JPGIMG_2707.JPGIMG_2708.JPG  IMG_2742.JPG

New Design, Automatic, good performance, fast delivery.

thickness of tank body: 10mm

LPG Filling Gas Plant Station, factory directly sales!



35000L Liquefied Petroleum Gas Filling Plant with Scales shipping by 40HQ Container.






Specification



Double Nozzle LPG Skid Mounted Station 30cbm 35cbm 40cbm LPG Refilling Plant can be design for :

1. Cooking Gas LPG Cylinders ( Bottling)

2. Cars taxi

3. Forklifts

3. Dual Fuel Trucks

4. Buses

5. Marine Boats

6. other industrail and commercial Vehicles.

gasoline skid tank with automatic dispensing, For refilling ofcooking gas

Tanker

 body

Item

data

Filling medium

LPG

capacity

35000Liters

Design pressure

1.724Mpa

Thickness of body

12mm

Thickness of head

12mm

Material

Q345

Corrosion allowance

1mm

Hot treatment type

Stress relieved hot treatment

Kerb weight

14800kgs

Loading weight

15000kgs

Outside dimension(inner

diameter*thickness*length

2200*12*11000mm

Filling ratio

0.95

Hydraulic test pressure

2.14Mpa

Service year

20

Filling ratio

420(50℃)



Standard Features:

5000Up to 100,000Liters

High Quality steel

completer valves and piping

complete installation of switchboard and wiring

cylinder filling /autogas dispenser or both

sihi or viking



optional features of Automatic Gas Station LPG Gas Cylinder Filling Station :

220V or 380V motor

Automatic Mechanical filling scale

dual functionality autogas dispenser and filling scales

sunshield

Solar lighting

LPG Genset
