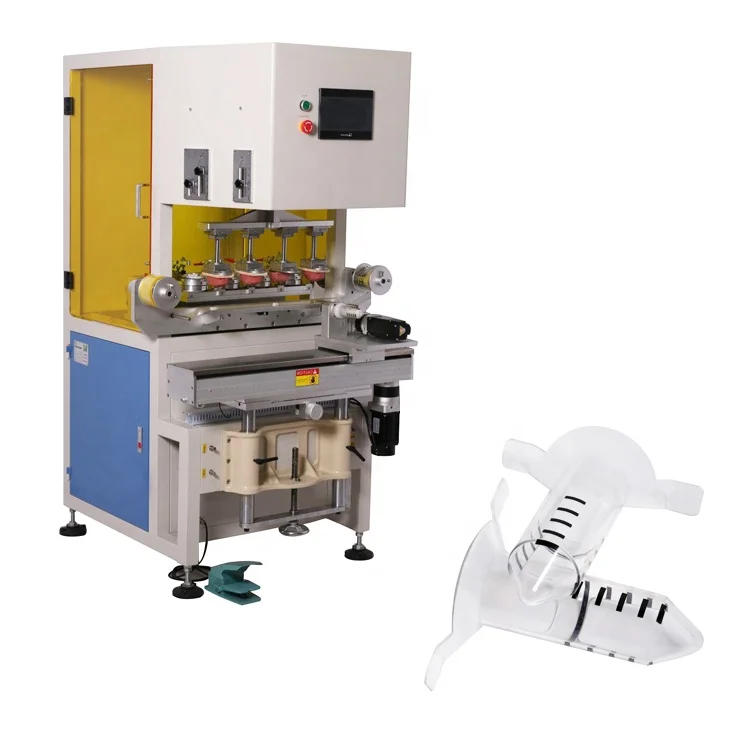

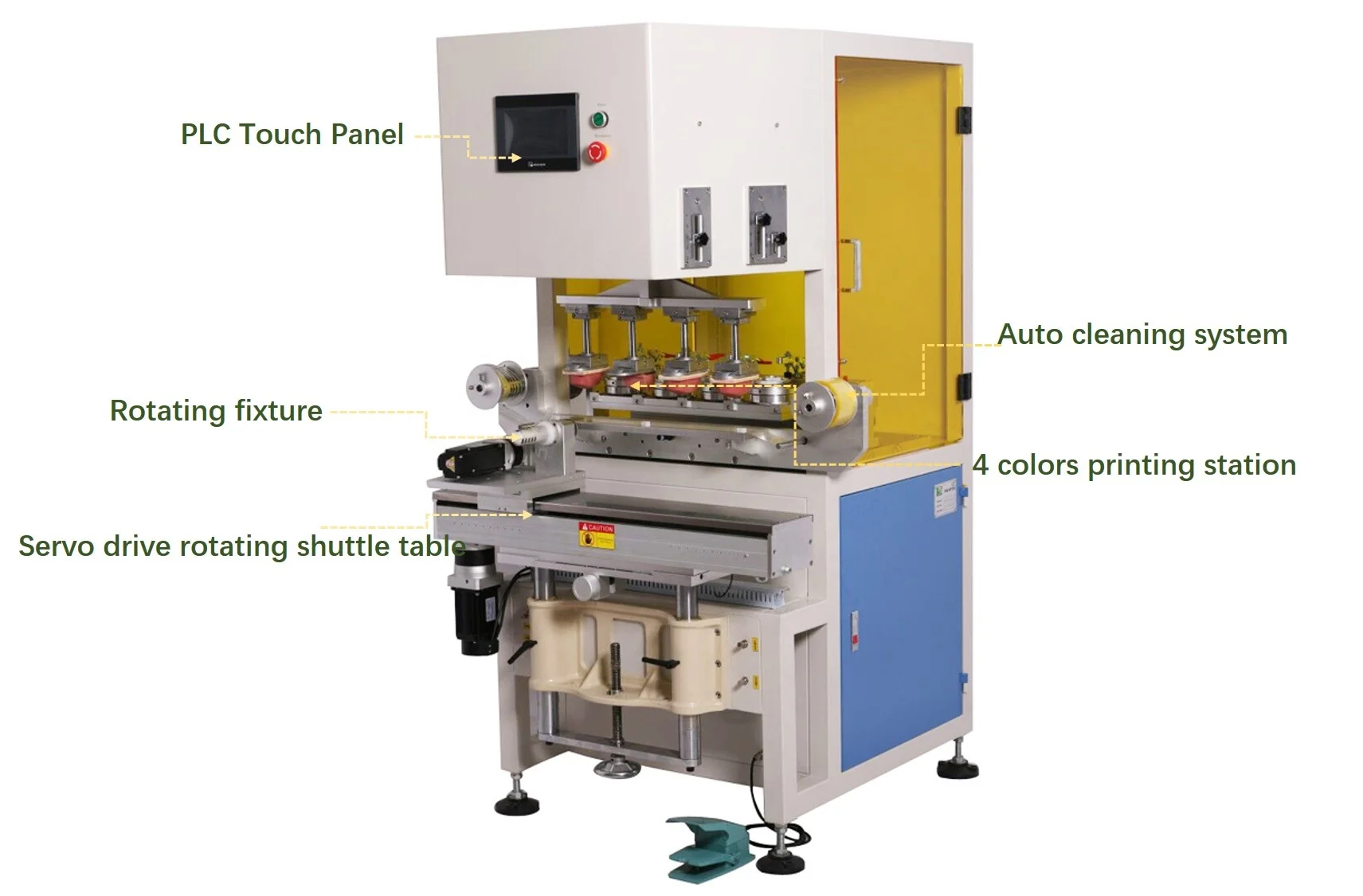

1.Portal-type frame and aluminum machine body stably 2.MISUBISHI PLC and WEINVIEW touch panel for operating easily 3.Servo driven shuttle and rotate working table for precision run 4.Servo motor and HIWIN liner guide drive pad front-back with precise color registration 5.Closed ink cup load system for low sell and save ink 6.Pad up-down and ink cup front-back independent adjust speed 7.Adopt AirTAC cylinder and electronic parts to make sure machine quality 8.Can be chosen auto pad clean system for better print quality
Specification
Model
TS-3050CP1
Print Accuracy
+/- 0.03mm
Ink Cup Size
Ø90*82*12mm
Steel Plate Size
100*250*0.5mm
Ink Cup Stroke
150mm
Pad Stroke
80mm
Max. Printing Speed
800pcs/hr
Air Pressure
6bar
Rated Voltage
220V 50Hz
Dimension(L×W×H)
1100*1000*1680mm
Weight
300kg(Approx.)
Company Profile
FAQ
FAQ
1.How long will it take to produce an order?
Lead Time is usually for 30-90 days, according to orders of customers and its requirement.
2. What is your payment terms?
Payment method can be deposit 30%-50%, balance before shipment or L/C at sight for container order.
100% T/T or Western Union in advance for small order.
3. Can you accept OEM/ODM service?
Yes, we can.
4. Can you test our sample before we place an order?
Yes, simple test can be free, if image is too complex, we will charge you cost of materials for cliche, pad, ink and fixture,
labor cost free.
5.Can you send your technician to our company to install and adjust machine and train our operator?
Yes, we can.
