Характеристики


Product Features

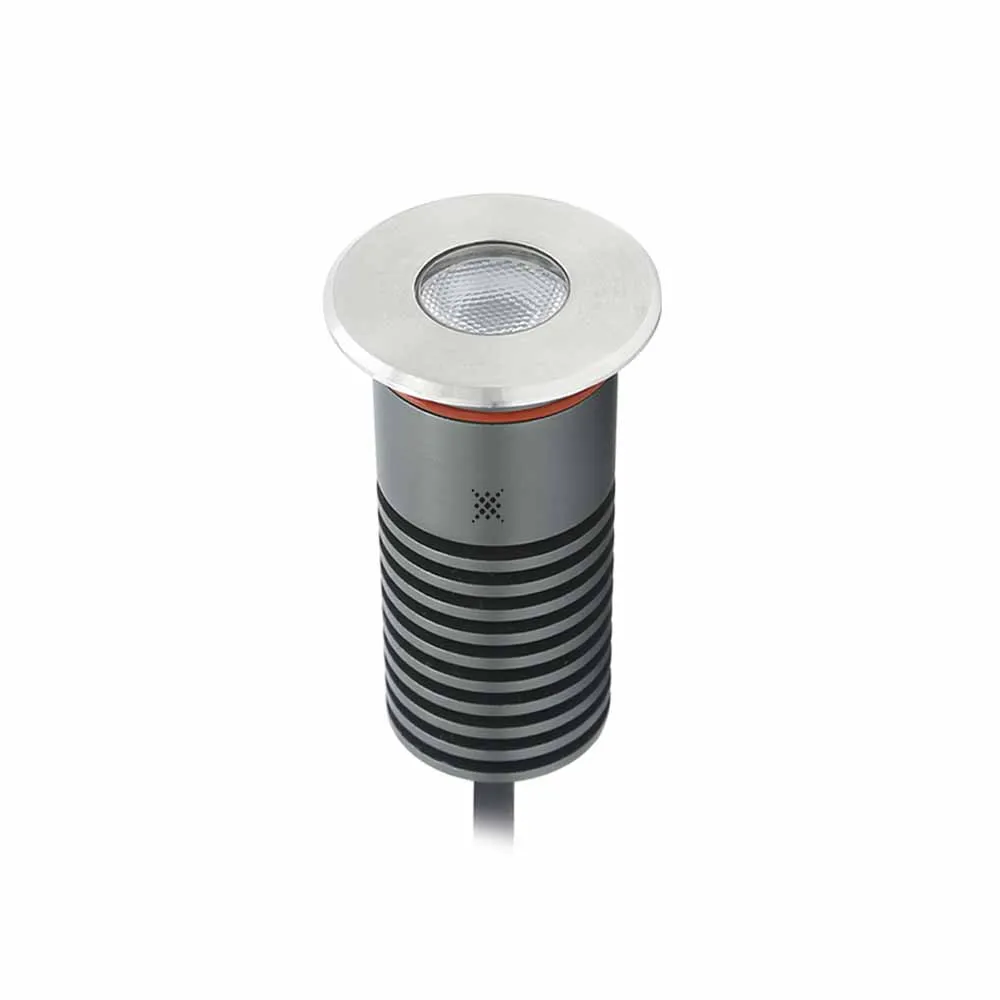

3W CE IP67 inground led lights with clip RGB outdoor led floor light

. RGB underground light deck light with 1 PC 3W 3in1 RGB LED
. Stainless steel 316 (not 304) trim and tempered glass with high loading capacity.

. Excellent cooling design with passivated aluminum housing and mounting sleeve.
.11~13μm thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
.20°,45° ,60°  beam angle as options
. With clip can be used as down lights or deck lights.
.IP67 waterproof
. 3 years warranty
.8~10 years professional sales and technicians to serve you

Data Sheet
\t
General Data
\t
Item No.
\t
UL-1003-RGB
\t
Power
\t
3 Watts
\t
LED type
\t
1 PC 3W 3in1 RGB LED
\t
Luminous flux
\t
95 lm (All LED chips on)
\t
CCT
\t
RGB
\t
CRI
\t
70+
\t
Beam angle
\t
20°,45° ,60°
\t
Dimension
\t
40 x 87 (mm) Diameter x Height
\t
Cut out
\t
33 mm
\t
Net weight
\t
0.27 kgs
\t
Warranty
\t
3 years
\t
Certifications
\t
CE, RoHS
\t
Electrical Data
\t
Input voltage
\t
DC12V /DC24V
\t
Insulation class
\t
Class III
\t
Cable
\t
1 x cable 1.5M H05RN-F 4x0.75mm square to open wires
\t
Driver
\t
Low voltage constant current output ,excluding the transformer
\t
Construction Data
\t
IP rating
\t
IP67 Waterproof
\t
IK rating
\t
IK06
\t
Housing
\t
Solid Passivated (Anodizing) Aluminum CNC machined
\t
Protection finishing
\t
11~13μm thickness anodized film for housing .Dark grey
\t
Trim
\t
Stainless steel 316
\t
Glass
\t
Step tempered Glass.T=4mm.
\t
Loading capacity
\t
320 kgs
\t
Cable Gland
\t
Nickel Copper PG9 IP67
\t
Gasket
\t
O-ring PMQ silicone seal
\t
Accessories
\t

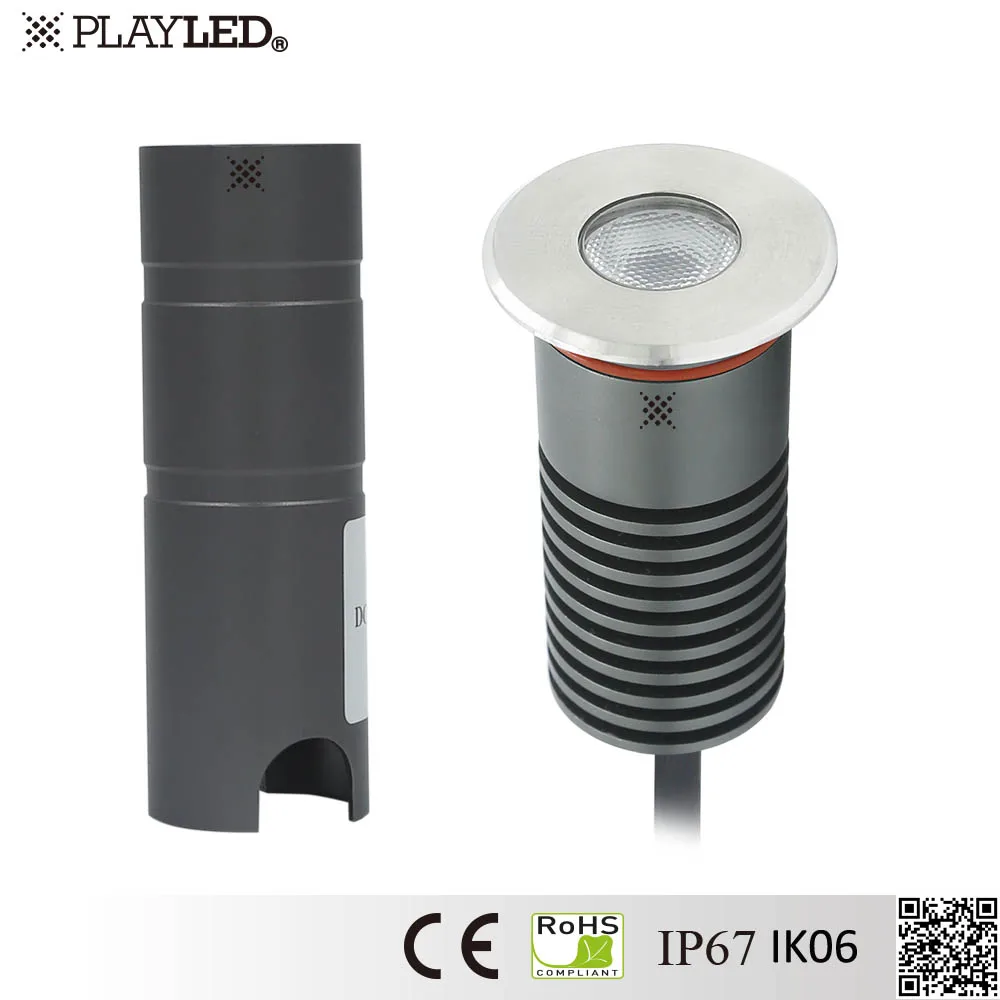

Mounting Sleeve
\t
Passivated (Anodizing) Aluminum CNC machined in dark grey
\t
Clip
\t
With Aluminium spring that's for deck lights or ceiling lights application
Detailed Pictures

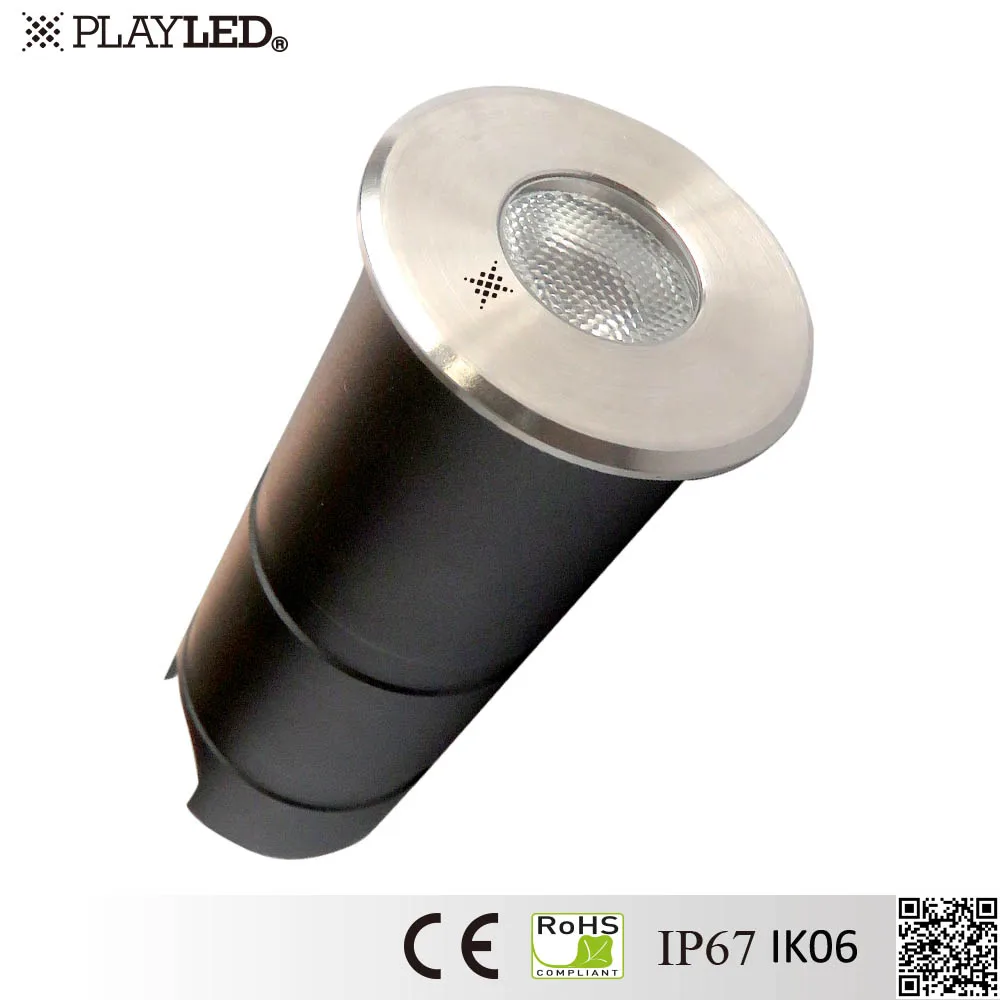

This ground spot RGB inground light is widely used in the exterior illumination and the landscape decoration illumination., and with waterproof IP67 and  IK06 loading capacity.

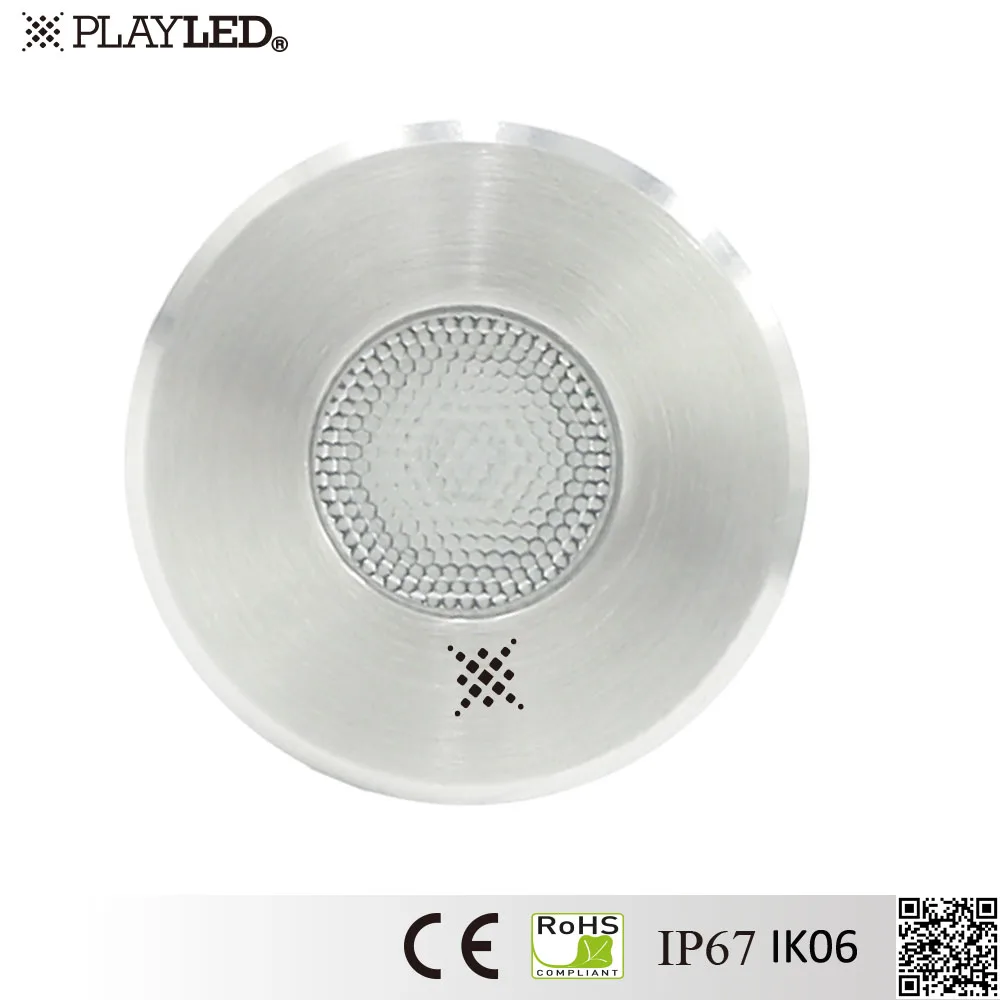

With stainless steel 316 (not 304) front cover and the Tempered glass.

Passivated (Anodizing) Alumnium housing CNC machine that won't be fading even after 2 to 3 years.

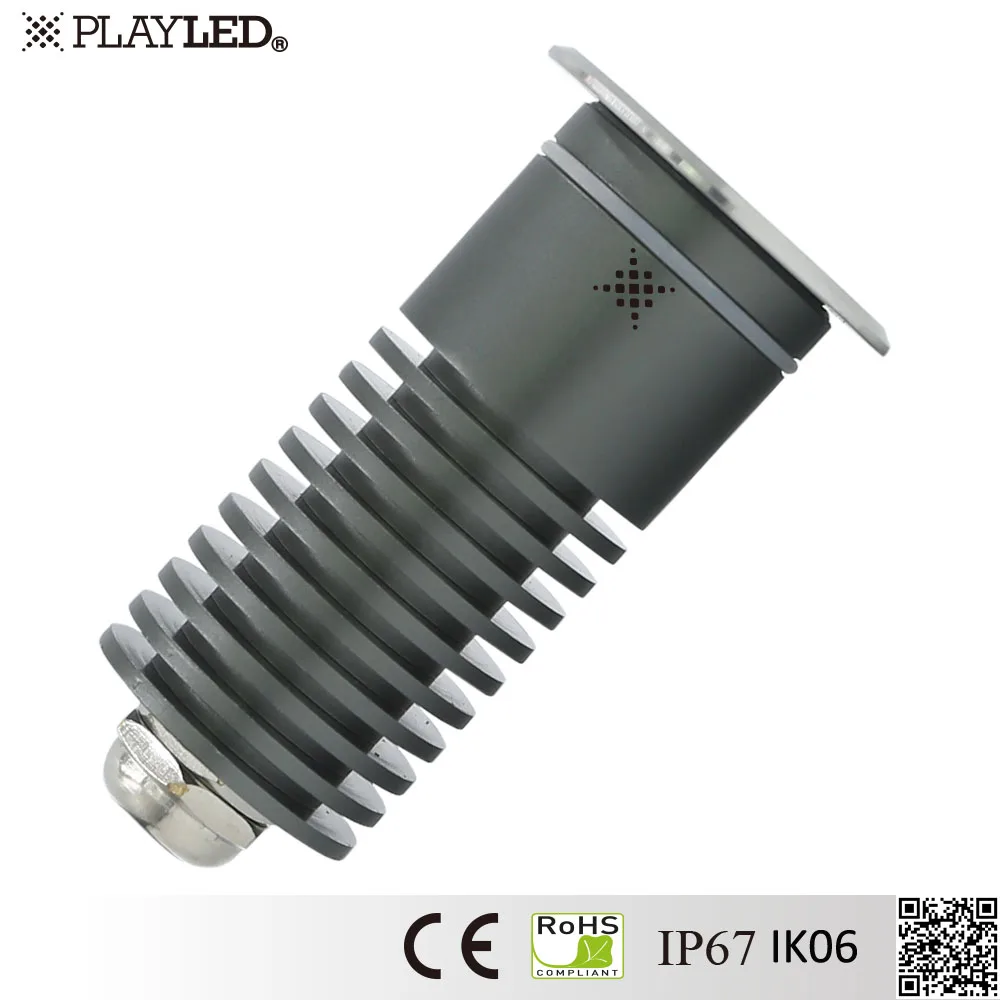

With Nickel copper PG9 IP67 cable gland to be better waterproof.

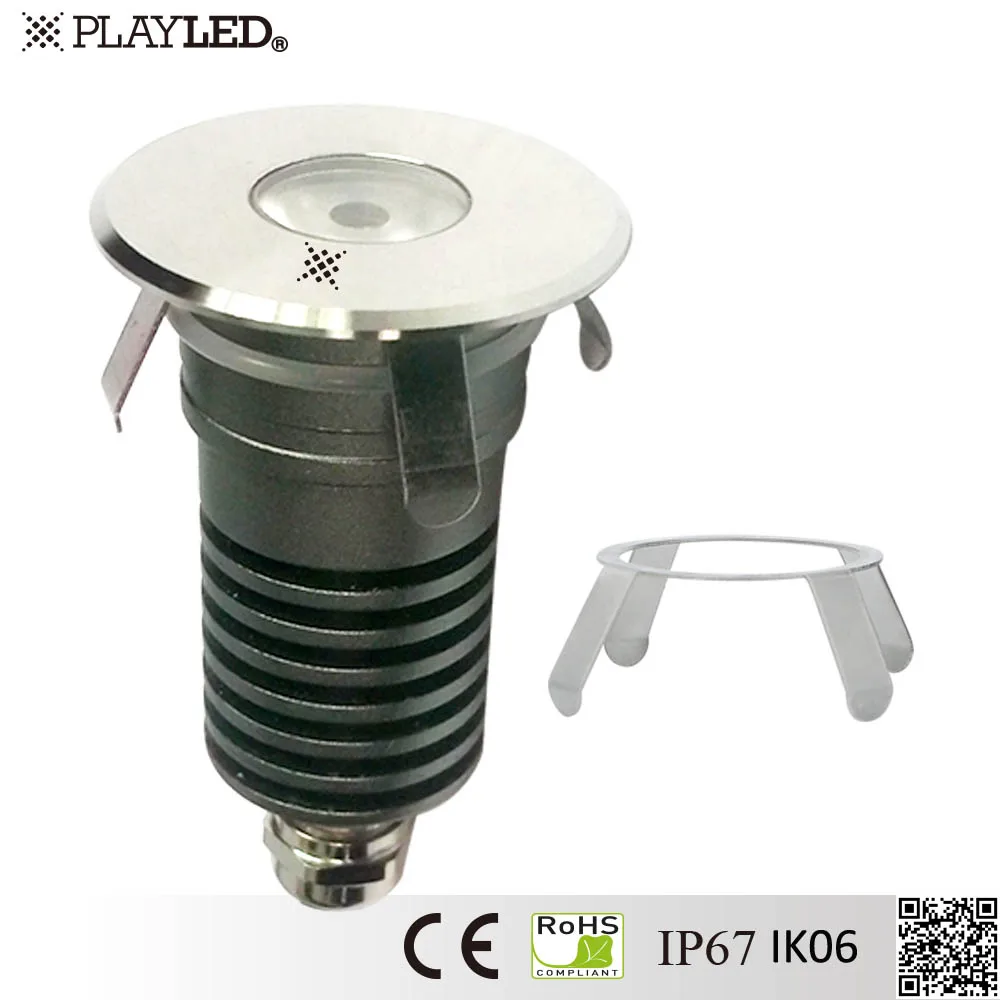

With clip can be used as down lights or deck lights.




Illumination picture showcase

It's with CCT RGB,and 45degrees beam angle.

We have our own IES photometrical machine to make the IES test.

                   Light distribution cureve

                               Lux distance curve


Dimension
Related products
Please click the picture to check this adjustable inground light series !

Please click the below picture to check our main products series or send me the Email info5(@)pyledlight.com for the PDF file E-catalogue to check our whole range products . (Pls remove "()")

Application Pictures

These ground Spot RGB inground lights are widely used at spotting walls, lighting columns, trees, flowers etc,.

Company Introduction

Puyuan Electronic Illumination Co., Ltd. with registed brand PLAYLED is a professional LED lighting manufacturer in China,established in 2007 years.

It is specialized in producing Exterior LED lights, such as LED inground light, LED deck lights, Spike spot lights, step lights, underwater pool lights,LED flood lights,wall washer etc.. We not only pay much attention on quality but also on the details such as design ,finishing optics etc..

We adhere to quality standards of operation and is compliant with ISO9001:2008 for quality management operations system and ISO14001:2004 for environmental system certification.Our products have varying quality certifications such as CE,RoHS,TUV and cUL assure reliability,particularly those which are exported to Europe, North America,South America,Australia,Iceland,Malaysia,Indonesia and Philippines,UAE,Saudi Arabia etc.

We usually attended Guangzhou Fair, HongKong International Lighting Fair ( Autumn Edition),HongKong International Lighting Fair ( Spring Edition),Japan Light Fair,LED Expo Thailand,Light Middle East in DUBAI etc.

Contact Us

1.Are you a trade company or a manufacturer?

We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.

2.What is your delivery date?

 The delivery date is around 7-15 days for samples,and 15~25 days  for regular orders after receipt of payment.

3.What is your payment terms?

For samples: 100% deposit.

For regular order:30% deposit in advance and 70% balance before shipment.

The payment method can be Paypal,western union bank, bank for TT .

4.What's your delivery terms ?

We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.

5.What's your warranty ?

We are confident on our quality of design,and the warranty is 3 years.

6.Can I buy the quantity below MOQ ?
Yes, please contact us for the detailed prices based on your detailed quantity requirement.

Please Click picture to return our home page to view more of our LED lighting fixtures series.
