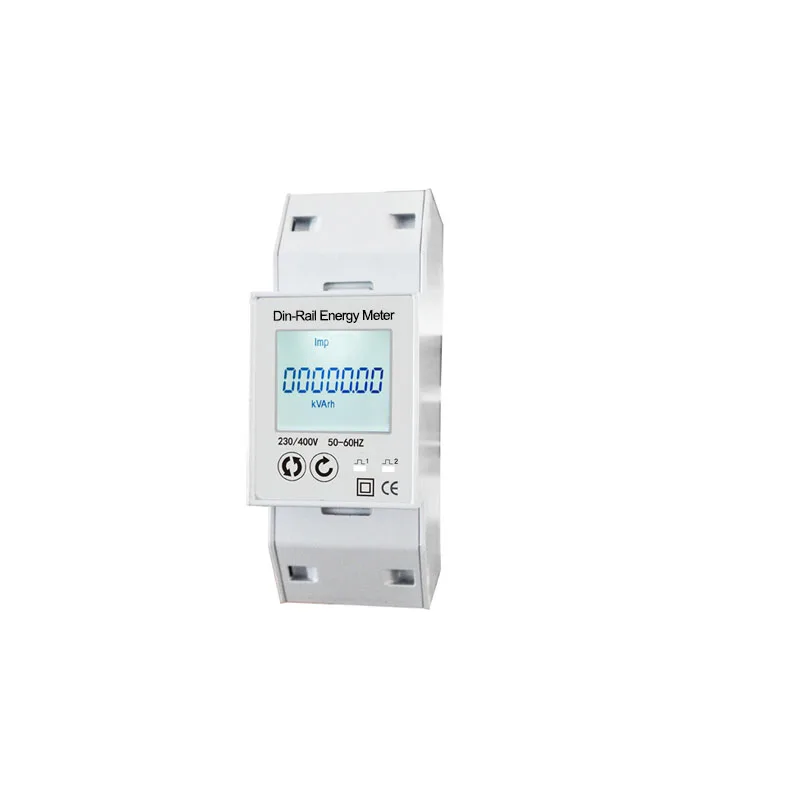

Однофазный измеритель электроэнергии 19D на din-рейку 1p2w 220 в 80 А цифровой двунаправленный с rs485
- Категория: Счетчики электроэнергии >>>
- Поставщик: Chongqing,Blue,Jay,Technology,Co.,Ltd.,[Chongqing,China]Chongqing
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 944.86 $* | 963.82 $* |
| Jul-16-2025 | 765.71 $* | 780.4 $* |
| Jun-16-2025 | 929.97 $* | 948.70 $* |
| May-16-2025 | 921.43 $* | 939.52 $* |
| Apr-16-2025 | 736.23 $* | 751.56 $* |
| Mar-16-2025 | 906.29 $* | 924.43 $* |
| Feb-16-2025 | 899.68 $* | 917.96 $* |
| Jan-16-2025 | 892.88 $* | 910.4 $* |
Характеристики
Product Description
INTRODUCTION
Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install. Blue Jay have a complete range of DIN-mounted electricity meters for different applications, together with a wide range of communication options. The meters are quick and easy to install due to their DIN-rail mounting.
It is highly accurate, durable, reliable, lower power consumptive, without reversion, creep proof, anti-tanmpering and bilateral recoring with strong overloading capability. It conforms to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21 also pass EMC and LVD.
TECHNICAL SPECIFICATION
| Voltage AC (Un) | 110/220/230/240V |
| Voltage range | -20% to +20% of Un |
| Base current(Ib) | 5A, 10A |
| Max current(Imax) | 50A, 60A, 80A, 100A |
| Starting current (mA) | 0.4%Ib |
| Power consumption of current | ≤2W / 10VA |
| Frequency (Hz) |
50/60 (±10%) |
| Accuracy | Class 1 |
| Memory back-up | EEprom |
| Operating Temperturer | -10°C to +50°C |
| Storing Temperturer | -30°C to +70°C |
| Meter Case Material | ABS, Polycarbonate |
| Operating humidity | 75% |
| Storing humidity | 95% |
| Protection against dust and water | IP51 |
| Insulating encased meter | II |
| AC voltage withstand | 2KV for 1 minute |
| Impulse voltage withstand | 6KV – 1.2µS waveform |
| Current withstand | 30Imax for 0.01s |
| Pulse output rate ( imp/kWh ) | 3200,2000,1600,800,400 |
Optional Function
1.DISPLAY AND READING BY COMMUNICATION : kWh, V, A, P, F, PF,
2. COMMUNICATION PROTOCOL: MODBUS RTU
3. POWER ON OFF CONTROL BY INTERNAL RELAY OR EXTERNAL BREAKER
4. IMPORT AND EXPORT ENERGY CONSUMPTION BOTH ACTIVE OR REACTIVE
