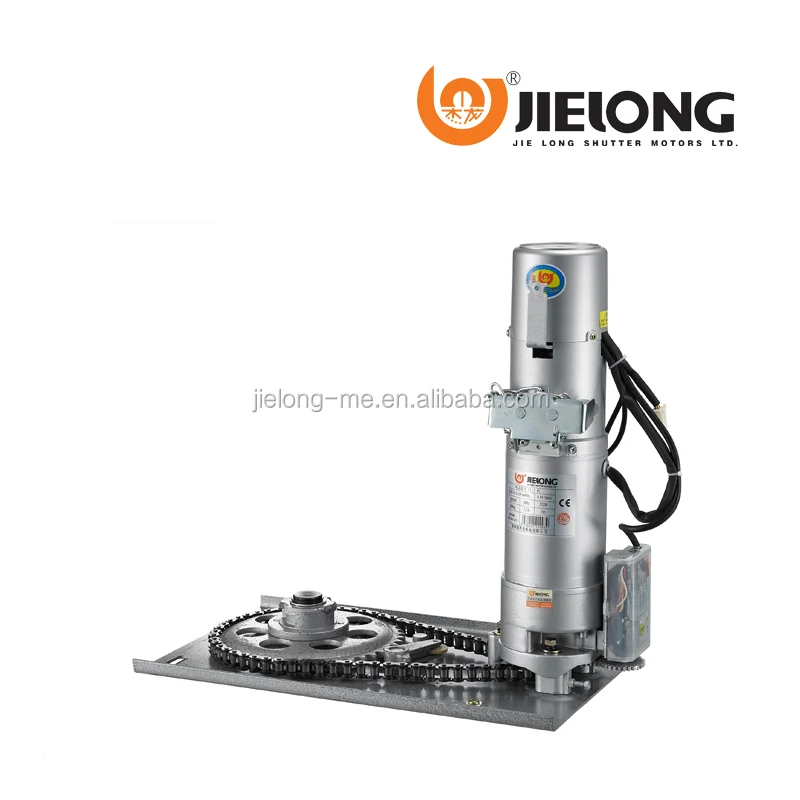

Jielong моторы для прокатных дверей автоматические

Описание и отзывы

Трекер стоимости

Характеристики



   Please notify this Registered Trade Mark.

Jielong Shutter Motor Ltd, Since 1988, the LEADING manufacturer in China.





 Verified Information

 This  supplier was Verified by Bureau Veritas and is valid for the following period: 2015/09/02 --- 2017/09/01

The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed.

Spotlight: 2018 German Stuttgart R+T



Model Name	Rated Output  Torque  (N.m)	Rated Output  Speed  (r/min)	Motor  Power  (W)	Rated Voltage  Frequency (V/Hz)	Rated  Current  (A)	Drum  Outer  Diameter (mm)	Max   Power (kg.f)	Max  Height (m)
ECR-168-1P	168	5	250	220/50Hz	2.8	114	300	6-7m
ECR-225-1P	225	4.2	180	220/50Hz	1.8	114	400	6-7m
ECR-343-1P	343	4.8	370	220/50Hz	3.2	140	500	6-7m
ECR-412-1P	412	4.9	370	220/50Hz	3.3	140	600	6-7m
ECR-647-1P	647	4.0	400	220/50Hz	4.7	165	800	7m
ECR-809-1P	809	3.5	400	220/50Hz	4.9	165	1000	7m
ECR-1617-1P	1617	3.3	700	220/50Hz	8.2	219	1500	7m

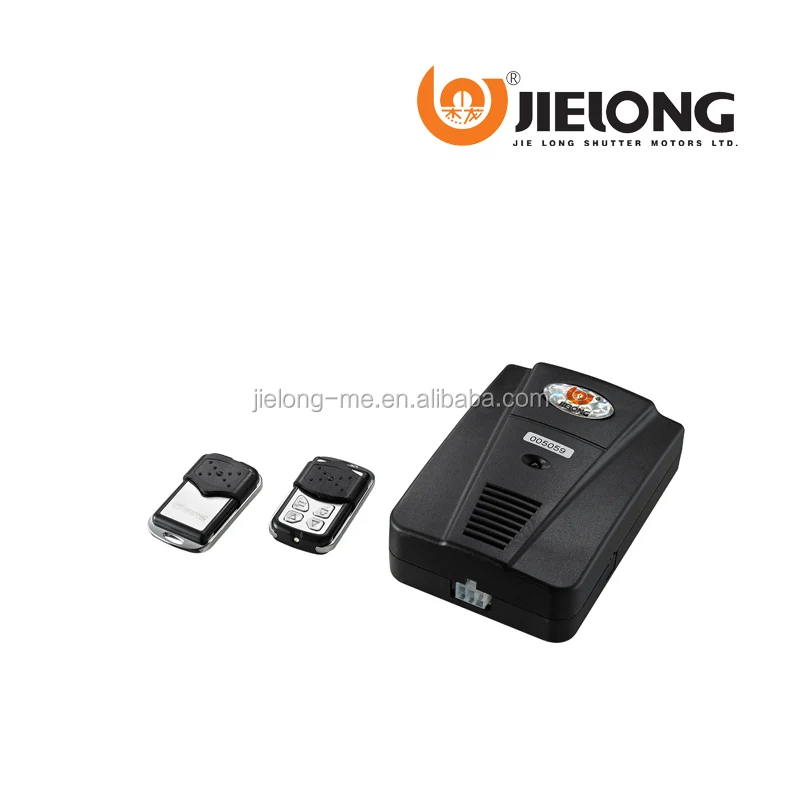

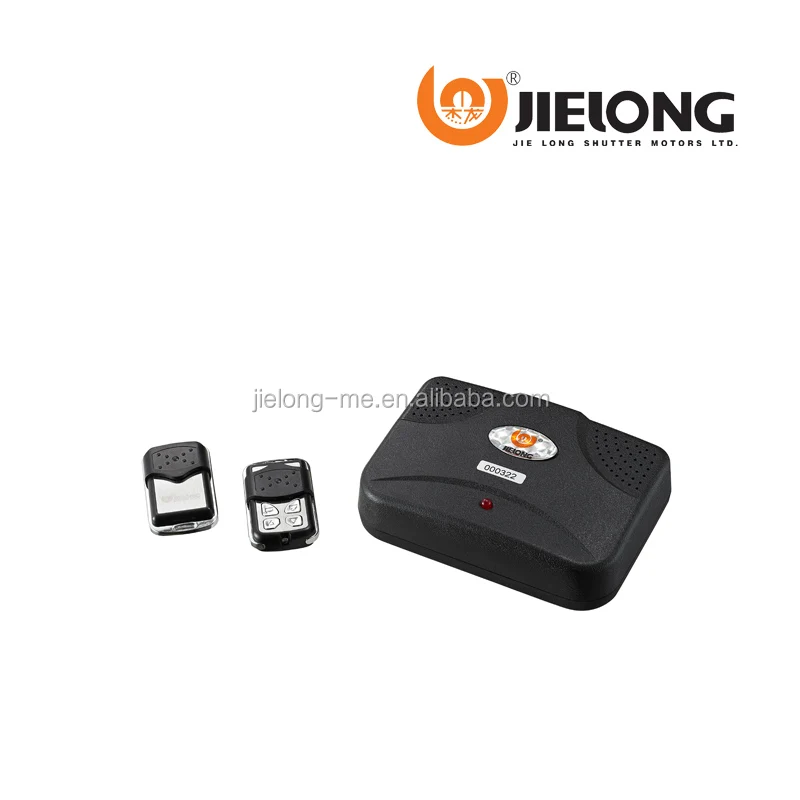

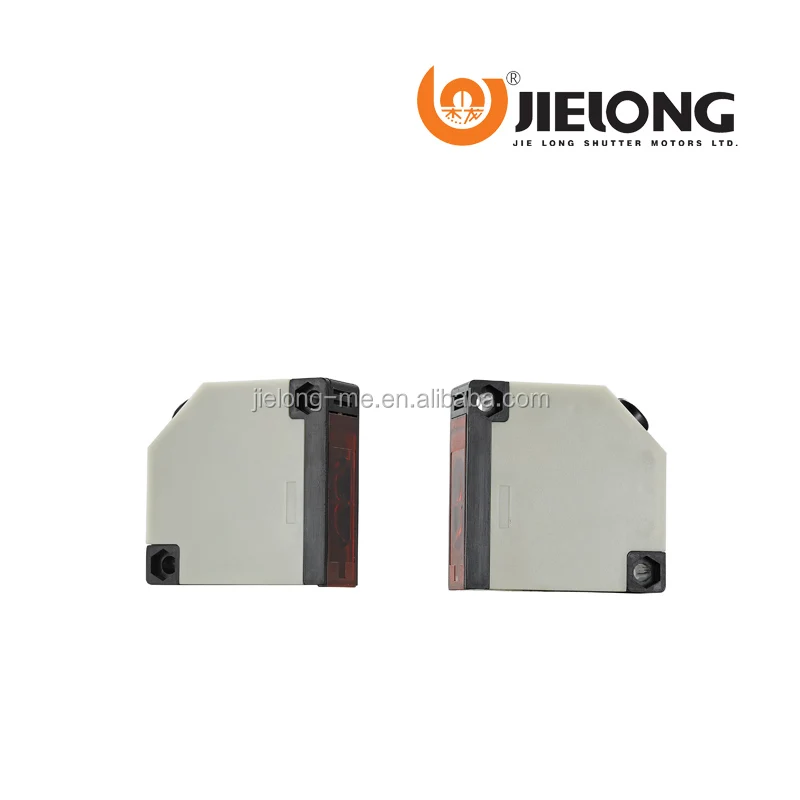

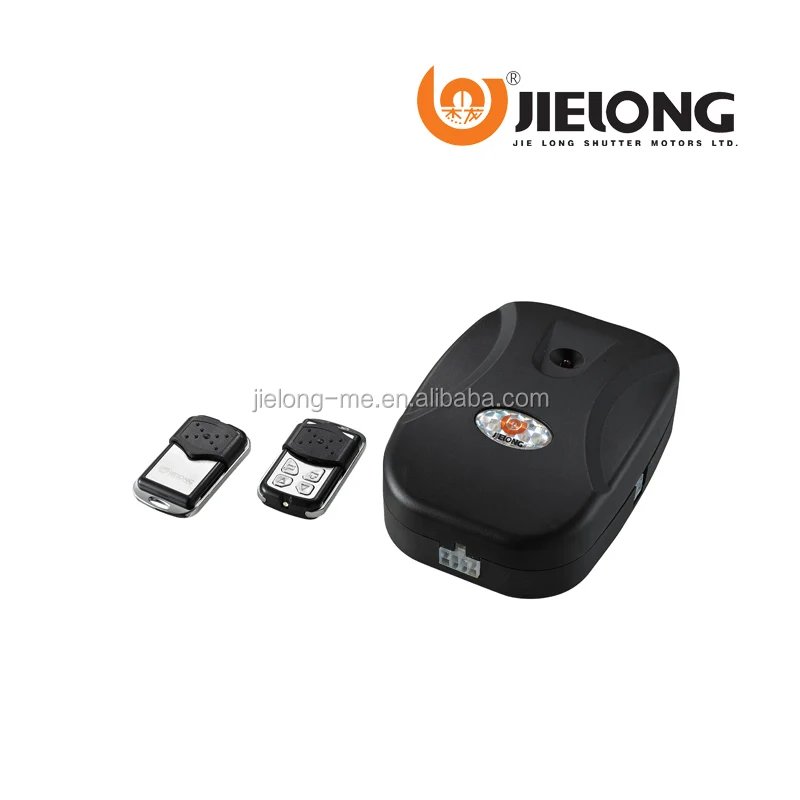

OPTIONAL DEVICES:













 General Manager VOICE

 Thanks for your visiting our website. JIELONG is one brand more than 28 years, as one of the earliest and leading manufacturer of  door motors, our company supply best quality products more than any other competitors, we promise our door motor products with Lowest Failure Rate, Long Product Life, 100% kgs Lifting Power, and Good Price.



We will continue to create value for our customers, staff, partners, shareholders, and society.



Welcome to visit our factory!





General Manager

Hong Junlong
