Description:

Durable computer control hard winder used for cone to cone hard package,shuttle loom,warper,hosiery machine.The winding speed is controlled by computer,max:1100m/minute.It has easy adjusting radial anti patterning system.The advanced yarn clearing and tension system with photoelectric yarn detecting can avoid knotting and twisting for yarn.Precise and senstive speed testing system can ensure even winding length(weight).The electric turning waxing machine can ensure the waxing quatity and evenness.It's quite suitable for winding yarn of cotton,flax,silk,chemical fiber.

Machine Application:

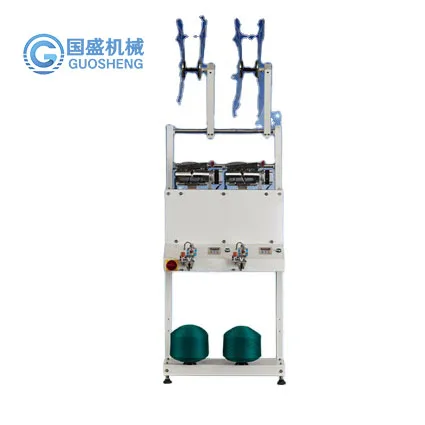

 GS008S High Speed Soft winding machine, it's mainly for the Yarn Dyeing preparing using, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.

Equipments:
Inverter(MITSUBISHI Brand), Drum(Superplastic Alloy), Motor(Ningbo), Controller(HangZhou)

Parameters:

1. Drive: every spindle per motor

2. Winding speed: Cotton: about 800M/min, Fiber: about 600 M/min (Density: 0.2-0.4g/cm3)

3. Has function of Anti-Hard-Edge and Electronic Anti-Stack.

4. Package Dia≤ 220mm; Take-up length: 152mm;

5. Each spindle with length counter;

6. Advanced control panel;

Technical parameters:
