Электическая Бетономешалка
US $109.12
Двухвальный Бетономешалка серии JS с 2000l модель
- Категория: Concrete Mixers >>>
- Поставщик: Anhui,Yechuang,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 39369.45 $* | 40156.84 $* |
| Jul-15-2025 | 31929.63 $* | 32568.70 $* |
| Jun-15-2025 | 38749.21 $* | 39524.20 $* |
| May-15-2025 | 38439.9 $* | 39208.88 $* |
| Apr-15-2025 | 30689.61 $* | 31303.19 $* |
| Mar-15-2025 | 37819.83 $* | 38575.78 $* |
| Feb-15-2025 | 37509.62 $* | 38259.77 $* |
| Jan-15-2025 | 37199.97 $* | 37943.86 $* |
Характеристики
Product Description
Product Application

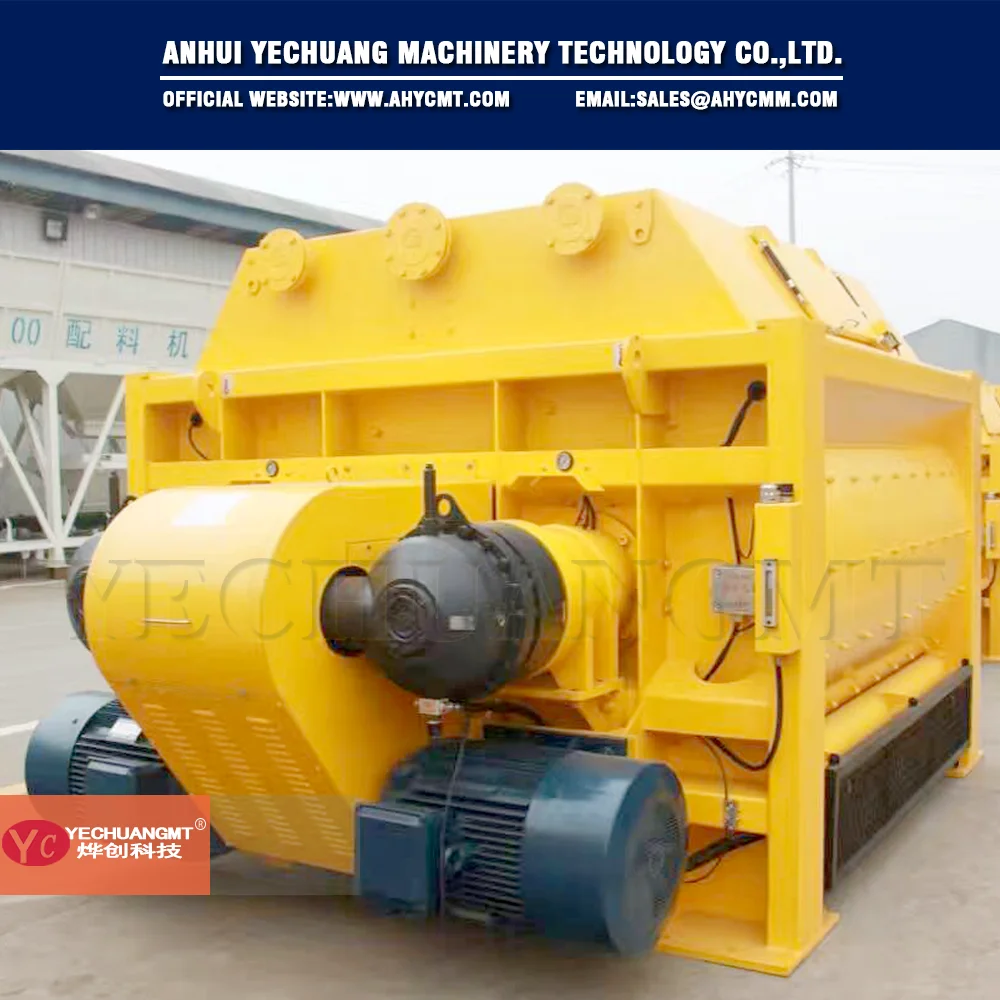

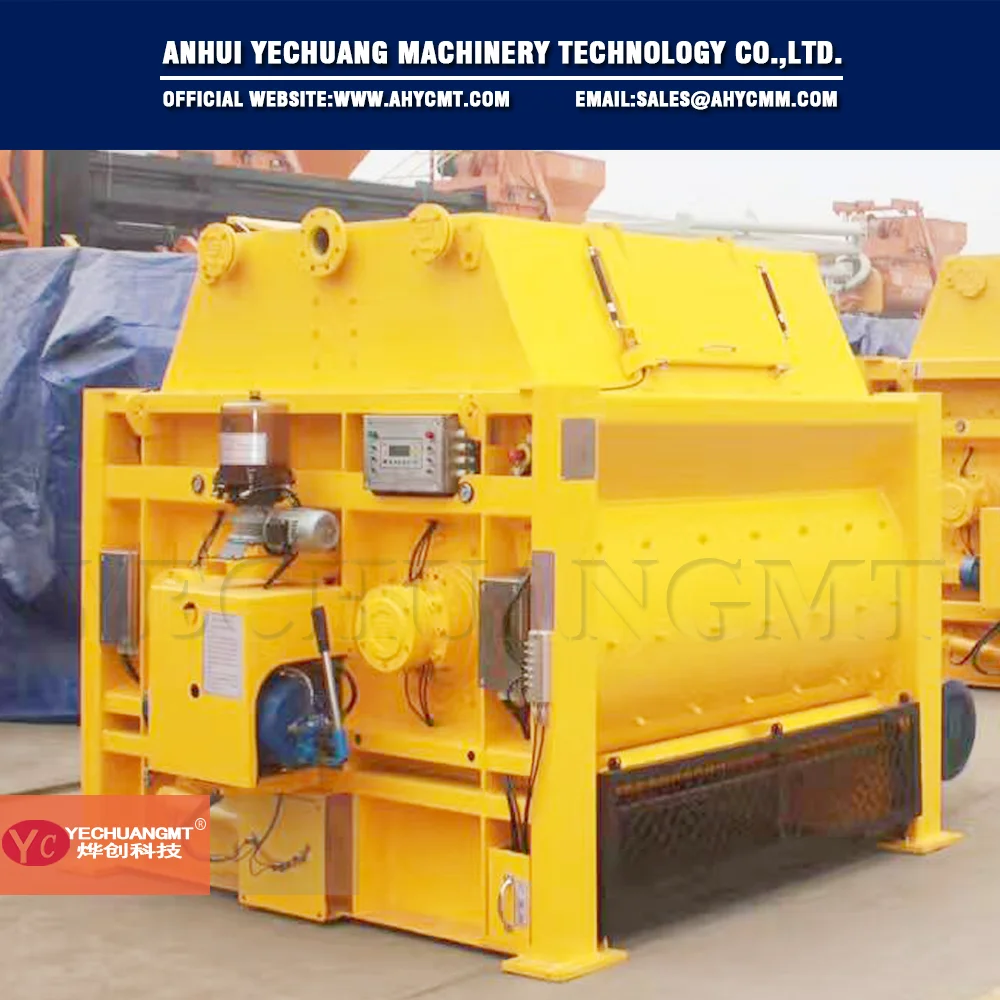

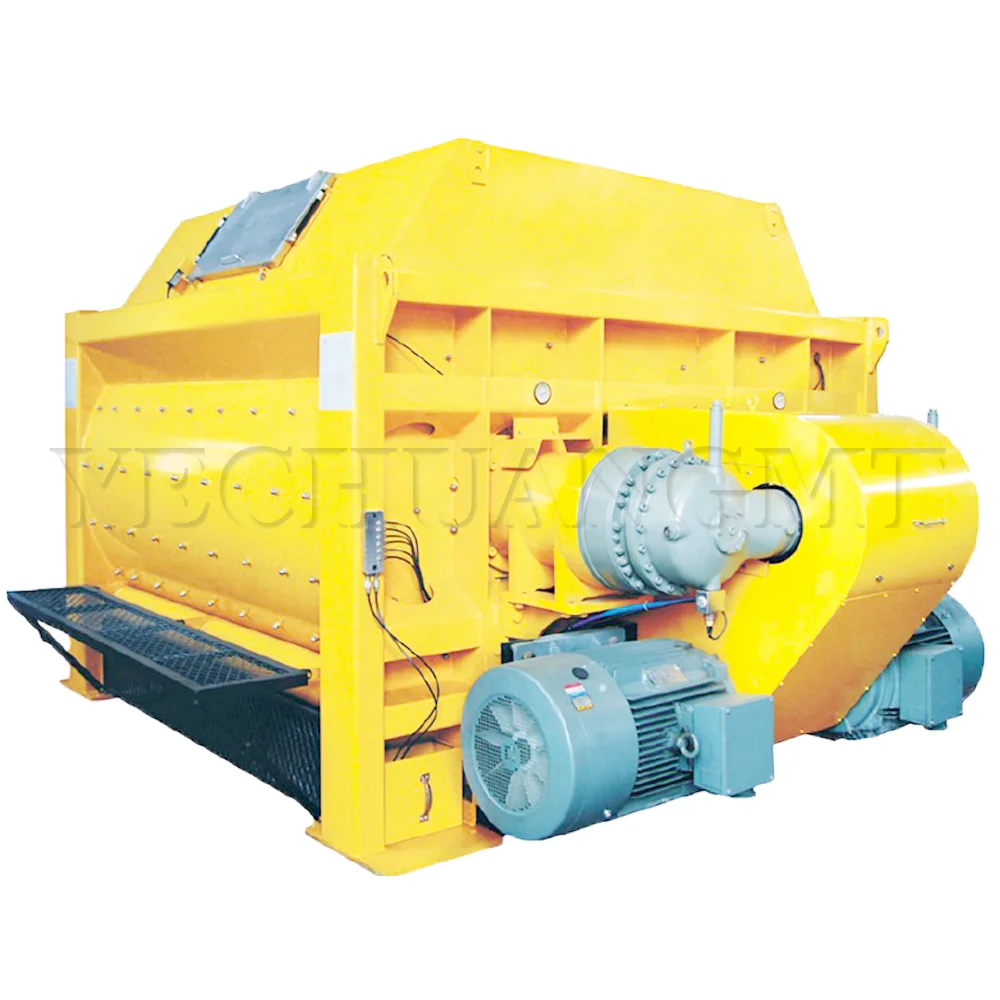

JS Series Standard Twin-shaft Concrete Mixer,inspired by advanced technologies from home and abroad,was manufactured by our company in the year 2004.Ever since it was sold into the market,its stable performance and excellent quality have quickly won the trust of majority of users.Now it has become our star products.It is mainly used in the mixing plants of high speed railways,expressways,airports,hydropower stations,commercial concrete and so on.
SPECIFICATIONS FOR JS SERIES STANDARD TWIN-SHAFT CONCRETE MIXER | ||||||||||||
MODEL | Charging Capacity(L) | Discharging Capacity(L) | Production Capacity(m3/h) | Mixing Motor Power(kw) | Mixing Time(s) | Transportation Dimensions(L*W*H)(mm) | ||||||
JS1250 | 2000 | 1250 | 75 | 2*22 | ≤40 | 3000*2100*2900 | ||||||
JS1500 | 2400 | 1500 | 90 | 2*30 | ≤40 | 2900*2320*2150 | ||||||
JS2000 | 3200 | 2000 | 120 | 2*37 | ≤40 | 3450*2320*2250 | ||||||
JS3000 | 4800 | 3000 | 180 | 2*55 | ≤45 | 3900*2600*2230 | ||||||
JS4000 | 6400 | 4000 | 240 | 2*75 | ≤45 | 4500*2600*2230 | ||||||
JS5000 | 7200 | 4500 | 270 | 2*75 | ≤45 | 4700*2600*2280 | ||||||
Main Features
1) This host monitoring system monitors the hydraulic pumps, reducer oil temperature and oil level real-timely.
2) Adopting high-performance angular transmission reducer and motor.
3) Shaft end sealing uses a unique differential pressure type multi-sealing technology.
4) Adopting advanced hydraulic system to open and shut the discharging door.
5) The mixing system adopts the design of multiple mixing blades .
Detailed Images
JS Series Twin-shaft Concrete Mixer Parts
Name: Host Monitoring System
Brand: Jinrui
Original: China(mainland)
This host monitoring system has applied for national patent.Real-time system for hydraulic pumps and retarder oil temperature,oil level,through the monitor realization of information tips and acousto-optic alarm.Users can discover and deal with faults to improve the service life of the host machine.
JS Series Twin-shaft Concrete Mixer Parts
Name: Shaft End Sealing
Brand: Jinrui
Original: China(mainland)
Shaft end sealing uses a unique differential pressure type multi-sealing technology, greatly improving the service life of the shaft ending.
JS Series Twin-shaft Concrete Mixer Parts
Name: Hydraulic Pressure System
Brand: Jinrui
Original: China(mainland)
Adopting advanced hydraulic system to open and shut the discharging door,under the circumstance of sudden power failure,the manual pump is used to open the discharging valve to make an urgent discharge,to prevent the agglomeration of concrete in the mixer silo.
JS Series Twin-shaft Concrete Mixer Parts
Name: Mixing System
Brand: Jinrui
Original: China(mainland)
The mixing system adopts the design of multi mixing blades,with no dead angle,which enables to have the perfect mixing efficiency in a short time.
Packing & Delivery
Packaging | ||
Size | 3000 (L) * 2100 (W) * 2900 (H) | |
Weight | 5.3T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If container is too tight,we will use pe film for packing or pack it according to customers special request. | |
Complete Solving Solution for Concrete Mixing.
Several sets of mixing plants are loaded for delivery to Middle Asia market on date Apr.11th.2013.
