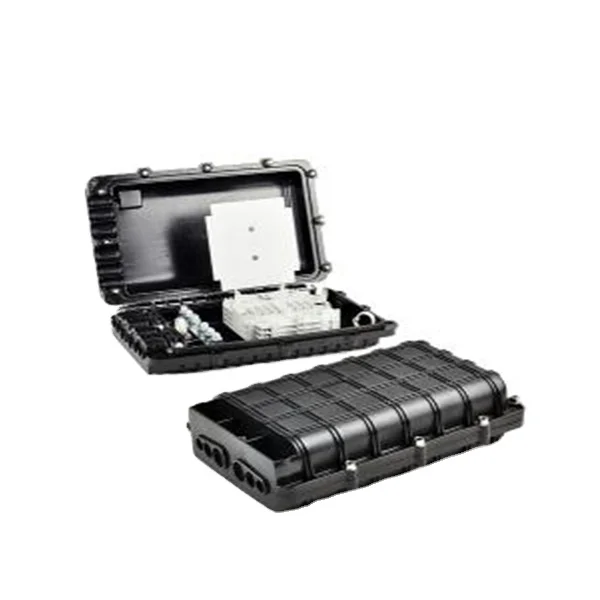

1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The Scope of application is :aerial,underground,pipeline,handhole.The ambient temperature ranges from -40 to 65℃.
Accessories for customers' selection: earthing deriving device, pressure testing valve, buffer tube for ribbon or bunchy fiber, internal metal stainless steel,etc.

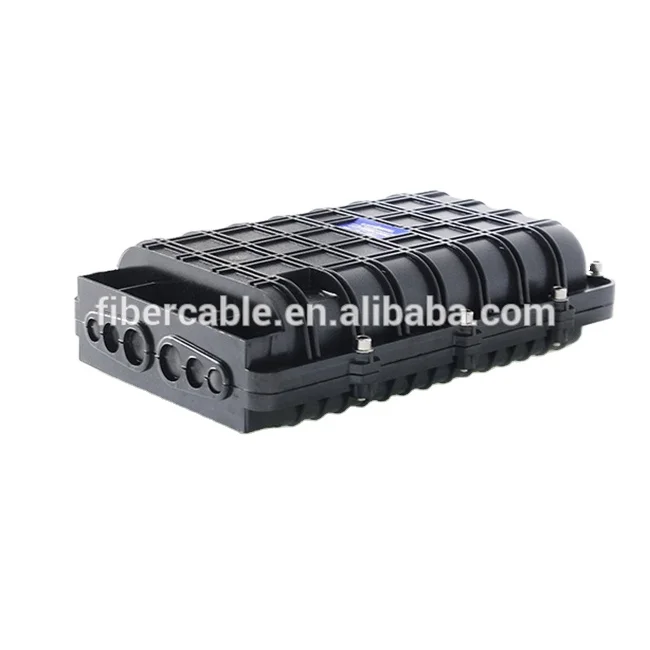

Model | H002 |
Outside dimension (LxWxH) | 320×210×85 (mm) |
Weight (excluding outside box) | 2650g – 2800g |
Number of inlet/outlet ports | 6 ports 3 (pieces) on each side |
Diameter of fiber cable | Φ8—Φ20(mm) |
Capacity of FOSC | Bunchy: 12—120 (Cores) |
H002 splice tray | ||
Bunchy Capacity | single:12 cores double:24 cores | |
Ribbon Capacity | in normal:3pieces max.:6 pieces | |
Size (L×W×H) | 120mm*110mm*8mm |

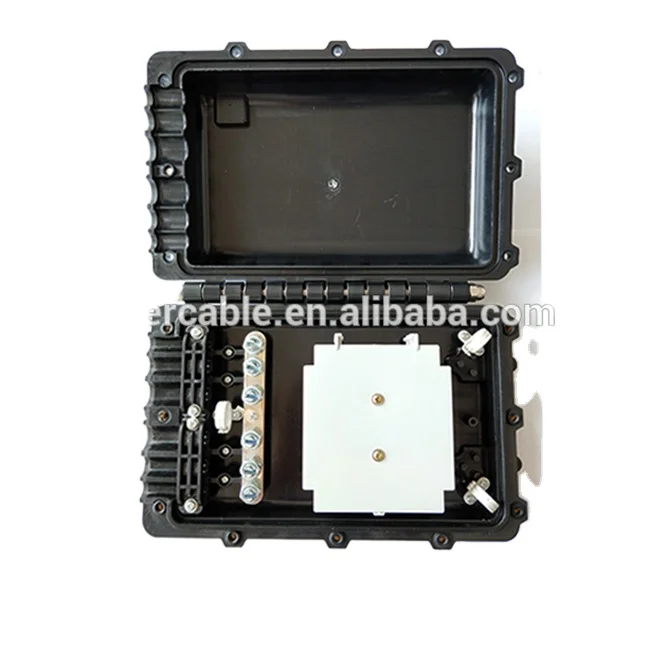

No. | Name of components | Quantity | Usage | Remarks |
1 | Housing | 1 set | Protecting fiber cable splices in whole | Internal diameter: 240x148x76(mm) |
2 | Fiber optic splice tray (FOST) | Max 8 pieces (bunchy) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy: 12,24, (cores) |
3 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | |
4 | Port plug | 6 pieces | Sealing empty ports | |
5 | Pressure testing valve | 1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement |
6 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection | Configuration as per requirement |

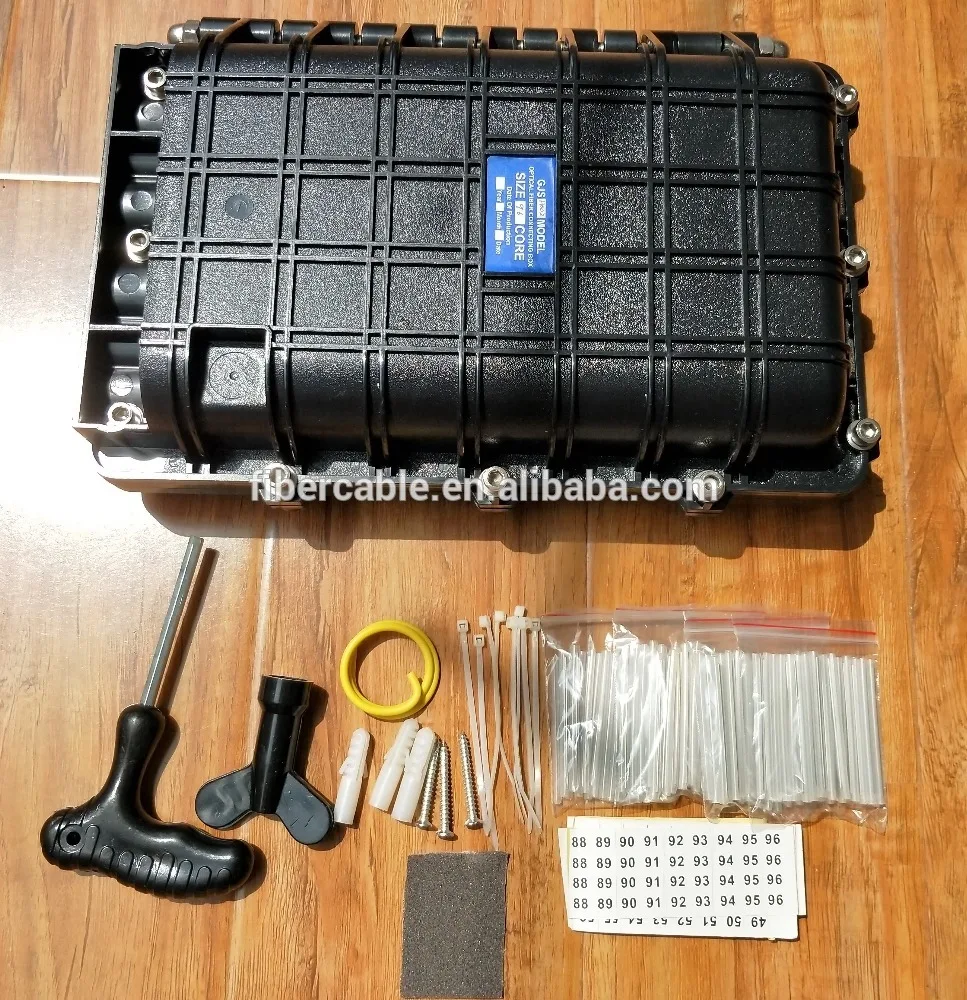

No. | Name of accessories | Quantity | Usage | Remarks |
1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
4 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air. | |
5 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
6 | Hanging hook | 1 set | For aerial use | |
7 | Earthing wire | 1 piece | Putting through between earthing devices | |
8 | Abrasive cloth | 1 piece | Scratching fiber cable | |
9 | Labeling paper | 1 piece | Labeling fiber | |
10 | Special wrench | 2 pieces | Fixing bolts, tightening nut of reinforced core | |
11 | Measuring paper | 1 piece | To measure circle, of which its diameter is enlarged with seal tape | |
12 | Buffer tube | customerized | Hitched to fibers and fixed with FOST, managing buffer | Configuration as per requirement |
