ПИД + Mini DP 4 к ЖК дисплей Поддержка плата контроллера 28 дюймов 4K ЖК-панель 3840*2160 M280DGJ-L30

ПИД + Mini DP 4 к ЖК дисплей Поддержка плата контроллера 28 дюймов 4K ЖК-панель 3840*2160 M280DGJ-L30

Категория: LCD Boards & Accessories >>>
Поставщик: Shenzhen,Caison,Technology,Co.,Ltd.

Цена:105,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	133.76 $*	136.28 $*
Jul-17-2025	108.6 $*	110.52 $*
Jun-17-2025	131.59 $*	134.74 $*
May-17-2025	130.4 $*	133.71 $*
Apr-17-2025	104.58 $*	106.36 $*
Mar-17-2025	128.51 $*	131.77 $*
Feb-17-2025	127.67 $*	130.75 $*
Jan-17-2025	126.5 $*	129.11 $*

Характеристики

Product Description

1. GENERAL DESCRIPTION

RTD2795T is a multi-purpose LCD controller board which support 4K UHD resolution LCD panel . The input signal have : 2+DP+VGA . The output signal have one DP loop out* +Single channel 4 Lane eDP +Dual channel 4 Lane eDP+8 Lane V-by-One .

RTD2795T support 2X10W(8Ω) speaker output . Also support VGA Audio input and Earphone output .

RTD2795Tsupport single 12V input or 12V/5V/5VSB which support standby mode .

2. FEATURES

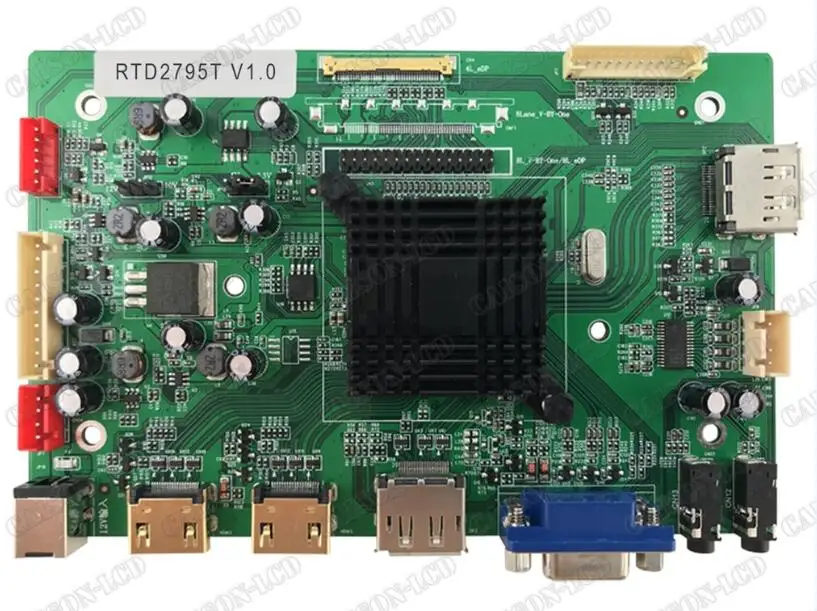

3. FUNCTION LAYOUT

The picture is for a reference only, the actual item is the standard.

4. Interface function description(The optional connectors are marked with “*”)

No.	Description	No.	Description
1	DC Power Input(+12V)	2	#1 Signal Input
3	#2 Signal Input	4	DP Signal Input
5	VGA Signal Input	6	VGA Audio Input
7	Earphone Output	8	Speaker Output
9	*DP Output	10	Keypad Interface
11	4 Lane eDP Output Interface	12	* 8 Lane V-by-one Output Interface
13	2-CH 4Lane eDP Output Interface OR 8 Lane V-by-one Output Interface	14	FPD Brightness Connector
15	EXT-Power Input(+12V/5V/5VSB)	16	EXT-Power Input(+12V)
17	Flat Panel Voltage Selection(10/12V)	18	Flat Panel Voltage Selection(3.3V/5V)
