G3-G5 фильтр для предварительной фильтрации из
- Категория: Cleaning Equipments >>>
- Поставщик: Shanghai,Junkai,Environmental,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2.88 $* | 2.99 $* |
| Aug-20-2025 | 2.74 $* | 2.16 $* |
| Jul-20-2025 | 2.76 $* | 2.54 $* |
| Jun-20-2025 | 2.8 $* | 2.91 $* |
| May-20-2025 | 2.20 $* | 2.44 $* |
| Apr-20-2025 | 2.10 $* | 2.23 $* |
| Mar-20-2025 | 2.18 $* | 2.91 $* |
| Feb-20-2025 | 2.8 $* | 2.74 $* |
| Jan-20-2025 | 2.50 $* | 2.98 $* |
Характеристики

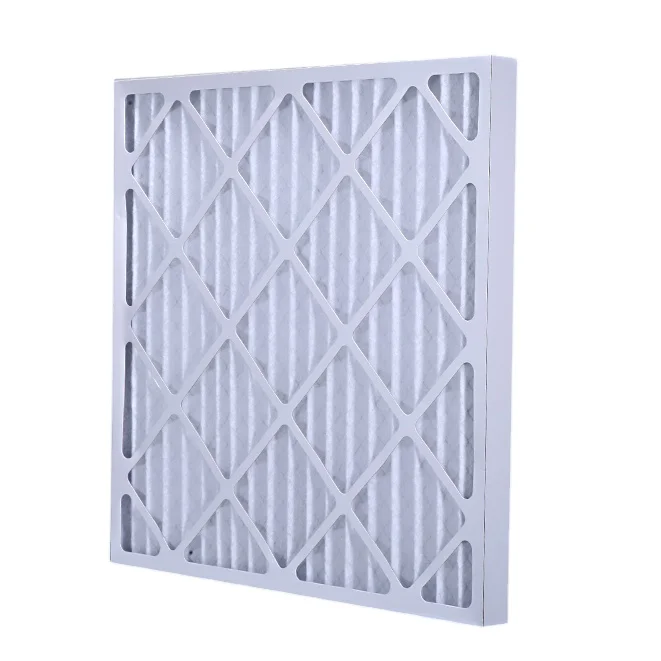

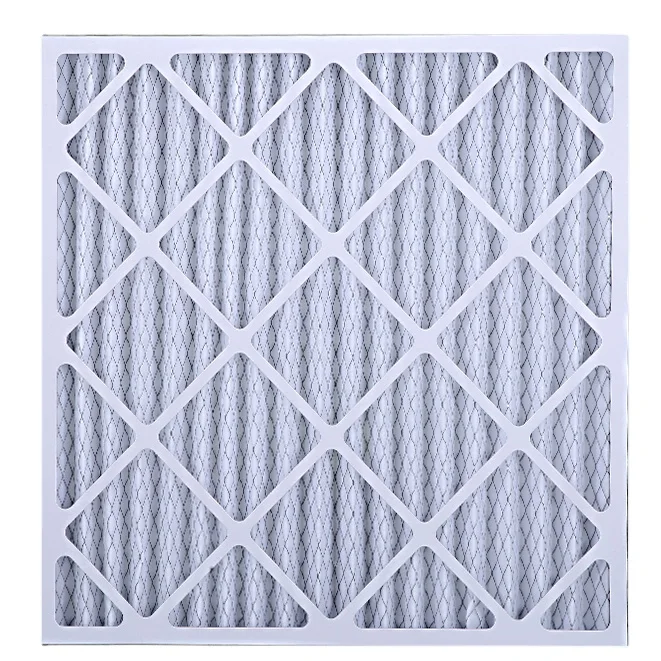

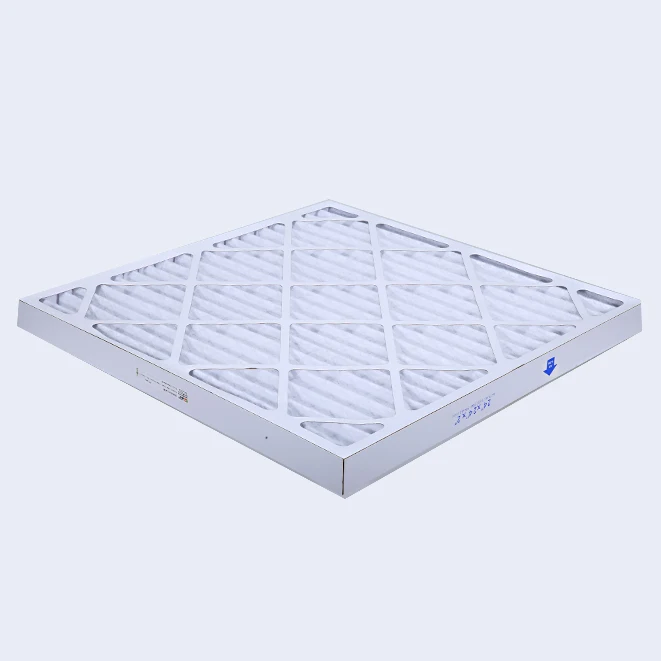

Wide Varieties G3 Metal Pre Primary Filtration Industrial Air Filter
Notes
1. In case specifications or structure changes, subject to company’s latest data.
2.We accept non-standard specification orders.
2.We accept non-standard specification orders.
Features

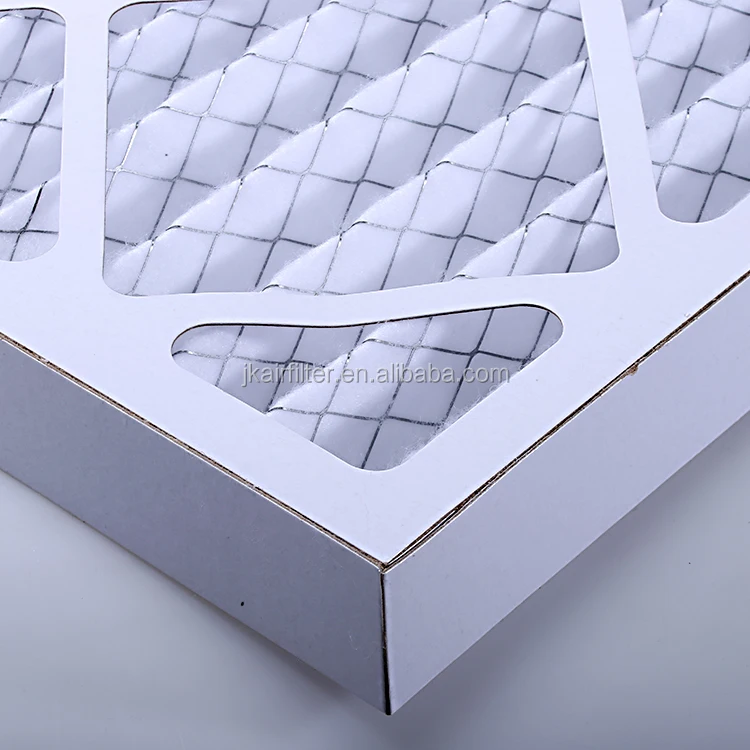

Frame: Rigid water resistant cardboard.
Media:mixture of cotton and synthetic fiber, fully supported media boned on to a wire support grid robust construction
Efficiency: (EN779:2002)G4
(ASHRAE 52.2:2007) MERV8
Final pressure is recommended:250Pa
Resistant temperature:70 °Cmaximum in continuous service.
Application
1.Prefilters for commercial & industrial AHU
Common specifications
Common specifications
Model W x H x D | Dimensions W x H x D(mm) | Rated Air Flow(m3/h) 1.52(m/s) 2.54(m/s) 3.18(m/s) | SP-H no. area (fold) (m2) | SP-P no. area (fold) (m2) | SP-S no. area (fold) (m2) |
SPRE-12X24X1 | 290X595X22 | 1020 1700 - | 14 0.36 | - - | - - |
SPRE-20X20X1 | 492X492X22 | 1445 2380 - | 24 0.52 | - - | - - |
SPRE-20X24X1 | 492X595X22 | 1700 2800 - | 24 0.63 | - - | - - |
SPRE-24X24X1 | 595X595X22 | 2040 3400 - | 28 0.74 | - - | - - |
SPRE-12X24X2 | 289X594X44 | 1020 1700 2125 | 14 0.73 | 11 0.58 | 7 0.37 |
SPRE-20X20X2 | 492X492X44 | 1445 2380 2980 | 23 1.00 | 17 0.74 | 12 0.52 |
SPRE-20X24X2 | 492X549X44 | 1700 2800 3570 | 23 1.20 | 17 0.89 | 12 0.63 |
SPRE-24X24X2 | 594X594X44 | 2040 3400 4250 | 28 1.46 | 21 1.10 | 15 0.78 |
SPRE-12X24X4 | 289X594X95 | 1020 1700 2125 | 10 1.13 | 8 0.90 | 7 0.79 |
SPRE-20X20X4 | 492X492X95 | 1445 2380 2975 | 17 1.59 | 15 1.40 | 12 1.12 |
SPRE-20X24X4 | 492X594X95 | 1700 2800 3570 | 17 1.92 | 15 1.69 | 12 1.35 |
SPRE-24X24X4 | 594X594X95 | 2040 3400 4250 | 21 2.37 | 18 2.03 | 15 1.69 |
SPRE-17X20X4 | 430X490X95 | 1150 1900 2400 | 19 1.77 | 14 1.30 | 10 0.93 |
SPRE-25X25X4 | 620X620X95 | 2100 3460 4400 | 22 2.59 | 19 2.24 | 16 1.88 |
Please feel free to contact us if you have any questions!
