Земляной шнек KINGER для экскаватора гидравлический бур
- Категория: Earth Augers >>>
- Поставщик: Yantai,Dongheng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1059.83 $* | 1112.96 $* |
| Aug-17-2025 | 1050.6 $* | 1103.68 $* |
| Jul-17-2025 | 881.14 $* | 925.35 $* |
| Jun-17-2025 | 1032.57 $* | 1084.78 $* |
| May-17-2025 | 899.44 $* | 944.36 $* |
| Apr-17-2025 | 1015.98 $* | 1066.39 $* |
| Mar-17-2025 | 1006.6 $* | 1056.59 $* |
| Feb-17-2025 | 997.78 $* | 1047.32 $* |
| Jan-17-2025 | 988.13 $* | 1037.97 $* |
Характеристики
KINGER earth auger application in Landscaping, Tree planting, Well boring, Foundation piles, Screw pile installations, Ground source heat pumps, Pole and Mast Installations, Solar energy piling, Bridge pier drilling etc.
Features of KINGER Hydraulic Earth Auger Drill:
1.Huge range of earth drill to suit 1-50T excavators.
2.High quality Imported Hydraulic motors.
3.Heavy duty Planetary Reductions Gearbox with massive Diameter Output Bearing, Specially researched Gearbox design and heat-treating skills to make auger with massive torque.
4. Non-dislodgement output shaft.
5.Specially designed auger flight for more earth removal.
1.Huge range of earth drill to suit 1-50T excavators.
2.High quality Imported Hydraulic motors.
3.Heavy duty Planetary Reductions Gearbox with massive Diameter Output Bearing, Specially researched Gearbox design and heat-treating skills to make auger with massive torque.
4. Non-dislodgement output shaft.
5.Specially designed auger flight for more earth removal.
KINGER EARTH AUGER SPECIFICATION
Model | YDH mini | YDH1200 | YDH1500 | YDH2000 | YDH2500 |
Applicable(T) | 0.8-1.5 | 1-4 | 1-2 | 1.5-3 | 1.5-3 |
Torque Range(Nm) | 275-1166 | 327-1320 | 542-1580 | 656-2270 | 855-2510 |
Oil Pressure Range(Bar) | 50-200 | 60-220 | 60-200 | 60-200 | 60-200 |
Oil Flow Range(Lpm) | 12-32 | 15-50 | 20-75 | 30-75 | 30-75 |
Speed Range(r/min) | 30-98 | 30-102 | 32-97 | 35-98 | 35-90 |
Output shaft（mm） | 65Rd | 65Rd | 65Rd | 65Rd | 65Rd |
Unit Size(mm) | φ175X525 | φ245X680 | φ200X585 | φ200X585 | φ200X585 |
Unit Weight(kg) | 40 | 80 | 49 | 50 | 50 |
Model | YDH4000 | YDH4500 | YDH5000 | YDH5500 | YDH6000 |
Applicable(T） | 2-4 | 3-6 | 3-6 | 5-7 | 5-7 |
Torque Range(Nm) | 1290-3795 | 1570-4580 | 1608-4890 | 1720-5320 | 1855-5960 |
Pressure Range(Bar) | 60-200 | 60-210 | 60-210 | 70-210 | 70-210 |
Oil Flow Range(Lpm) | 40-80 | 40-95 | 40-95 | 40-115 | 40-115 |
Speed Range(r/min) | 28-80 | 32-77 | 28-57 | 30-85 | 27-80 |
Output shaft(mm) | 65Rd | 65Rd | 65Rd | 75Sq | 75Sq |
Unit Size(mm) | φ200X585 | φ245X690 | φ245X690 | φ270X900 | φ270X900 |
Unit Weight(kg) | 52 | 87 | 88 | 119 | 120 |
Model | YDH7000 | YDH8000 | YDH9000 | YDH10000 | YDH12000 |
Applicable(T) | 5-8 | 5-10 | 5-8 | 5-8 | 10-15 |
Max Torque(Nm) | 2236-7300 | 2839-8250 | 3526-8760 | 3878-10250 | 4870-12300 |
Oil Pressure Range(Bar) | 70-250 | 70-250 | 80-200 | 80-200 | 100-240 |
Oil Flow Range(Lpm) | 60-150 | 60-150 | 50-95 | 50-95 | 80-150 |
Speed Range(r/min) | 35-82 | 30-72 | 15-30 | 12-26 | 22-47 |
Output shaft(mm) | 75Sq | 75Sq | 75Sq | 75Sq | 75Sq |
Unit Size(mm) | φ270X900 | φ270X900 | φ270X870 | φ270X870 | φ290X945 |
Unit Weight(kg) | 140 | 142 | 123 | 124 | 172 |

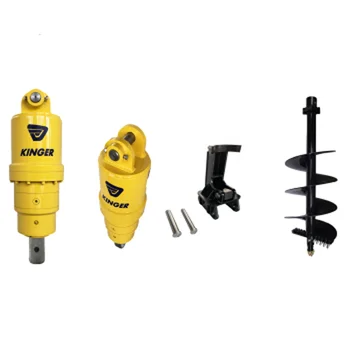

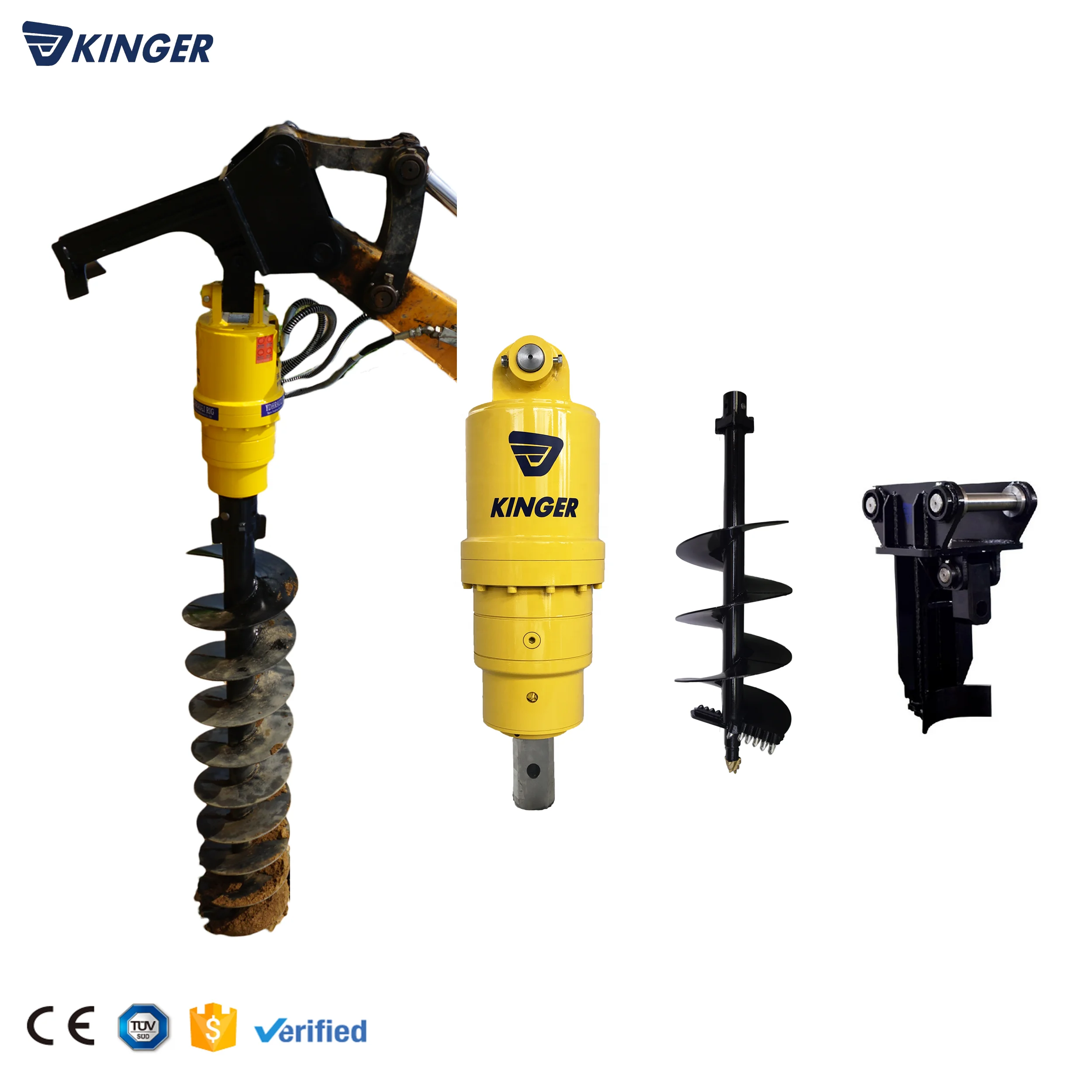

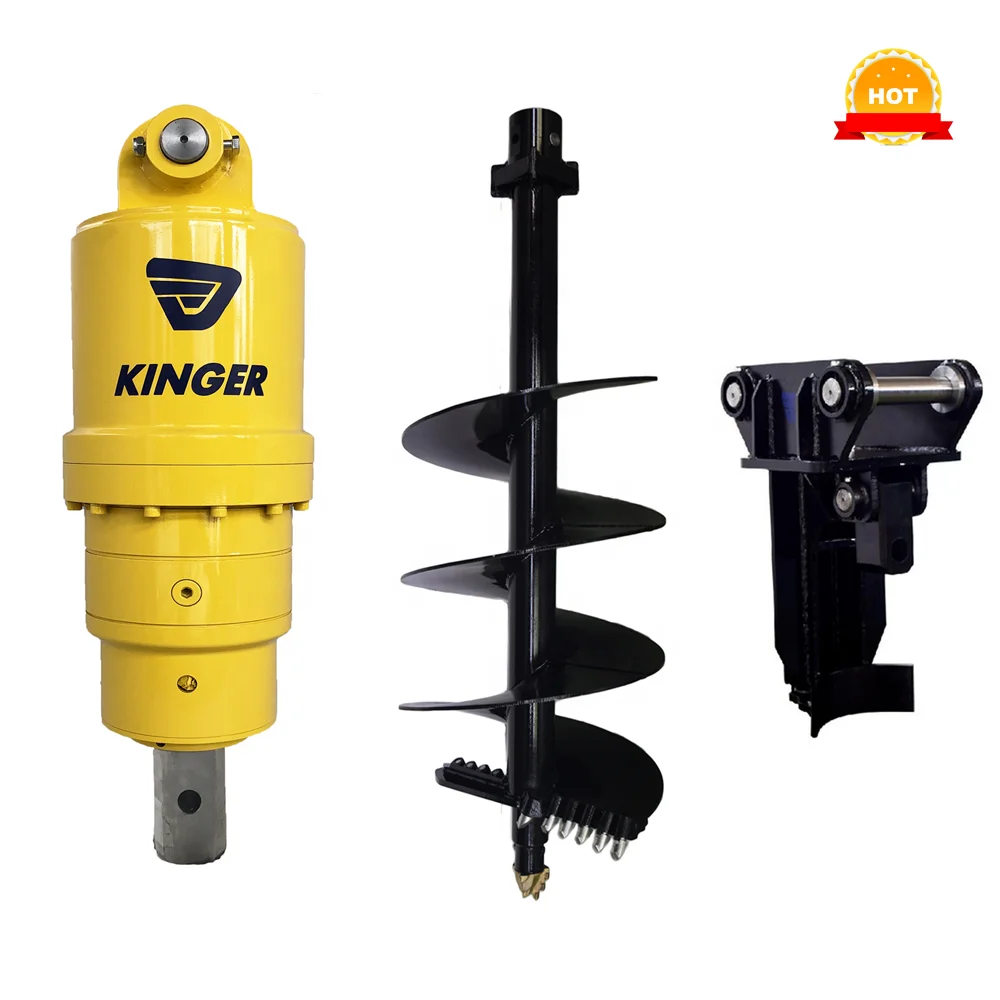

For the whole set earth auger we can supply with a very favorable price.Including auger drive, cradle hitch(mounting hitch), auger stem with auger teeth (Extension rod if needed).
