Дифференциальное давление регулируемый водяной насос микродатчик системы воды wfd переключатель

Дифференциальное давление регулируемый водяной насос микродатчик системы воды wfd переключатель

Цена:13,00 $ - 15,00 $*

Количество:

Differential pressure adjustable water pump micro water flow switch

Product Description

Features

Installation:Horizontal or vertical

Electrical data:250VAC/70W/0.5A

Caliber Size:ZG1/4",ZG3/8",ZG1/2",ZG3/4",ZG1"
Materials:SUS 304

Specification:

Model	FS-1S
Application	Petrochemical industry, water treatment for environmental protection(chiller, heat pump water heater),welding equipment, laser equipment and some other systems for monitor
Origin	FAST SENSOR
Installation	Horizontal or Vertical
Product Material	SUS 304
Ring material	SUS 304
Electrical Data	250VAC/70W/0.5A
Max pressure	2 MPa
Max volum	60L/min
Max contact resistance	200 mOhm
Thread	ZG1/4" ZG3/8" ZG1/2" ZG3/4" ZG1”
Cable type	UL1332-AWG22
Cable length	500mm
Cable color	red
Temperature ℃	-40~+110
Order Info.	For example, FAST-1S-3-2SS
Order Info.	Lowest flow rate:3 L/Min Caliber size:ZG1/4"

flow switch

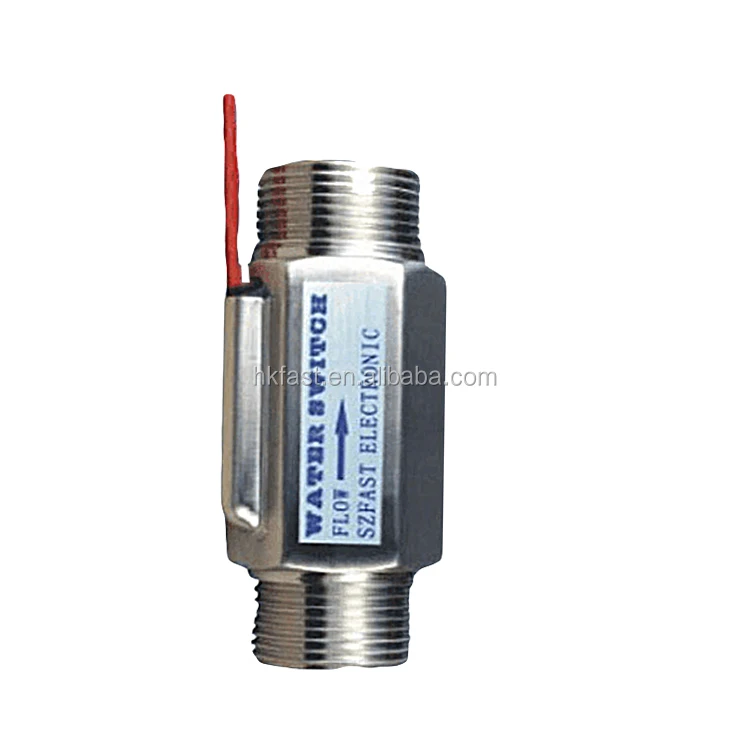

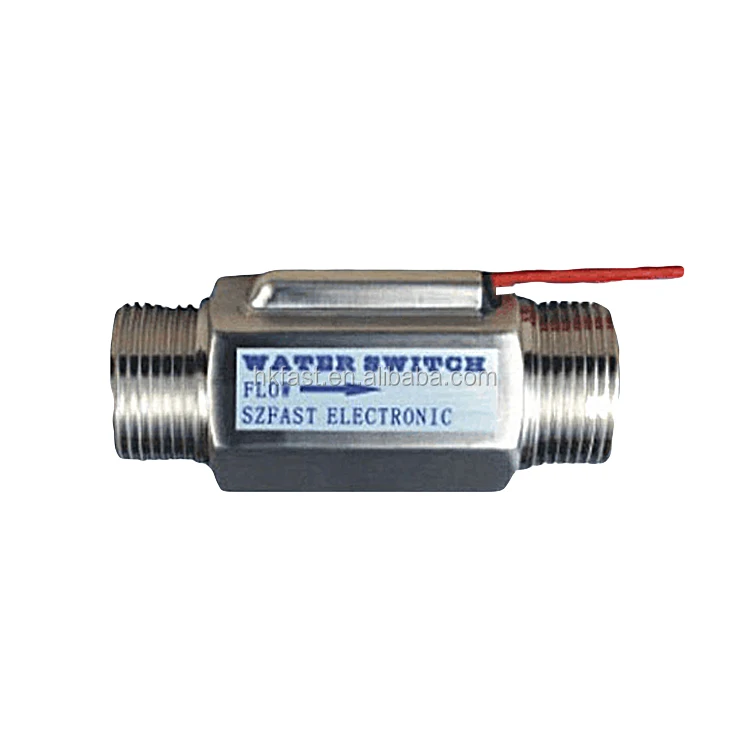

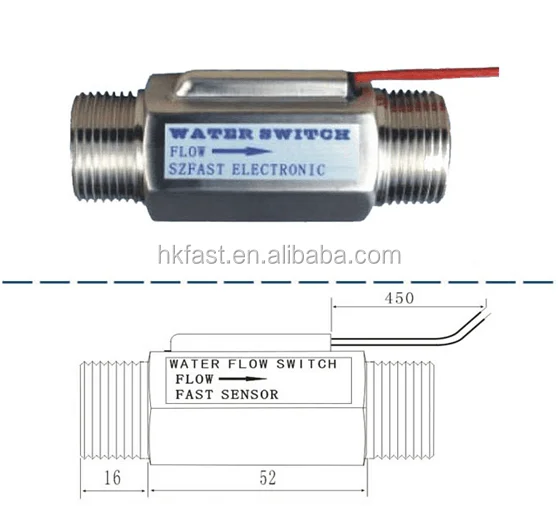

Product show

flow switch

flow switch
Differential pressure adjustable water pump micro water system sensor wfd flow switch
