Надежный разного размера Pzt керамический элемент пьезодиск пьезокерамический капелек пьезоэлектрического
- Категория: Electrical Ceramics >>>
- Поставщик: Beijing,Quanxin,Ultrasonic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2.62 $* | 2.30 $* |
| Aug-19-2025 | 2.53 $* | 2.44 $* |
| Jul-19-2025 | 2.93 $* | 2.39 $* |
| Jun-19-2025 | 2.28 $* | 2.91 $* |
| May-19-2025 | 2.16 $* | 2.69 $* |
| Apr-19-2025 | 2.73 $* | 2.49 $* |
| Mar-19-2025 | 2.17 $* | 2.73 $* |
| Feb-19-2025 | 2.37 $* | 2.27 $* |
| Jan-19-2025 | 2.32 $* | 2.64 $* |
Характеристики

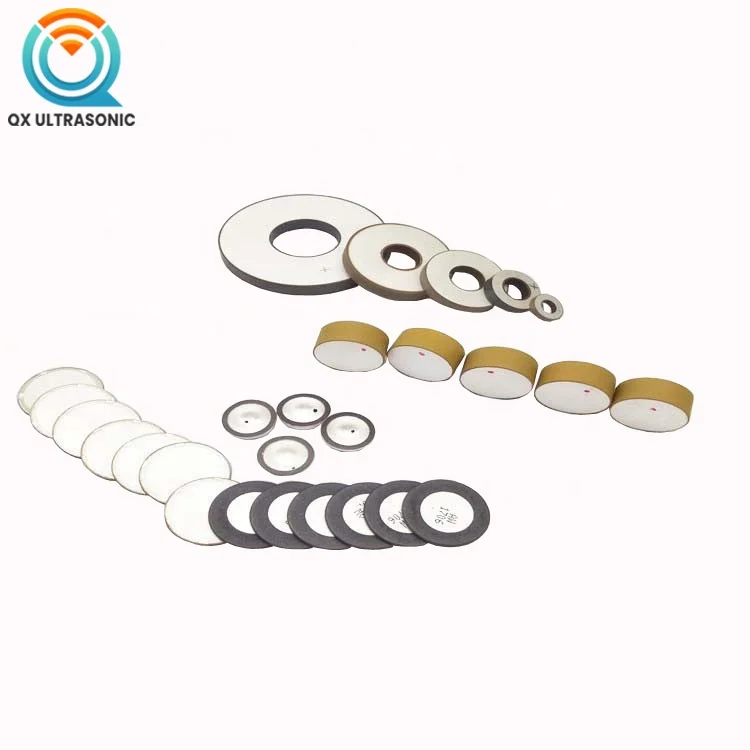

Reliable Different Size Pzt Element Ceramic Piezo Disc Piezoceramic Piezoelectric Plate
What is the trouble in business?
Worry about the quality and after-sale warranty ?
Which material need to use? Pzt4, pzt5 or pzt8?
What size is more suitable?
If you can customize required size?
How weld cable on the piezoelectric ceramic?
Need your own logo on products?
Contact US
Slove all your worries with one-step service!
Listen and see our clients feedback, will send our after-sales report.
Tell us your application ,our professional team will reply you within 24 hours. Help you to choose the suitable products.
Produce different size piezo ceramic as need.
Provide Professional technical support to help to weld the cable.
Real pictures before sending.
We are always here to support you.

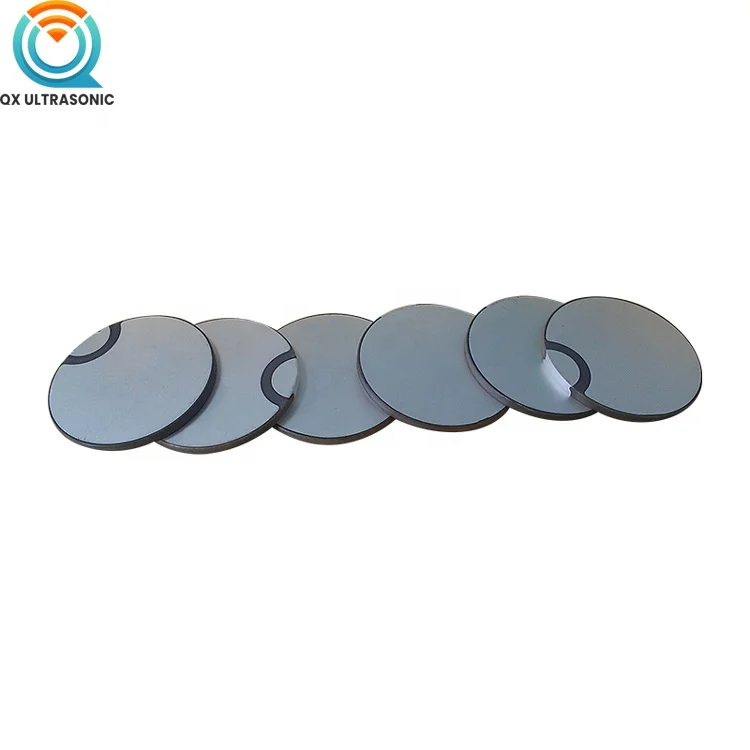

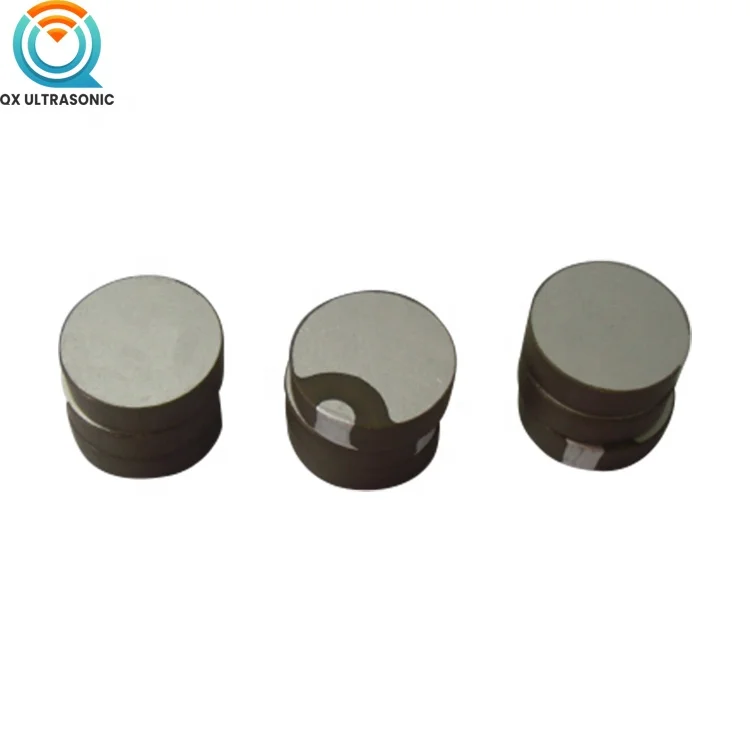

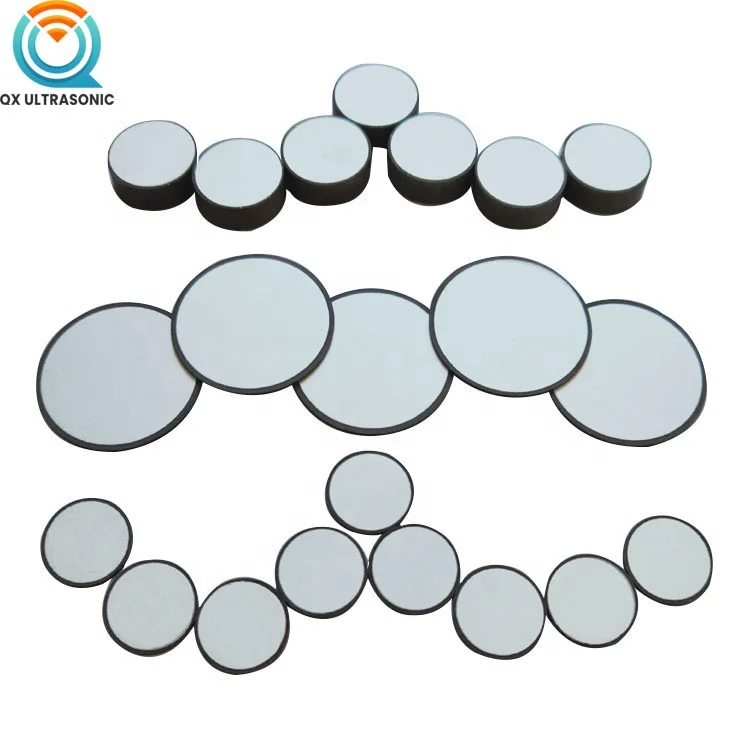

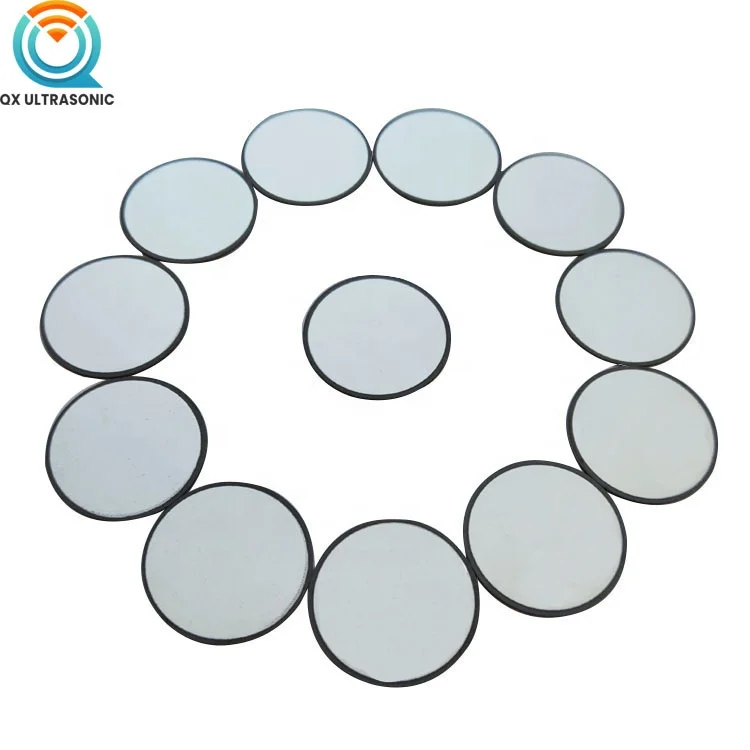

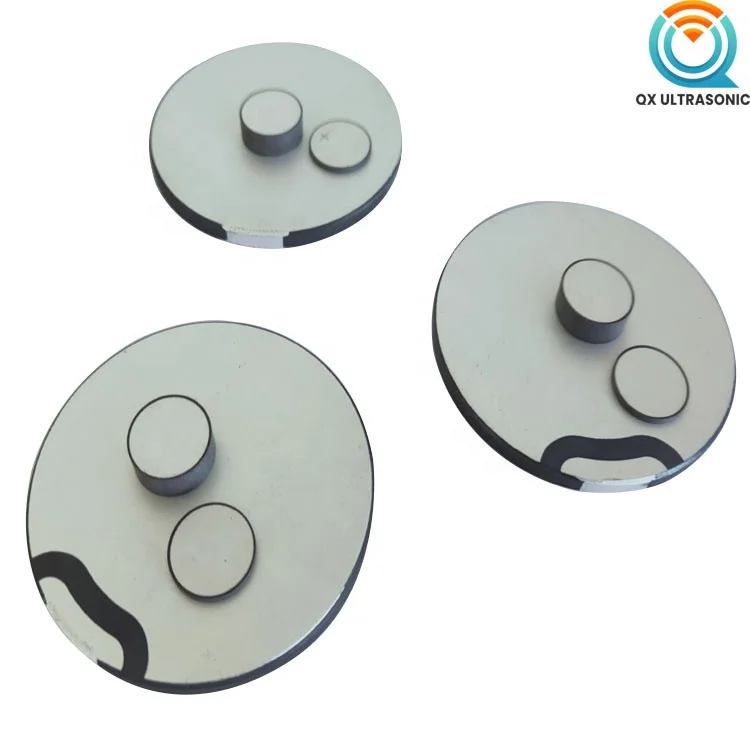

Product Description
| What's the Features of Our Dics Piezo Ceramic? |
- Good Stable
- High Sensitivity
- All dimensional
- Accurate measurement
- Low Heat
- High Consistency of Frequency and static capacitance
- High Vibration Efficiency
- Silver Electrode
| What are the Material of Disc Piezo Ceramic ? |
PZT4,PZT5,PZT8 or other required Piezoelectric Materials
(If need the piezoelectric material performance list, pls contact us)
| What are the Application of Disc Piezo Ceramic ? |
Application: for ultrasonic cleaner,ultrasonic welding,ultrasonic distance measure sensor,ultrasonic detector,ultrasonic dental unit. Ultrasonic Beauty. ultrasonic motor,ultrasonic transformer and other high-power emanant transducers.
The above applications are just part of. if don't find what informations you need. Pls check "Contact US" to get more. |
| Some Standard Size of Disc Piezo Ceramic: |
(Size=OD*Thickness) (Qm=Mechanical quality factor) (tanδ(%)=Dielectric dissipation factor )
| Size | Thickness Frequency | Capacitance C(pf) | Impedance Zt(Ω) | Kt (%) |
| 16×0.4 | 5.0±5% | 5400±15% | ≤5 | ≥45 |
| 16×2.1 | 1.0±5% | 1000±15% | ≤4 | ≥45 |
| 20×1.2 | 1.65±5% | 1180±5% | ≤2.5 | ≥45 |
| 20×2.0 | 1.0±5% | 1650±15% | ≤4 | ≥45 |
| 25×0.4 | 5.0±5% | 1280±15% | ≤4 | ≥45 |
| 25×1.2 | 1.65±5% | 1350±15% | ≤2 | ≥45 |
| 25×1.0 | 2.0±5% | 5800±15% | ≤4 | ≥45 |
| 25×2.0 | 1.0±5% | 2700±15% | ≤4 | ≥45 |
| 28×1.0 | 2.0±5% | 6940±15% | ≤4 | ≥45 |
| 28×1.7 | 1.2±5% | 3880±15% | ≤3 | ≥45 |
| 28×2 | 1±5% | 3850±15% | ≤3 | ≥45 |
| 28×2.0 | 1.0±5% | 3300±15% | ≤3 | ≥45 |
| 30×3.0 | 66.7 | 2730±12.5% | ≤3 | ≥45 |
| 35×3.0 | 63.0 | 3100±12.5% | ≤3 | ≥45 |
| 38×6.5 | 59.9 | 1580±12.5% | ≤3 | ≥45 |
| 45×3.0 | 50.0 | 5100±12.5% | ≤3 | ≥45 |
| 45×3.5 | 50.0 | 4700±12.5% | ≤3 | ≥45 |
| 50×3.0 | 46.0 | 5800±12.5% | ≤3 | ≥45 |
| 50×3.5 | 46.0 | 6300±12.5% | ≤3 | ≥45 |
| 50×5.0 | 46.0 | 4150±12.5% | ≤3 | ≥45 |
|
| Related Piezoelectic Ceramics |
Feedback
| Some Technical Questions of Piezoelectric Ceramic |
1.The oscillation frequency of piezoelectric ceramics, mainly related to what?
- Oscillating frequency of piezoelectric ceramics, its related factors, the main is a driving power frequency, driving mode and the drive current .
- In addition, the capacitance characteristics of piezoelectric ceramics are also related.Therefore, based on this, in the consideration and decision of frequency, these four factors are indispensable and can not be missed.
2.Can all the piezoelectric ceramic chips produce ultrasonic waves?
- the answer is no, because, if we want to generate ultrasonic waves?the liquid water atomized particles frequency, driving frequency, and center frequency of the transducer should be the same. If this three frequency can not be consistent. It will generate other physical effects.
3. When we are welding the cable on the surface of piezoceramics, what you need to be noticed?
- Welding temperature, not too high.
- Welding time, not too long. In general.only a few seconds.
4.In the ultrasonic transducer, the thickness of the piezoelectric ceramic plate vibration and radial vibration, which one is more efficient?
- compare to this two vibration types, from the professional point of view, thickness vibration is more efficiency.
- However, if there is a conditional limit, there is only one radial vibration.
More Information of Piezoelectric Ceramic. Contact Us Now
