Характеристики
Industrial essential oil fractional distillation equipment packing
Product Description
Structure and characters:

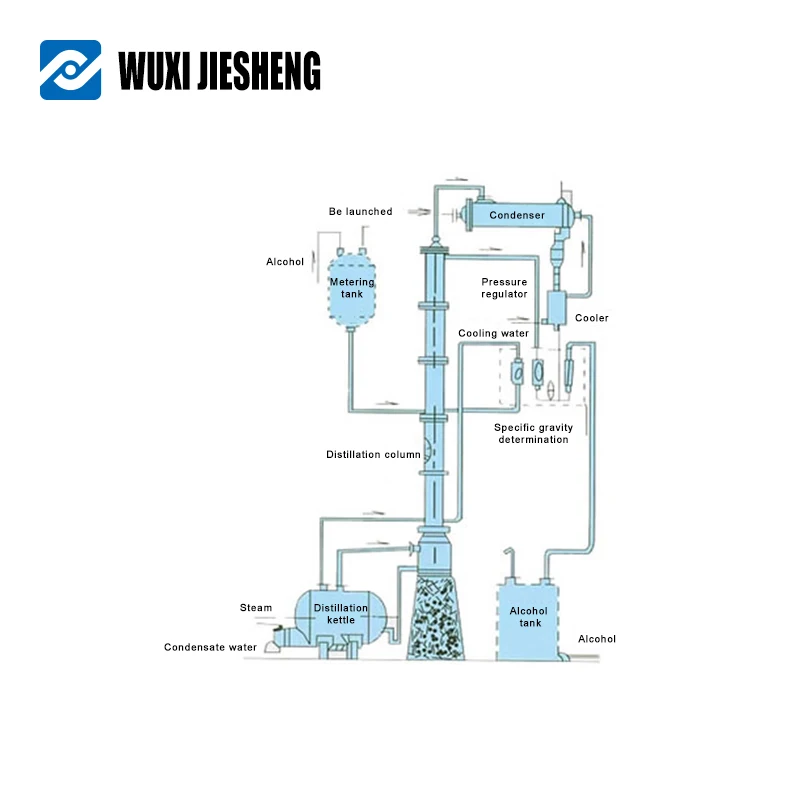

1) Alcohol recovery tower is composed of distillation distillation column reactor, distillation distillation column, condenser, cooler, buffer tank, measuring tank six parts.

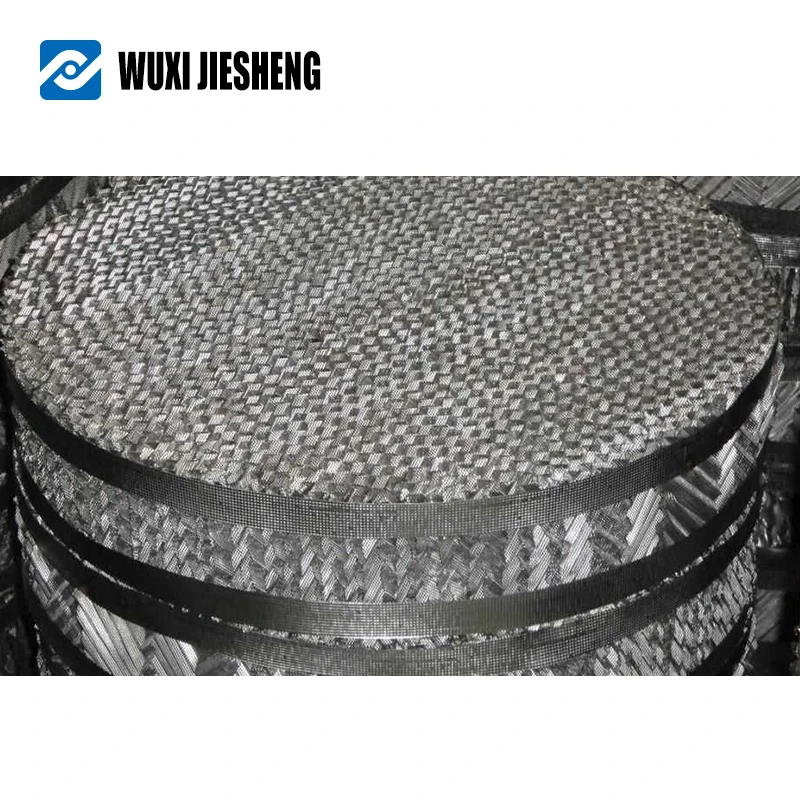

2) The equipment is made of stainless steel 304 and rectification distillation column is packed with high-efficiency corrugated stainless steel plate. Tower reactor use removable U-tube heaters.
3) The equipment has good corrosion resistance and it is also energy-saving, environmental, less production costs and high-efficiency.
Model | JH-200 | JH-300 | JH-400 | JH-500 | JH-600 | JH-800 | |
Tower Body Diameter (mm) | 200 | 300 | 400 | 500 | 600 | 800 | |
Tower Height (mm) | 6000 | 7000 | 7000 | 7000 | 7500 | 7500 | |
Tower Volumn (l) | 640 | 1220 | 1450 | 2300 | 2500 | 3200 | |
Capacity of Recovery (kg/h) | 45-50 | 90-100 | 150-160 | 280-300 | 420-440 | 600-620 | |
Heating Area (m2) | 3 | 6 | 6.5 | 10 | 15 | 26 | |
Condensation Area (m2) | 5 | 8 | 11 | 18 | 25 | 45 | |
Cooling Area (m2) | 1 | 1.5 | 2.2 | 4 | 6 | 8 | |
Recycling capacity (kg/h) | 45-50 | 90-100 | 150-160 | 280-300 | 420-440 | 600-620 | |
Forming of Stuffing | Stainless steel corrugated loading material | ||||||
Recycling concentration (%) | 93-95% | ||||||
| Length | 2.3 | 2.6 | 2.5 | 3 | 3.5 | 4.2 |
Outline Dimension (m) | Width | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.8 |
| Height | 7.3 | 7.5 | 9 | 9 | 10 | 14 |
Weight of Equipment (kg) | 1100 | 1900 | 2300 | 3800 | 4500 | 6800 | |
Product Application
Company Introduction
Our Certificate
Our Customers
Packaging Process
Contact Us
FAQ
About Delivery time
A-----Usually we send tne shipments in FOB term.However, the CIF are also acceptable which decided by the clients.
About Lead Time
A------Usually it takes about 15-20 days after we received your PO and prepayment.
However, it would depend on our production line schedule and the complexity of the item.
About Payment Term
A------By T/T in Advance, or Irrevocable L/C at Sight.
Equipments can be customized, leave us an inquiry to know more details about price, packing and shipping.
A------Usually it takes about 15-20 days after we received your PO and prepayment.
However, it would depend on our production line schedule and the complexity of the item.
About Payment Term
A------By T/T in Advance, or Irrevocable L/C at Sight.
Equipments can be customized, leave us an inquiry to know more details about price, packing and shipping.
