Гидравлическая стальная машина для накатки

Описание и отзывы

Трекер стоимости

Характеристики



The objective material to be processed including carbon steel, alloy steel and nonferrous metal with elongation over 10% and tensile strength less than 100kgf/mm2.

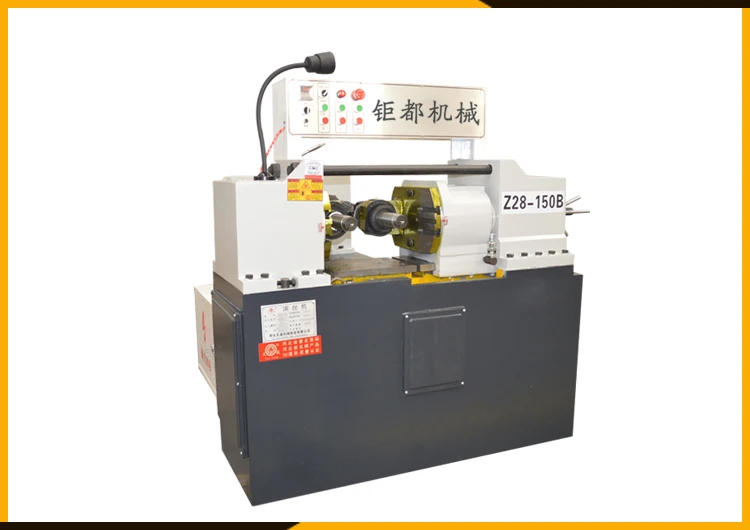

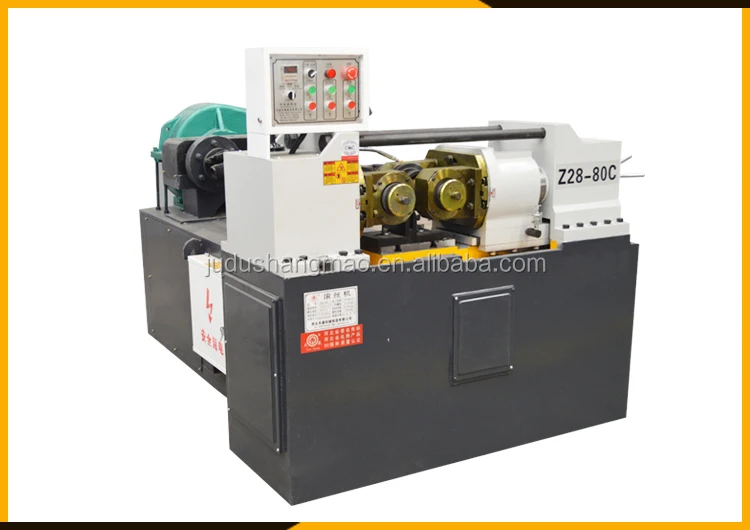

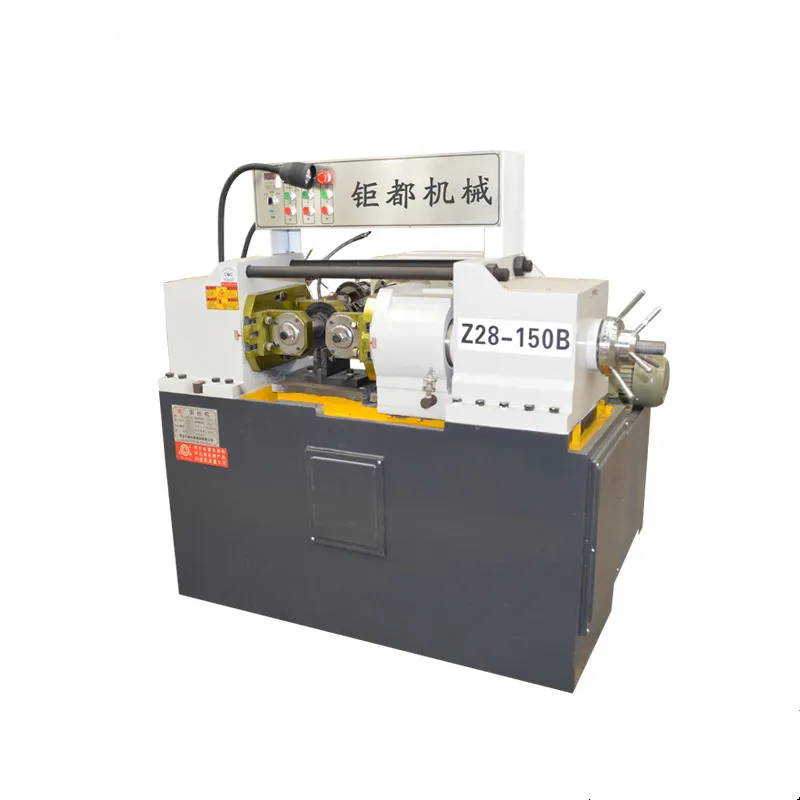

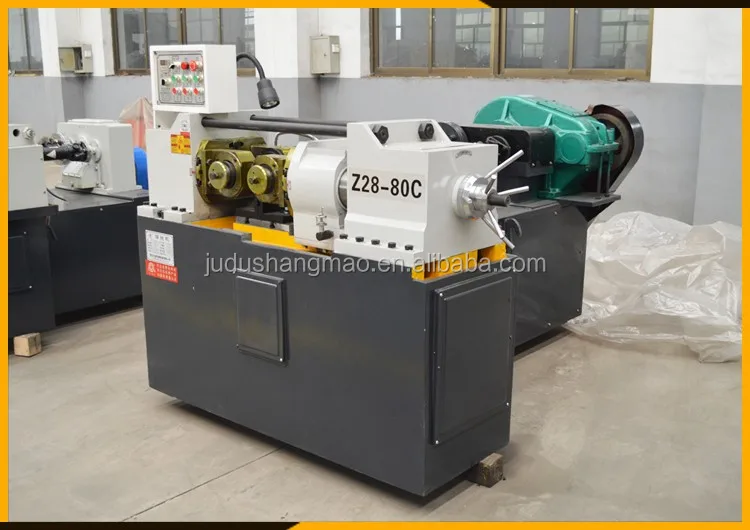

Structure of steel bar thread knurling machine :



1.Machine tool:steel welding

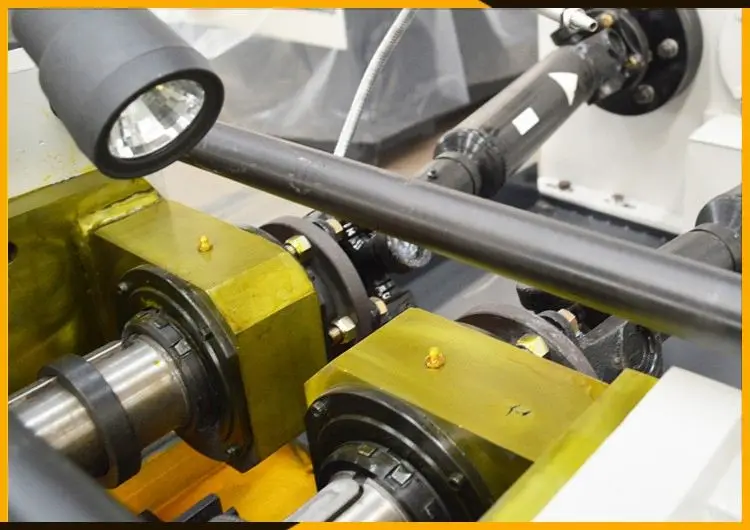

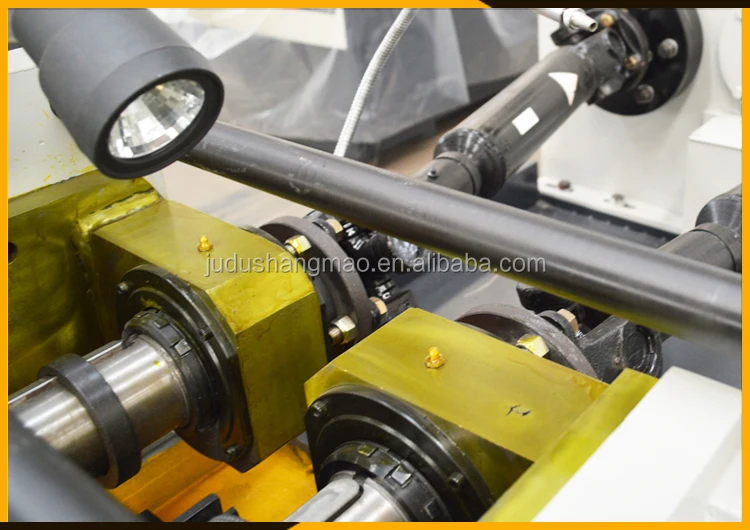

2.Rolling wheel:hard alloy



3.motor:380V/3 phase,220V/2 phase /material: copper



4.power distribution box



5.Time Relay



Technical Parameters of steel bar thread knurling machine



Max roll pressure	180KN	Spindle speed	36,47,60,78 (r/min)
Rolling material diameter	6-50MM	Active power	5.5kw
Track rollers	120-170MM	Hydraulic power	2.2kw-4
Diameter rollers	54MM	Activities spindle feed speed	5mm/s
Max thickness of rollers	100MM	Dimensions	1600*1550*1445mm
Axis tilt angle	±3°C	Total mass	1700kg±50kg
Spindle center distance	120-240MM	Open thread length	Plus protection









steel bar thread knurling machine working capacity:According to the length and thickness of the screw











 1. What’s the price of threading rollers?

Re: Kindly please let me know your rod material and the detailed size, such as diameter and thread pitch, etc., so that we can check for you accordingly.



2. We have different rod diameter from 20-80mm, how to choose threading rollers?

Re: The threading roller will be suitable for various length and diameter, but for different thread pitch, it should be changed accordingly.



3. How to operate the thread rolling machine, assuming it has auto cycle and foot pedal?

Re: The thread rolling machine is equipped with button control panel and foot pedal, so the working cycle can be exchanged as automatic work or inching.




4. Do you have customers in our country?

We are the leader thread rolling machine supplier in China, also we have customers worldwide, such as America, Argentina, Brazil, Belarus, Bangladesh, Germany, Israel, India, and Italy, etc.





5.can you tell me the delivery process?

Re:yes,there is delivery process flow diagram







1.  Help you choose the most suitable machine.

2.  Making the machine according to your request.

3.  Give you machine’s details and vedio for help you use the machine more better.

4.  One year warranty

5.  Quality problem,we will send you the accessorise.

6.  Free repair whole using life without extra charge.

....
