Характеристики
380V AC pump motor three phase 18.5KW solar water pump system
Product Description
Welcome to inquiry !
Sunny Sun
Mobile & WhatsApp: +8615398562160
Email : sunny(at)thesolarwaterpump.com

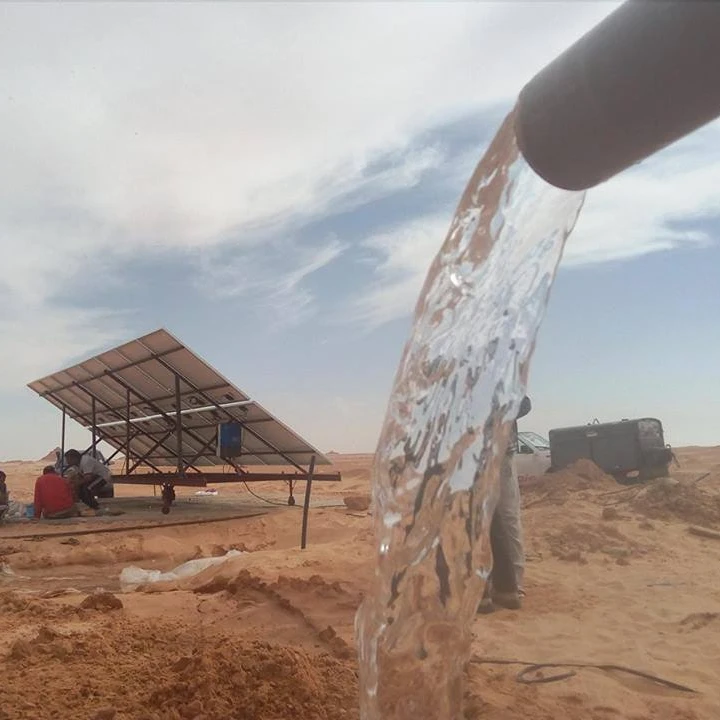

Yaochuang Energy solar water pump projects
7.5KW high head lift submersible deep well solar water pump in Honduras.
3m3/h flow rate at 320m head lift
11KW solar pump inverter
270W solar panel * 38pcs
With Brand Yaochuang Energy

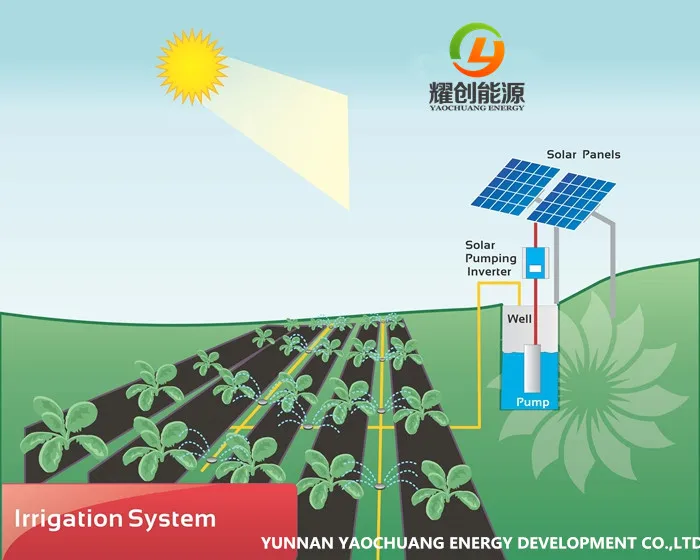

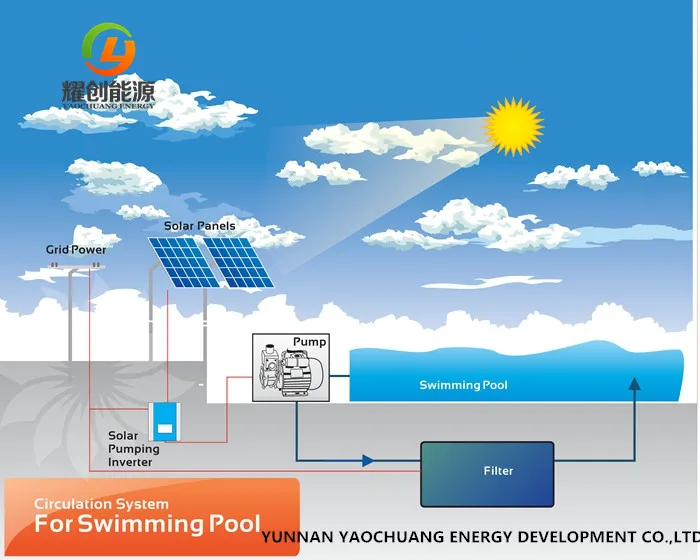

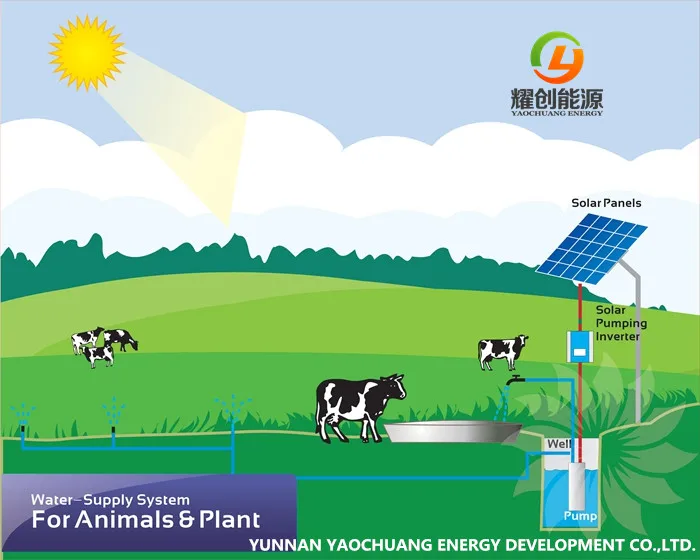

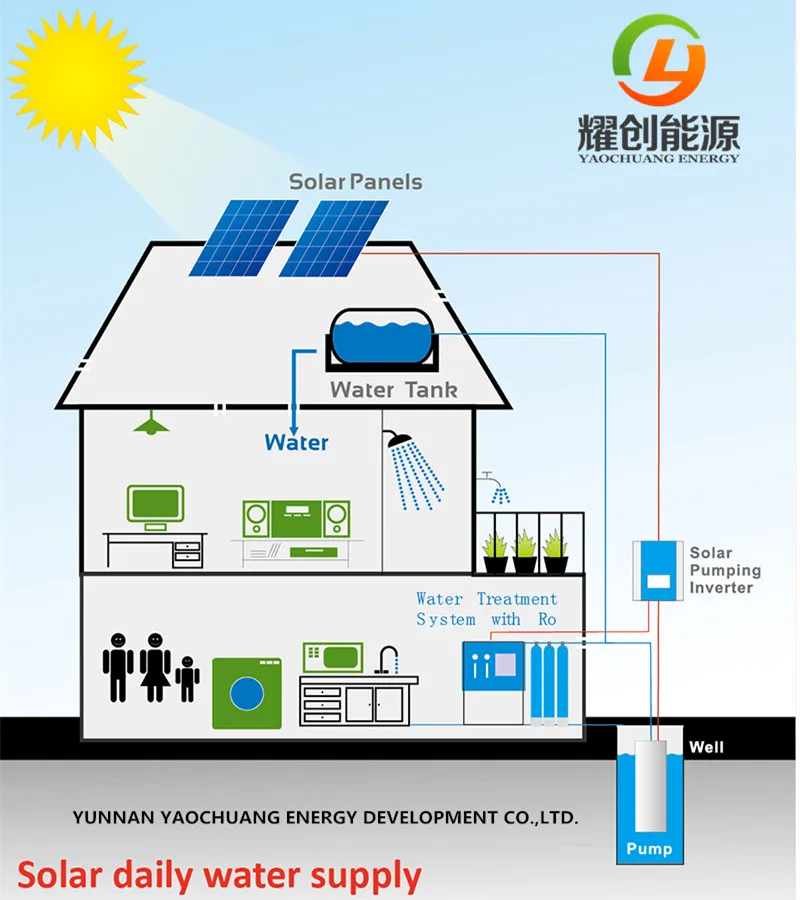

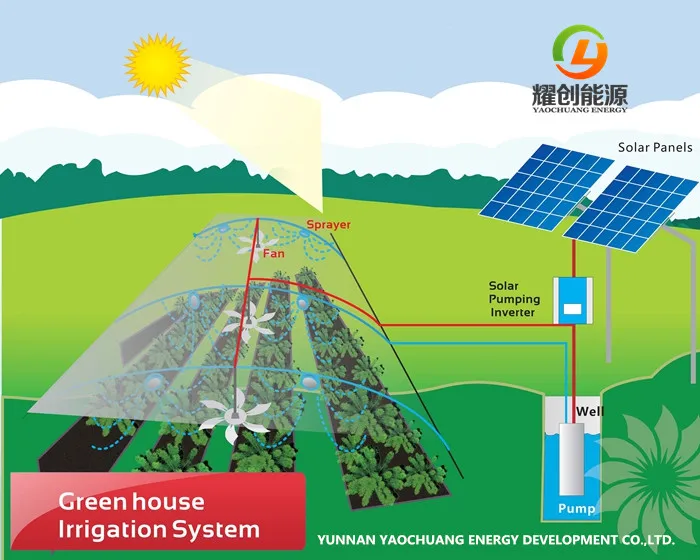

The system is composed of PV modules, submersible pumps, control inverters and water tanks .
Our Solar water pumps perform equally well in irrigation projects and for wide area of drinking water applications where they reliably meet the most demanding requirements,economically and without the use of fossil fuels or a grid connection.
Many customers also ask why there is no battery for night or cloudy days.Actually we suggest to build a water tank to instead of battery, because
1) The system with battery will decrease whole system efficiency and increase the cost much;
2) Battery service life is 3-5 years, you will pay a lot of money to replace the old battery;
3) Comparing with battery, water tank is a one time investment, and no need maintenance.
Solar powered water pump system advantages
No fuel cost - as it uses available free sun light
No electricity required
Long operating life
Highly reliable and durable
Easy to operate and maintain
Eco-friendly
·PLC control
·MPPT Technology
·Zero Maintenance
·Continuous Water Supply for 8-10 hours / Day
·Long life up to 25 Years
·Compact Design & High Efficiency
Customized solar powered water pumpsystem
Need to choose pump model via head lift and flow rate as below , then suitable system solution and quotation will be sent as soon as possible.
| Model | Power | Flow rate(m3/h)/Head lift(m) | Outlet dia. | Pump dia. | ||||
| SJ30-21 | 18.5KW | 5.0m3/h/235m | 12m3/h/221m | 20m3/h/196m | 30m3/h/155m | 38m3/h/95m | 3" | 133mm |
| SJ42-12 | 18.5KW | 5.0m3/h/157m | 20m3/h/146m | 40m3/h/112m | 50m3/h/87m | 60m3/h/54m | 3" | 150mm |
| SJ60-10 | 18.5KW | 20m3/h/132m | 30m3/h/121m | 50m3/h/93m | 60m3/h/77m | 75m3/h/45m | 4" | 150mm |
| SJ75-5 | 18.5KW | 30m3/h/92m | 50m3/h/83m | 70m3/h/70m | 90m3/h/51m | 100m3/h/38m | 5" | 197mm |
| SJ95-4 | 18.5KW | 40m3/h/72m | 60m3/h/65m | 80m3/h/54m | 100m3/h/36m | 120m3/h/10.5m | 5" | 197mm |
| SJ120-2-1 | 18.5KW | 60m3/h/40.5m | 90m3/h/37.5m | 110m3/h/35.5m | 130m3/h/32.5m | 150m3/h/28m | 6" | 230mm |
| SJ150-2-2 | 18.5KW | 80m3/h/35.5m | 100m3/h/32m | 120m3/h/31m | 150m3/h/28.5m | 180m3/h/25m | 6" | 230mm |
If you don't know such information ,please offer us below information.
1. Installation site: Country: ____________ City: ___________ ;
2. Diameter D _______ for the borehole , pond or well;
3. Average daily water demand: __________ m3;
4. H1 (lift from lowest water level to ground): __________m;
5. H2 Vertical height from tank (if any) to ground _______ m;
6. L (Horizontal distance for water transport): _______m;
7. If have water pipe, please let us know the diameter_______mm and length _______m.
Installation engineering drawings
Company Qualification
Packaging & Shipping
Our Services
Pre-sale service:
1. Free of making offers, craft and technical guidance timely.
2. We can also make customized products according to your needs.
After-sale service:
1. We provide long-term after-sale service.
2. Just call or email to consult any relevant questions since we have a special line of aftersale service which will be available all day,or you can communicate online with our foreign sales and solve the problems.
3. We will send many new styles to our old customers.
Company Information
Yaochuang Energy Co.,Ltd. is a professional solar power system integrator, especially solar water pump system, residence off grid solar power system, on grid solar power plant, solar street light, etc.
Our solar panel & solar pump inverter factory is located in Shanghai, the biggest sea port in China makes transport more convenient.
Sale office is located in Kunming, a very beautiful place be named as Flower city, it is near to Thailand, Myanmar, Vietnam, Laos, and we have installed many solar water pump system in those countries, and get high praise.On the other hand,those provinces------Yunnan ,Guizhou,Tibet, three provinces are rich of solar radiation, we set our office in Kunming to dvelop the solar power system in those three provinces.
FAQ
1.What is solar pumping system?
The solar pumping system is composed of solar pumping inverter, 3 phase AC pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.
The solar pumping system is widely used for sea water desalination system, desert controlling, daily life water supplying, agricultural irrigation, forest irrigation, waterscape, and water treatment project. The YCsolar solar pumping system is dispensed with battery and that enhance the reliability of the system and reduce the bill invest.
2.Why cubic meters/day not cubic meters/hour for measuring the solar pumping system?
The YCsolar solar pumping dedicated inverter is adopted to achieve MPPT (Maximum Power Point Tracking) to regulate the speed of the pump, and the water output changes while the sunshine radiation changes, so, cubic meters/day is the only standard measurement of the water output of a solar pumping system.
3.How long will the photovoltaic system serve?
The solar PV module is with 25 years of using life, and the output power will get lower as the time past.
