Характеристики
Product Description
Product Application
1200B model wet pan mill is widely used for selecting ferrous metals,nonferrous metals and nonmetals,as well asprecious metals like gold and silver.Based on advanced technology and first-class after-sales service,The Nile 1200B wet pan mill is the first choice for ore beneficiation plant with all levels.
Specification and technical parameters
| Model | Specification(mm) | Feed size (mm) | Speed(r/min) | Power(KW) | Weight(t) |
| 1600A | 1600*400*200*500±20 | <25 | 20-22 | 6-30 | 14.5 |
| 1500A | 1500*350*200*460±20 | <25 | 20-22 | 6-22 | 13.3 |
| 1500B | 1500*350*150*460±20 | <25 | 20-22 | 6-22 | 12.3 |
| 1500C | 1500*300*150*420±20 | <25 | 20-22 | 6-22 | 11.3 |
| 1400A | 1400*250*150*350±20 | <25 | 16-18 | 6-18.5 | 8.5 |
| 1400B | 1400*250*150*350±20 | <25 | 21-23 | 6-18.5 | 8.5 |
| 1350A | 1350*250*150*350±20 | <25 | 16-18 | 6-18.5 | 8 |
| 1350B | 1350*250*150*350±20 | <25 | 21-23 | 6-18.5 | 8 |
| 1300A | 1300*250*150*350±20 | <25 | 16-18 | 6-15 | 7.5 |
| 1300B | 1300*200*150*350±20 | <25 | 21-23 | 4-15 | 7.5 |
| 1200B | 1200*200*80*250±20 | <25 | 23-25 | 6-7.5 | 5.5 |
| 1100A | 1100*200*80*250±20 | <25 | 17-19 | 6-7.5 | 5 |
| 1100B | 1100*180*80*250±20 | <25 | 23-25 | 4-7.5 | 5 |
| 1000 | 1000*200*80*250±20 | <25 | 13-15 | 4-7.5 | 4.5 |

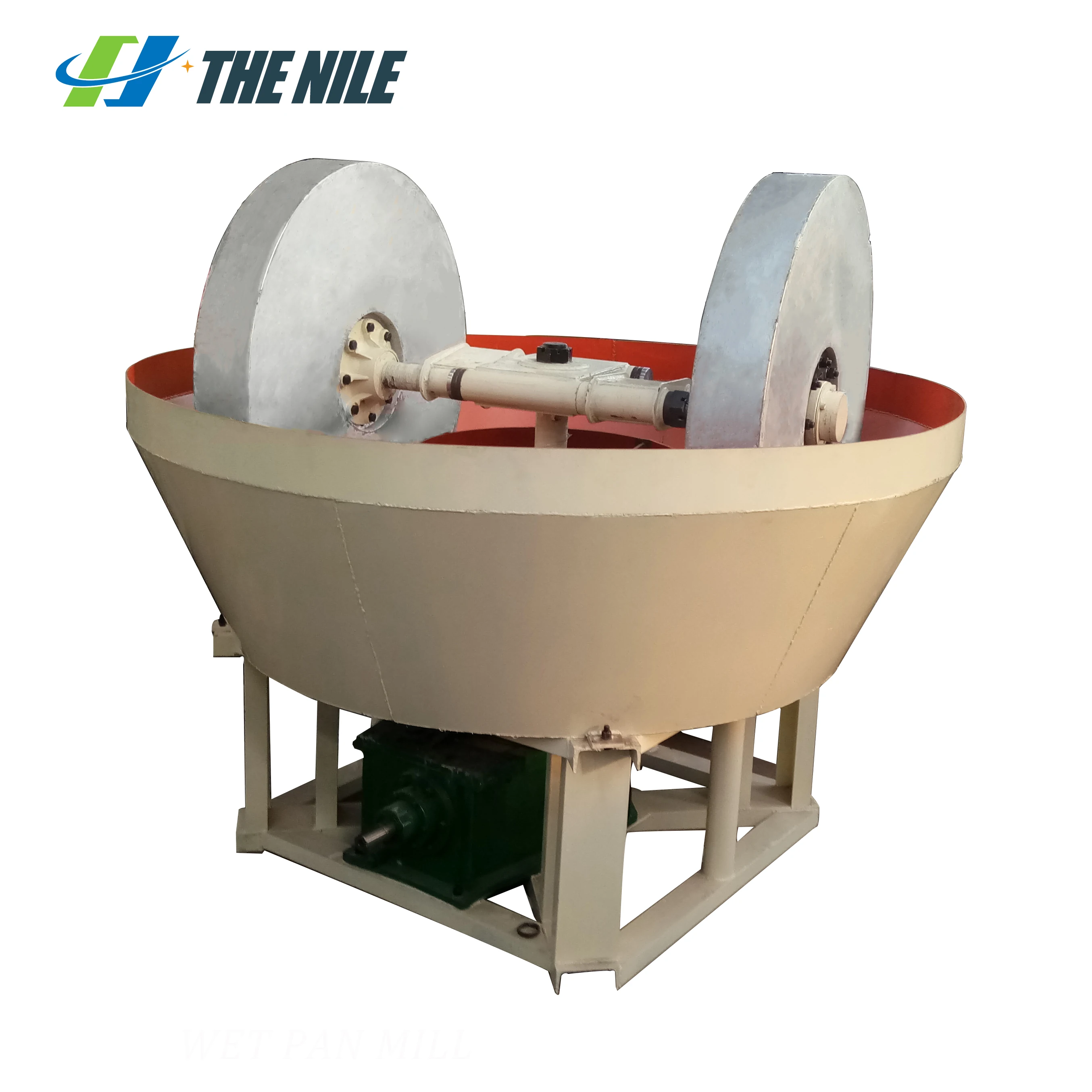

Main structure
working principle
Wet pan mill mainly consists of driving device,frame,water basin,grinding wheels and grinding base ,etc.It grinds ores by wheel driving force:firstly,the power is transferred from the motor to the reducer,then to the horizontal shaft ,and finally to the grinding wheel;the wheels then rotate anticlockwise.The wheels can revolve around the vertical shaft of the pan mill,at the same time,it can revolve on its own axis,while the grinding base will remain still.The ores are then pressed,rubbed and grinded repeatedly.
Main Features
 | Thickened sink steel plate to extend service life |
Introduction of core technology Wear-resisting improve>130% The grind wheel adds manganese and carbon to increase hardness to HB 328
|  |
 | Easy maintenance High efficiency cost-effective |

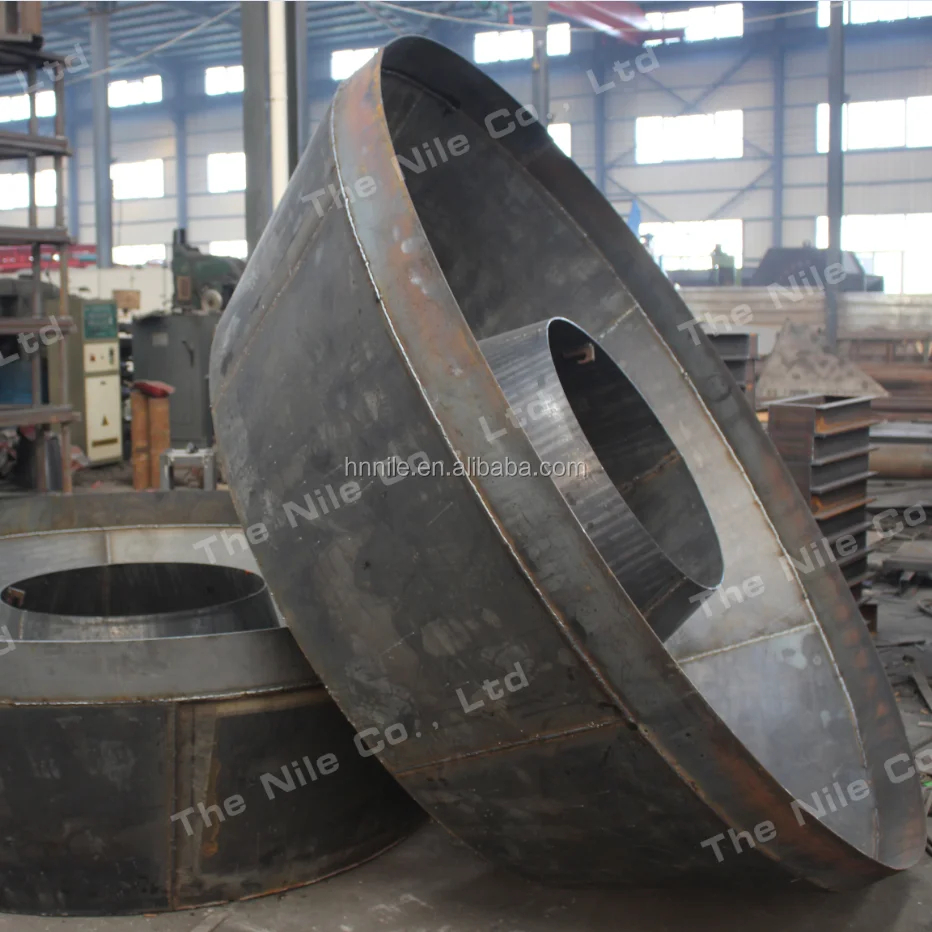

Part detailed images
The quality of the parts determines gold output!
The products of The Nile is highly processed,ensuring you can get the rich return with small investment in terms of quality and performance
our service
 |  |
We will accompany you to visit our factory and all kinds of machinery and equipment if you come here ; We have received a lot of Clients from Sudan, Egypt, Zimbabwe, Kenya, Uganda, Mauritania, Benin, Tanzania and etc | We will send engineer(if you need) to the scene to guide the equipment installation ,commissioning and training your operating personnel.We provide 1 years warrenty &technical support to ensure the machine run smoothly |
Packaging & Shipping
