8T 165T 20 сетчатая 420 Сетчатая футболка полиэстер трафаретная печать ткань фильтр сетка шелк белая желтая
- Категория: Printing Mesh >>>
- Поставщик: Anhui,Yifeng,Mesh,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.94 $* | 0.83 $* |
| Aug-15-2025 | 0.95 $* | 0.71 $* |
| Jul-15-2025 | 0.18 $* | 0.57 $* |
| Jun-15-2025 | 0.40 $* | 0.37 $* |
| May-15-2025 | 0.2 $* | 0.50 $* |
| Apr-15-2025 | 0.31 $* | 0.94 $* |
| Mar-15-2025 | 0.61 $* | 0.89 $* |
| Feb-15-2025 | 0.89 $* | 0.21 $* |
| Jan-15-2025 | 0.5 $* | 0.31 $* |
Характеристики
Product Description
This Screen Printing Mesh is a high precision, first class quality , specilizes manufacturering high tension, low elongation polyester screen printing mesh.
* Polyester fabric: available in two colors, you pick up the goods.
* Soft and high precision.
* This high tension, low elongation polyester screen printing mesh is perfect for Electronic, Textile, Ceramics, Glass and ther Industries, such as Printing, Plate Making and so on
Material | 100% polyester |
Weave | Plain |
Mesh Count | 18-420mesh/inch(7-165T) |
Thread Diameter | 31-350um |
Mesh Opening | 25-1100um |
Width | white color mesh max-width 368cm(145"); yellow color mesh 43T-80 to 120T-34 max-width 330cm(129"),165T, max-width 275cm(108") |
Length | 30m, 50m and 100m the longest roll length can be 1000m |
Color | White & Yellow & Black |
MOQ | 50M |
Standard | ISO9001:2008 |
Applications | T-shirt printing, garment printing, graphics printing, ceramics, glass, cosmetic bottles, printed circuit boards |
Size, Shape and Packing can be customized
| |
Product Advantages
Cnymesh Screen printing mesh advantage:
1. High tension and smooth surface.
2. Good diathermancy.
3. High air permeability.
4. Acid resistance and Alkali resistance.
5. Long working life.
6.Hard wear and easy cleaning.
7. We can do as customer's requests and sample.
Mesh Count is the number of threads per inch in the direction of warp and weft of the fabric. The mesh count is identical in both warp and weft direction for Share Filtration's woven mesh.
Thread Diameter is specified as the diameter of the thread in microns; Yarn sizes in both warp and weft directions are the same.
Mesh Opening is the size or space between threads. The mesh opening is the result of the combination of the mesh count and yarn size. Mesh opening will determine the size or amount of material that will pass through the fabric.
Samples available under freight burden by buyer, the cost refund after order is fixed.
Garment printing
Glitter 25–60 ; Flock adhesive 45–125
Puff-up colors 55–125 ;Overprint 80 –110
Pigment ink printing,areas/lines 110 –175
Plastisol transfer 125–305
Universal fabric 125 ;Plastisol direct 125–305
Pigment inks, half-tone 155–255 ;
Sublimation transfer 195–305
Ceramics
Glaze printing, coarse, embossed effect 15–55
Glaze printing, medium to fine 55–155
In and under-glaze (direct printing) 110–255
Printed circuit boards
Overlay solder mask 30 –45
Main Application
Monofilament plain weave DPP64T-163mesh polyester silk screen screen printing mesh for T shirt printing machine application:
Specification Table
Anhui Yifeng Mesh Co., Ltd.
Add: Ziqing Road And Chuangye Road Intersection, Industrial Park, Lixin County, Bozhou City, Anhui Province, China.
TEL: 008615551568892 Fax: 0086-558-8830538
Production Flow
Monofilament plain weave DPP64T-163mesh polyester silk screen screen printing mesh for T shirt printing machine
1.material: 100% polyester
2. mesh count: 16~420 mesh
3. width: 127cm, 165cm, 260cm, 365cm ect

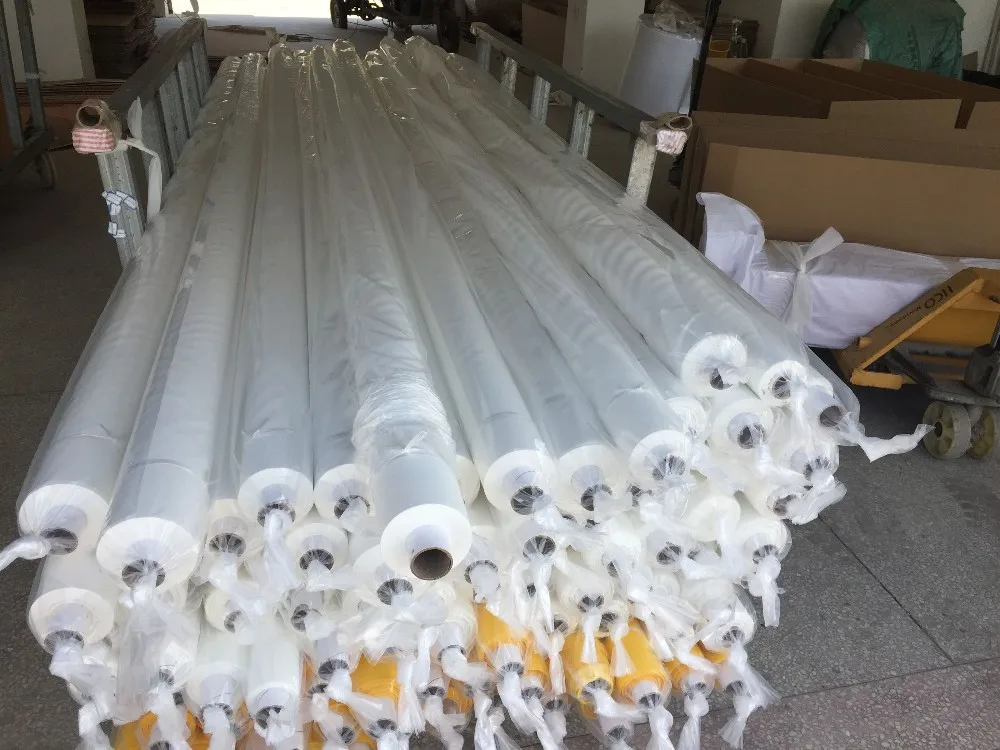

Packaging & Shipping
Monofilament plain weave DPP64T-163mesh polyester silk screen screen printing mesh for T shirt printing machine packing:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.;'
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below:
