Характеристики
Company Profile
Product Description
Product Application
The first part of the rubber products vulcanizer autoclave machine overview
Electric heating steaming rubber strips vulcanization cooking tank is mainly used for curing of rubber products such as cable, rubber shoes, rubber hose, rubber roller, adhesive tape, rubber ball, rubber lining, rubber vulcanization, reclaimed rubber desulphurization and SBR thermoplastic resin; Anti-corrosion, anti-corrosion, anti-deformation impregnation treatment, food and traditional Chinese medicine to eliminate (kill) bacteria, yarn, mane, socks heat stereotypes, sacrificial angle and bone high-pressure modification, degreasing, hydrolysis of various feathers, aluminum products oxidation . Also used for carbon materials, asbestos friction materials, gypsum and its products, and other materials autoclave, cooking, dipping, drying.
The second part of the design concept of the rubber products vulcanizer autoclave machine.
1, Rubber products vulcanizer autoclave machine human nature! (Everywhere ingenuity, reflecting the people-oriented design)
2, Rubber products vulcanizer autoclave machine security! (In accordance with: GB150-2011 "pressure vessel manufacturing standards", ISO9001: 2008 quality certification system, HACCP food safety certification design, manufacture)
3, Rubber products vulcanizer autoclave machine reliable! (Selection of world-renowned brand parts,)
4, Rubber products autoclave machine energy saving! (Temperature loss, electricity, compressed air, time consumption of four reasonable, with optimization)
5, Rubber products vulcanizer machine beautiful appearance, novel, compact, simple!
The third part of the rubber products vulcanizer machine design, manufacturing basis
Products in strict accordance with the "capacity regulations" and GB150-98, GB151-98 national standard manufacturing acceptance, warranty information and technical documentation integrity.
Main Features
Technical parameters of rubber vulcanizer autoclave
Project Description
Curing tank diameter / tube length / full capacity 1500 mm / 3000mm / 5.3m3
We can make all kinds size according to customers real work needs.
Design pressure 1.0Mpa
The maximum working pressure is 0.8Mpa
The maximum operating temperature of 180 ℃
Total installed power of about 64KW
Power supply voltage 380V
Pot body material Q345
Wall thickness of the tank body 12mm
Volume 4200 * 1700 * 2000
Weight of about 3 tons
Section 6 Curing tank ancillary facilities (user-owned)
Content model
Air compressor exhalation: 0.6m3 / min
Section 7: Characteristics of vulcanization tank
◆ electrical automatic control,
◆ electronic, mechanical double over-voltage protection.
◆ mechanical safety chain.
◆ electronic temperature deviation correction.
◆ electronic over-temperature automatic protection.
◆ temperature anomaly alarm.
◆ electrical contact pressure control
◆ automatic steam hammer silencer.
◆ temperature difference between the points of the pot (heat distribution) ± 0.5 ℃.
◆ Intelligent temperature control, temperature control accuracy within ± 0.5 ℃.
Rubber products, such as rubber, vulcanization, reclaimed rubber desulfurization, SBR thermoplastic plastic; bamboo carbonization degreasing, rubber, rubber, rubber, rubber, Wood fire, moth, anti-corrosion, anti-deformation impregnation, food and proprietary Chinese medicine off (kill) bacteria.
Certifications
Detailed Images
Machine Parts
Name: Electronic Control System
Brand: Simmens
Original: Germany
All our machine electronics adopts international famous brand, so the machine control is reliable, and the machine running is stable. And all the wires are well arrayed for easy connect and maintenance.
Main Features
Name: Electronics
Brand: Schneider or CHNT
Original: France or China
All our machine electronics adopts international famous brand, so the machine control is reliable, and the machine running is stable. And all the wires are well arrayed for easy connect and maintenance.
Machine Parts
Name: Can body Material
Brand: Steady
Original: China
The can body adopts Q345 material. This kind material is specially for high pressure vessel making . to ensure the can machine is safe for use.
Main Features
Name: Feeding rack
Brand: STEADY
Original: China
The rack device is used for loading rubber raw mateirals into the tank. The wheels are make by carbon steel, so it heat resistant and long service life in high temperature environment.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support, give proposal.
* Test machine before delivery.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 4200(L) * 1700 (W) * 2000 (H) | |
Weight | 3T | |

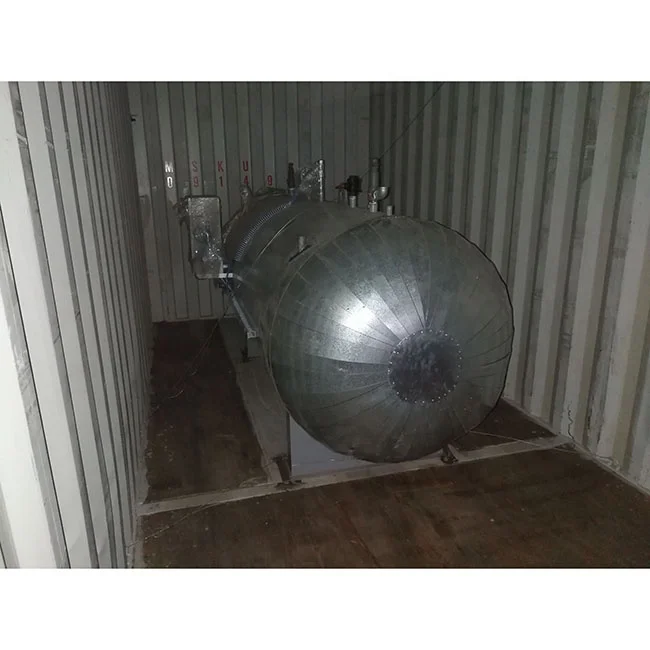

Packaging Details | the rubber vulcanization tank smaller model is loaded into a big wooden box, or directly loaded into 20 foot container. And proper treated(for anti rust and dust for some parts) and well fixed in the container. | |
Packaging | ||
Size | 8200 (L) * 2200(W) * 2400 (H)mm | |
Weight | 10T(for 12 fans line) | |
Packaging Details | the rubber vulcanization cooking tank is big size, so the machine big model is directly loaded into 40HQ foot container. And proper treated(for anti rust and dust for some parts) and well fixed in the container. | |
