Стандартный вакуумный набор для дистилляции с короткой дорожкой 5 л 34/45


Поделиться:


Цена:130,00 $ - 320,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 155.17 $* 163.26 $*
Aug-15-2025 153.72 $* 161.88 $*
Jul-15-2025 129.38 $* 135.91 $*
Jun-15-2025 151.32 $* 159.38 $*
May-15-2025 131.72 $* 138.36 $*
Apr-15-2025 148.28 $* 155.82 $*
Mar-15-2025 147.5 $* 154.37 $*
Feb-15-2025 146.11 $* 153.40 $*
Jan-15-2025 144.41 $* 151.22 $*

Характеристики



Product Description

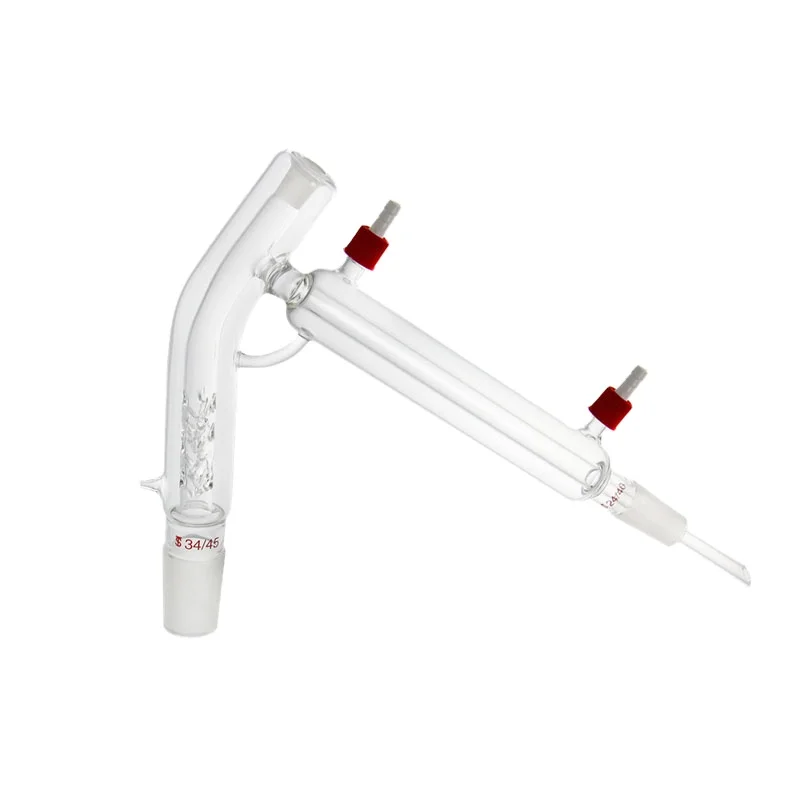

 Standard 5l vacuum short path distillation kit 34/45 head

The newly redesigned heavy wall 5L short path distillation head with vacuum jacket.
Heavy wall for durability
Boiling flask and distribution ports: 24/40 joints
Vacuum jacketed
Five sets of vigreux
Thermo probe port: 14/20 joints
Recirculating fluid ports: GL-14 adapters
Glass material: high borosilicate glass 3.3.




Other relate parts

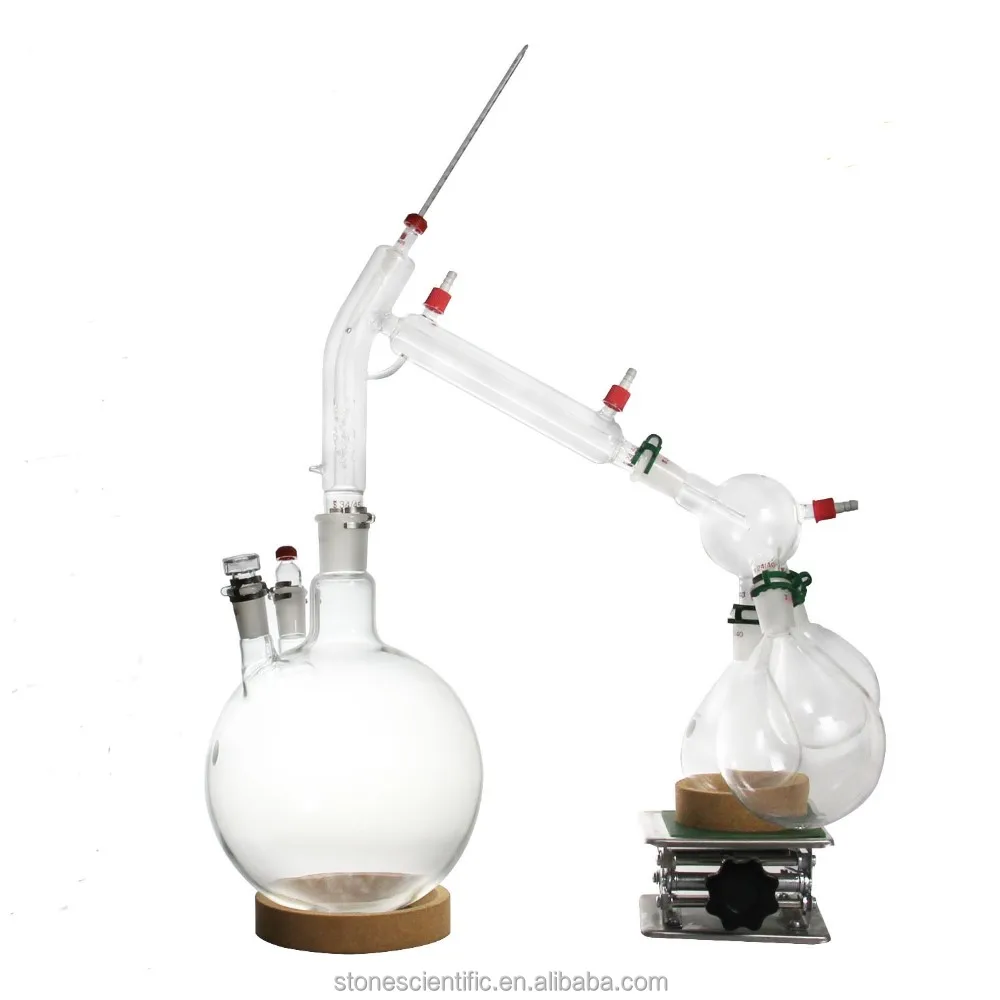

5L short path distillation kit

Our short path distillation kit has a high quality and heavy duty borosilicate 3.3 glass for durability. including short path distillation head , 2L round bottom evoporator, distillation cow receiver, 1 to 1 or 1 to 3, round bottom flask receiver and some other accessories.

About round bottom size and distillation head angle,  it is convenient we can do customized.

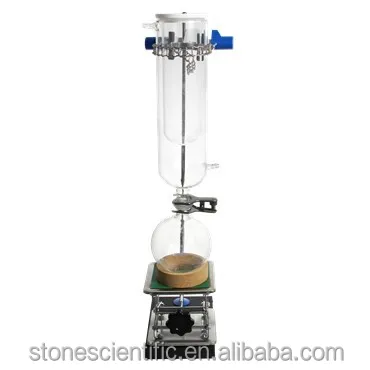

Class cold trap

 GCT-01 class  cold trap is very important, it can protect the vocuum pump from contamination and damage of vapors.

Glass cold trap includes Dewer style class cold trap with 3/8'' hose barbs, 35/20 joint, PTFE cover, 1L receiving flask, 35/20, stainless steel lab clamp, 35/20, stainless steel lab jack, 15x15cm, clamp holder, chain clamp, lab support stand.

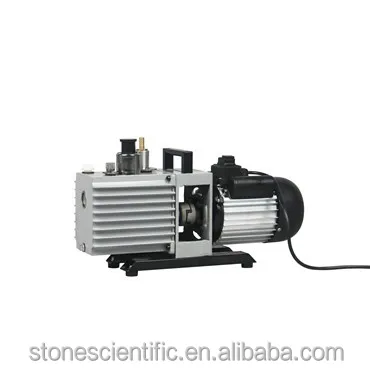

Rotary vane oil pump
pumping rate
5CFM, 2L/S
vacuum stage
dual-stage
vacuum level
1.33pa(10 micron)
power
370w
working temperature
-5 to 40 C
votage
110v 60hz or 220v 50/60hz
dimensions
514x168x282mm
CE compliance
yes

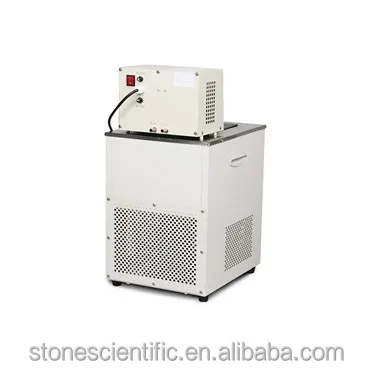

Desktop precise heater/chiller
Temperature range
-5 to 95 C
Temperature Accuracy
+/- 0.1C
reservoir volume
6L
reservoir dimension
250x200x150mm
pump capacity
Max 4L/min
dimension
350x400x690mm
electricity
220v single-phase


Technical datas


Lab1st 2L 2l vacuum wiped film kit short path distillation machine with cold trap
Part  Description
Specification
Quantity
Round bottom flask for evaporation
5L, 3-neck, hand blown, 34/45
1
Short Path Distillation Head
Vacuum Jacketed,34/45
1
Screw Thermometer Inlet Adapter
24/40
1
Thermometer Inlet Adapter
14/20
1
Distillation Cow Receiver 1
1-to-3, 24/40
1
Distillation Cow Receiver 2
1-to-1, 24/40
1
Round Bottom Flask for receiving
500ml, 1-neck, hand blown, 24/40
2
Round Bottom Flask for receiving
1000ml, 1-neck, hand blown, 24/40
1
Glass Funnel
4" opening, 24/40
1
Keck Clamp 1
24/40, Stainless Steel
3
Keck Clamp 2
24/40, Plastic
4
Cork Ring Stand for Flask 1
110mm
3
Cork Ring Stand for Flask 2
160mm
1
glass cold trap
GCT-01
1
Desktop precise heater/chiller
6L, -5 to 95C
1
Rotary vane oil pump
5CFM(2L/S), 2-stage, 110v
1


Packing & Delivery


1.Our wooden box will not be heavy, but can protect all parts, the shipping cost will be better for you.

2.it is flexiable and can be customized! our wooden boxes are based on our customer requirements, product weights and size.





How to support


For a lab equipment, the most valuable is the quality configuration and after sales support!

1.All glassware test by china authorities certification, our products get Green product certification,China famous product certification and ISO9001 quality management system certification.


2.All machine dispatched from Lab1st must be test by 3 times. the first time is the PR deparment,then test again by the QC deparment, and then the machine must be test again by our DS deparment.  to guarantee each machine working perfect before delivery!


3.Each machine will deliver with User manual, machine label, Serier No.  to guarantee the customer can get the machine without quality problem, custom clearance problem and delivery problem.


4.We provide 13month guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time.We have completely english instruction video and manual for you.Engineer fly to your site for final repair if needed.

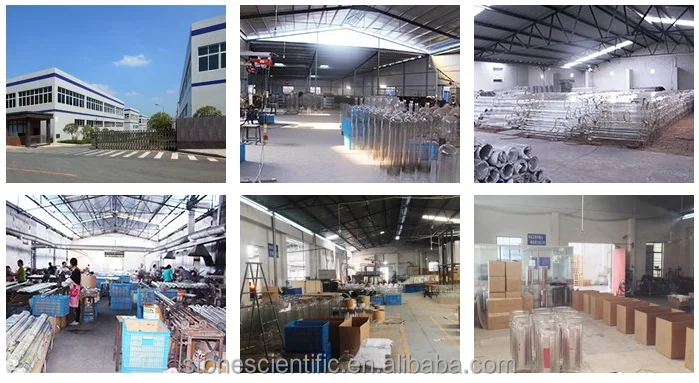

Our factory


 Labfirst Scientific Instruments Co.,Ltd | Shanghai, China

Labfirst Scientific (LAB1ST) was founded and based in Shanghai, specializing in the manufacturing and sales of glass-related equipments from lab scale to production scale. We work hard to provide high quality yet low cost products to our customers in universities, research labs and production facilities from all over the world.
All the glass-related equipments (glass reactors, rotary evaporators, thermo-regulators) are manufactured in our production facility in Shanghai. That helps us keep constant control over product quality and allows us to store a significant inventory of products. (Most of our standard products are in stock and ready to ship.)
With more than 20 years of experience on glass blowing, we provide a comprehensive range of products from lab glassware to industry-grade glass reactors (up to 200L) and evaporators (up to 50L). With the help of our experienced scientific glassblowers, we are able to quickly build customized glassware and prototype equipments, based on your sketch or pictures.
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show the art of fire and glass in our workshop.





Contact Us


Labfirst Scientific Instruments Co.,Ltd | Shanghai, China
No. 99 Shenbeiyi Road, Songjiang district, Shanghai 201600, China


------Miss maggie zheng

Email:  Maggie.zheng (at) lab1st.com

Skype: maggiezheng.lab1st
Phone: +86 131 2297 8691
Website: www.lab1st.com
