Реле Wi-Fi ESP8266 5 В для вещей сетевой дистанционный переключатель умного дома телефона

Описание и отзывы

Трекер стоимости

Характеристики



The terms of Shipping:

• We will ship the items within 5 working days after the payment confirmed.
• We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
• We are not responsible for any accidents, delays or other issues caused by the forwarder.



Our Services:

• Sales Team:We have a very professional sales team.Our sourcing solutions will help you quickly find and buy the first-hand products that you need at the earliest moment.
• Rapid response to your needs:Respond will be within 12 hours.Please feel free to contact us.
• Comprehensive data management system for immediate responses to all inquiries and quotation;



Product characteristics:

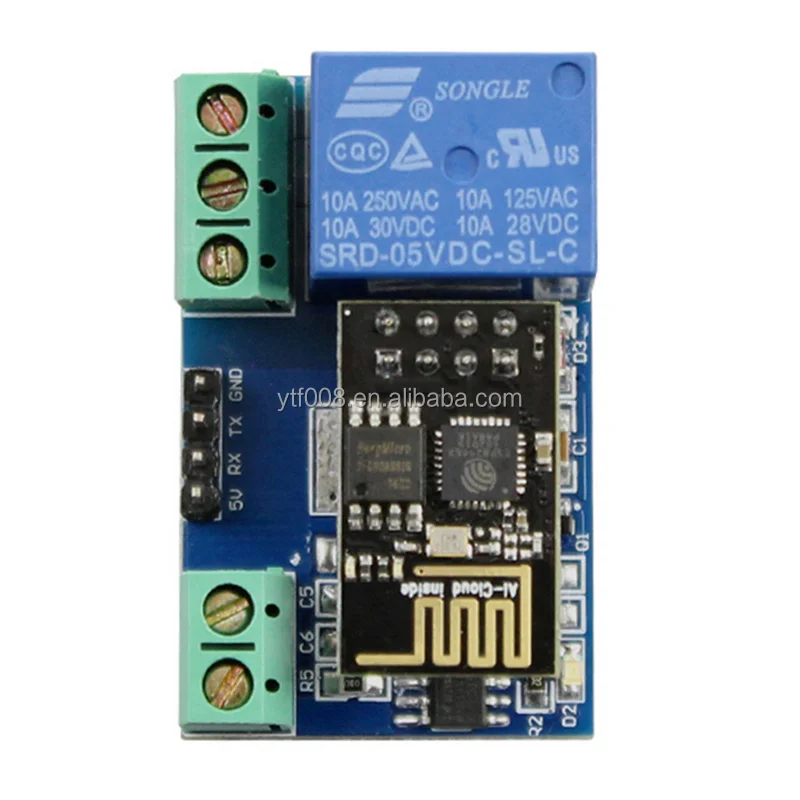

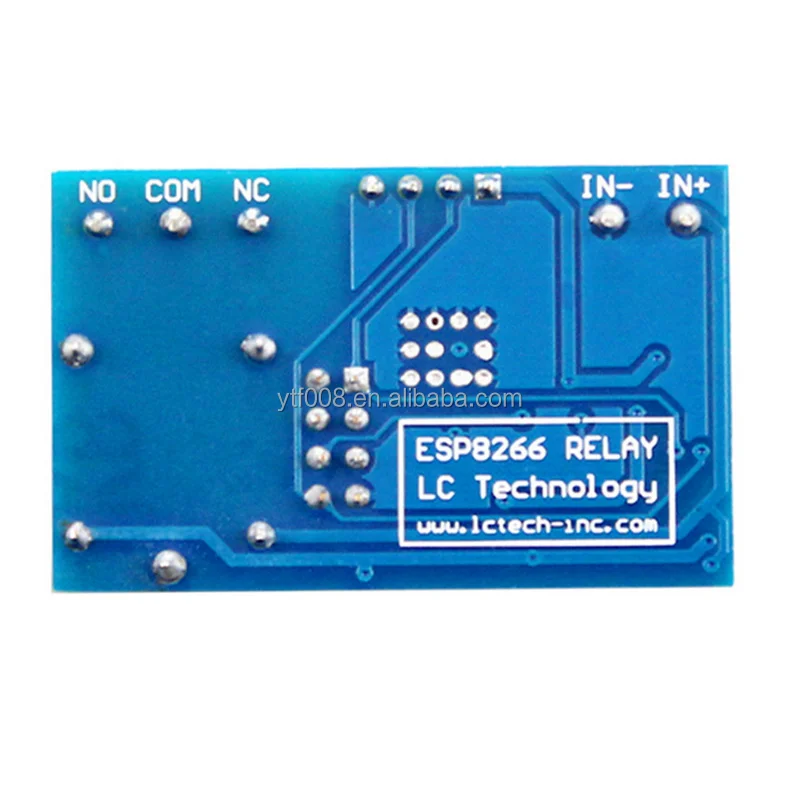

ESP8266 5V WiFi relay for things networking smart home phone APP remote control switch

Product parameters:

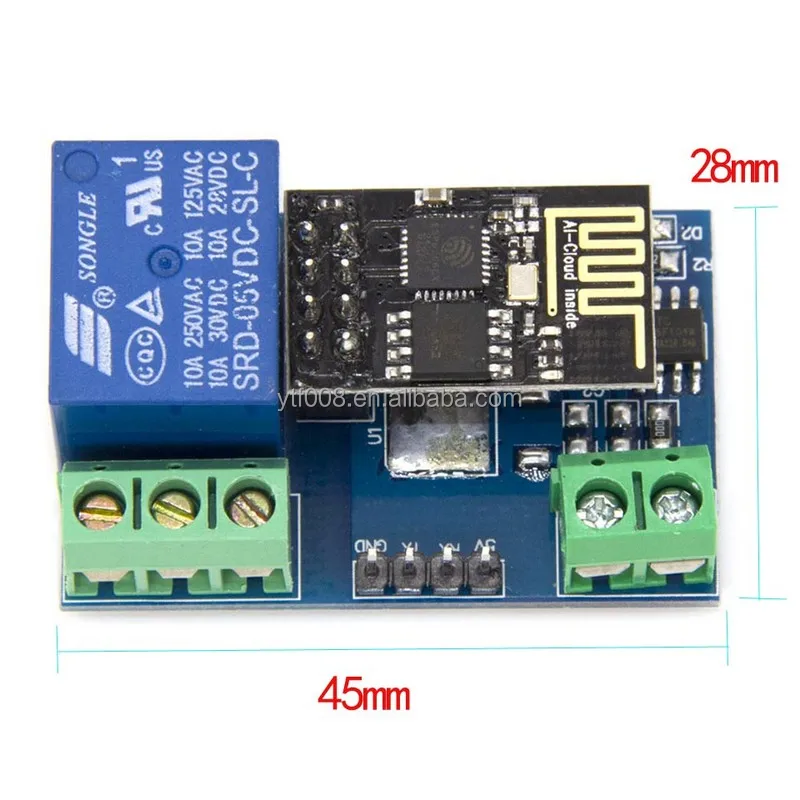

Product size	45 * 28mm*18mm
Operating voltage	DC5V

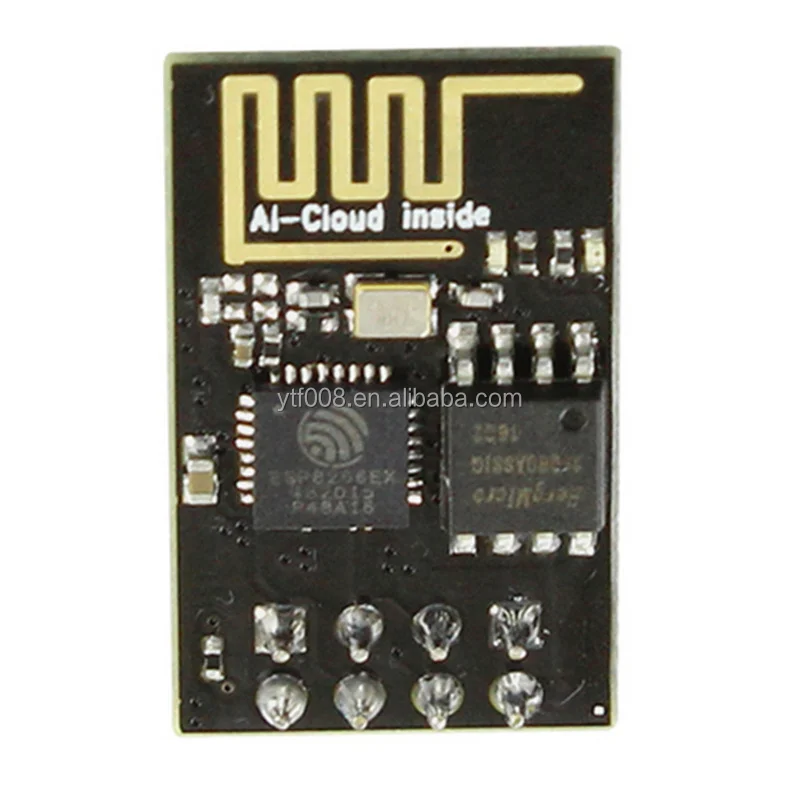

Communication	WIFI (ESP8266 module)
Serial communication parameters	9600,8,1,0,0
Transmission distance	The maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module)
Load	10A/250VAC 10A/30VDC, the relay pull 100,000 times

Way of working:

• Mobile phone equipped with WiFi module;
• Mobile phone and WiFI module equipped with the same router, through the mobile phone APP to control the relay; this mode, the transmission distance depends on the signal router.

Tips:

ESP8266 module has a timeout mechanism, when the phone for some time (the default 180S) did not give instructions to the module, the module will kick off the phone, the computer can send AT + CIPSTO = <time> to modify this time (Time range 0-7200), such as: AT + CIPSTO = 3600.

When the module on the WIFI module is unplugged, USB to TTL module RX, TX, GND pins were connected to the module RX, TX, GND pin, IN +, IN- 5V power supply, then the module can be used as a USB Relays to use, scalability.
