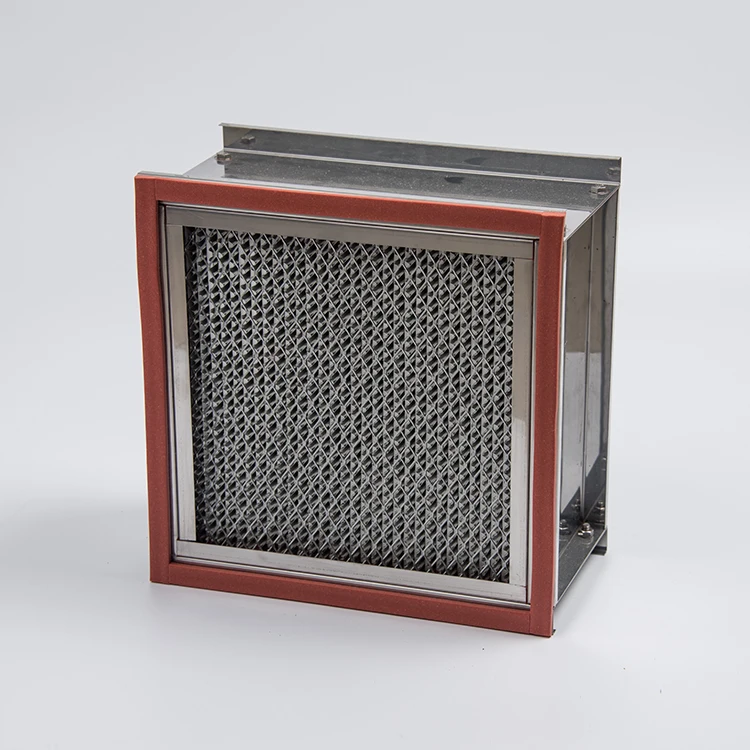

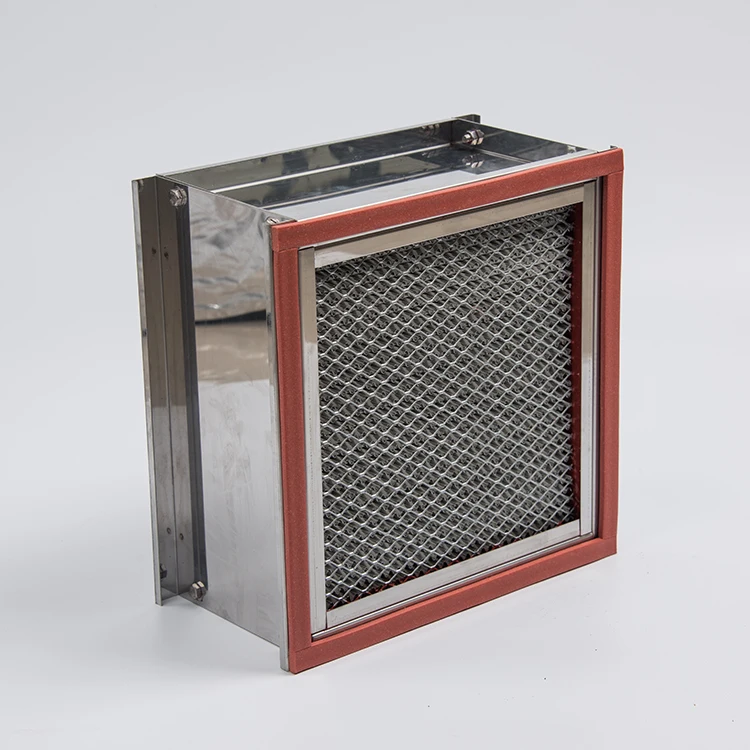

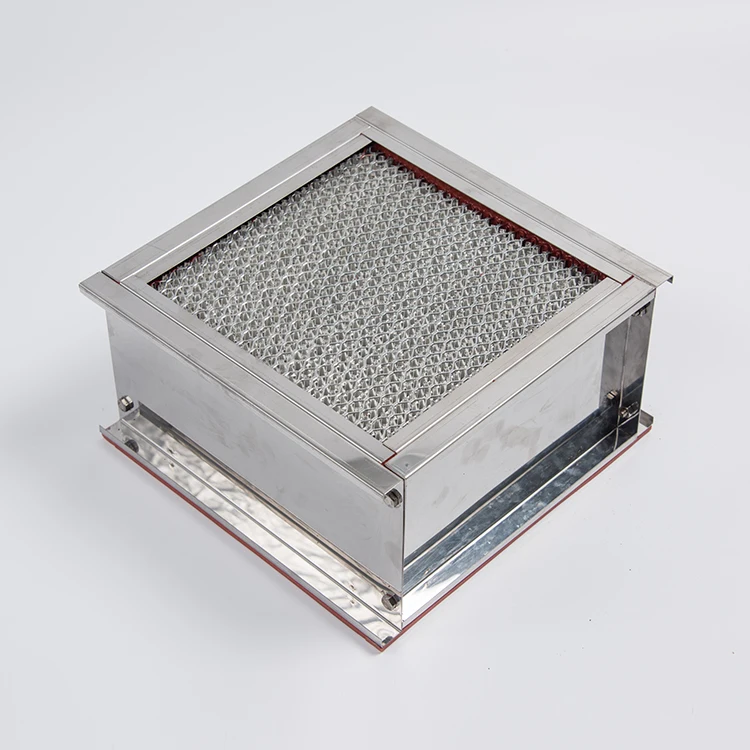

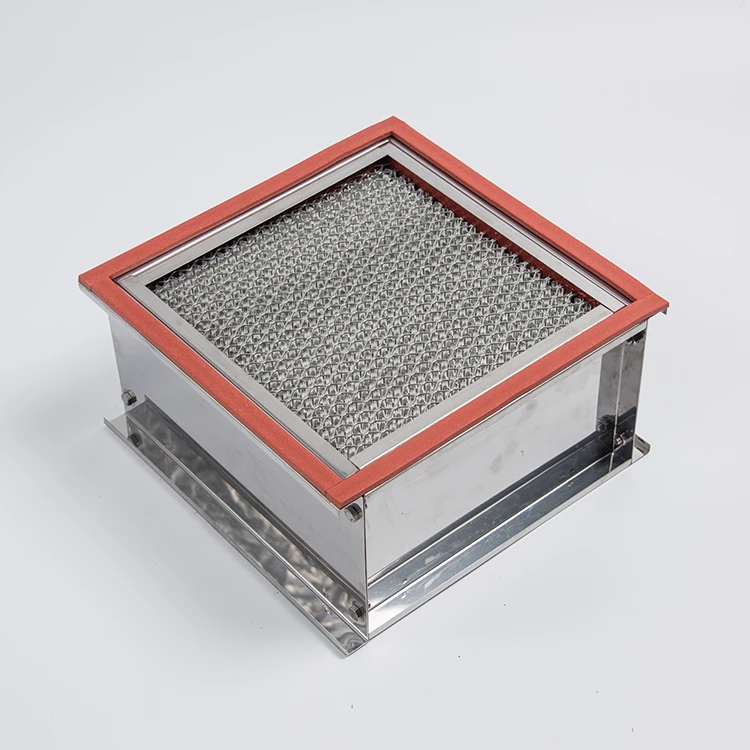

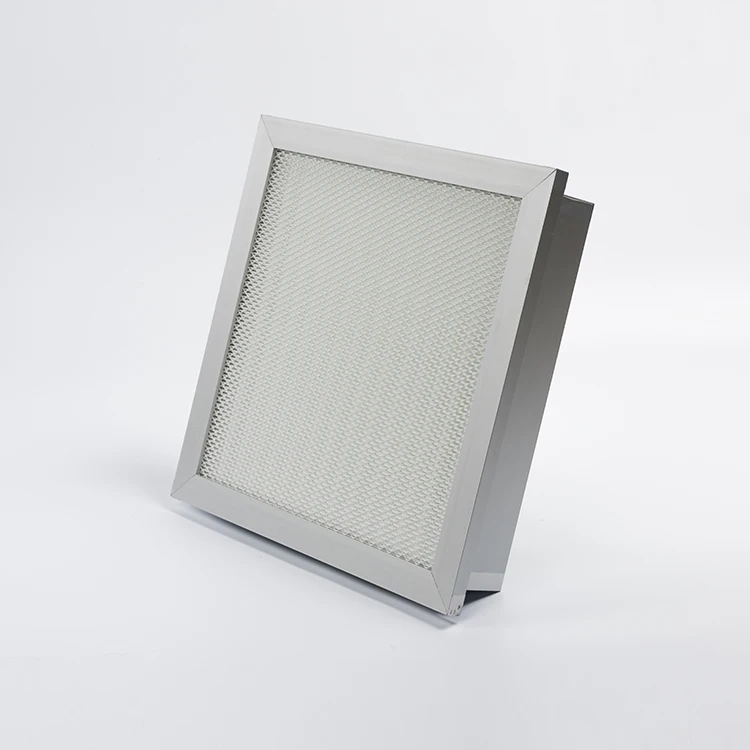

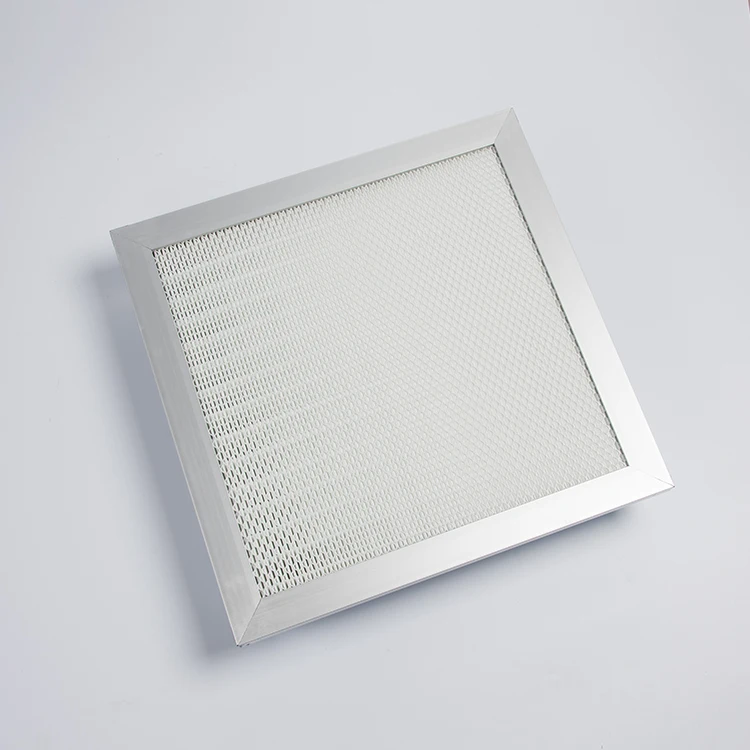

Высокоэффективный Алюминиевый Воздушный Фильтр hepa для чистящей

Advantage:

1. Ultra-fine glass fibre paper, ensures that filter keep its good effiency throughout operation life.

2. pleat dstance can be to 3 mm( or 5 mm, 7 mm).

3. Double side retainers, provide adequate protection for filter.

4. Mutual embedded housing ensures high strength structure

5. Non flange, single flange or double flange boxes are available for frame

6. Individually tested according to EN 1822.

Features:

1. Ultra-fine glass fiber as filter media.

2. Separator design, high efficiency, low pressure drop,  high dust loading capacity.

3. Applicable to VAV system.

4. Efficiency: 65%(M6),85%(F7),90%(F8),95%(F9)(EN779),99.95%@MPPS(H13),99.995%@MPPS(H14) (EN1822)

Applications:

1. AC ventilation system of clean room, commercial  building and industry

2. AC ventilation system with high relative humidity.

3. VAV system.

4. AC ventilation system with limited space.

5. AC ventilation system with high temperature  resistant and fireproof requirements.

6. Area with high air cleanliness requirement.

Good quality and high performance super fine glass fiber, over-length glass fiber, pp fiber filter paper and so on are used as filter medium and aluminum foil or two-sided offset paper is used as spacer. Many kinds of efficiencies, from medium efficiency (M6~F9),Sub-high efficiency(H10~H12)to high efficiency(H13~H14),are provided to customers for choice. Wide size are available.
