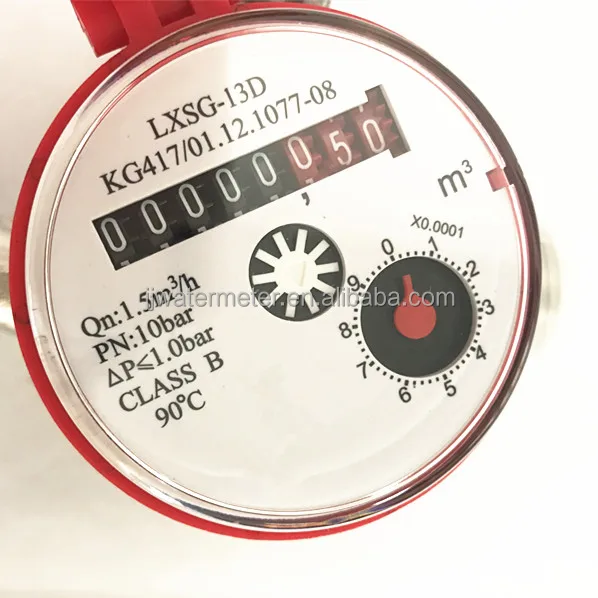

LXXG-13D Одноструйный умный счетчик воды с дистанционным

Описание и отзывы

Трекер стоимости

Характеристики

1.Dry-dial

2.Single-jet

3.Magnetic drive

4.Vacuum sealed register. The dial keep free form fog. The reading can be kept clear
in long term service.

5.Antimagnetic construction6.Measuring accuracy is up to class B of ISO4064 Standard.

7.Selected high quality materials. Steady & reliable characteristic

8.Series universal use. Easy interchange & maintenance



MAIN TECHNICAL DATA

TYPE	SIZE	CLASS	FLOW				READING
			Qmax	Qn	Qt	Qmin	Min	Max
	mm		m3/h		L/h		M3
LXSG-13D	13	B	3	1.5	120	30	0.001	99999
LXSG-20D	20	B	5	2.5	200	50	0.001	99999



DIMENSIONS AND WEIGHT

TYPE	SIZE	LENGTY	WIDNTH	WEIGHT	CONNECTING THREAD		WEIGHT
	mm	mm	mm	mm			KG
LXSG-13D	13	110	75	80	G3/4		0.9
LXSG-20D	20	130	94	83	G1		1.1







ERROR CURVE:



a. at low Zone is ±5 %from Qmin to Qt( not contain boundary)



b. at high zone is ±2 % from transitional flow(Qt)to maximum flow ( Qmax)







Working conditions:

 water temperatures≤35°c( for cold water)

water temperatures ≤90°c( for  hot water)

 water pressures  ≤ 1 Mpa
