033 U-образная машина для производства питьевой соломы
US $9200-$9500
Низкое энергопотребление высокоскоростная автоматическая машина для производства бумажной питьевой
- Категория: оборудование для производства соломы >>>
- Поставщик: Suzhou,Deedo,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 22610.87 $* | 23741.8 $* |
| Aug-18-2025 | 22420.44 $* | 23541.57 $* |
| Jul-18-2025 | 18810.19 $* | 19751.60 $* |
| Jun-18-2025 | 22040.3 $* | 23142.95 $* |
| May-18-2025 | 19190.85 $* | 20150.18 $* |
| Apr-18-2025 | 21660.86 $* | 22743.23 $* |
| Mar-18-2025 | 21470.91 $* | 22544.6 $* |
| Feb-18-2025 | 21280.73 $* | 22344.6 $* |
| Jan-18-2025 | 21090.40 $* | 22145.65 $* |
Характеристики
Products Description
Paper straw making machine is suitable for producing different sizes of paper straws diameter 3-12mm.Mainly used for the production of paper straws, pen core tubes, E-cigarette, Nail Sand Ring，Balloon stick making machine . Straw paper making machine 6-9 cutting knife system.
1.It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
2. Cutting knife system, new structure of cutting cylinder. Easier to adjust air cylinder travel when changing different
diameter mould.
3. Auto feeding function glue station, Glue station heating and recycle function.auto spray glue system (Import USA Valco
Melton) .
4. Equip with 3 sets servo motor for cutting system moving left & right, supporting roller and cutting knifes.
5. Machine equip with Intelligent, centralized monitoring, Production data can be introduced into the user ERP system to
facilitate production data collection.
6. Remote detection function,machine can connect to internet for remote diagnosis and repair, more simple for after service.

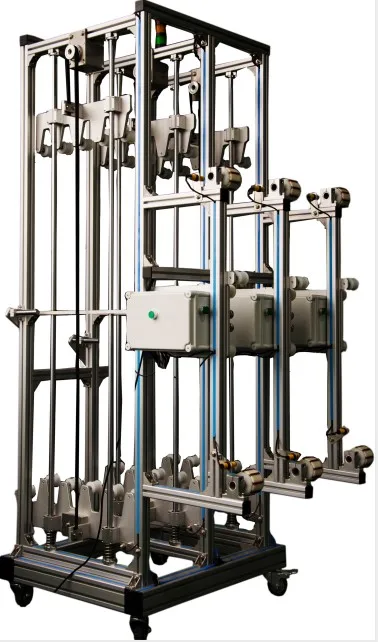

7. paper straw machine Auto paper roll connecting function hanging bracket, auto splicer, 3-5layers.
8. Main electric parts choose famous brand, Like main servo motor, servo motor driver, frequency charger.
1.It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
2. Cutting knife system, new structure of cutting cylinder. Easier to adjust air cylinder travel when changing different
diameter mould.
3. Auto feeding function glue station, Glue station heating and recycle function.auto spray glue system (Import USA Valco
Melton) .
4. Equip with 3 sets servo motor for cutting system moving left & right, supporting roller and cutting knifes.
5. Machine equip with Intelligent, centralized monitoring, Production data can be introduced into the user ERP system to
facilitate production data collection.
6. Remote detection function,machine can connect to internet for remote diagnosis and repair, more simple for after service.
7. paper straw machine Auto paper roll connecting function hanging bracket, auto splicer, 3-5layers.
8. Main electric parts choose famous brand, Like main servo motor, servo motor driver, frequency charger.
Product Paramenters
1 | Machine Model | SS 550 |
2 | Paper Straw | 3-5 layers |
3 | Paper Straw Diameter | 3-12 mm |
4 | Paper Straw length | 5cm-120cm |
5 | Motor Model and Power | Gear motor 3kw |
6 | Machine speed | In paper 85-120m/min |
7 | Machine speed | Output paper 65-105m/min |
8 | Servo Motor | 3 pcs |
9 | Servo Motor Brand | TECO.TAIWAN |
10 | Servo Drive | TECO.TAIWAN |
11 | Cutting Blades | 6 PCS |
12 | Cutting Control | Servo control (TECO.TAIWAN) |
13 | Winding Head Control | Inverter (ABB) |
14 | PLC touch screen | Siemens |
15 | Movement module PLC | Customized |
16 | Speed Control | Inverter |
17 | Inverter Brand | ABB Switzerland |
18 | Cutting Pneumatic Part | SMC.Japan |
19 | Lead Screw Drive | TBI.TAIWAN |
20 | Air Pressure | 0.5 Mpa |
21 | Angel Correction | Auto by motor |
22 | Fix Length Way | Encode (brand:Omron) |
23 | Machine Area Space | 6000mmx6000mm |
Details Images
TECO Servo
cutting blades
SMC cutting cylinder
Siemens PLC touch
Servo system Teco Taiwan
ABB Inverter
TBI Lead Screw
Japan SMC cutting pneumatic

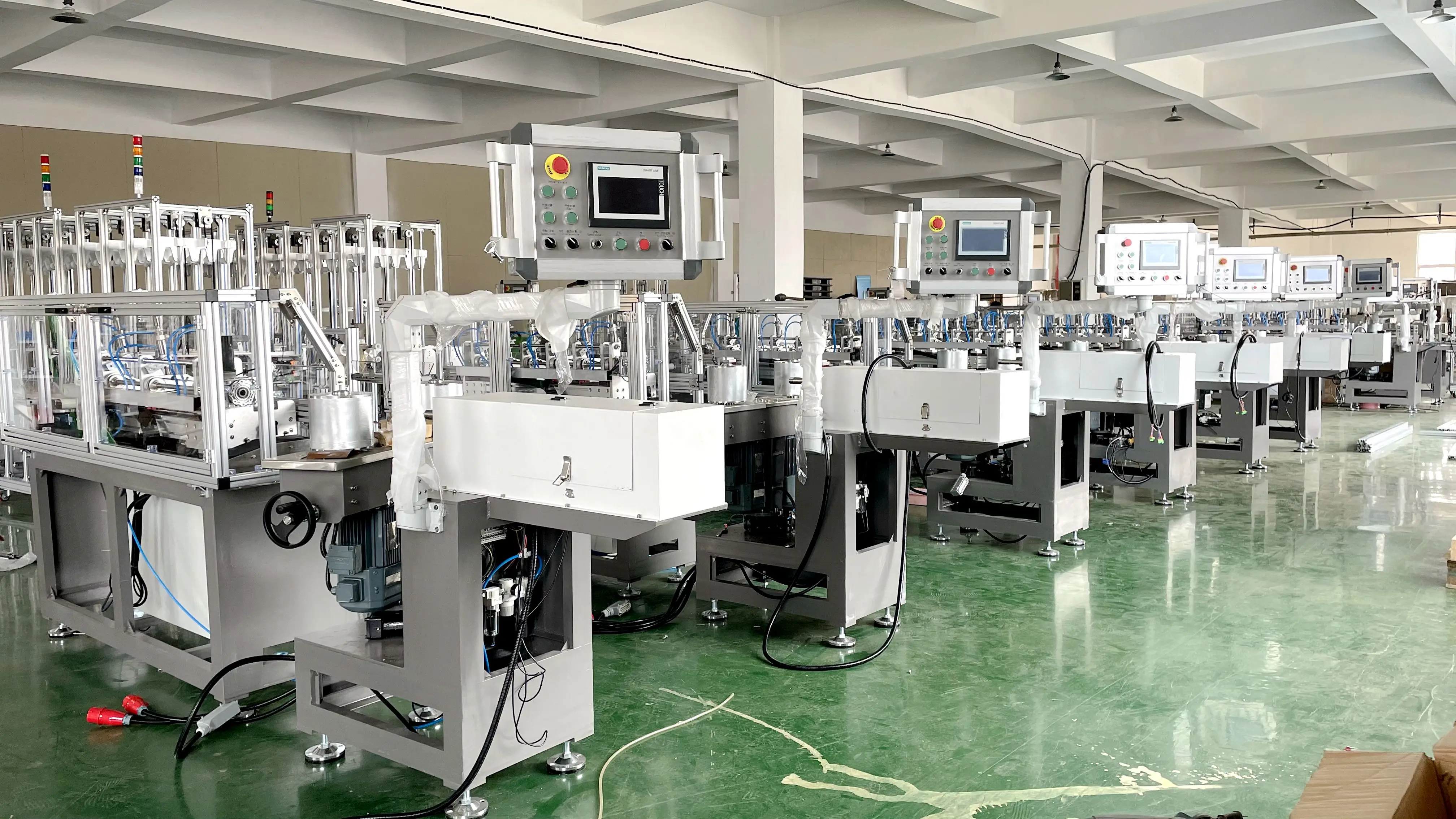

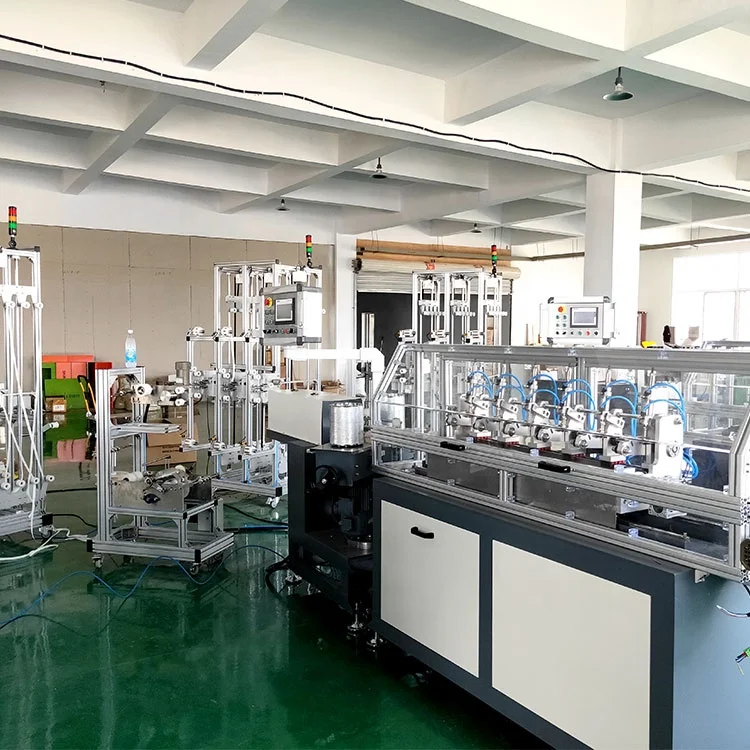

workshop shows
Main Features
1. The machine can be remotely linked later, and the system software program can be updated online
2. The minimum pipe diameter can reach 3 mm.
3. Full servo control. Adopt Taiwan TECO full servo motor.
4. The cylinder is SMC. The frequency converter is from ABB, Switzerland, and the display is from Siemens, Germany.
5. Automatic paper change. It will be more simple, faster and easier to operate.
6.all motors are deployed inside the machine, easy to clean external sanitation.
7. with the simplest transmission principle, to minimize the user maintenance frequency.
8. We have two alarm system, one jem paper, the other paper broken, or other machine problem, machine will stop automatic.
9. Automatic straw machine, we have our own patented technology.
2. The minimum pipe diameter can reach 3 mm.
3. Full servo control. Adopt Taiwan TECO full servo motor.
4. The cylinder is SMC. The frequency converter is from ABB, Switzerland, and the display is from Siemens, Germany.
5. Automatic paper change. It will be more simple, faster and easier to operate.
6.all motors are deployed inside the machine, easy to clean external sanitation.
7. with the simplest transmission principle, to minimize the user maintenance frequency.
8. We have two alarm system, one jem paper, the other paper broken, or other machine problem, machine will stop automatic.
9. Automatic straw machine, we have our own patented technology.
10.The best thing we do is after-sales service. Pre-sales and after-sales personnel can be contacted at any time, and we will reply as soon as possible.
Certifications
Software patent certificate
patent certificate
Company other certificates

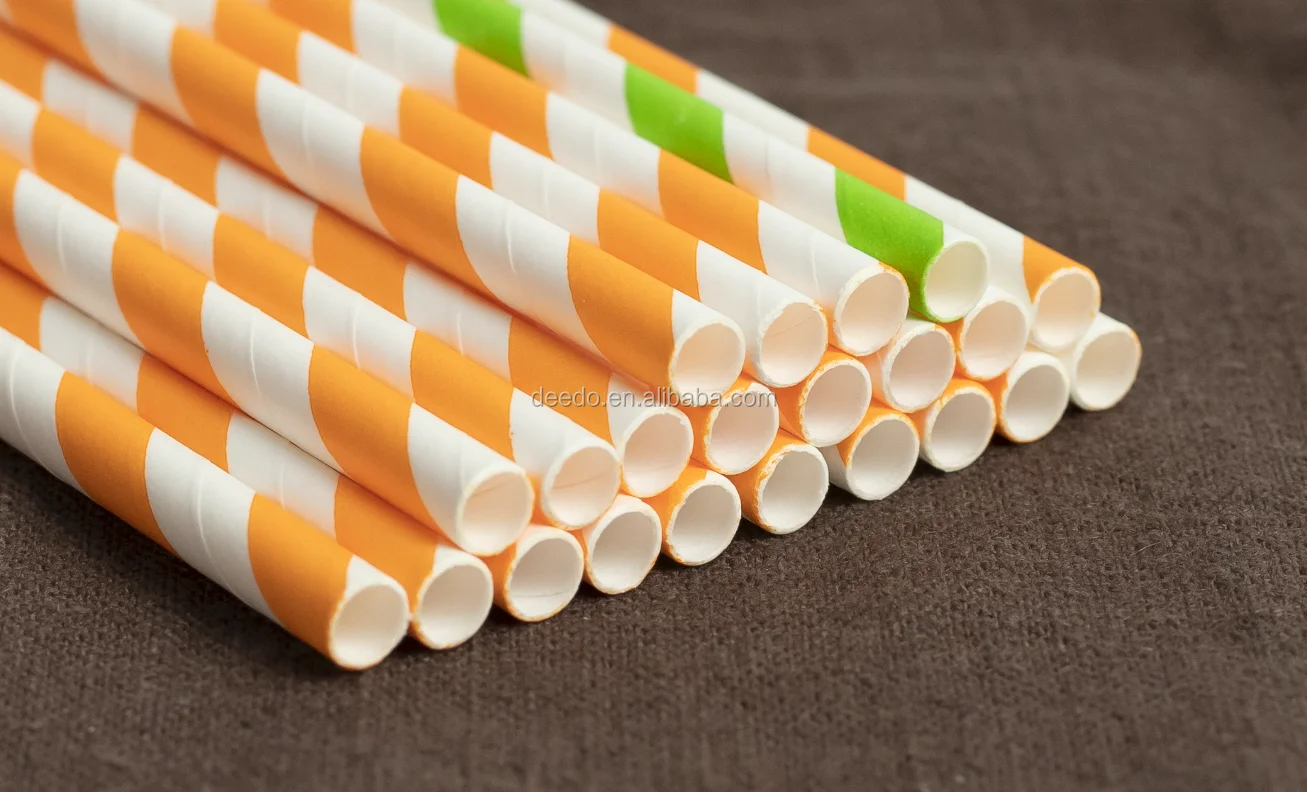

Final Product
Company Profile
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2014,sell to . There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine
4. why should you buy from us not from other suppliers?
Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico, Ecuador, Lithuania,Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellen.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
We are based in Jiangsu, China, start from 2014,sell to . There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine
4. why should you buy from us not from other suppliers?
Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico, Ecuador, Lithuania,Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellen.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
