Программное обеспечение JBC Pro32 3D камера для выравнивания колес Hofman с программным обеспечением V3D

Measurement Range & Precision of 3D Wheel Alignment Camera:

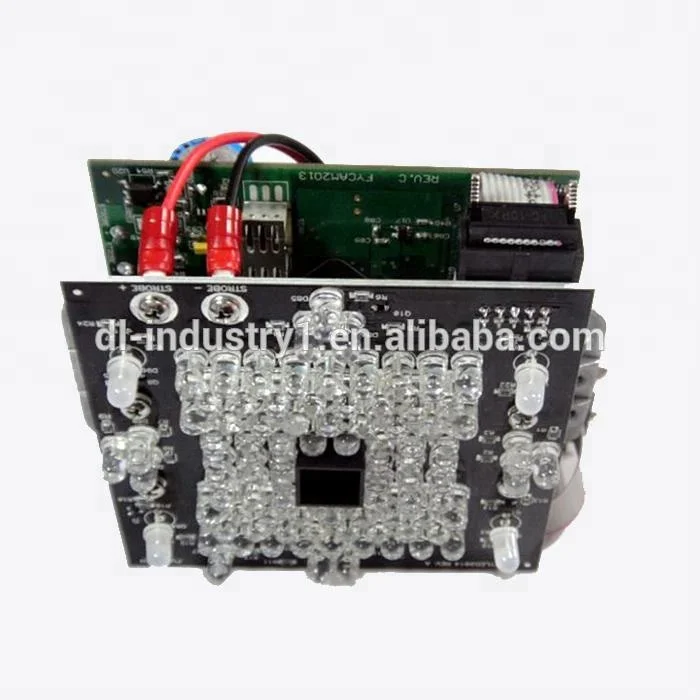

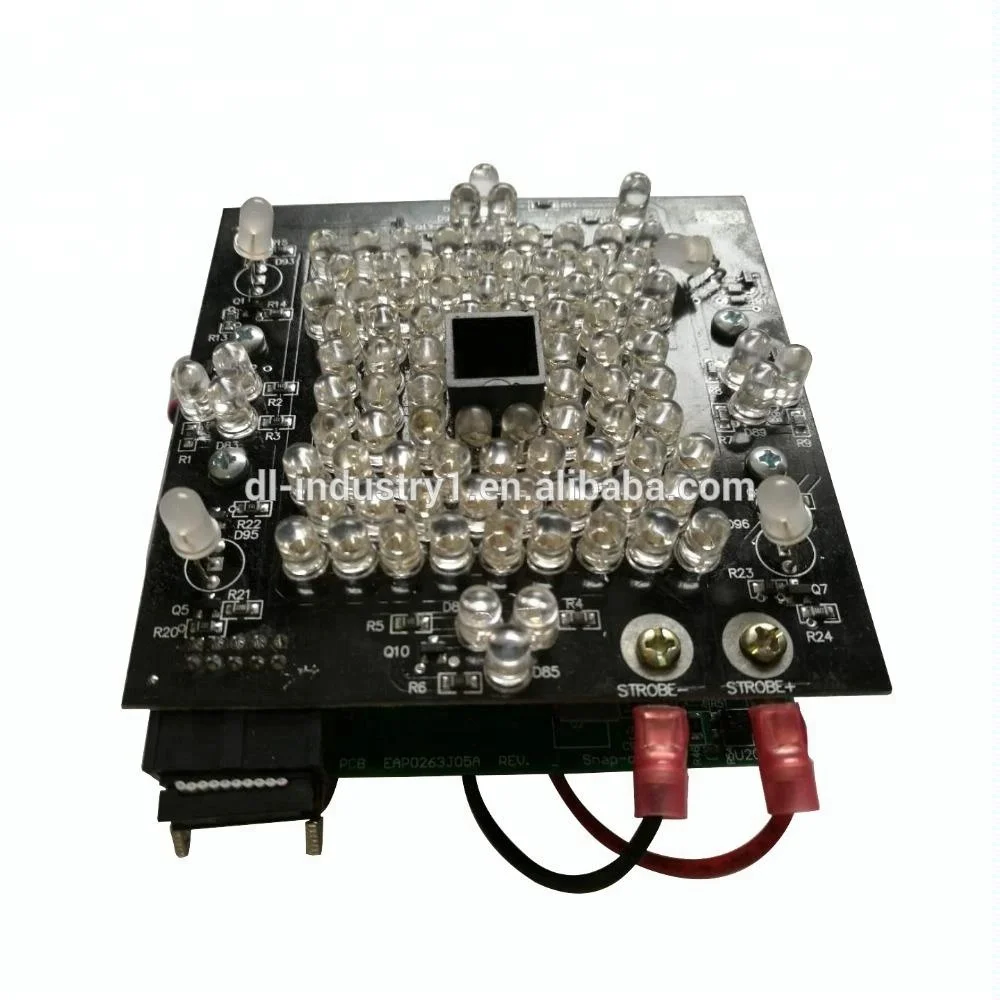

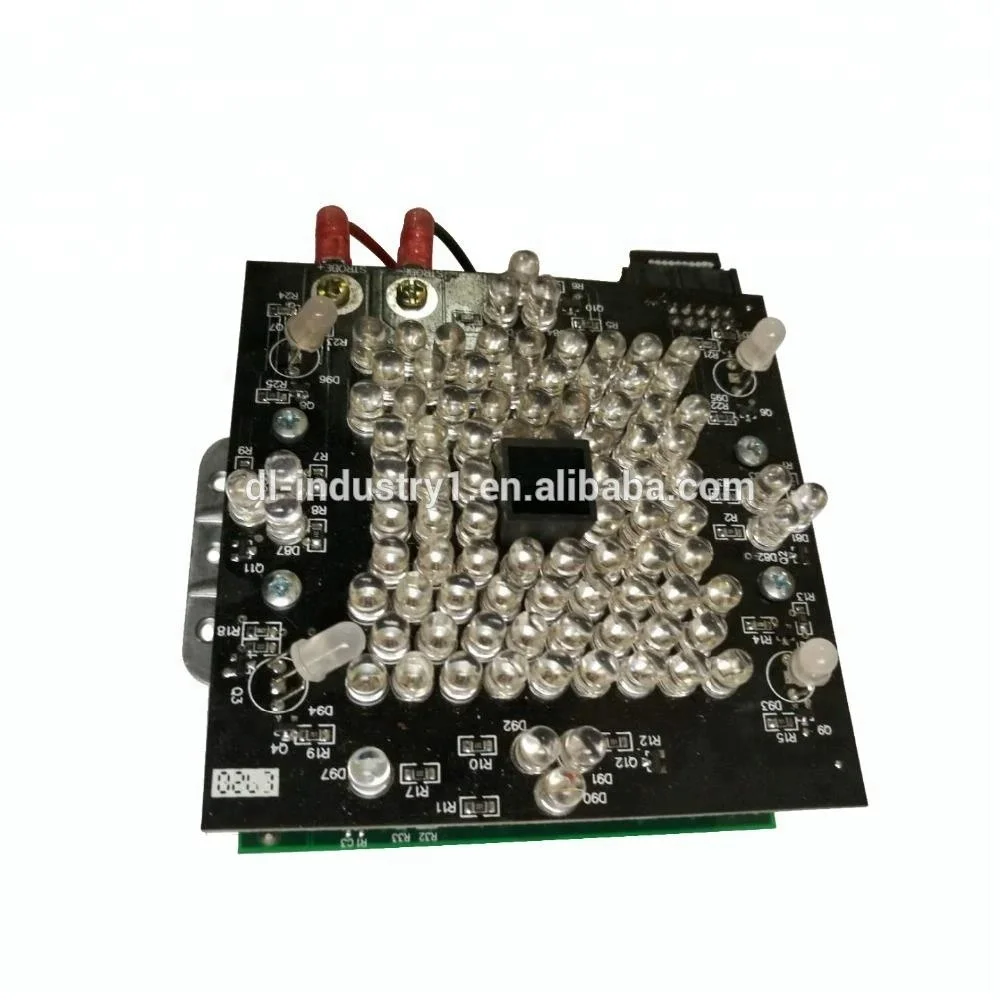

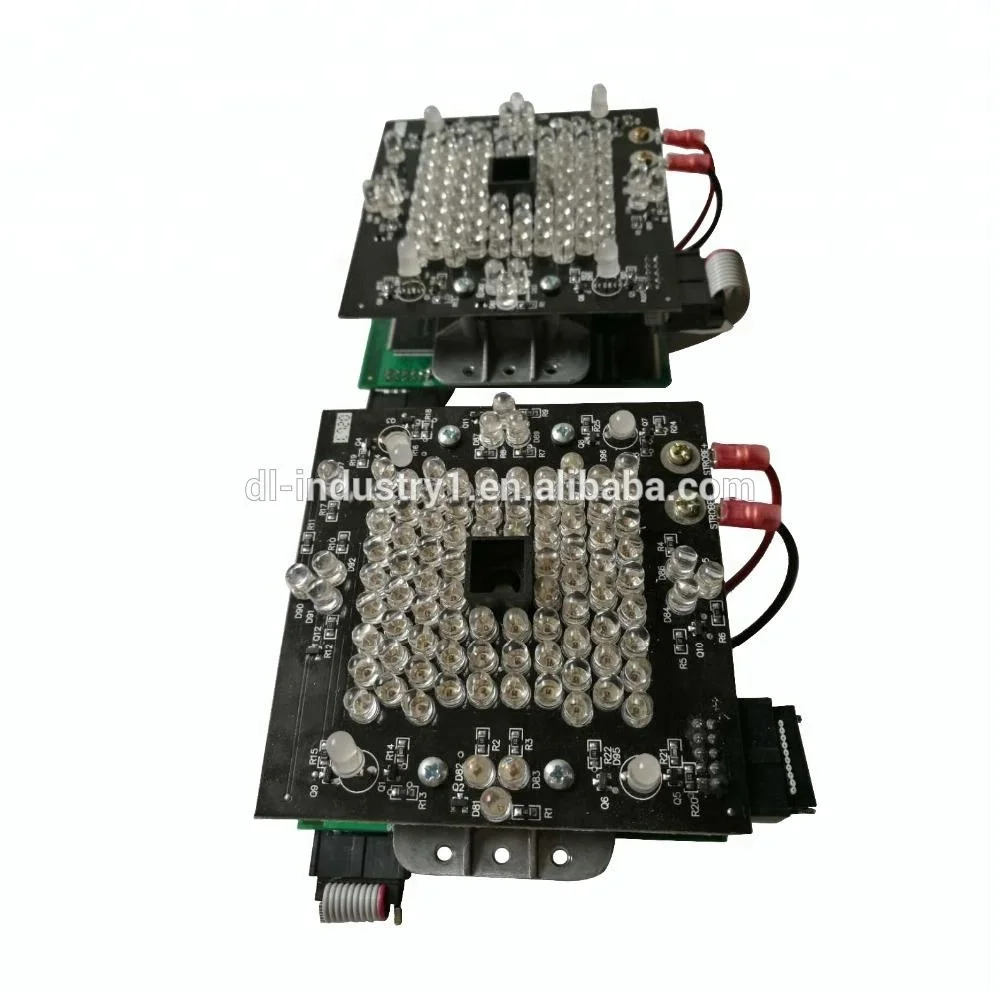

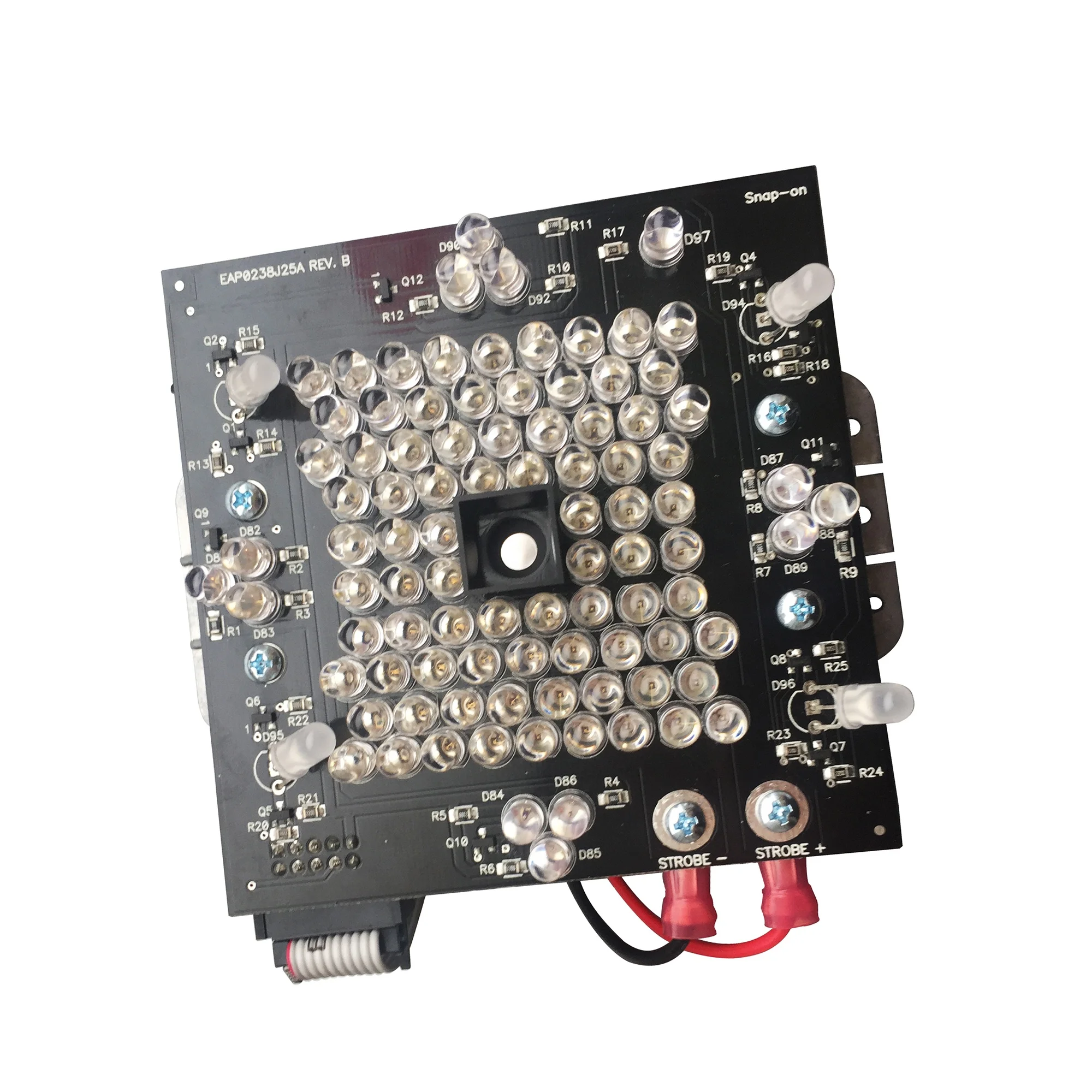

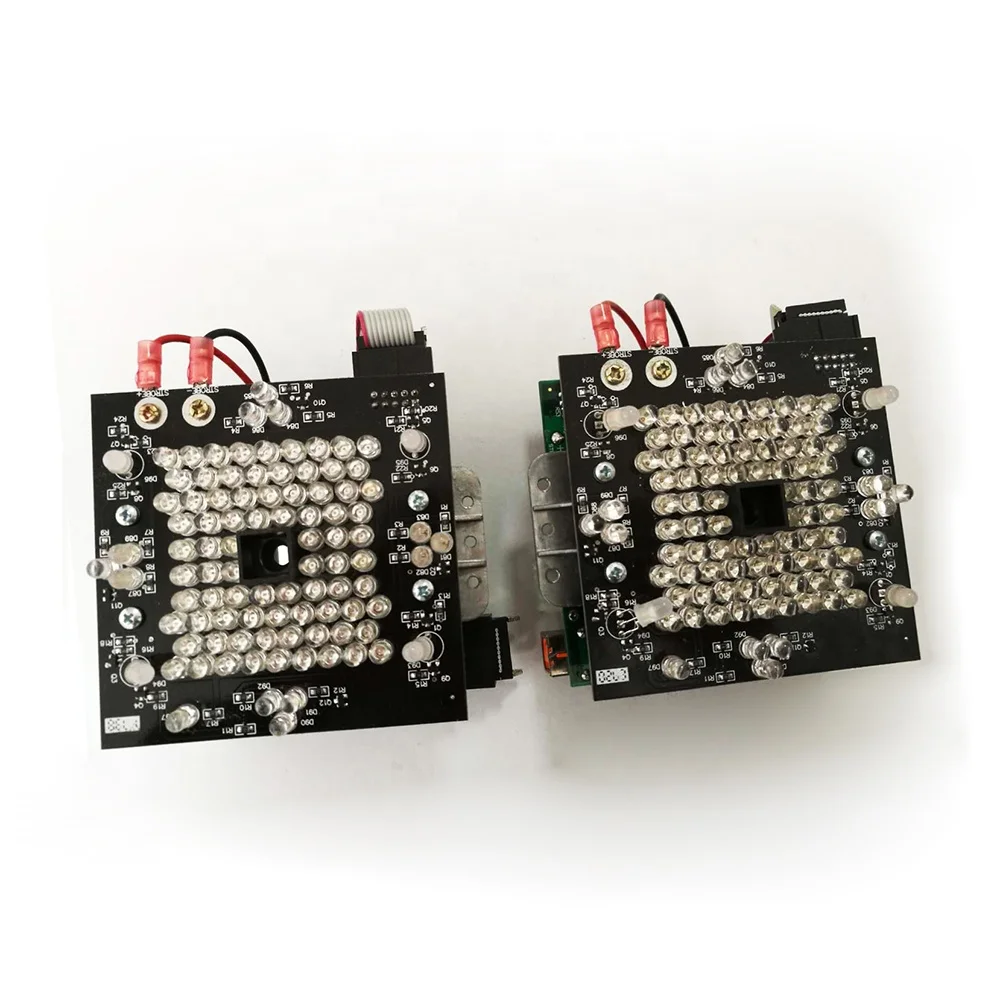

Details of 3D Wheel Alignment Camera Assembly:

Features of John Bean Software 3D Wheel Alignment Camera:

1. With a 1.3(5.0) million pixel CMOS sensor, the image is more clear, can support a smaller target disk, greatly reducing the weight of the target disk.
2. With the Ti Da Vinci (DaVinci) high performance video processing DSP and large capacity high-speed DDR2 cache, the image signal were high-speed processing, directly to complete the target disk identification and spatial location calculation, greatly reduce the CPU load.
3. The camera is fully intelligent, embedded 3D positioning software module, the direct output of the space coordinates of the wheel. Full support for SDK two development, greatly reduce the difficulty of the four round of positioning software development.
4. The camera is highly integrated, the main chip using BGA and QFN package, chip pin inside the tube, using the placement machine welding. Improve oxidation resistance, reliability, service life extended 2 times, greatly reduce the after-sales service.

Camera Parameters:

Remote Technical Support - 3D Wheel Alignment Camera

3D Wheel Alignment Camera Activation

3D Wheel Alignment Spare Parts:

Target Plate for John Bean/Hofmann 3D Wheel Alignment Machine

Turntable for 3D Wheel Alignment Machine

Power Supply Unit for 3D Wheel Alignment Machine
