OBT-6060 профессиональный аудио усилитель встроенный Fm-радио модуль мини Mp3 микшер
- Категория: Receivers & Amplifiers >>>
- Поставщик: Shenzhen,OBTPA,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 8387.9 $* | 8806.83 $* |
| Aug-20-2025 | 8317.2 $* | 8733.49 $* |
| Jul-20-2025 | 6978.18 $* | 7327.69 $* |
| Jun-20-2025 | 8176.57 $* | 8585.97 $* |
| May-20-2025 | 7118.74 $* | 7474.9 $* |
| Apr-20-2025 | 8035.55 $* | 8437.85 $* |
| Mar-20-2025 | 7964.26 $* | 8362.37 $* |
| Feb-20-2025 | 7894.17 $* | 8289.63 $* |
| Jan-20-2025 | 7823.57 $* | 8214.4 $* |
Характеристики
Product Description
Product Information

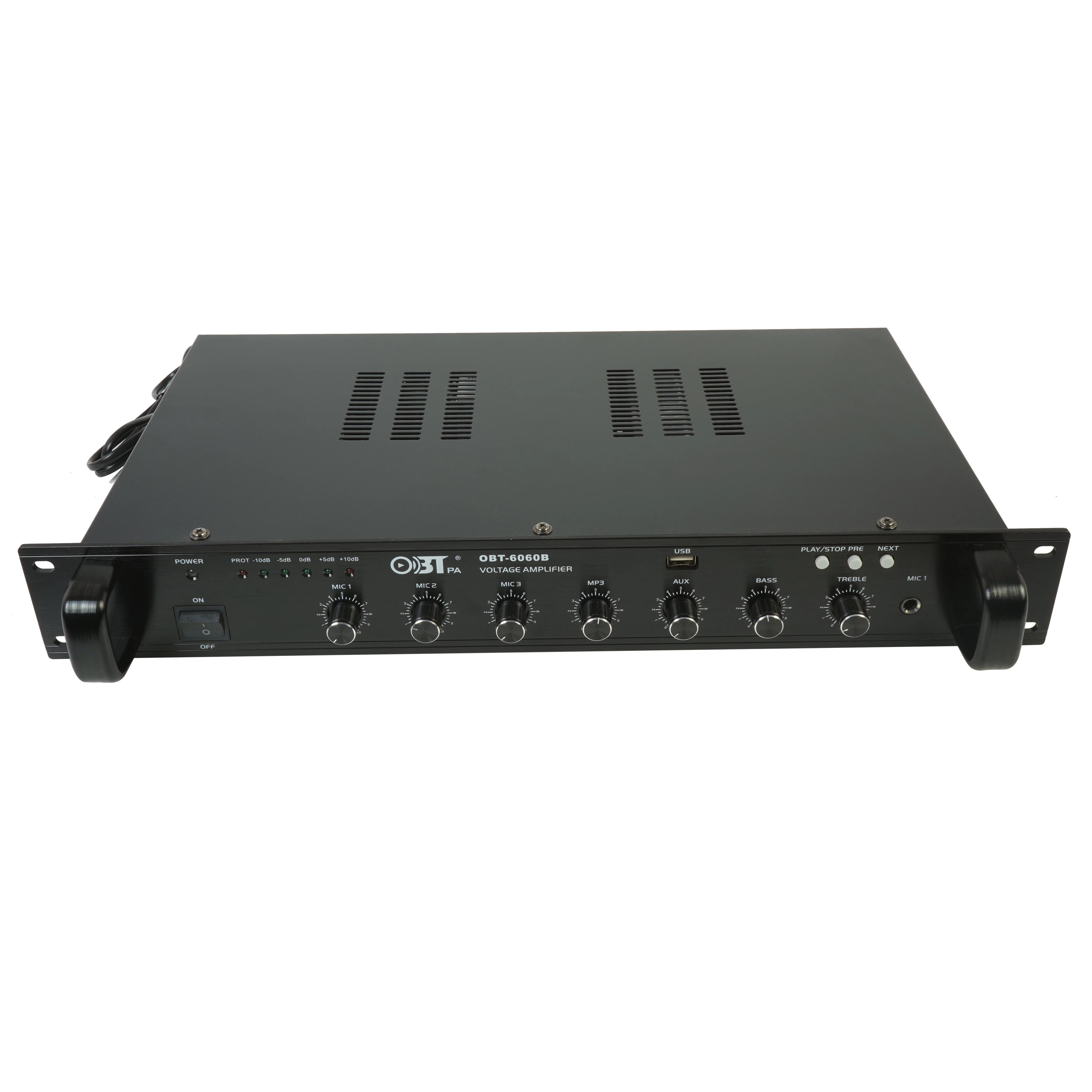

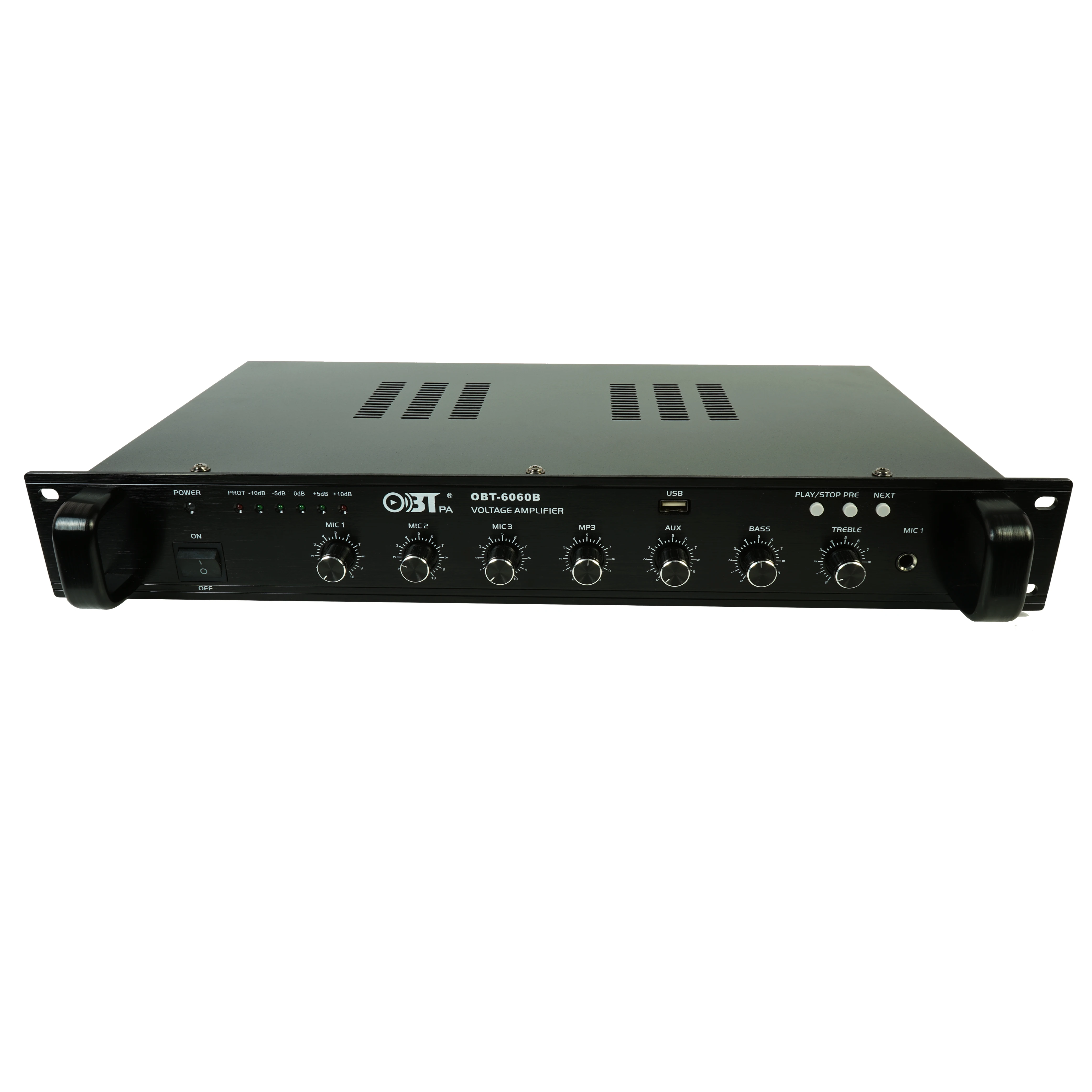

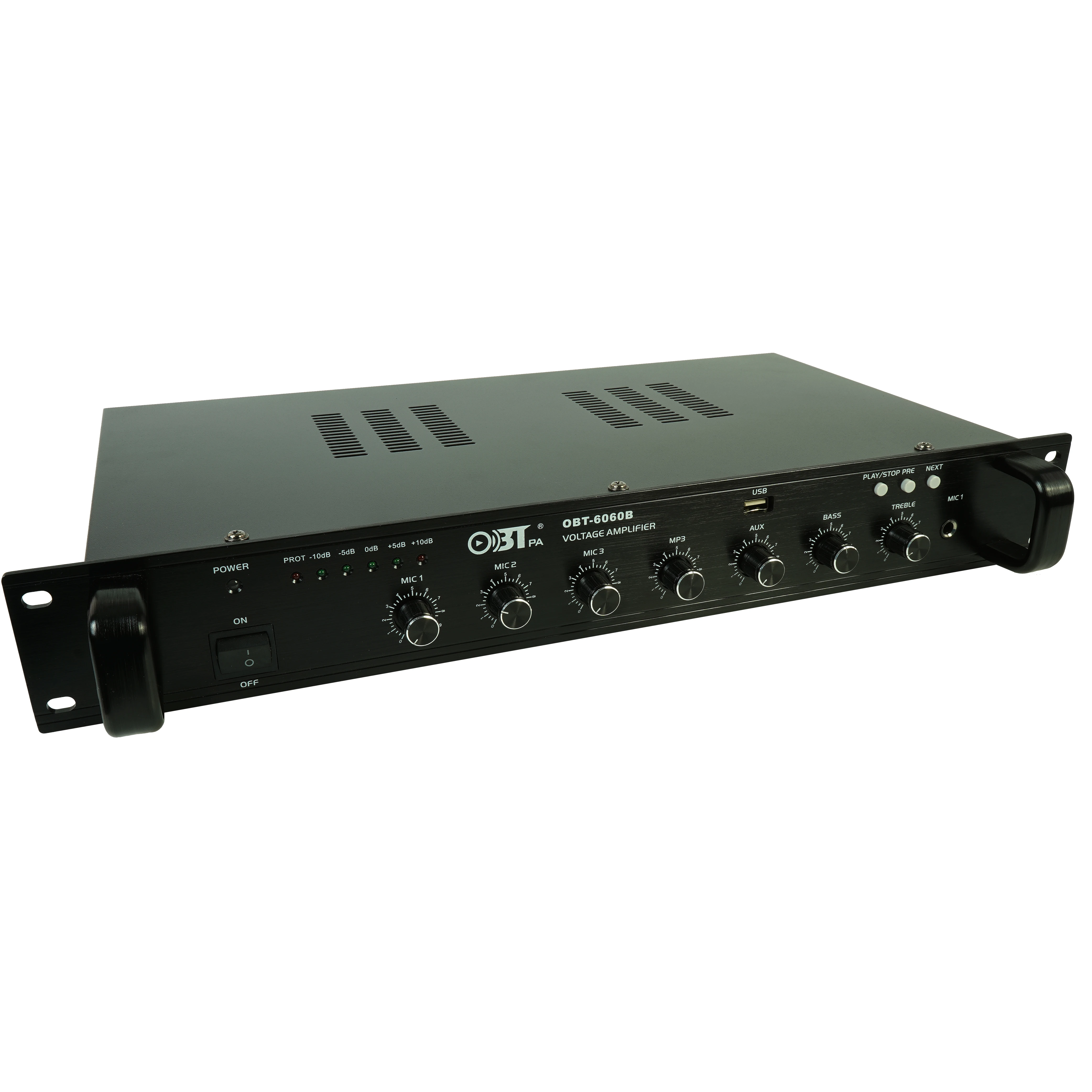

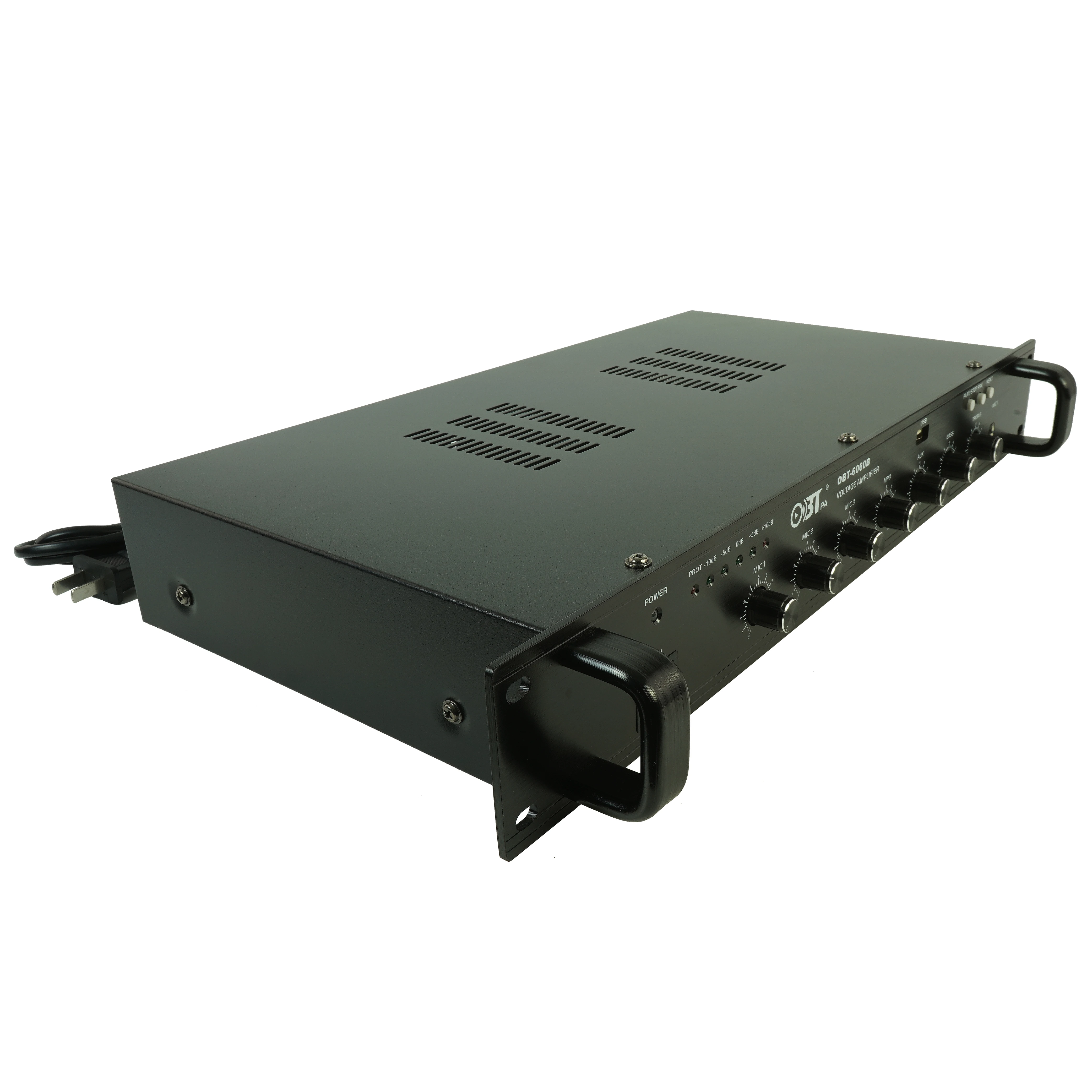

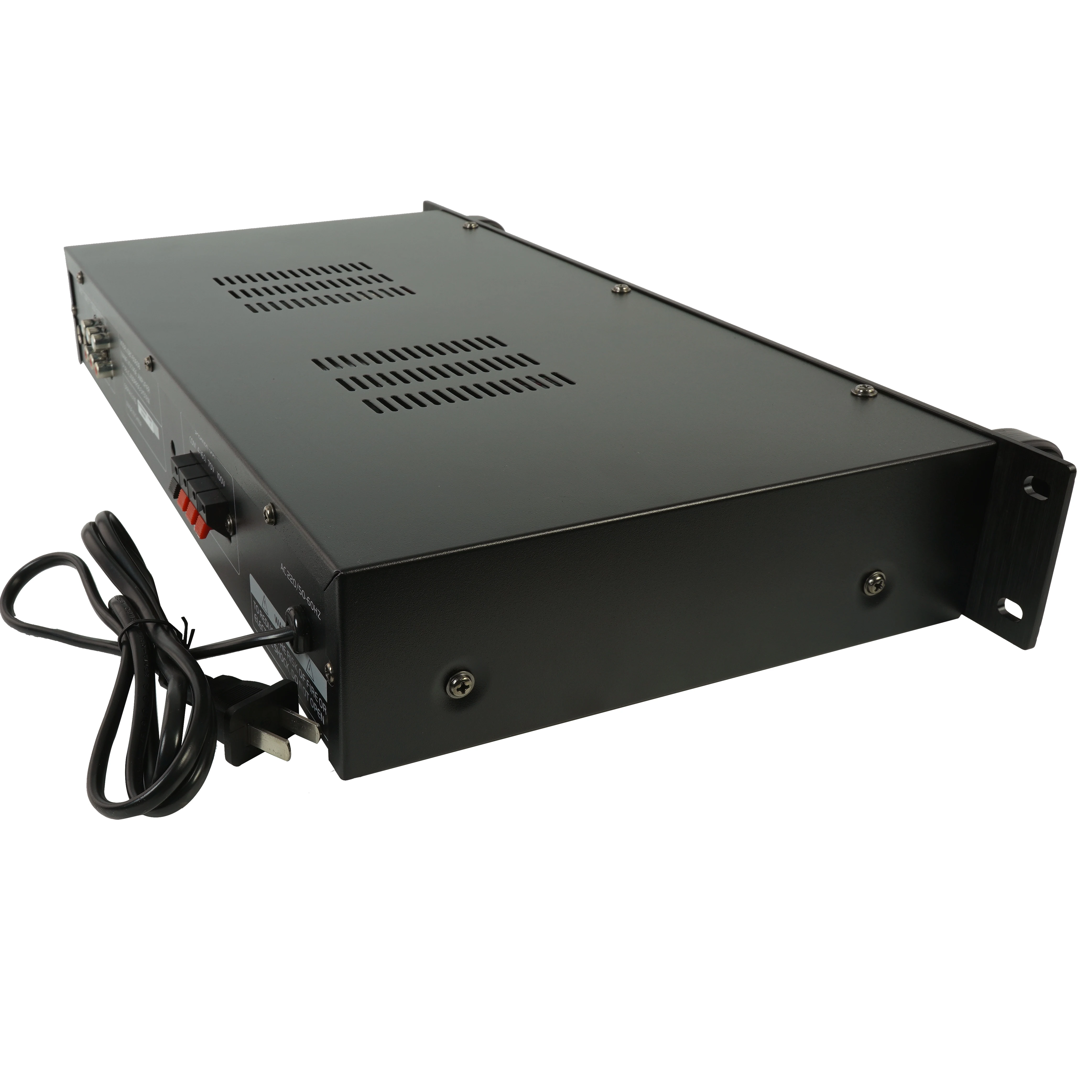

Model | OBT-6060B |
Rated power | 60W |
speaker outputs | 70V,100V&4-16Ω |
S/N ratio | 80dB |
T.H.D | 1KHz less than 0.5%，1/3Output Power consumption |
Dimensions | 484*284*66 mm |
Net weight | 6kg |
protection | over heat，over load & short circuit |
power supply | AC~220/50Hz |
Frequency response | 50Hz~16KHz（+1dbB,-3dB） |
Features
1.5U standard 19 inch frame structure, aluminum brushed panel, advanced titanium polishing process;
2.Built-in MP3 module, support USB interface, select play/pause, previous song, next song;
3.5 signal input interfaces, including 3 microphones and 2 AUX signals;
4.Microphone 1-3 way, AUX1-2 way can adjust the volume, treble and bass;
5.Microphone 1 has the highest priority function, automatic silent background music, play microphone 1 paging signal;
6.1 AUX auxiliary audio output;
7.Short-circuit, overheat, overload automatic detection protection function, indicator alarm, buzzer alarm;

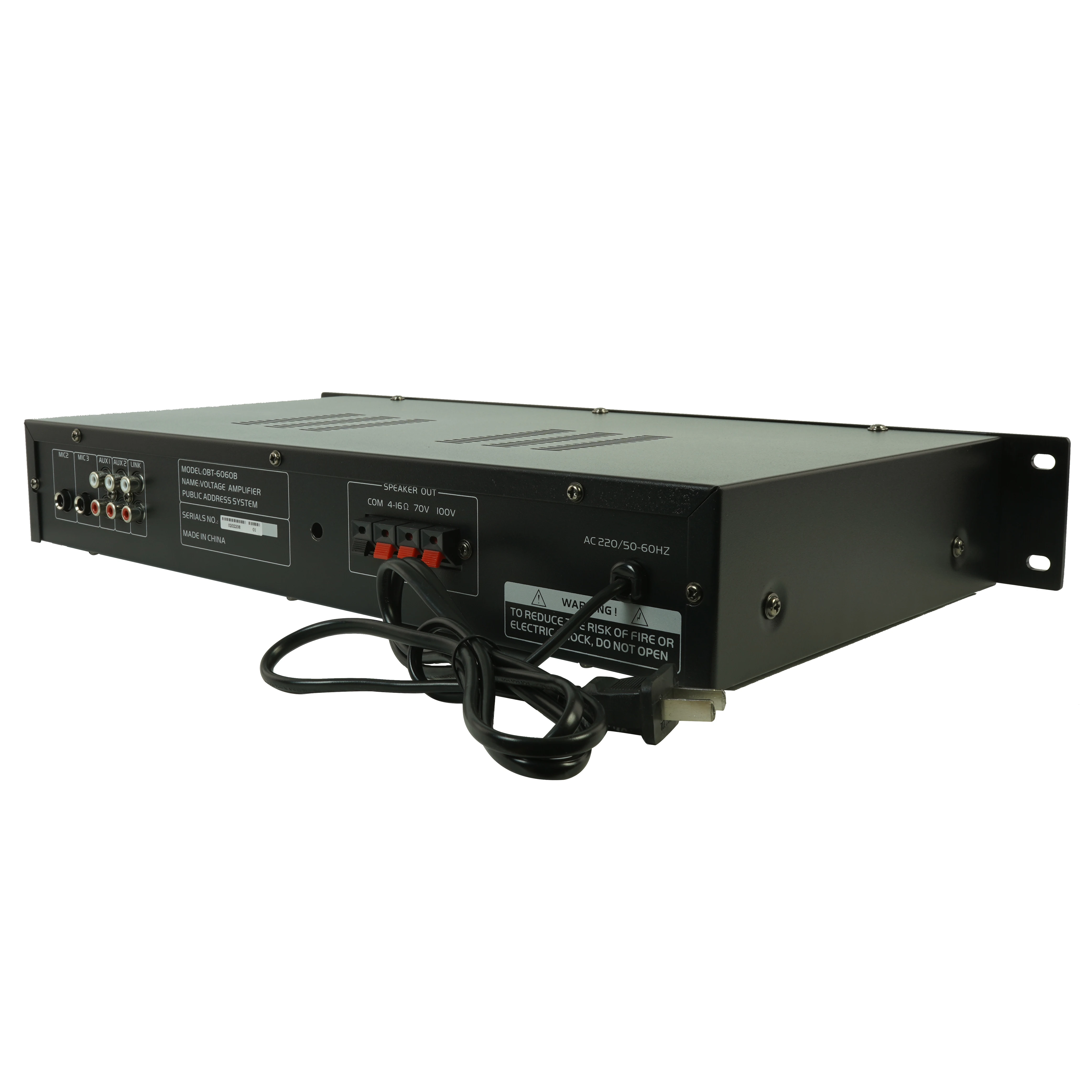

8.Output 100V, 70V, 4-16Ω;
9.Power output: 60W;
10.Note: Only one connection can be selected between constant resistance speakers and constant pressure speakers.
2.Built-in MP3 module, support USB interface, select play/pause, previous song, next song;
3.5 signal input interfaces, including 3 microphones and 2 AUX signals;
4.Microphone 1-3 way, AUX1-2 way can adjust the volume, treble and bass;
5.Microphone 1 has the highest priority function, automatic silent background music, play microphone 1 paging signal;
6.1 AUX auxiliary audio output;
7.Short-circuit, overheat, overload automatic detection protection function, indicator alarm, buzzer alarm;
8.Output 100V, 70V, 4-16Ω;
9.Power output: 60W;
10.Note: Only one connection can be selected between constant resistance speakers and constant pressure speakers.
Connection diagram
Application
Company Profile
FAQ
