Three phase metering 5 DIN modules  with Rogowski sensor,330mV ac input up to 7500A



Benefits and Main Feature:

CE approved

Three phase metering 5 DIN modules

Rogowski sensor,330mV ac input up to 7500A

CT ratio can be selected

Wide voltage work: 3*110~277/3*230~480V

Accuracy class 1 according to IEC62053-21

128*64 Lattice LCD display ,large clear backlight display

Isolate pulse output (DIN43864) 1,2,3 and 4 tariff meter option 1,2,3 and

4 tariff meter option

Electrical measurements:

       Volts                                                 L1,L2,L3-N

       Amps                                                L1,L2,L3,Σ,Neutral

       kW&kvar&kVA&PF                          L1,L2,L3,Σ

       Frequency

       kWh,kvarh                                       +,  -, Σ

       kW&kvar Demand                          +,  -, Σ

       Tariff kWh& kvarh                          T1,T2,T3,T4, Σ

1,2,3 and 4 tariff meter option ,up tp 12 time periods per day ,up to 64 programables

speical days

Option single-phase model

RS485 communication port,modbus protocol

Program by button on the nameplate

Memory back-up (EEprom)

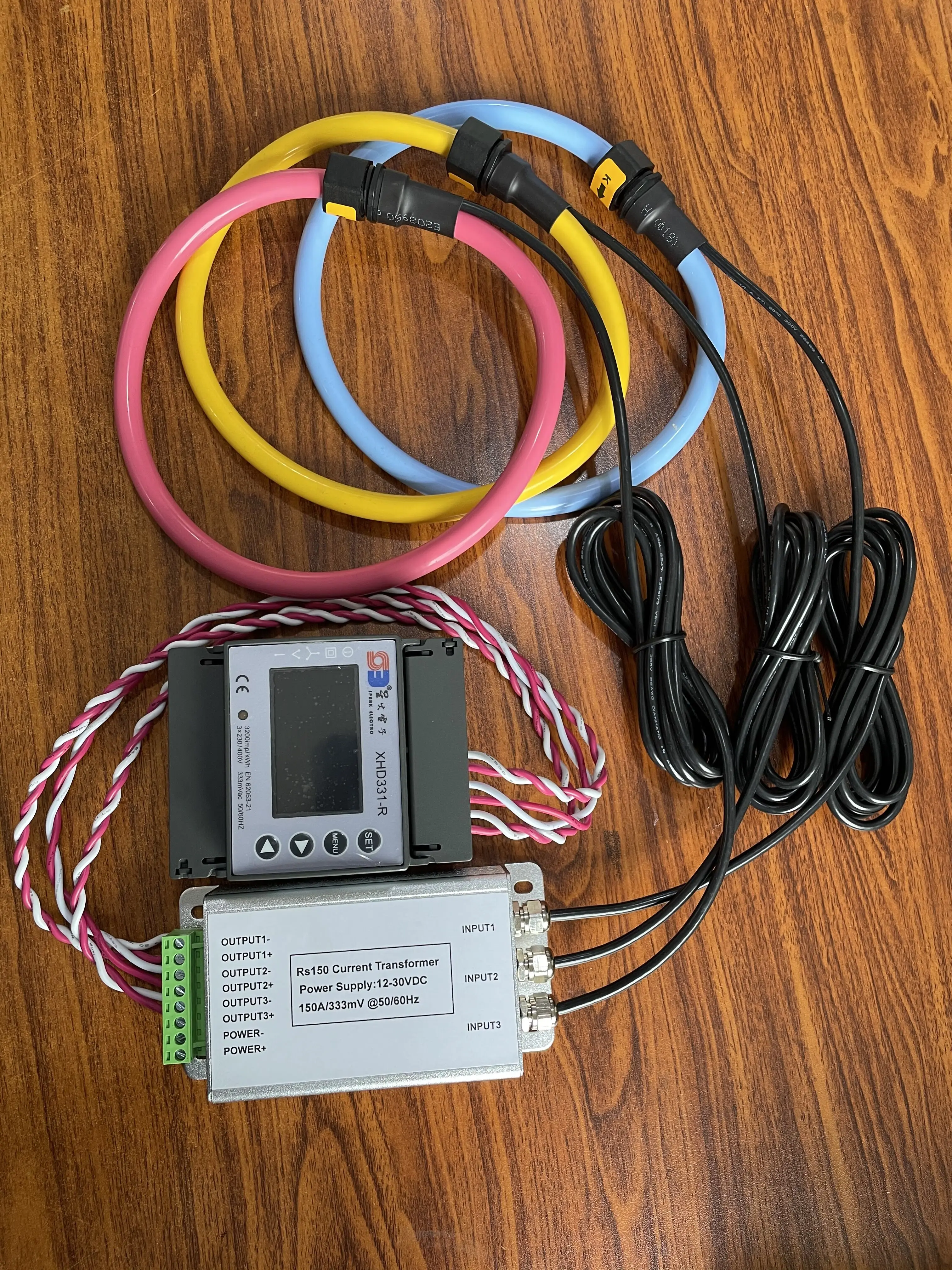

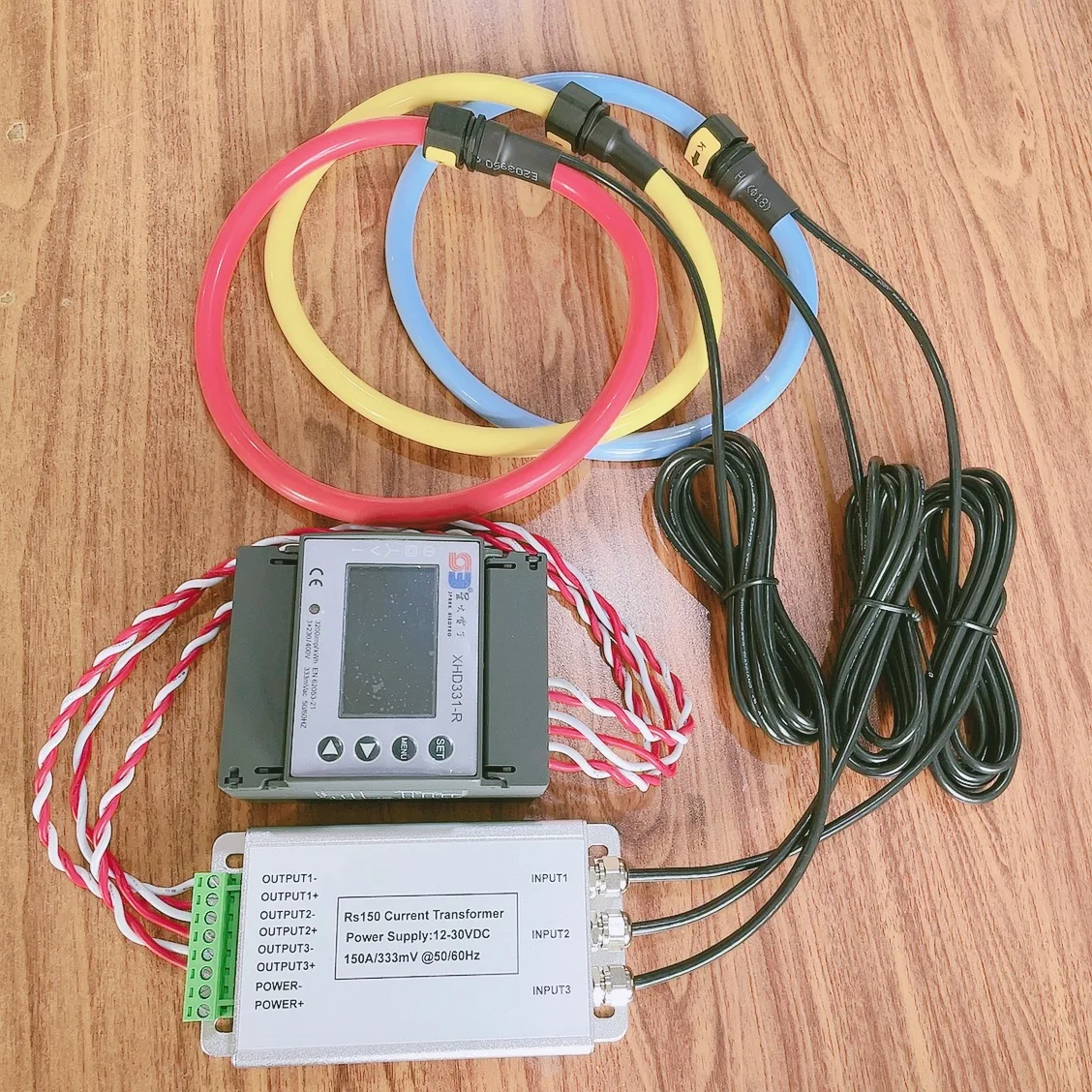

Three Phase flexible rogowski coil current transformer sensor with meter 0.33v













Flexible rogowski coil current transformer/ sensor certification

Company infomation- Flexible rogowski coil current transformer sensor







   Flexible rogowski coil current  sensor
