Характеристики
Basic Information
DTP-09
System power: 3~24KVA
Module power: 3KVA
Dimension (W*D*H) mm: 442*420*320 442*420*445
DC voltage:48VDC, 110VDC, 220VDC
AC output voltage:220V/230V/240V
Overview

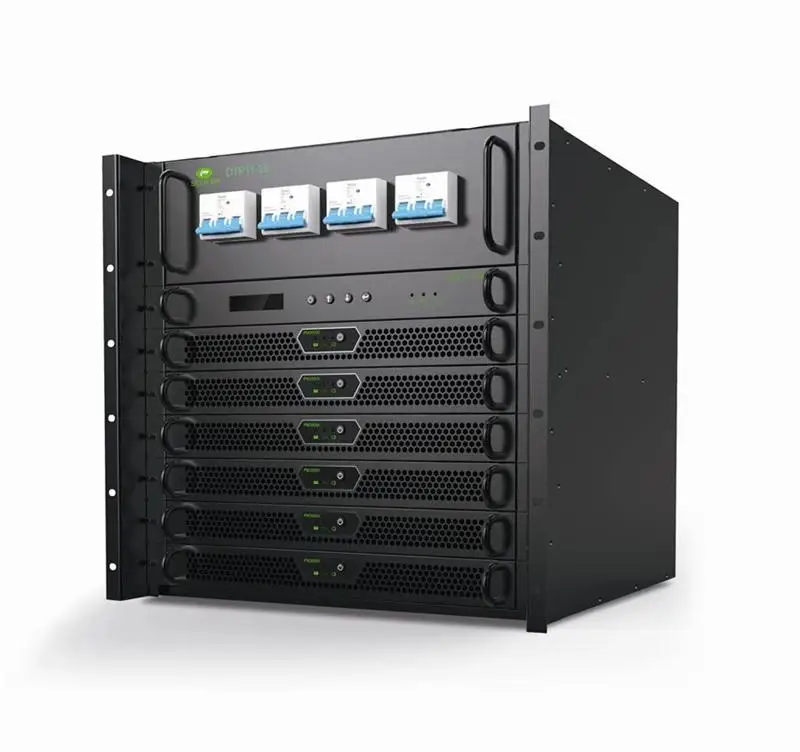

DTP series modular Inverter is pure sine wave, single phase, DC-AC inverter for critical telecom and electric power equipments. The DC input could be 48VDC, 110VDC or 220VDC.
It is modular architecture, consisting of system rack and inverter modules, which could configure various power capacities by adding modules.
With N+1 redundant design, if one inverter fails, it will withdraw from the system and the inverter system keeps supply to load.
System Diagram
Feature
- Monitor module and inverter module are all hot swap, with self-detection and alarm function
- User friendly LCD+LED, accurate display of system operation statues
- Performance index indication and display, event record for failure tracing
- Protection functions: input/output under or over voltage, overload protection to protect load equipment
- System transfer: fast transfer under synchronize or non-synchronize
- Communication interface: output dry contact, RS232/485
- DC priority or AC priority (bypass) are available. And user could choose one as priority in monitor module.
Specification
Model | DTP11-09 | DTP11-18 | |
Max Capacity | 9KVA (3 Modules Parallel ) | 18KVA (6 Modules Parallel ) | |
DC Input | Rated Voltage | 48VDC, 110VDC, 220VDC | |
Voltage Range | 42V~57V, 94V~128V, 189V~256V | ||
Input Reflected Wind Band Noise Current | 10% | ||
Input Reflected Weight Noise Current | 1% | ||
AC Output | Output Voltage | 220V/ 230V/ 240V | |
Voltage Precision | ±1% | ||
Output Frequency | 50Hz/60Hz±1% 60Hz±0.6 | ||
Power Factor | 0.8 | ||
Voltage Distortion | 3% (Liner Load) / 5% (Non-Liner Load) | ||
Load Peak Factor | 3.0 | ||
Overall Efficiency | ≥90% | ||
Load Share Precision | ≤5% | ||
Overload Capacity | 105~125% Load ≥60s; 126~150% Load ≥10s | ||
Transfer Time | ≤4ms | ||
Environment | Operating Temperature | -5℃~40℃ | |
Relative Humidity | ≤ 93% Non-Cadency | ||
Ambient Temperature | -40℃~70℃ 96% Non-Cadency | ||
Operating Altitude | ≤1000m, De-Rating By1℃ Each 200m Higher | ||
Mechanical | Acoustic Noise: (1m) | ≤65DB | |
Dimension(H× W×D)Mm | 320*442*420 | 455*442*420 | |
Rack Weight | 23kg | 25kg | |
Safety Compliance | EN62040-1-1:2003 EN60950-1:2001 EN61000-4-6 RS232, RS485 | ||
Environmental Compliance | ETS300 753 | ||
Application
Telecommunication station, electrical substation and environments with poor utility grid conditions.
