CN-G70 автоматический раздвижный дверной механизм открывания оператор системы Электродвигатель
- Категория: Automatic Door Operators >>>
- Поставщик: Guangzhou,CN,Electrical,Equipment,Co.,Ltd.Guangzhou,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.83 $* | 0.5 $* |
| Aug-16-2025 | 0.49 $* | 0.57 $* |
| Jul-16-2025 | 0.87 $* | 0.81 $* |
| Jun-16-2025 | 0.36 $* | 0.23 $* |
| May-16-2025 | 0.95 $* | 0.62 $* |
| Apr-16-2025 | 0.15 $* | 0.42 $* |
| Mar-16-2025 | 0.64 $* | 0.83 $* |
| Feb-16-2025 | 0.76 $* | 0.17 $* |
| Jan-16-2025 | 0.1 $* | 0.17 $* |
Характеристики

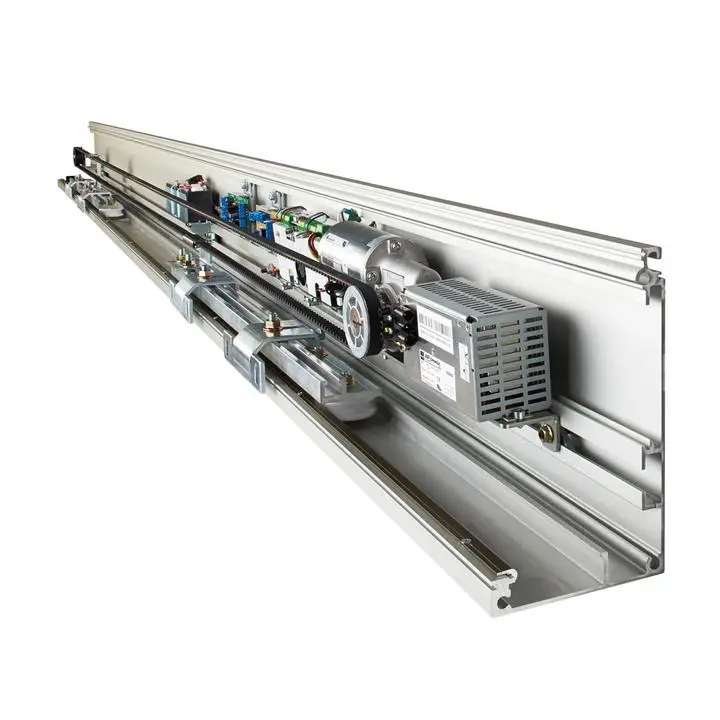

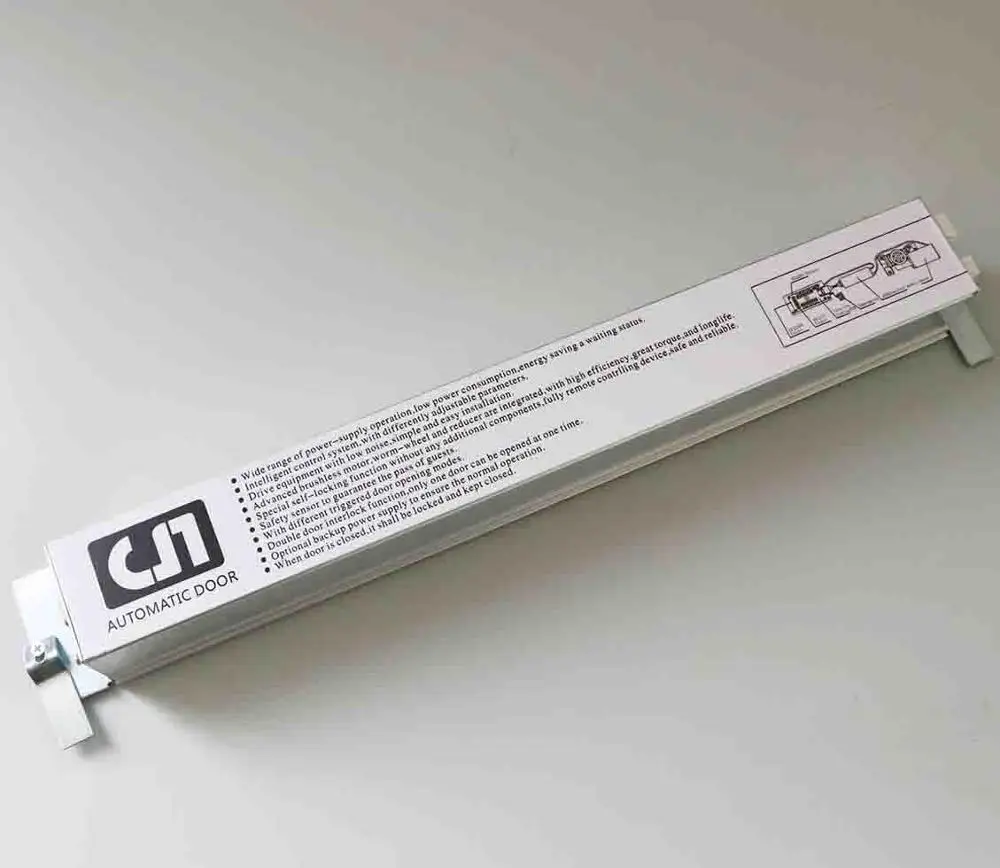

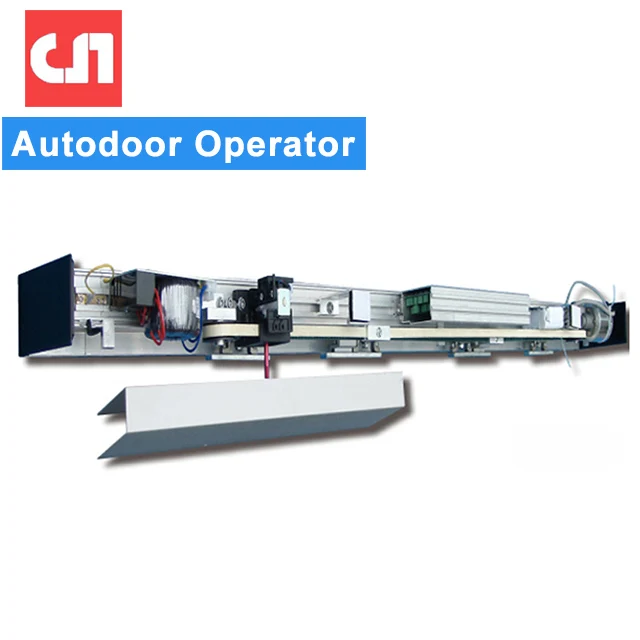

Automatic Sliding Door Opening Mechanism Automatic Operator System Automatic Door Motor
The G70 Automatic Door Opening Mechanism is only 7cm of machine height! The slender appearance allow the designer have more design flexibility, the small machine body is almost invisible from the outside, it's fashion and simplicity but implies a complicated design. As the saying goes, the best design is invisible design!
Product Description

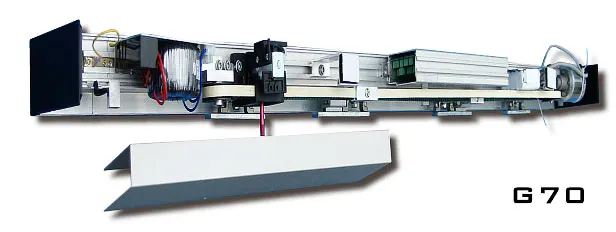

G70 Automatic Door Operator
Application: Hotel / Office / Restaurant / Airport / Hospital / Bank / Shop etc.
Features:
1. Max Weight: 100KG (Single Open) / 2*100KG (Double Open)
2. Aluminum Rail: 4.2 meters
3. CE Certification: Available
4. Remote Control: Optional
5. One million times operation test: Passed
Advantages:
1. Soft Start
2. Automatic Search
3. Automatic Protect
4. Automatic Reset
5. Motor Lock
6. Energy Save
Features and advantages
1. Wide range of power-supply operation.
2. Intelligent control system.
3. Drive equipment with low noise
4. Advanced brushless motor and worm wheel reducer are integrated.
5. Special self-locking function without any addition components
6. With different triggered opening modes
7. Double door interlock function
8. Optional backup power supply to ensure the normal operation.
9. When door is closed, it shall be locked and kept closed
1. Wide range of power-supply operation.
2. Intelligent control system.
3. Drive equipment with low noise
4. Advanced brushless motor and worm wheel reducer are integrated.
5. Special self-locking function without any addition components
6. With different triggered opening modes
7. Double door interlock function
8. Optional backup power supply to ensure the normal operation.
9. When door is closed, it shall be locked and kept closed
| standard | light type | heavy type | ||
| Door body type | single panel | double panel | single panel | double panel |
| Door fan weight | max 150kg | 2*max150kg | max 250kg | 2*max250kg |
| Door width | DW=700~1300mm | DW=650~1050mm | DW=750~1600mm | DW=650~1250mm |
| Installation style: | surface mounting and concealed mounting | |||
| Power voltage and frequency | AC100v-250V. 50-60HZ | |||
| Open door speed: | 100-500mm/s(adjustable) | |||
| Close door speed: | 100-500mm/s(adjustable) | |||
| Slow speed | 30-100mm/s(adjustable) | |||
| Open time | 0~9s(adjustable) | |||
| Close force: | 200N< F< 400N | |||
| Manual force | < 100N | |||
| Power consumption | < 150w | |||
| Operating temperature | -20~+50° C | |||
Packaging & Shipping
Our Factory
As manufacturing factory headquartered in guangzhou, an important port city of China's foreign trade, Guangzhou CN Electrical Equipment Co., Ltd. is a high-tech enterprise which integrating R&D, Manufacturing and Trading, one of the leading and exclusive manufacturer of Automatic Partitions and Automatic Doors and the only company in China which has a dedicated manufacturing plant of electrically operated vertical lift folding partition Walls in China.
Our factory covers an area of more than 12,000 square meters. We have our products installations throughout china and abroad. The annual manufacturing capacity to 500 sets of various automatic revolving doors and 10,000 square meters of motorized partition walls, we have produced and installed Automatic Doors and Electrical Movable Walls for all types of establishments like high end residences / conference room / banquet halls in hotels / auditorium / convention centre / meeting rooms / board rooms / training rooms etc.
All the materials used are in compliance to international standards such as ISO 9001, CE, IEC etc. With the strictly control for designed, production, inspection and services by our advanced quality management system, enable the products of Guangzhou CN Electrical Device Co., Ltd selling well in the domestic market, and keep rapid growth in the European, American, Asia and Middle East market. Successfully established strategic cooperative partnership with famous domestic and foreign enterprises like Siemens, Phillips, and BEA etc.
Our factory covers an area of more than 12,000 square meters. We have our products installations throughout china and abroad. The annual manufacturing capacity to 500 sets of various automatic revolving doors and 10,000 square meters of motorized partition walls, we have produced and installed Automatic Doors and Electrical Movable Walls for all types of establishments like high end residences / conference room / banquet halls in hotels / auditorium / convention centre / meeting rooms / board rooms / training rooms etc.
All the materials used are in compliance to international standards such as ISO 9001, CE, IEC etc. With the strictly control for designed, production, inspection and services by our advanced quality management system, enable the products of Guangzhou CN Electrical Device Co., Ltd selling well in the domestic market, and keep rapid growth in the European, American, Asia and Middle East market. Successfully established strategic cooperative partnership with famous domestic and foreign enterprises like Siemens, Phillips, and BEA etc.
Factory Details
Our factory is equipped with state of the art hydraulic press brake bending machines, automatic cutting machines for cutting aluminium and MDF boards and complete equipment like drilling, milling, bearing and lamination press machines, processing and manufacturing any type of doors and movable walls as per customer choice.
Our factory is equipped with state of the art hydraulic press brake bending machines, automatic cutting machines for cutting aluminium and MDF boards and complete equipment like drilling, milling, bearing and lamination press machines, processing and manufacturing any type of doors and movable walls as per customer choice.
FAQs
Q: Are you trading company or manufacturer?
A: We are automatic door manufacturer for many years.
Q: Are you trading company or manufacturer?
A: We are automatic door manufacturer for many years.
Q: How long is your delivery time?
A: Standard products within 10-15 days after received 50% deposit. Customized products depend on agreement.
Q: Do you provide samples ? is it free or extra?
A: Free samples can only be provided if the order is large enough. A small quantity can only be a trial order.
Q: What is your terms of payment?
A: 30% -50%deposit and balance before shipment, T/T, Western Union or Cash accepted.
