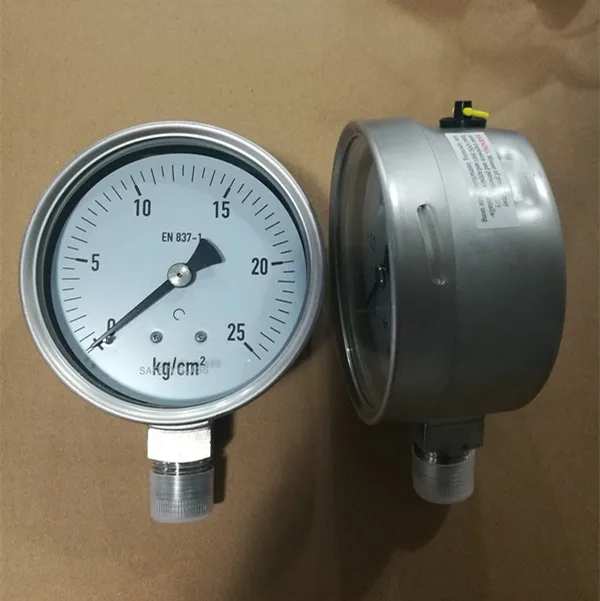

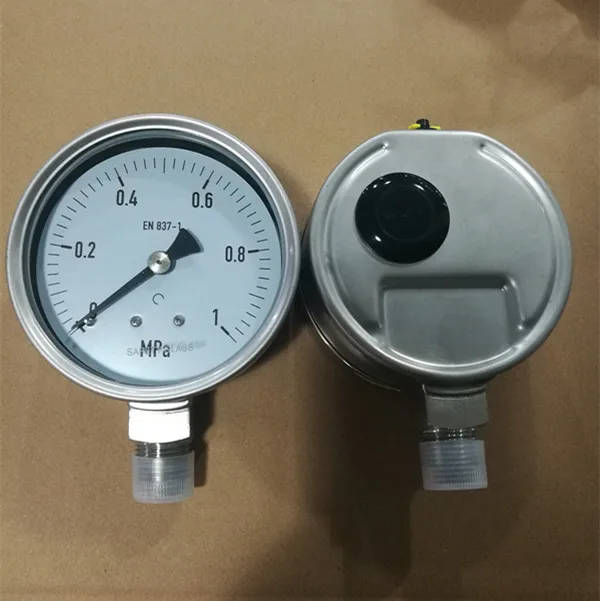

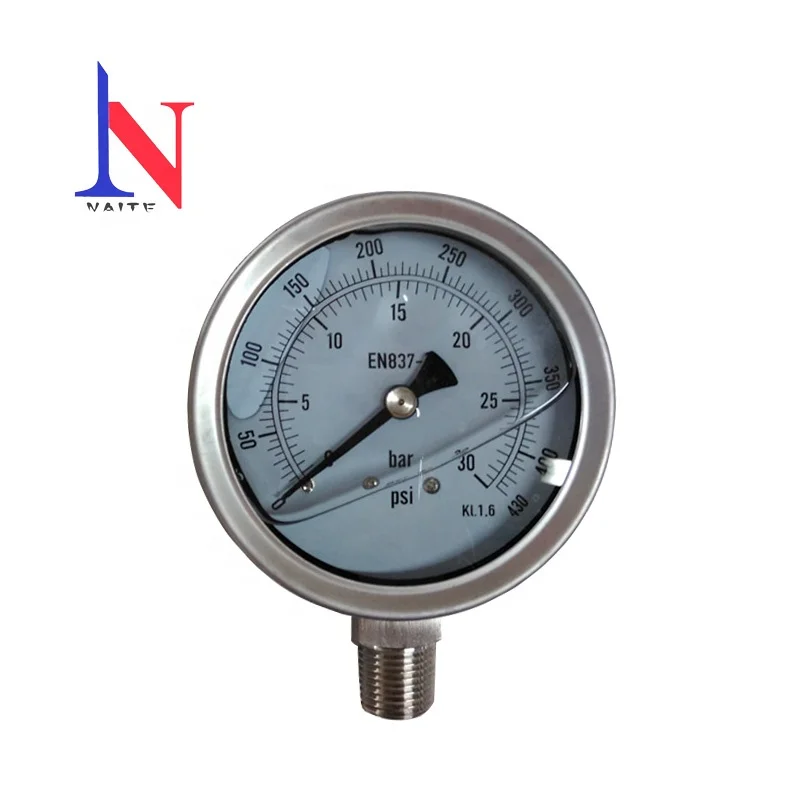

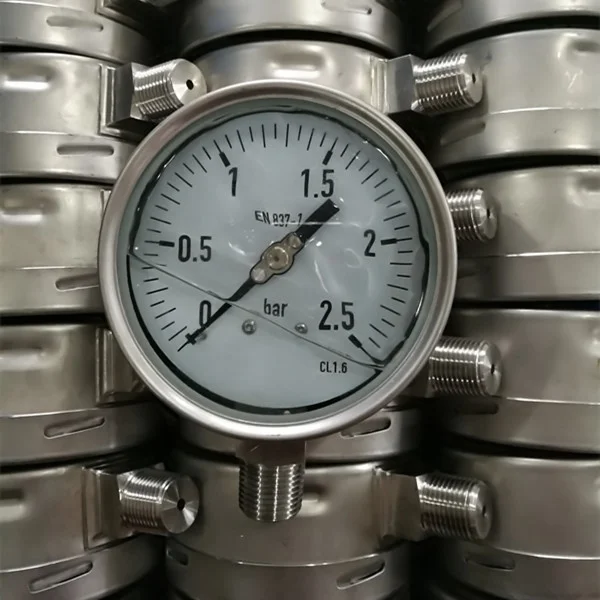

4" 316L Bayonated Ring Back Blow Out Oil Filled Case Pressure Gauge



The type stainless steel gauges have a solid-front/blow-out back safety case.

This gauge is an ideal choice for process, chemical, petrochemical, oil exploration and production, power generation applications and any other application which demands reliable pressure measurement instrumentation.



Applications

.  With liquid filled case for applications with high dynamic pressure pulsations or vibration   pressure pulsations or vibration

  .  Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system

 .  Process industry: chemical/petrochemical, power,stations, mining, on and offshore, environmental technology,mechanical engineering and plant construction




Special features

. solid-front/blow-out back safety case

. All stainless steel construct

. Big socket with laser welding

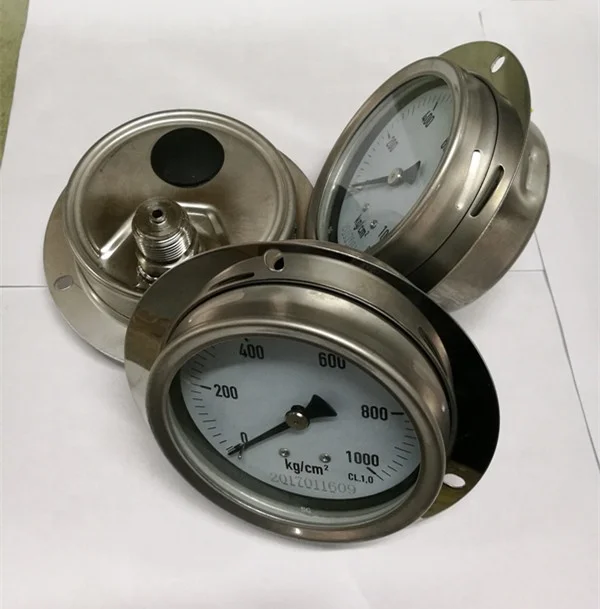

. Panel mounting available

. Back mounted



Pressure Gauge Basic Specification



Diameter Size	1.5, 2, 2.5, 3,  4, 6, 8 and 10 inches
Pressure range	- 0.1 - 0 -100Mpa
Case	stainless steel, plastic , forged brass and steel
Ring	stainless steel, steel or wihtout
Movement	stainless steel, brass
Socket	stainless steel, brass
Connection sizes	1/8, 1/4, 3/8 and 1/2 inches
Connection threads	NPT, BSP (G, PF), BSPT (ZG, PT)
Connection mounting	bottom, top, left, right and center back
Bourdon tube	stainless steel, phosphor bronze
Dial and pointer	aluminum
Dial plate	single and dual scale (psi, kpa,mpa, bar, kg/cm2 avaible)
Window	polycarbonate, glass, tempered glass, safety glass
Accuracy range	1%, 1.6%, 2.5% full scale
Working temperture	-20℃- 70℃
Filled medium	glycerine,silicone
Filling cap	neoprene or silica gel









Optional Extras

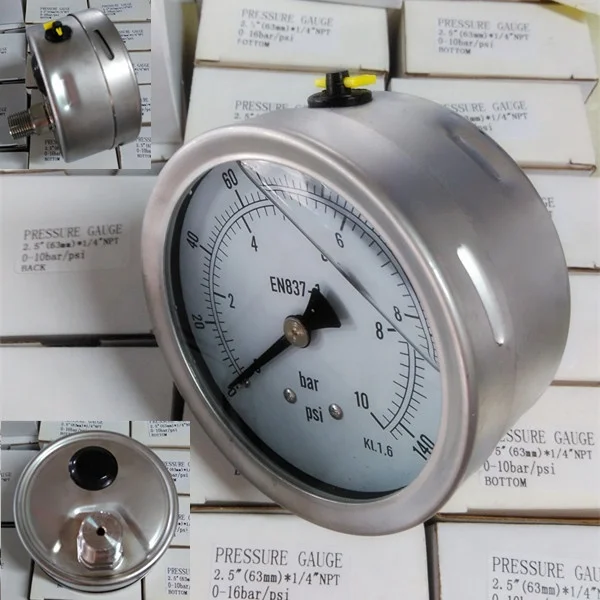

2.5" Solid-front Pressure Gauge











Bayonated ring pressure gauge with Diaphragm Seals
