EF-PV/52 Single head tube deburring and chamfering machine with pneumatic control



Application:

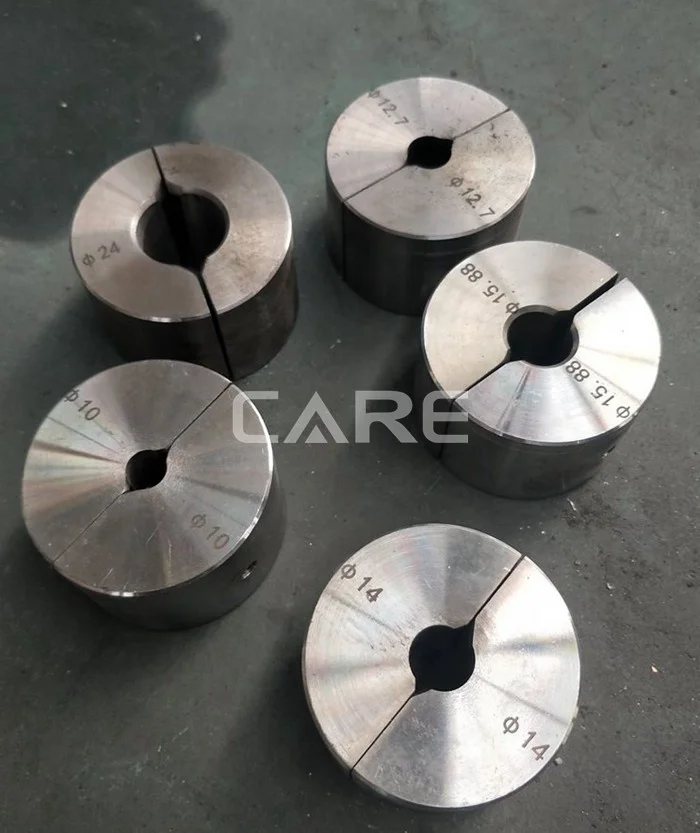

This machine is controlled by pneumatic. Feeding / retracting and clamping by pneumatic, loading by hand.  It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutter head and clamp.



Main characteristics:

1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.

2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.

3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.

4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.



Main parameter:

Specification/Model	EF-PV/52	EF-AC/80
Main motor power	1.5KW	2.2kw
Main axis speed	According to the pipe material
Processing diameter	9-52mm	30-82mm
Processing external angle	9-25mm	20-50mm
compressed air	6-8GS/cm2	6-8GS/cm2
Size	450mmx 400mm x 800mm	500mmx 400mm x 850mm
Weight	300kg	400kg

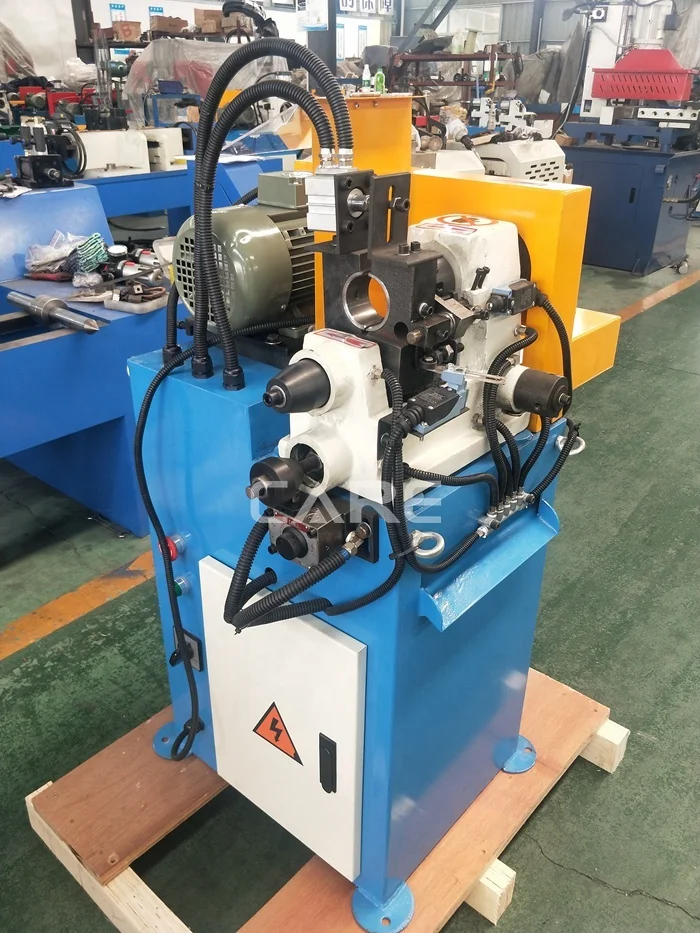

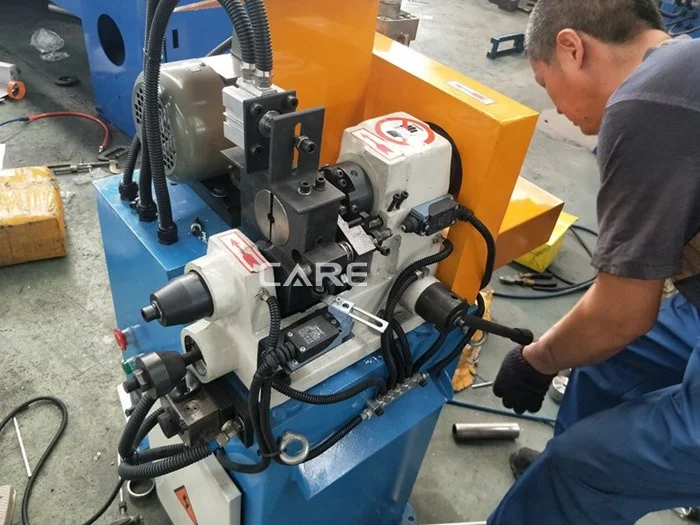

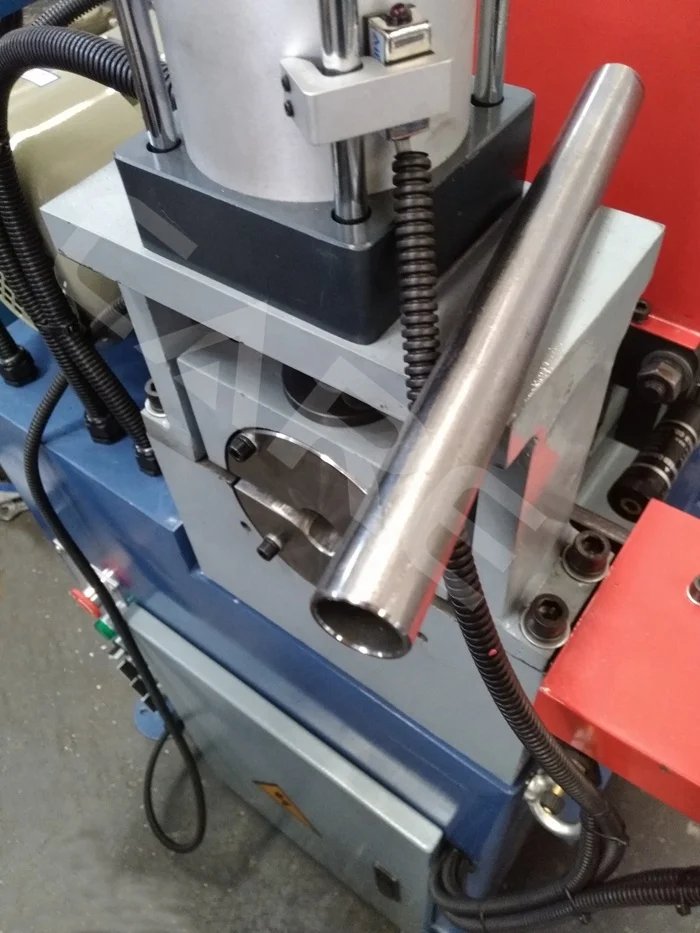

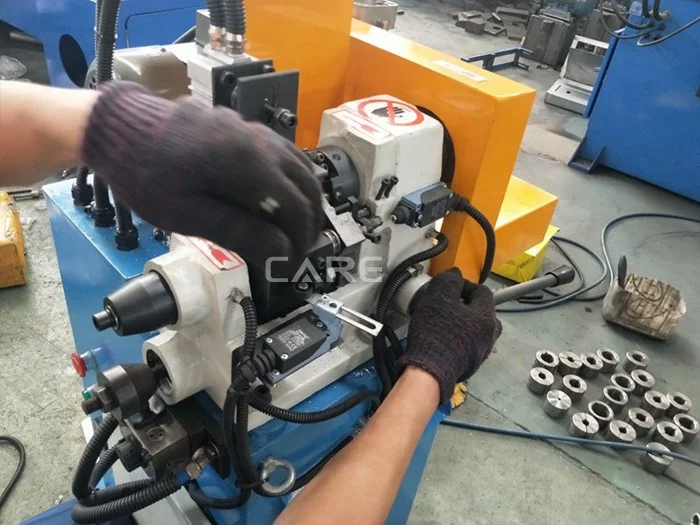

Machine photo



Pipe/rod sample
