Parameters for fiber laser metal cutting machine 3015
Model

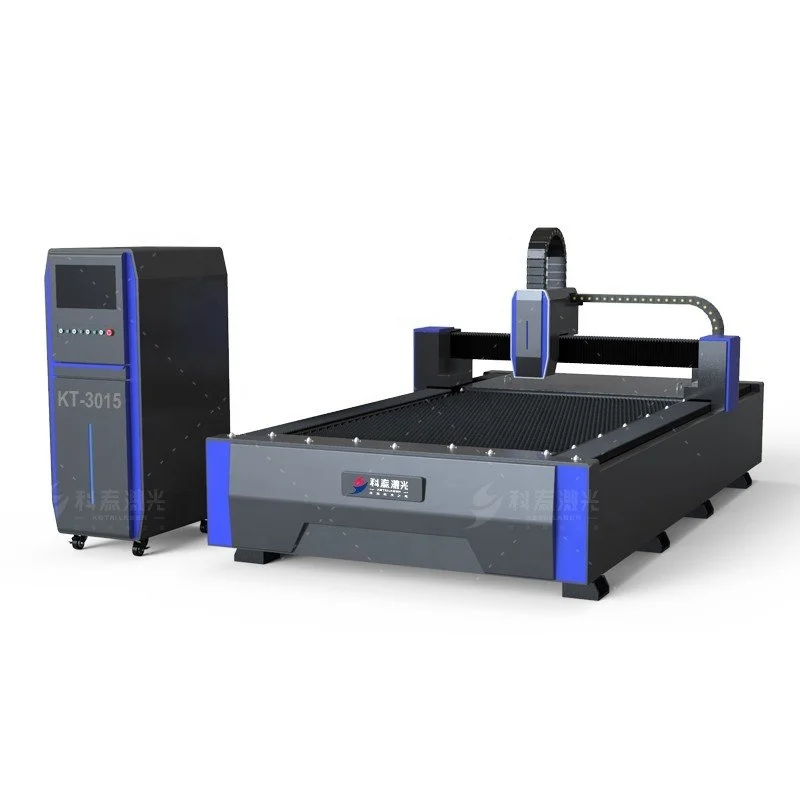

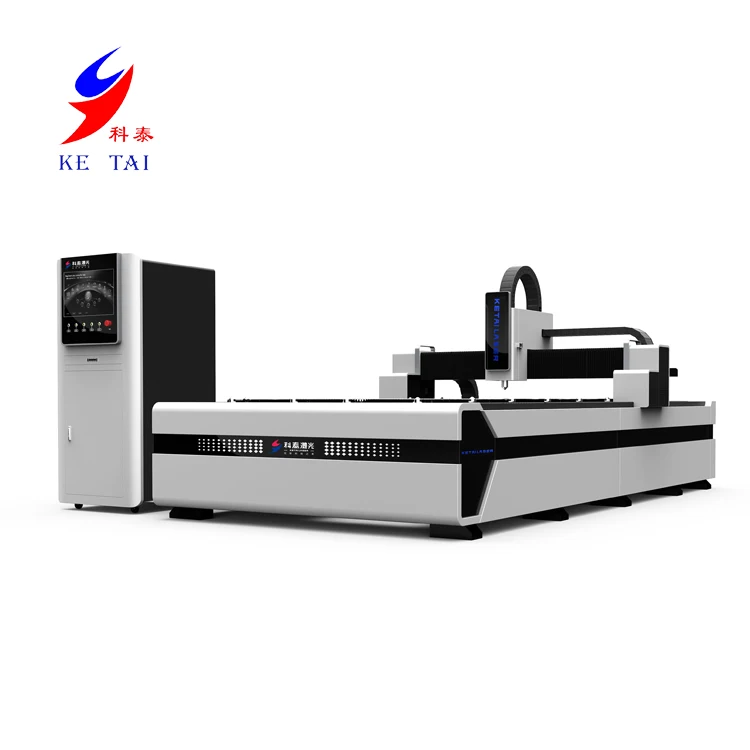

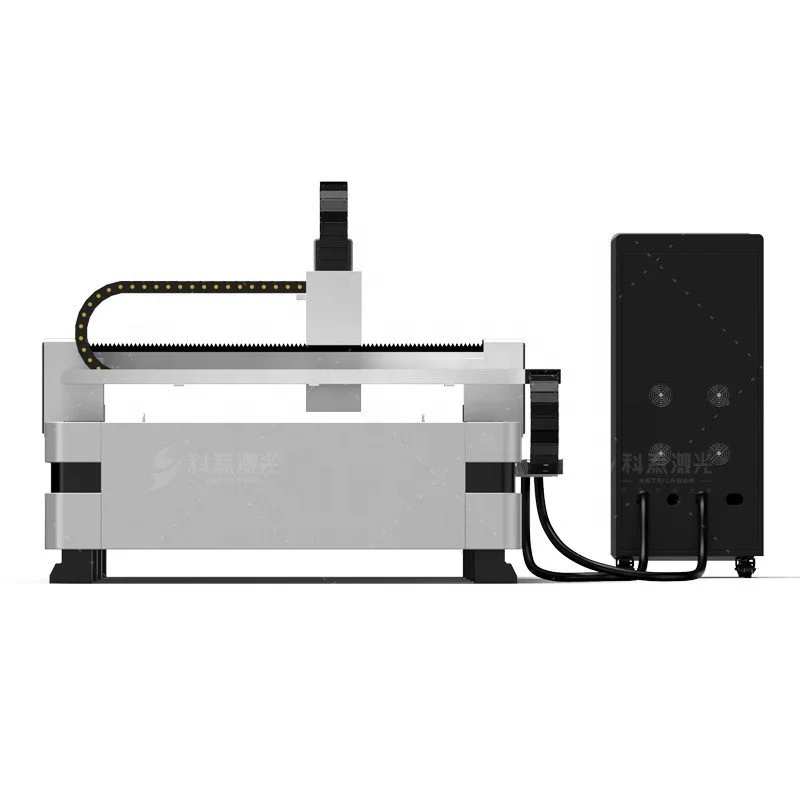

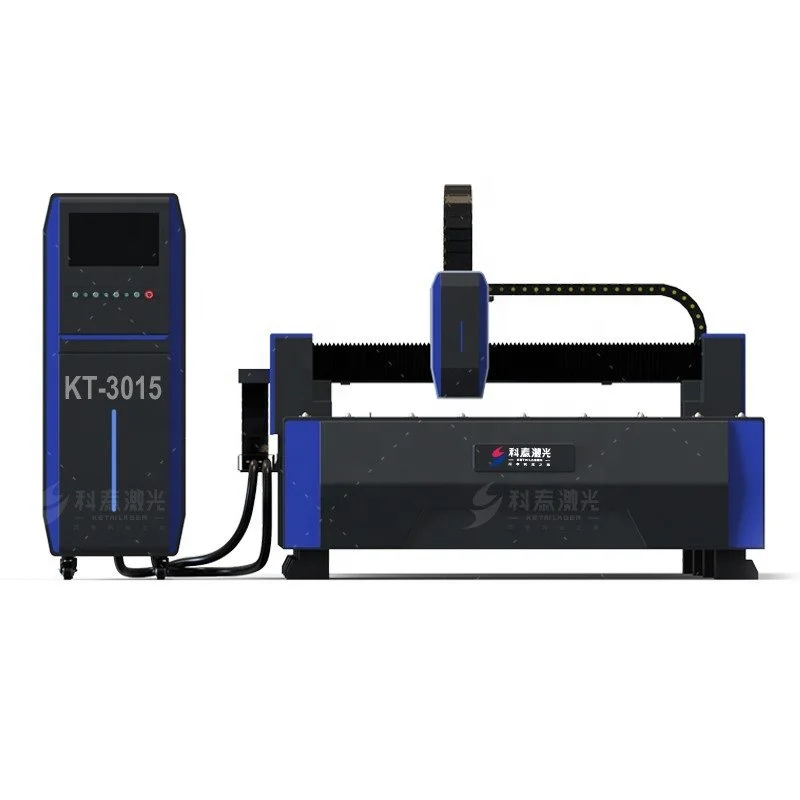

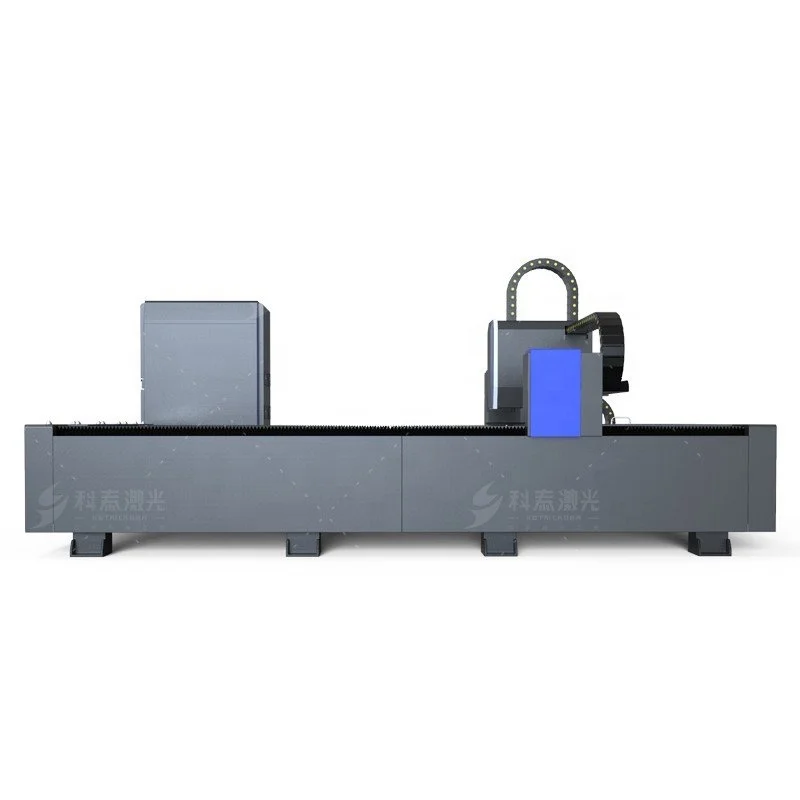

3015 Ffiber laser cutting machine
Working Area
1500*3000mm
Laser Power
500W/1000W(optional 300W)
Laser Wave Length
1064nm
Laser Generator Type
made in China or imported
Working Table
sawtooth
Maximum Idle Running Speed
80m/min
Position Accuracy
±0.05mm/m
Position Speed
20m/min
Minimum Line Width
± 0.02mm
Cutting Thickness
6mm
Control System
Professional laser control system--BOCHU
Position Type
red dot
Power Consumption
12KW
Whole Machine Weight
6000KG
Working Voltage
380V/50Hz
Auxiliary Gas
oxygen,nitrogen,air
Machine Size
4800x2600x1800mm
Advantage of the machine: 1.Spare parts:Servo motor,reduction gear and guide rail,etc are imported with original packaging. 2.Accuracy:Its speed and accuracy are guaranteed by using gear grinding with high precision,imported guide rail and laser cutting head under strict assembly. 3.Cutting:The laser cutting head which is imported with original packaging coordinates with spare parts which have high speed and precision to bring superb cutting quality. 4.The laser generator can be made in China or imported according to request from customers.Both two types can be maintained freely.
Applicable Industry: This machine is widely used in various industries such as advertising decoration,kitchen and kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc. Applicable Materials: This machine is mainly used for rapid cutting on metal plates such as stainless steel,carbon steel,galvanized plate, various alloy,etc.
